RAM MOIUNTS | RAM X-Grip Large Tablet Mount with Handlebar U-Bolt Base

Compatibility

Apple
iPad Air 13 (M2 & M3)

iPad Pro 12.9 (1st-6th Gen)

iPad Pro 13 (M4 & M5)

Dell
Latitude 5285

Latitude 7320

Google
Pixelbook

HP
Elite X2 1012 G1

Elite X2 1012 G2

Pro X2 612

Pro X2 612 G1

Lenovo
IdeaTab Lynx K3011

Miix 720

Yoga A12

Microsoft
Surface 3

Surface Book

Surface Pro (2017)

Surface Pro 3

Surface Pro 4

Surface Pro 5

Surface Pro 6

Surface Pro 7

Surface Pro 8

Surface Pro X

Samsung
Galaxy Book 12"

Galaxy Pro 12.2

Galaxy TabPro S

Galaxy Tab S8 Ultra

Galaxy Tab S10 Ultra

Galaxy Tab S10 FE Plus

Zebra
R12 XSLATE

Additonal Information:
This holder is compatible with the iPad Pro 12.9 without case only.

Description

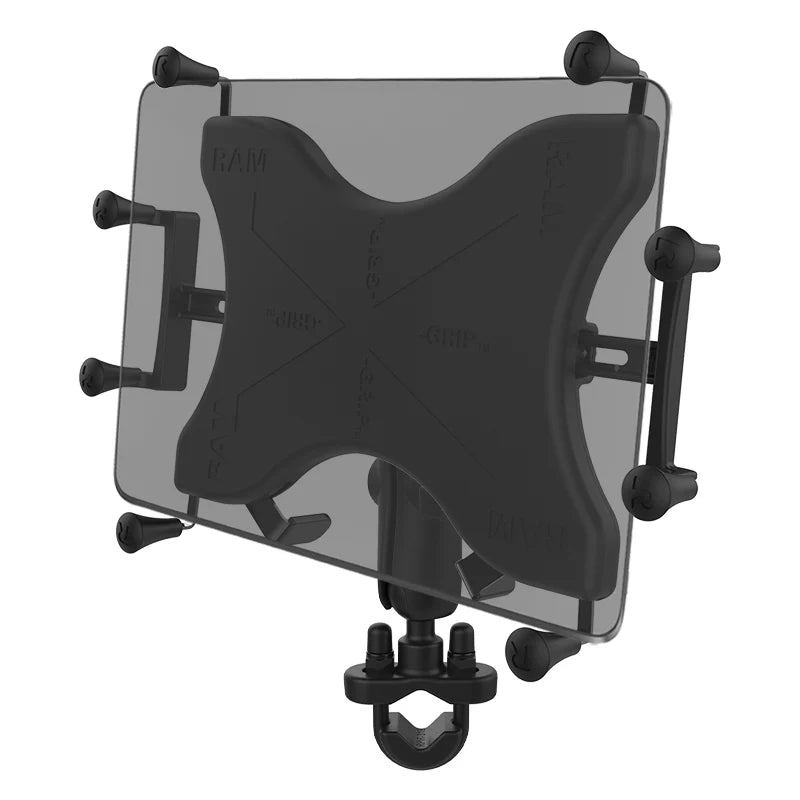

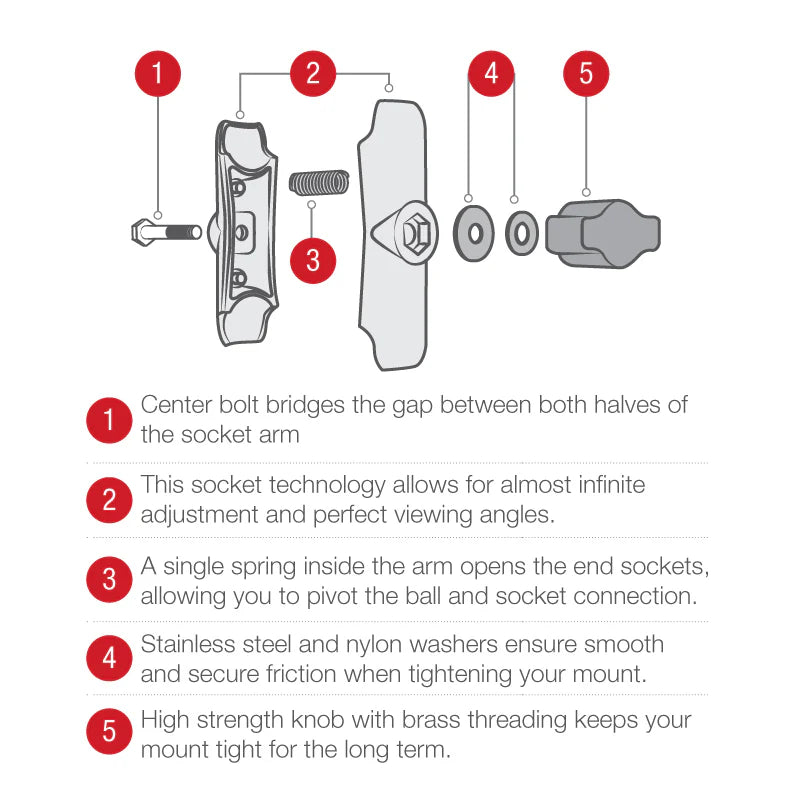

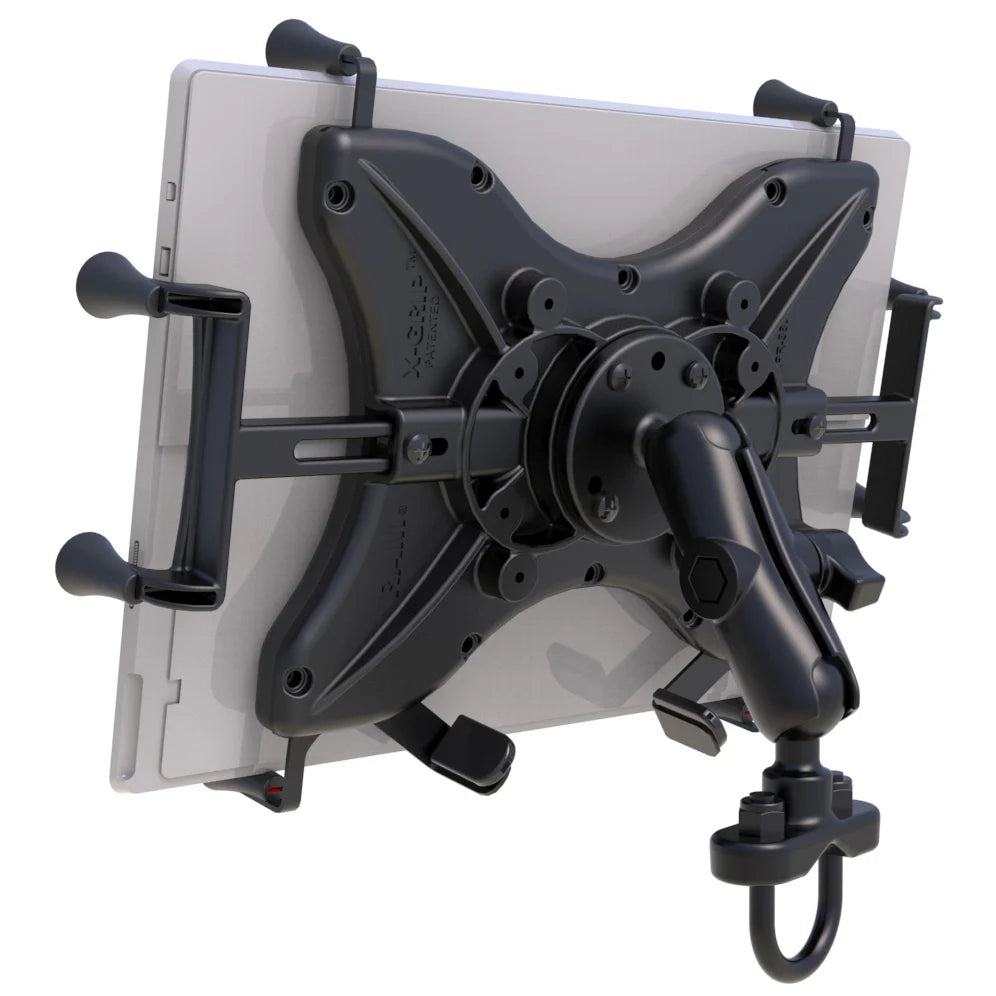

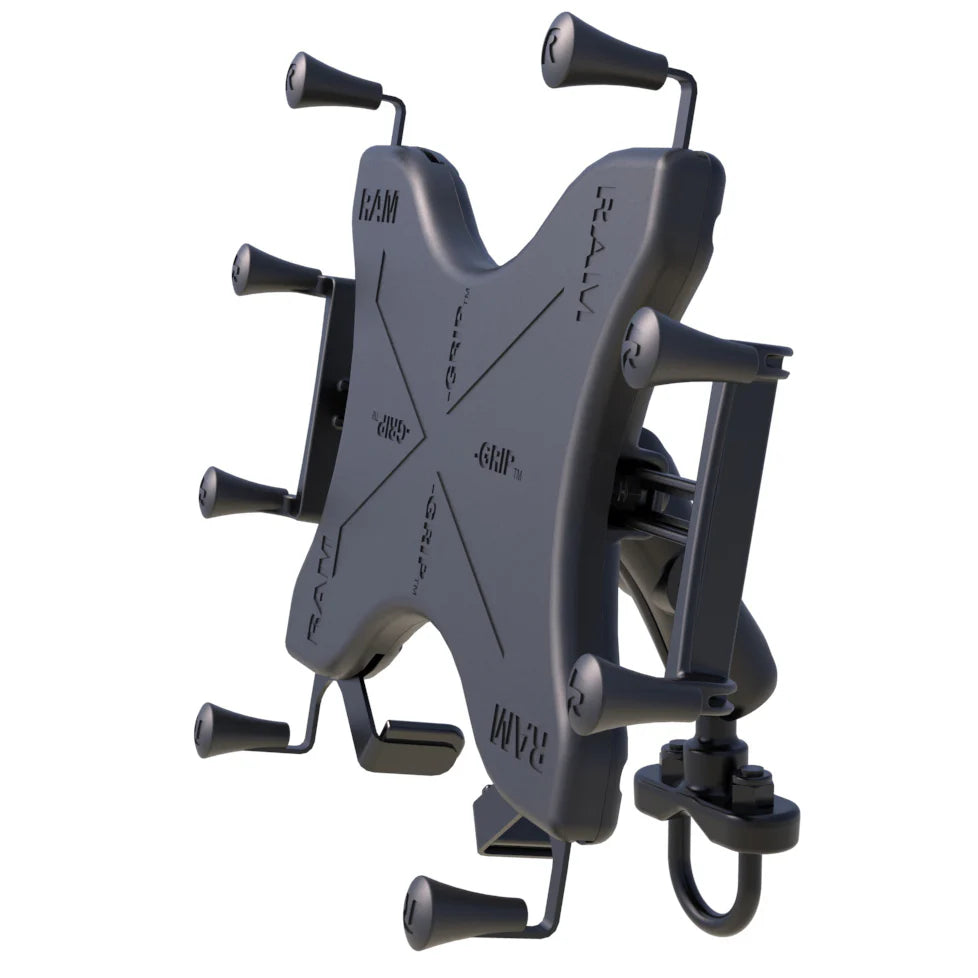

The RAM-B-149Z-UN11U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 12"-13" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12"-13" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.

Features

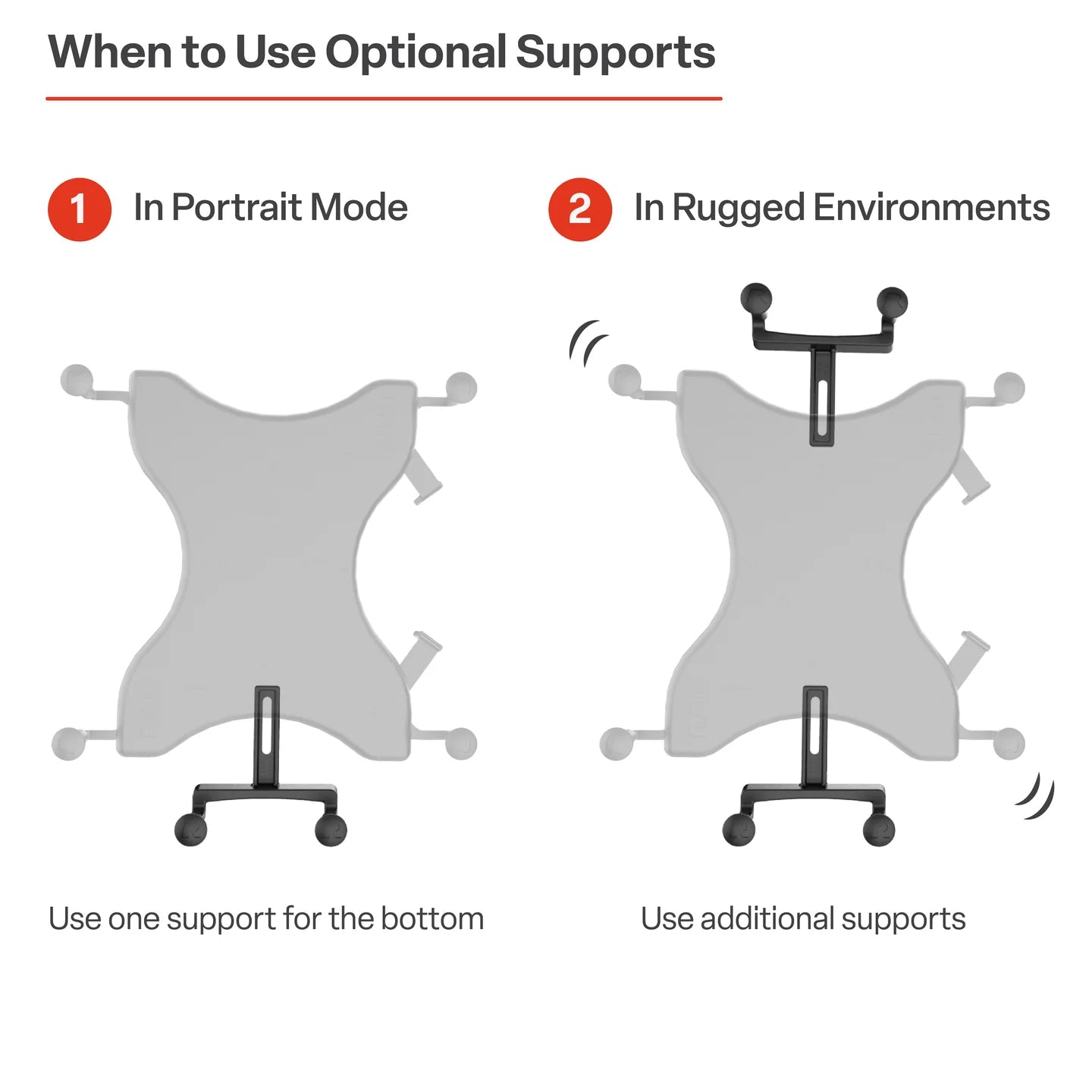

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" - 13" tablets

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Specifications

Hardware included:
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

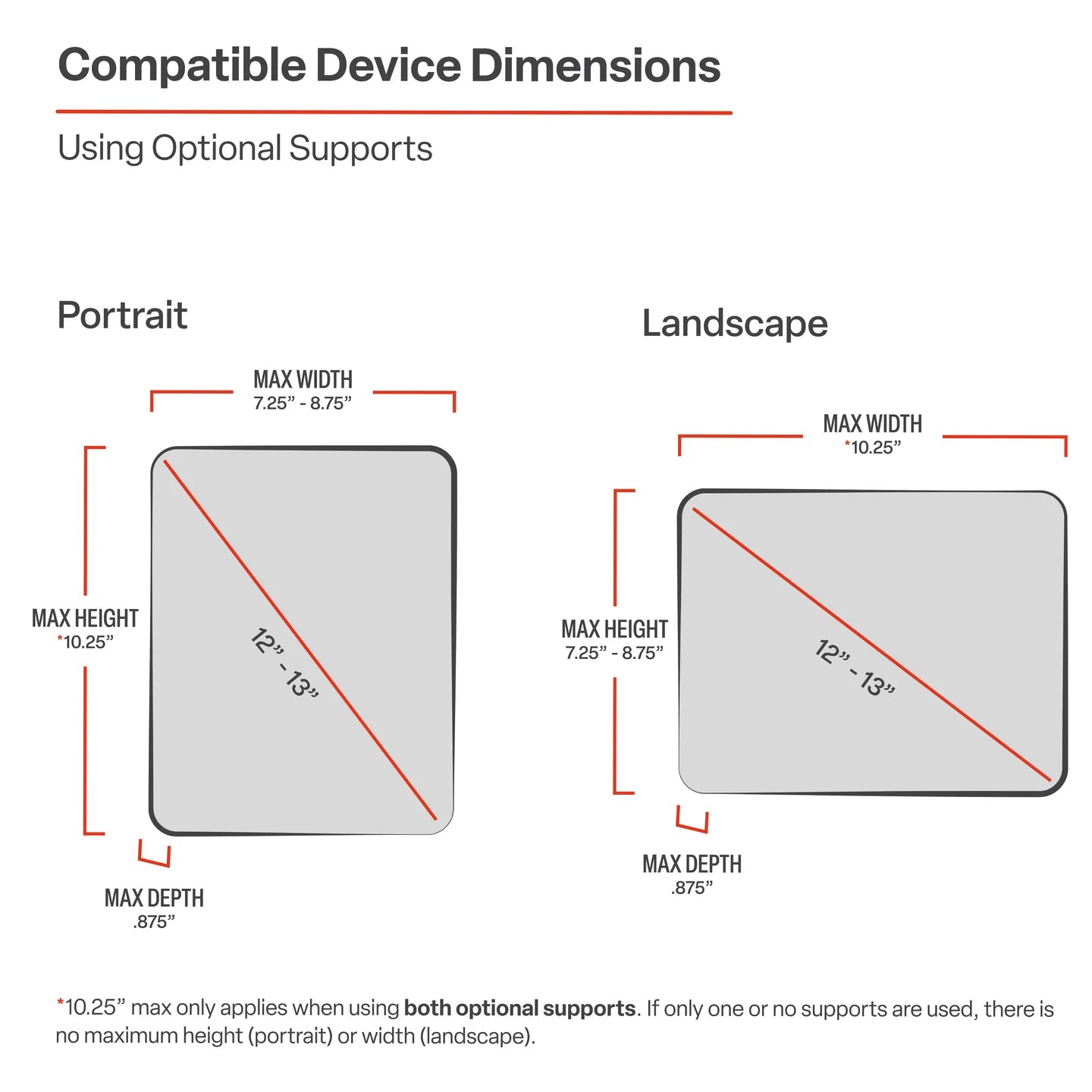

Holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

Clamp range:
.5" - 1.25" diameter

Socket to socket length:
3"

Ball size:
B Size (1")

Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:
Marine-grade aluminum
High strength composite

Packaging type:
Poly Bag

Weight:
1.76 lb

Additional Information:
This holder is compatible with the iPad Pro 12.9 without case only.

Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided).
