OLD MAN EMU | Tacoma 3rd & 2nd Gen 2005-2023 Rear BP-51 Bypass Shock Absorber for Right Side 2"Lift (BP5160011R)
SELECT OPTIONS
Description

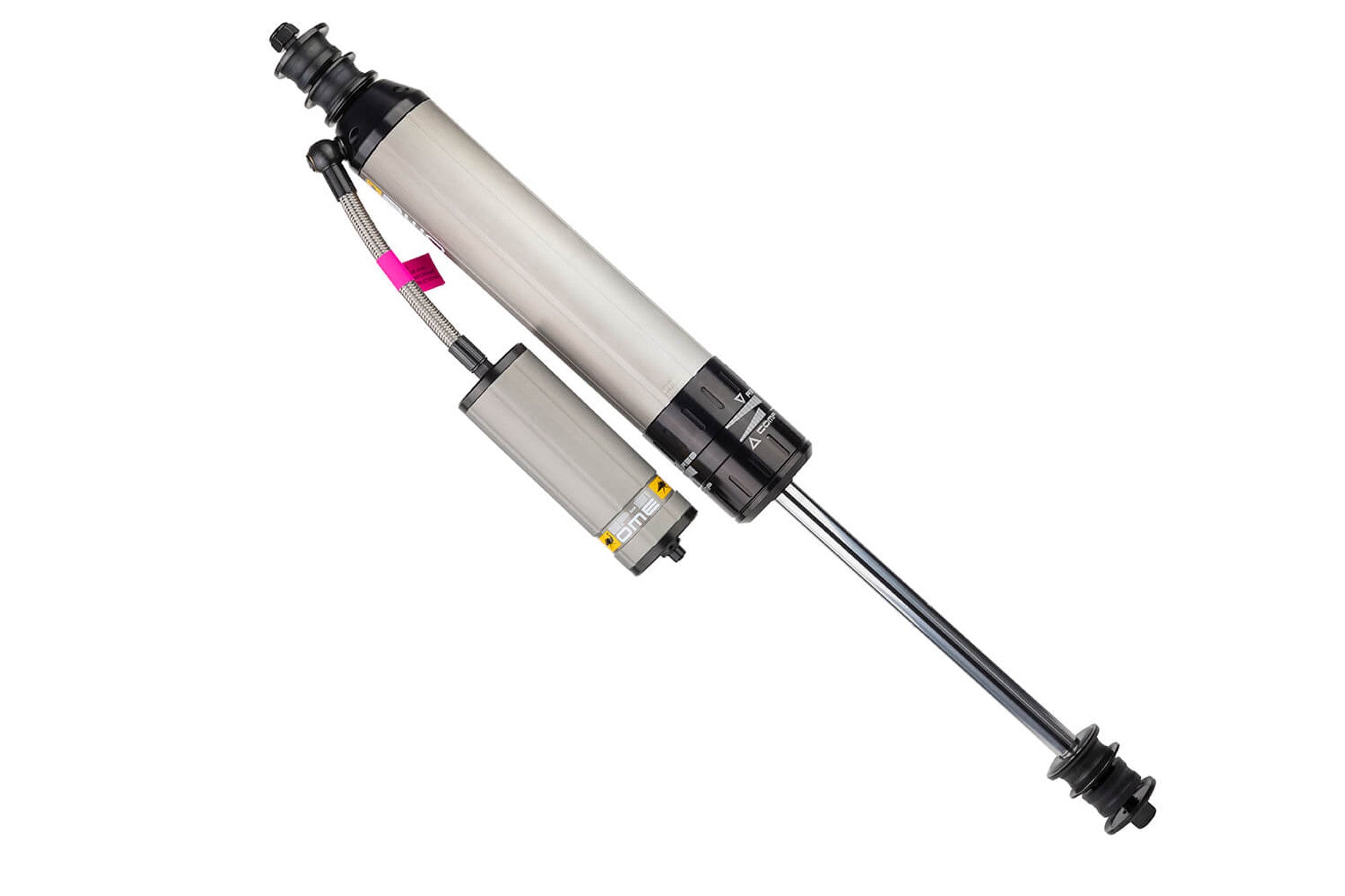

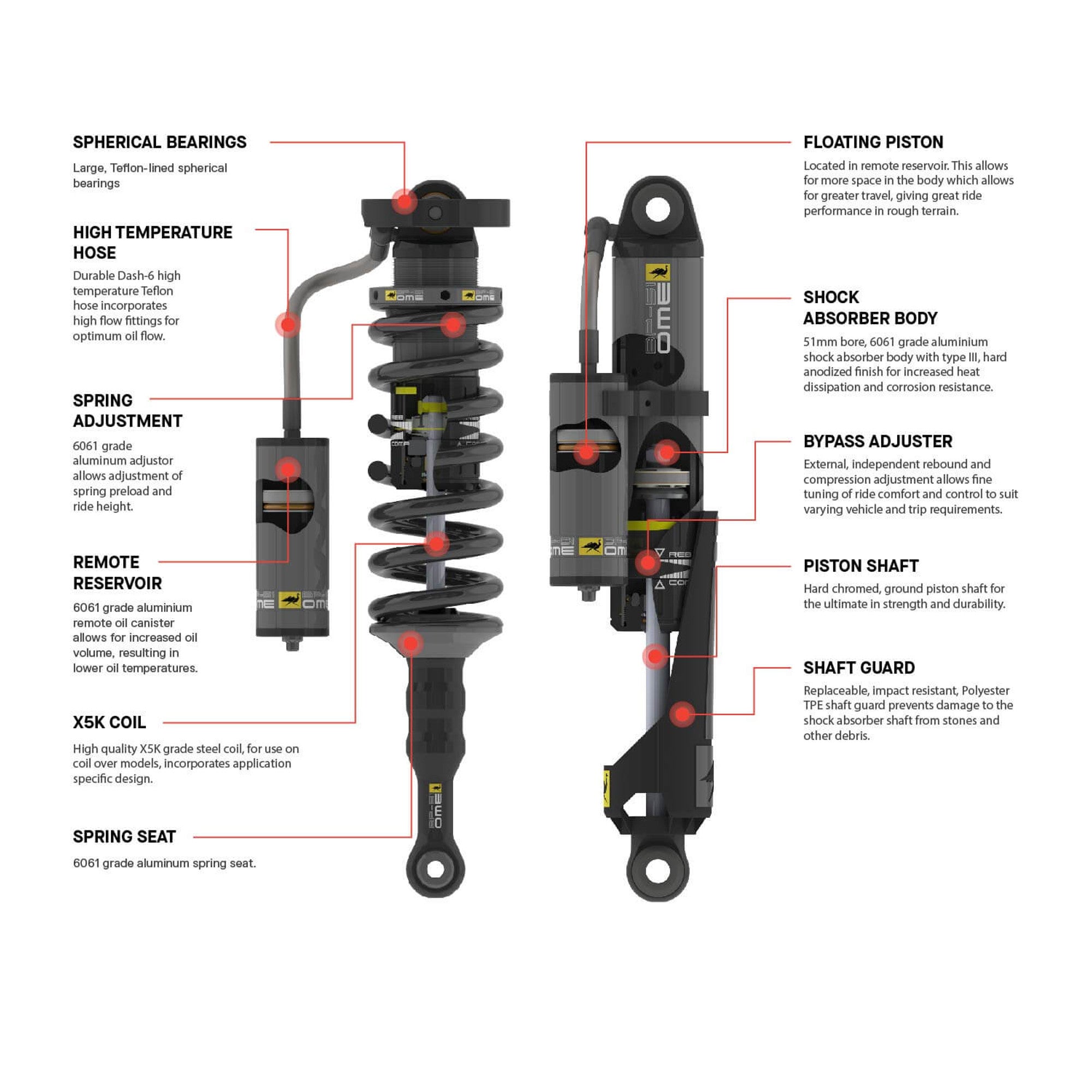

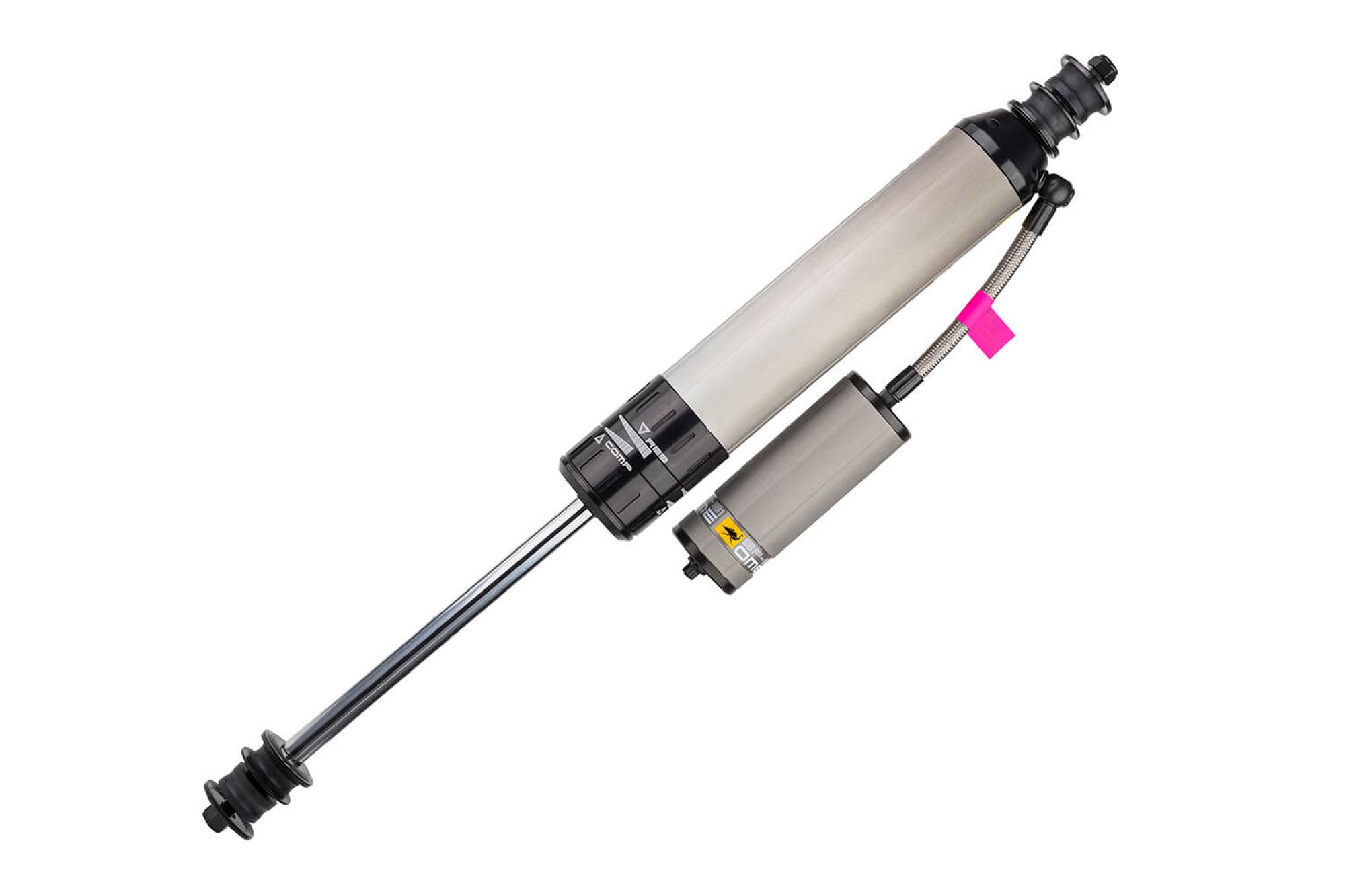

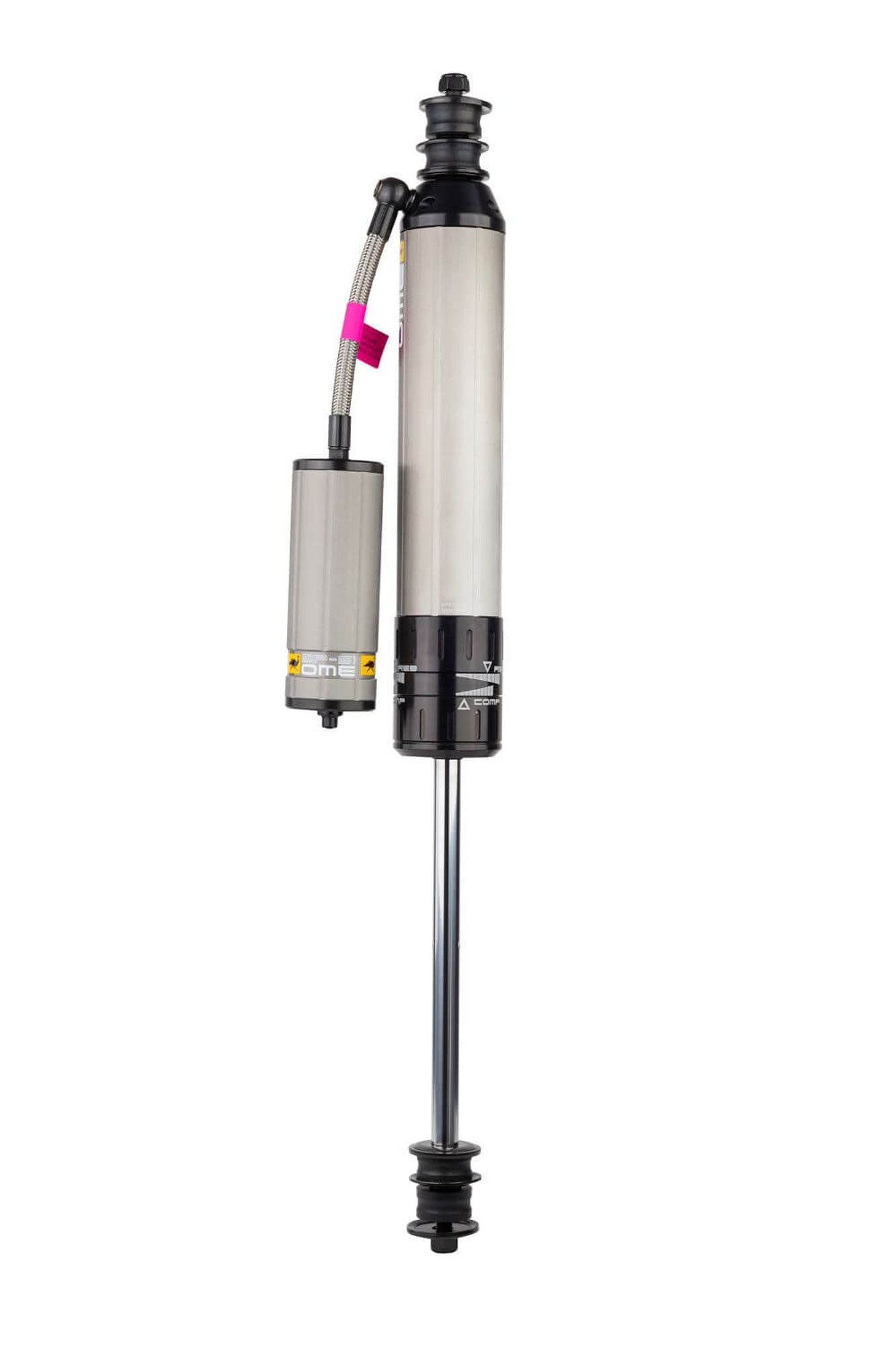

Old Man Emu brings racing technology to every day adventures: BP-51 (Bypass 51mm diameter bore) shock absorbers feature revolutionary, patent pending technology developed to deliver unparalleled on and off road performance. Developed and extensively tested under the harshest conditions in Australia, these big bore, position sensitive bypass shock absorbers with remote reservoir are designed to bolt onto your vehicle without any vehicle modifications and combine considerable ride comfort around town with significant amounts of end-zone damping for exceptional chassis control and handling off road. The damping performance is easily adjustable across a wide range of rebound and compression, resulting in significant changes to the ride performance of your vehicle, enabling a custom tune to suit the conditions and vehicle set up. The body, reservoir and components are all made from 6061 T6 aluminum, Type 3 40 micron hard anodized ensuring exceptional heat dissipation, corrosion resistance and resistance to stone damage. Not only designed, developed and tested entirely by ARB's team of Old Man Emu ride engineers, all BP-51 shock absorbers are manufactured in-house by ARB. In order to achieve this, significant investment has been made in state of the art machinery providing ARB total control of the manufacturing process to ensure the highest possible quality.
- Internal Bypass/Shim Controlled/Position Sensitive Damping
- Provides Comfort At Ride Height
- Damping Increases As You Get Closer To The End Zone
- Increased Control At End Zones
- Maximum Bore Size And Bypass Diameter
- Greater Oil Volume
- More Tunable Ability To Generate Force

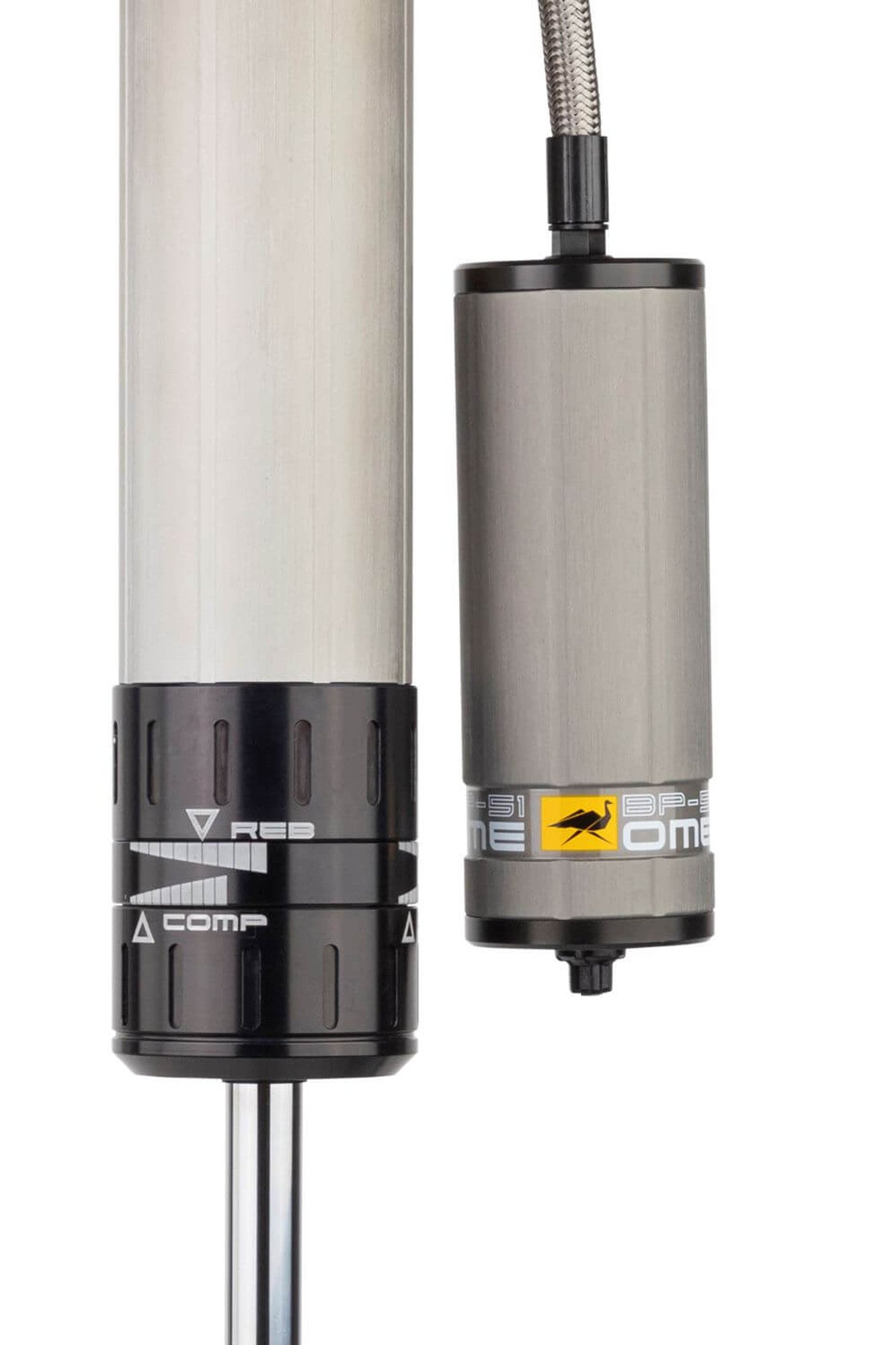

- On Car Adjustable
Specifications
- Color: Grey
- Material: Aluminum
- CA Prop 65: No
- Open Length: 625mm
- Closed Length; 390mm
- Construction: 51mm Bore, 6061 Grade Aluminum Body; Polyethylene Shaft Guard; Rubber: Bushings
- Prop 65: No
- DesignBypass
- Weight: 14.00lbs
Fitment
Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
---|---|---|---|---|---|---|---|
2005-2014 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 2 |
2005-2015 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 4 |
2005-2014 | Toyota | Tacoma | Base | 4 | 6 | GAS | 2 |
2005-2015 | Toyota | Tacoma | Base | 4 | 6 | GAS | 4 |
2016-2022 | Toyota | Tacoma | Edicion Especial | 3.5 | 6 | GAS | 4 |
2016-2023 | Toyota | Tacoma | Limited | 3.5 | 6 | GAS | 4 |
2021-2022 | Toyota | Tacoma | Nightshade | 3.5 | 6 | GAS | 4 |
2005-2010 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 2 |
2005-2015 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 4 |
2005-2010 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 2 |
2005-2015 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 4 |
2017-2022 | Toyota | Tacoma | Sport | 3.5 | 6 | GAS | 4 |
2016-2023 | Toyota | Tacoma | SR | 2.7 | 4 | GAS | 4 |
2016-2023 | Toyota | Tacoma | SR | 3.5 | 6 | GAS | 4 |
2016-2023 | Toyota | Tacoma | SR5 | 2.7 | 4 | GAS | 4 |
2016-2023 | Toyota | Tacoma | SR5 | 3.5 | 6 | GAS | 4 |
2006-2009 | Toyota | Tacoma | SR5 Prerunner | 4 | 6 | GAS | 4 |
2021-2022 | Toyota | Tacoma | Trail | 3.5 | 6 | GAS | 4 |
2016-2023 | Toyota | Tacoma | TRD Off-Road | 3.5 | 6 | GAS | 4 |
2017-2023 | Toyota | Tacoma | TRD Pro | 3.5 | 6 | GAS | 4 |
2016-2023 | Toyota | Tacoma | TRD Sport | 3.5 | 6 | GAS | 4 |
2010-2015 | Toyota | Tacoma | TRD Sport | 4 | 6 | GAS | 4 |
2006-2009 | Toyota | Tacoma | TRD Sport Prerunner | 4 | 6 | GAS | 4 |
2006-2013 | Toyota | Tacoma | X-Runner | 4 | 6 | GAS | 4 |
2005 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 3 |
2005 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 3 |
2005 | Toyota | Tacoma | X-Runner | 4 | 6 | GAS | 3 |
2005 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 3 |
2005 | Toyota | Tacoma | Base | 4 | 6 | GAS | 3 |
2006 | Toyota | Tacoma | Base Prerunner | 4 | 6 | GAS | 4 |
2015 | Toyota | Tacoma | TRD Pro | 4 | 6 | GAS | 4 |
2022 | Toyota | Tacoma | Base | 3.5 | 6 | GAS | 4 |
2023 | Toyota | Tacoma | Trail Special Edition | 3.5 | 6 | GAS | 4 |
(BP5160011R)
