OLD MAN EMU | Tacoma 3rd & 2nd Gen 2005-2023 MT64 Rear Shock Absorber 2" Lift 660lbs Constant Load (MT64601014R)
Quantity:
SELECT OPTIONS
Quantity:
Description
MT64 is specifically designed to cater to the needs of overland and heavy vehicles with extreme added weight, offering unparalleled load handling capabilities and vehicle-specific damping, tuned for different loads and vehicle setups. Multiple snap-ring grooves in the strut body allow for different spring seat positions, providing 0-3 inches of lift when paired with coil springs (application specific). These cutting-edge shocks are built to handle the unique challenges faced by vehicles equipped with campers, toppers, tents, and rack systems. These additions create a dynamic shifting load, both in terms of front-to-back and side-to-side movements. MT64 is the ultimate overlanding authority, designed for the traveler who wants a smooth ride and comfort both on and off-road. Overlanding demands shocks that can handle all conditions, day after day, and that is what MT64 is designed to do.

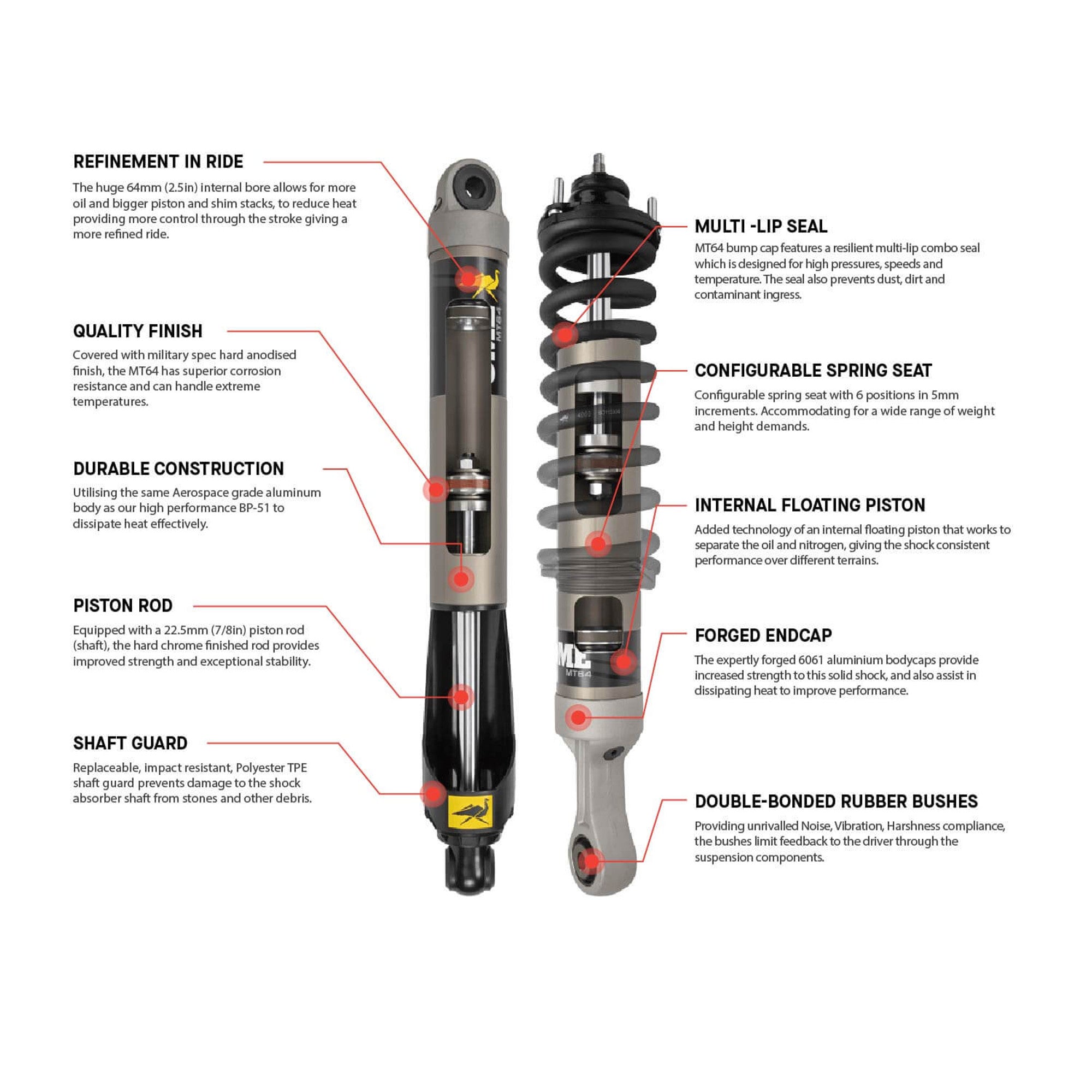

- Monotube with a massive 2.8 inch body allowing for more oil and accurate shock tuning
- Adjustable spring seat offers 0-3 inch of lift depending on the application
- Aerospace grade aluminum body dissipates heat fifteen times faster than steel, and increases protection against stone damage
- Forged body cap and rod ends reduce weight while maintaining strength
- Digressive valving instantly reacts to changing surface conditions to maximize performance
- Smooth controlled ride for everyday and long-distance driving to reduce fatigue and improve driver and passenger comfort
- Vehicle specific tuning
- Direct replacement for stock and aftermarket lift kit
Specifications
- Color: Gray
- Material: Aluminum
- CA Prop 65: No
- Lift Height; 0-3 in
- Fitting Time: 15 minutes
- Closed Length: 15.4 in
- Type: Shock
- Seals: Independent wiper
- Bushes: Natural rubber
- Design: Monotube
- Valving: Digressive
- Body Size: 2.8 in
- Reservoir: Internal
- Top Mount: OEM
- Shaft Size: 7/8 in
- Extended Length: 23.6 in
- Lower Mount Type: Eye
- Upper Mount Type: Pin
- Compressed Length: 15.4 in
- Adjustable Damping: No
- Lower Mount Bush Kit: VD50020001SP
- Upper Mount Bush Kit: VM50010005SP
- Shaft Guard Replacement: VD31020240SP
- Prop 65: No
- Weight: 14.00lbs
Fitment
| Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
|---|---|---|---|---|---|---|---|
| 2005-2014 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 2 |
| 2005 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 4 |
| 2005-2014 | Toyota | Tacoma | Base | 4 | 6 | GAS | 2 |
| 2005 | Toyota | Tacoma | Base | 4 | 6 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Base | 4 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | Limited | 3.5 | 6 | GAS | 4 |
| 2005-2010 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 2 |
| 2005 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 4 |
| 2005-2010 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 2 |
| 2005 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR | 2.7 | 4 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR | 3.5 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR5 | 2.7 | 4 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR5 | 3.5 | 6 | GAS | 4 |
| 2021 | Toyota | Tacoma | Trail | 3.5 | 6 | GAS | 4 |
| 2023 | Toyota | Tacoma | Trail Special Edition | 3.5 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road | 3.5 | 6 | GAS | 4 |
| 2017-2023 | Toyota | Tacoma | TRD Pro | 3.5 | 6 | GAS | 4 |
| 2015 | Toyota | Tacoma | TRD Pro | 4 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | TRD Sport | 3.5 | 6 | GAS | 4 |
| 2005 | Toyota | Tacoma | X-Runner | 4 | 6 | GAS | 3 |
| 2006-2013 | Toyota | Tacoma | X-Runner | 4 | 6 | GAS | 4 |
(MT64601014R)
