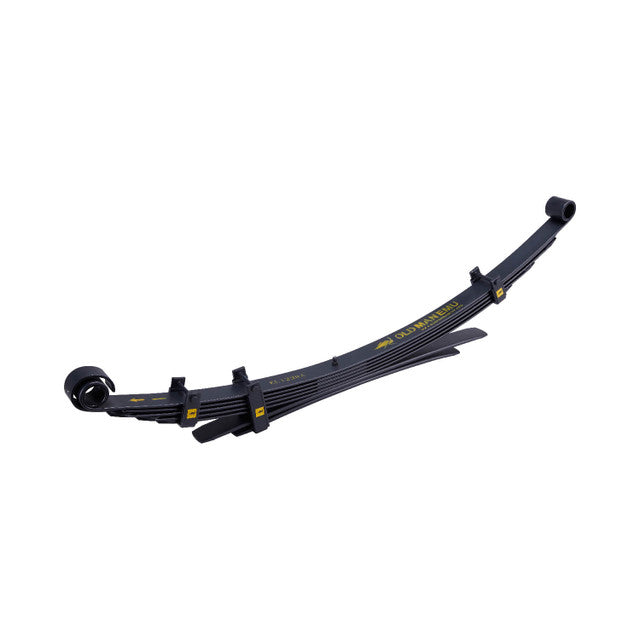

OLD MAN EMU | Tacoma 1st Gen 1998-2004 Rear Leaf Spring 2"Lift No Load (EL122RA)
Quantity:
SELECT OPTIONS
Quantity:
Description
Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
- Draw-tapered and diamond cut leaves
- Bolted leaf clamps allow installation of anti-squeak nylon liners
- Fully scragged to reduce the risk of sagging
- Load tested to ensure the spring meets the required specification
- Military wrap design provides added safety
- Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
- Flat axle seat area allows a positive, safe axle mount and reduces spring stress
- Shot peened to reduce spring stress and increase spring life
- Two-stage leaf pack featured on most rear springs for optimum comfort
Specifications
- Color: Black
- Weight: 57.8lbs
- Material: Steel
- CA Prop 65: No
- Spring Rate: 120 / 283 lbf/in
- Eye Diameter: 40 mm (F) / 40 mm (R)
- Number Of Leaves: 5+2
- Primary Free Camber: 204 mm
- Prop 65: No
| Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
|---|---|---|---|---|---|---|---|
| 1998-2004 | Toyota | Tacoma | Base | 2.4 | 4 | GAS | 2 |
| 1998-2004 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 2 |
| 1998-2004 | Toyota | Tacoma | Base | 3.4 | 6 | GAS | 2 |
| 1998-2003 | Toyota | Tacoma | DLX | 2.4 | 4 | GAS | 2 |
| 1998-2003 | Toyota | Tacoma | DLX | 2.7 | 4 | GAS | 2 |
| 1998-2003 | Toyota | Tacoma | DLX | 3.4 | 6 | GAS | 2 |
| 1998-2000 | Toyota | Tacoma | Limited | 3.4 | 6 | GAS | 2 |
| 1998-2004 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 2 |
| 2001-2004 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 4 |
| 1998-2004 | Toyota | Tacoma | Pre Runner | 3.4 | 6 | GAS | 2 |
| 2001-2004 | Toyota | Tacoma | Pre Runner | 3.4 | 6 | GAS | 4 |
| 2001-2004 | Toyota | Tacoma | S-Runner | 3.4 | 6 | GAS | 2 |
| 1998-2000 | Toyota | Tacoma | SR5 | 2.4 | 4 | GAS | 2 |
| 1998-2000 | Toyota | Tacoma | SR5 | 2.7 | 4 | GAS | 2 |
| 1998-2000 | Toyota | Tacoma | SR5 | 3.4 | 6 | GAS | 2 |
| 2004 | Toyota | Tacoma | Base | 2.4 | 4 | GAS | 4 |
| 2004 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 4 |
|
2004 |
Toyota | Tacoma | Base | 3.4 | 6 | GAS | 4 |
(EL122RA)
