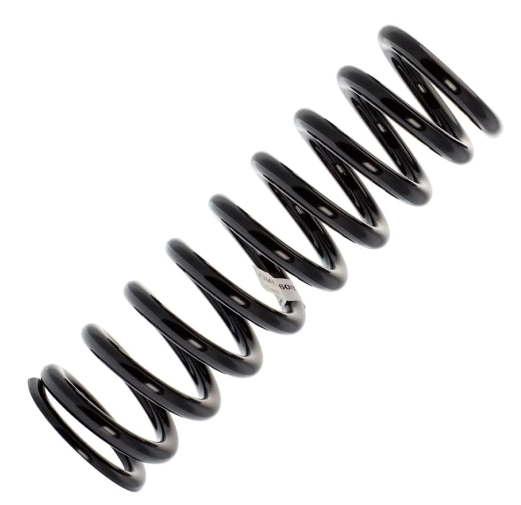

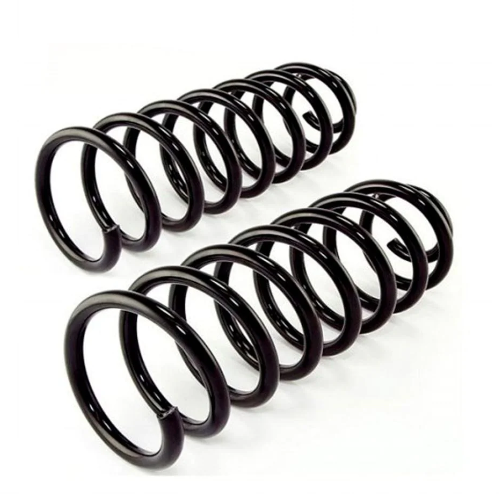

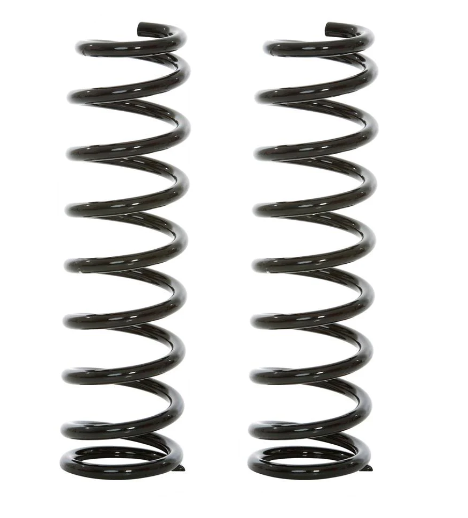

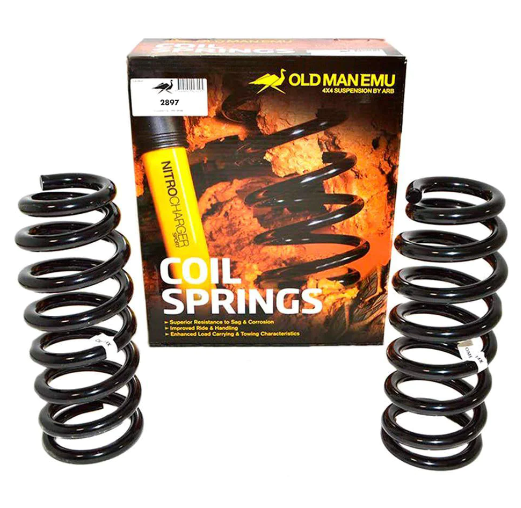

OLD MAN EMU | 4Runner & Prado 120 Series 2003-2022 Rear Coil Springs (2897)

Description

ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state-of-the-art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion.

With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage. While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine-tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

Important Notes

 For Toyota 4 Runner 2010-2022:

OME661 Lower Shock Mount Stone Guard is recommended fitment to rear shocks to protect against severe stone peppering encountered on loose road surfaces (Not Included)

Features

Effective Desing

• Springs are formed on precision mandrels.
• Scragging before and after shot peening to prevent sagging.
• Constant and variable rate coils are available for multiple applications.
• Coil spring end configurations are designed to exact specifications guaranteeing perfect fitment to your vehicle.
• Ride height increases are attained, emphasis is placed on ride control improvements.

Oxidations Protection

• Durable powder coat finish.

Easy Installation

• Can directly replace the OE components, no custom installation required.

Springs

• Factory geometry allows for a 1” lift and still maintains an adequate level of droop.
• Specific kits have been developed for both gas and diesel models.
• In addition, a 5mm trim packer is available to assist with the fine-tuning of ride heights and trimming the vehicle from side to side."

Specifications

Dimensions (L x W x H):

14 x 12 x 7 inches.

Part number:

2897

UPC:

9319092023141.

Weight:

30.69 lbs.

Bar Size:

18mm.

Free Length:

390mm

Suitable for:

TOYOTA 4RUNNER 2010 - 2022.
TOYOTA 4RUNNER 2003 - 2010.
TOYOTA PRADO 120 SERIES 4/2003 TO 2009 LWB & SWB.
TOYOTA FJ CRUISER 2010 - 2016.

Fitment

Toyota

• Model: 4Runner
• Year 2003-2015
