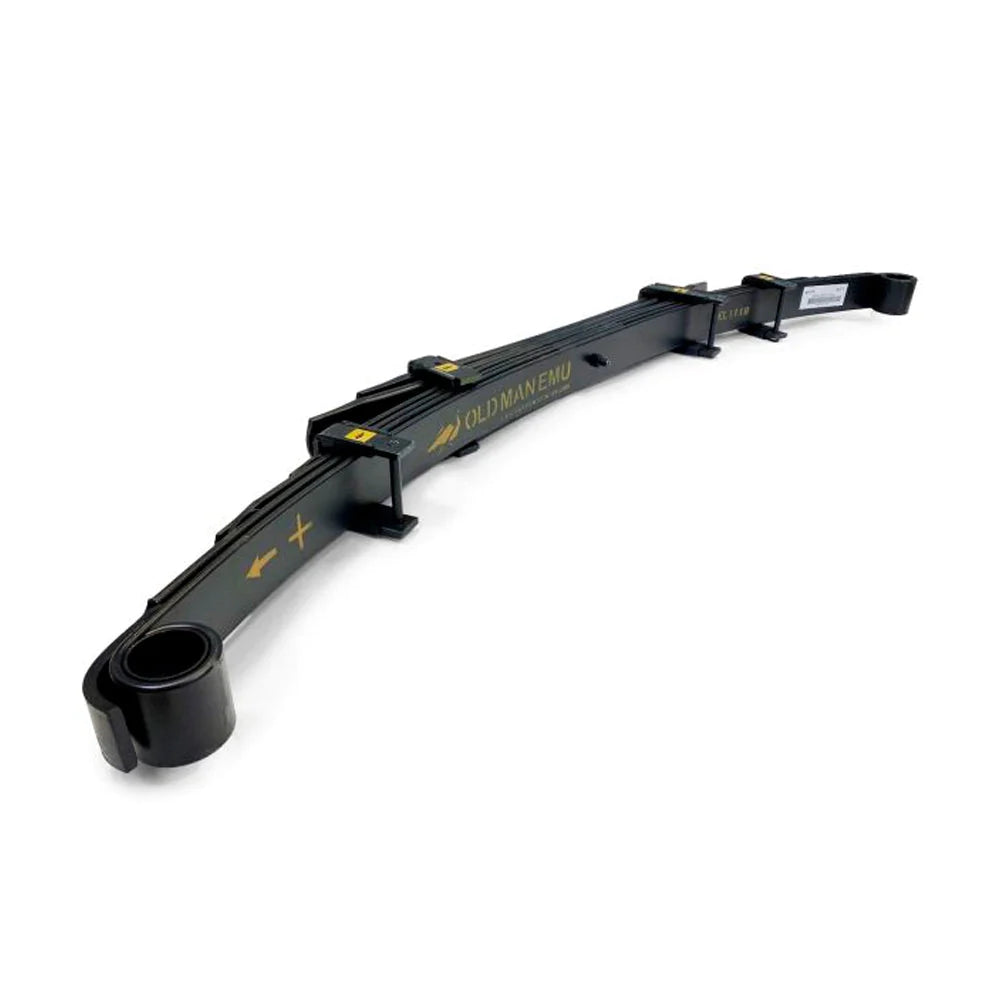

OLD MAN EMU | Toyota Tacoma OME Rear Leaf Spring Medium Load 1.5 inch Lift Old Man Emu (EL111R)

Description

PROGRESSIVELY DISTRIBUTED

Draw-tapered and diamond-cut leaves ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends, increasing ride comfort and longevity.
Leaf clamps are bolted to allow the installation of anti-squeak nylon liners.
Fully scragged to ensure the spring takes a permanent ‘set’ which reduces the risk of sagging.
Load testing ensures the spring meets the required specification.
Military wrap designed to provide added safety.
Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips where the load is the greatest.
A flat axle seat area allows a positive, safe axle mount reducing spring stress and increasing spring life.
The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.

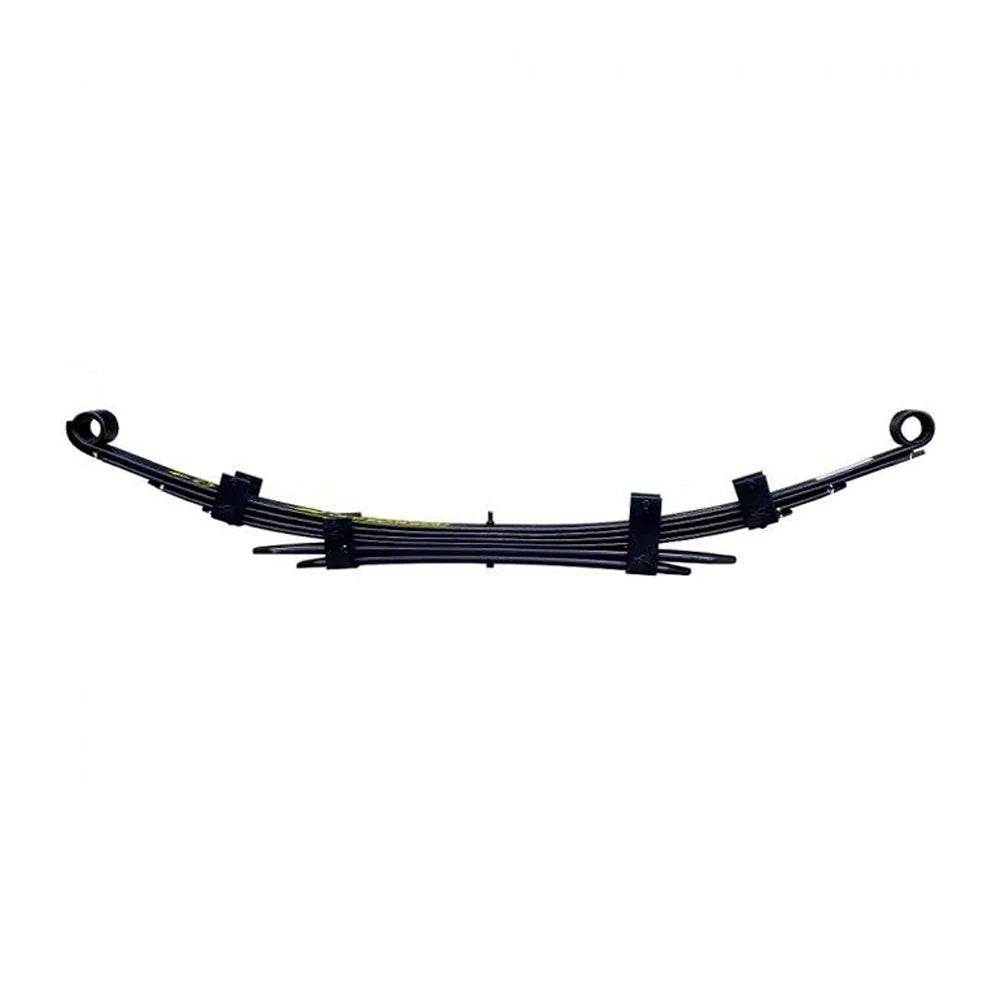

Two-stage leaf pack featured on most rear springs for optimum comfort. When unladen, the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
Important Notes:

Sold individually. If you need a pair, please order 2 items.
MEDIUM LOAD: Full passenger load with luggage weight varying from 440lbs to 771LB.

Important Notes:

Sold individually. If you need a pair, please order 2 items.
MEDIUM LOAD: Full passenger load with luggage weight varying from 440lbs to 771LB.

About this product

Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions in which they operate.

Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature-packed, a set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4×4 shock absorbers will deliver vastly improved ride, handling, and load-carrying capability.

Specifications

Product Dimensions (L x W x H): 55.00 X 3.00 X 10.00 Inches.
Designed and manufactured in Australia.
Part number: EL111R.
Weight. 62.00 lbs.
Fitment:
2016 - 2022 Toyota Tacoma.
2005 - 2015 Toyota Tacoma.

Fitment

Toyota

• Model: Tacoma
• Year: 2005-2023
