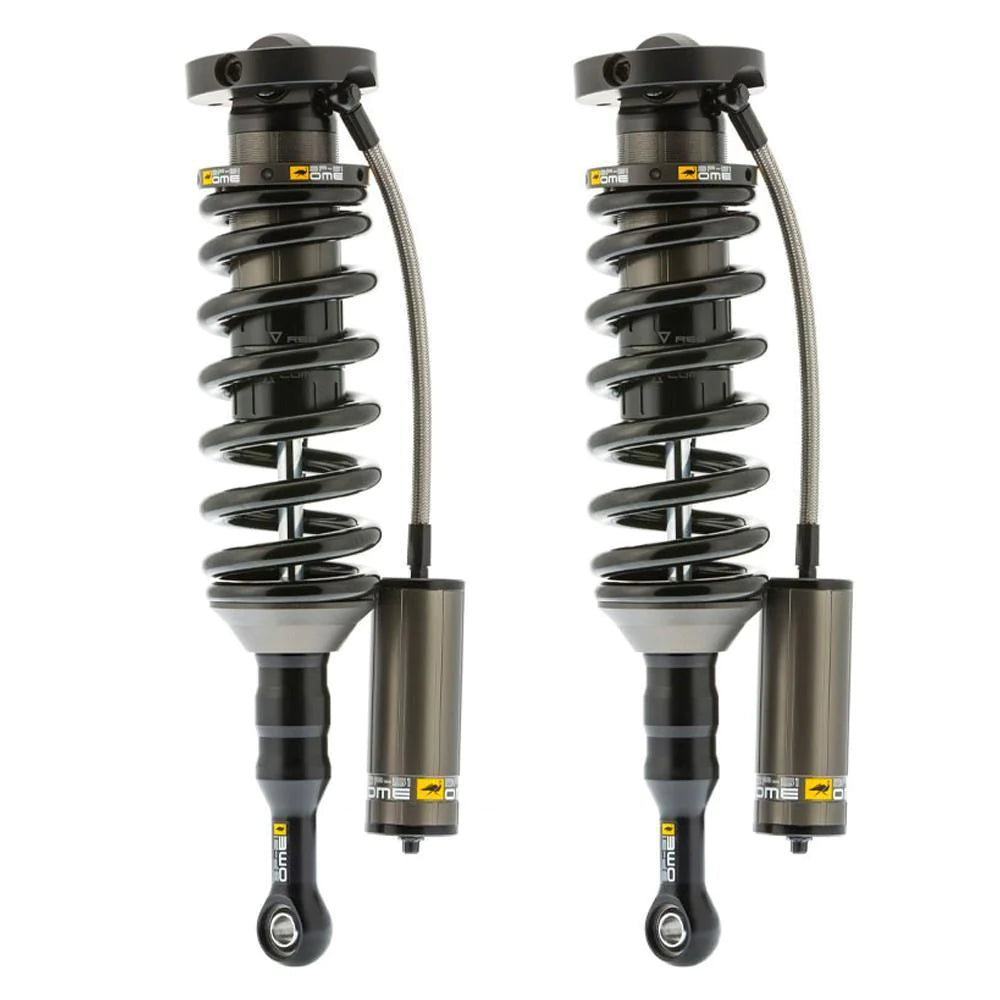

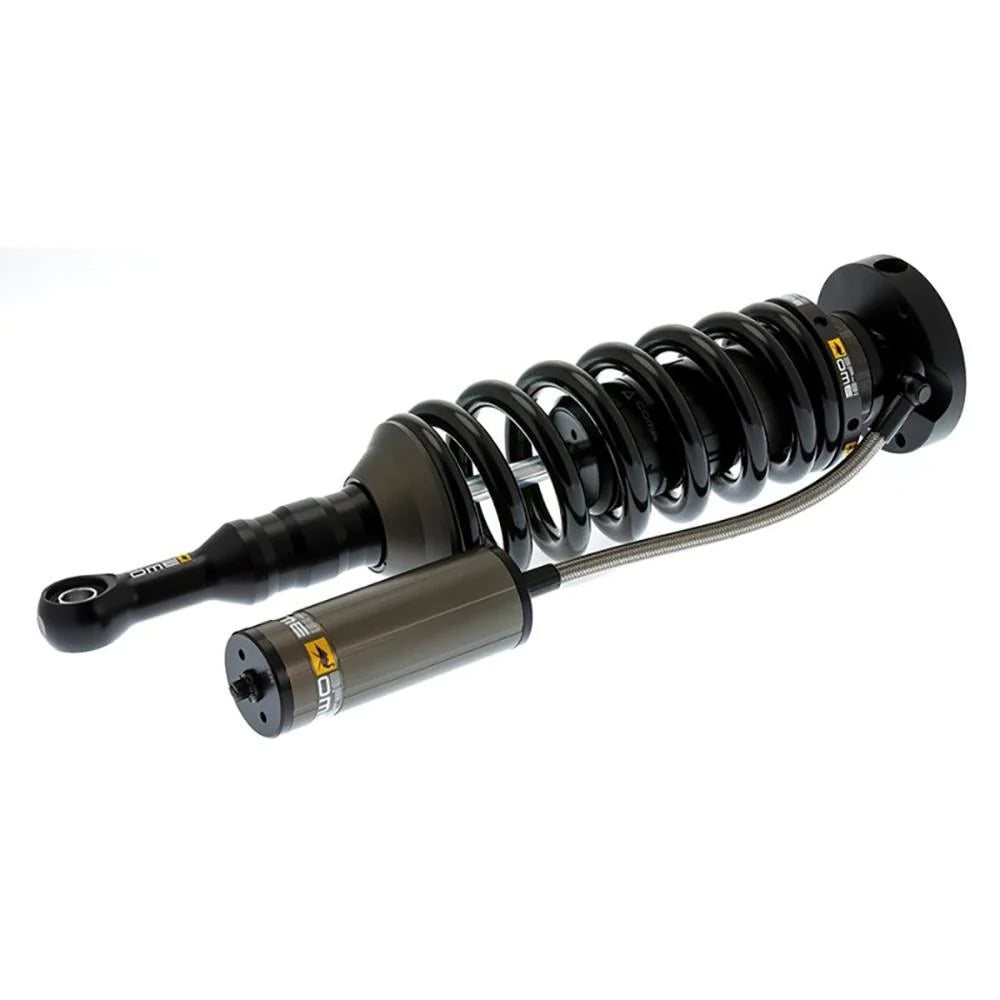

OLD MAN EMU | OME BP-51 Front Coilover RH for Toyota 4Runner, FJ Cruiser, Prado Old Man Emu (BP5190002R)

Description

REMOTE RESERVOIR

6061-grade aluminum remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

HIGH-TEMPERATURE HOSE

Durable Dash 6 high-temperature Teflon hose incorporates high flow fittings for optimum oil flow.

SPRING ADJUSTMENT

6061-grade aluminum adjustor allows adjustment of spring preload and ride height

X5K COIL

High-quality X5K grade steel coil, for use on coil-over models, incorporates application-specific design.

SHOCK ABSORBER BODY

51mm bore 6061-grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance

RACE TECHNOLOGY CLEVERLY PACKAGED FOR EVERYDAY 4WDS

Traditionally, the bypass shock design incorporates a number of tubes that run external of the shock absorber body in order for the hydraulic fluid to bypass the internal piston. This design has prevented bypass shocks from being incorporated into everyday vehicles without expensive modifications due to dimensional constraints; especially modern coil-over independent suspension. BP-51 uses a unique extruded alloy body where the tubes are replaced by passages within the shock absorber body, allowing it to fit into tighter confines such as inside a coil spring.

About this product

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

Specifications

• Dimensions (L x W x H): 29.53 x 9.53 x 5.51inches.

• Part number: BP5190002R.

• UPC: 9332018035837.

• 1 Right front.
• Weight: 33 lbs.

• Designed and manufactured in Australia.

• Suitable for:
• TOYOTA PRADO 150 SERIES 10/2017 ON LWB3.
• TOYOTA PRADO 150 SERIES TO 09/2017 LWB3.
• TOYOTA PRADO 120 SERIES 4/2003 TO 2009 LWB & SWB.
• TOYOTA FJ CRUISER 2010 -2022.
• TOYOTA 4 RUNNER 2010 -2022 (USA MODEL).

Fitment

Lexus

• Model: GX460
• Year: 2010-2022
• Model: GX470
• Year: 2003-2010

Toyota

• Model: 4Runner
• Year: 2003-2022
• Model: FJ Cruiser
• Year: 2010-2016
