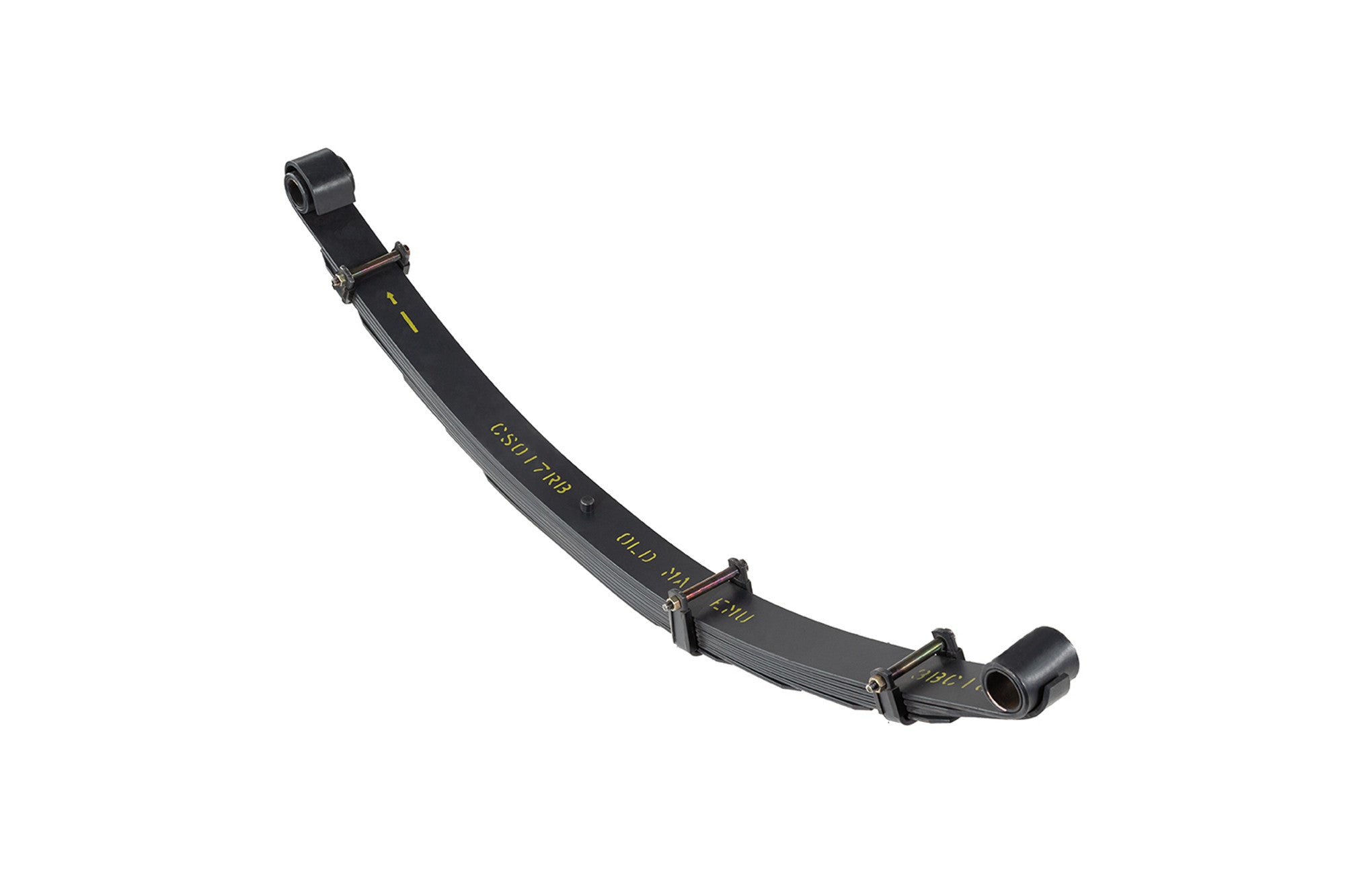

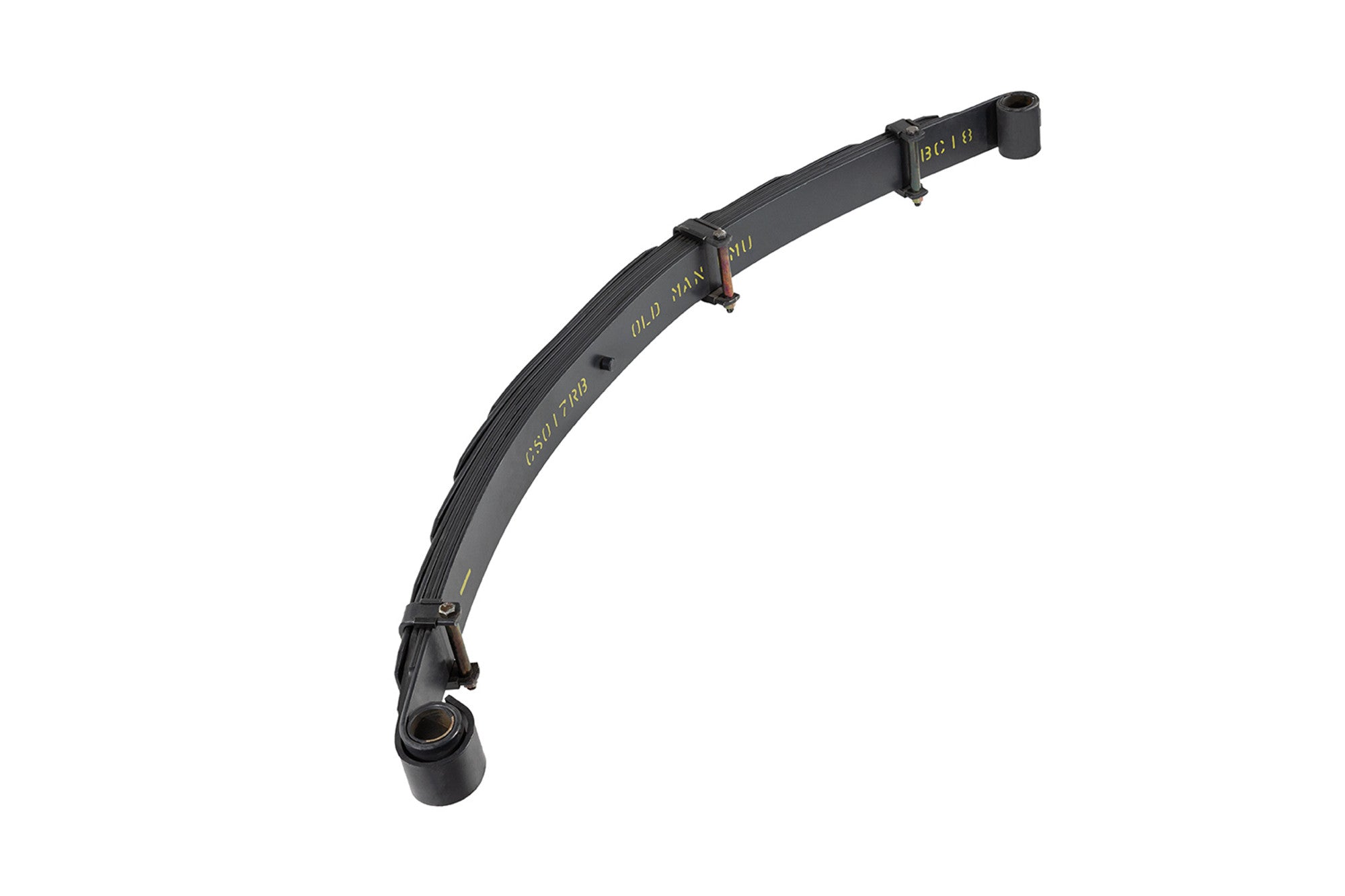

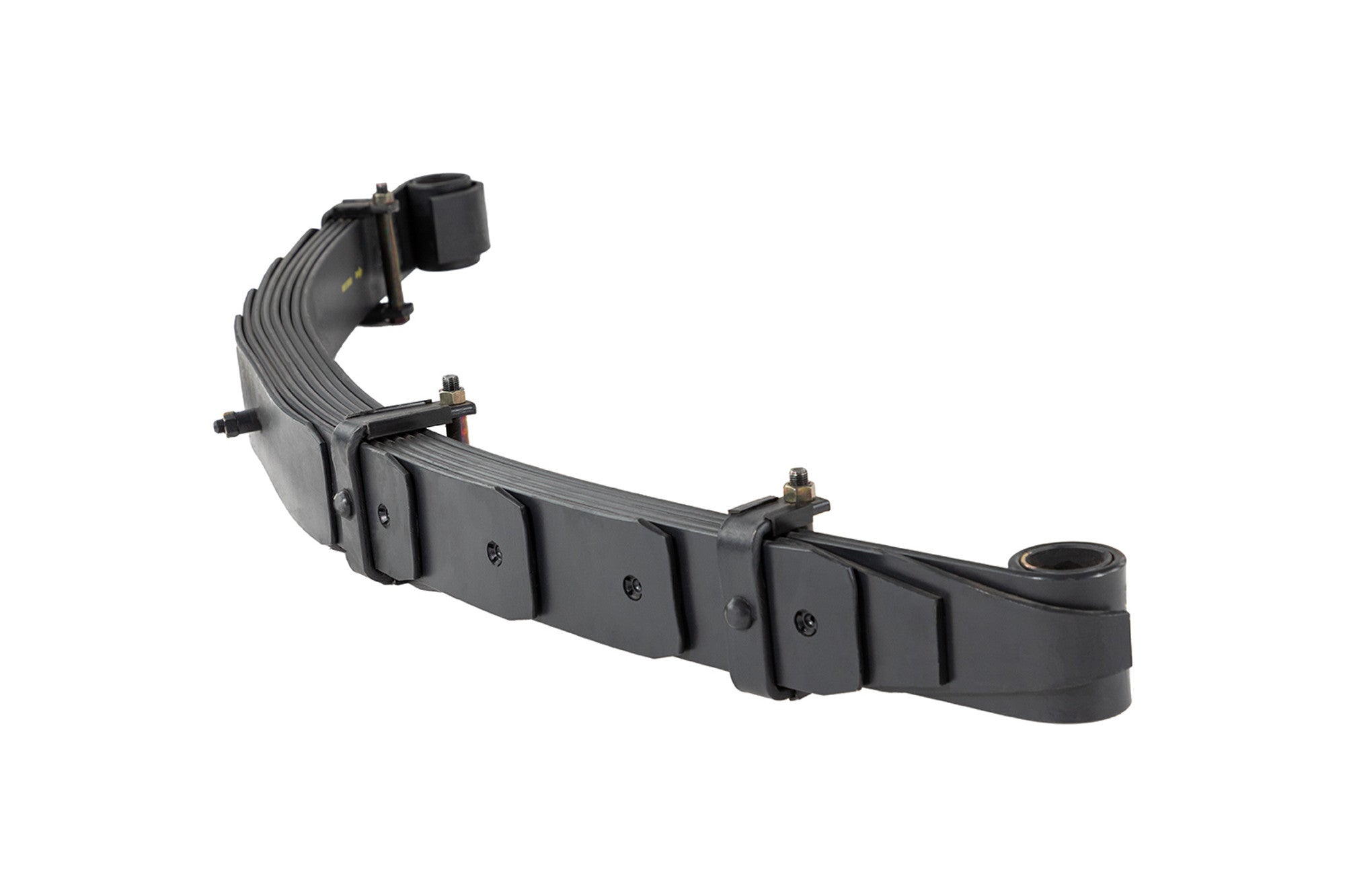

OLD MAN EMU | Land Cruiser 70 & 60 Series 1980-1989 Rear Leaf Spring 2" Medium Load (CS017RA)
OLD MAN EMU | Land Cruiser 70 & 60 Series 1980-1989 Rear Leaf Spring 2" Medium Load (CS017RA)
OLD MAN EMU | Land Cruiser 70 & 60 Series 1980-1989 Rear Leaf Spring 2" Medium Load (CS017RA)
OLD MAN EMU | Land Cruiser 70 & 60 Series 1980-1989 Rear Leaf Spring 2" Medium Load (CS017RA)

OLD MAN EMU | Land Cruiser 70 & 60 Series 1980-1989 Rear Leaf Spring 2" Medium Load (CS017RA)

$201.00
Quantity:

Description

Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
  • Draw-tapered and diamond cut leaves
  • Bolted leaf clamps allow installation of anti-squeak nylon liners
  • Fully scragged to reduce the risk of sagging
  • Load tested to ensure the spring meets the required specification
  • Military wrap design provides added safety
  • Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
  • Flat axle seat area allows a positive, safe axle mount and reduces spring stress
  • Shot peened to reduce spring stress and increase spring life
  • Two-stage leaf pack featured on most rear springs for optimum comfort

Specifications

  • Color: Black
  • Weight: 57.0lbs
  • Material: Steel
  • CA Prop 65: No
  • Spring Rate: 255/lbf/in
  • Eye Diameter: 35 mm (F) / 35 mm (R)
  • Number Of Leaves: 8
  • Primary Free Camber: 250 mm
  • Prop 65: No
Year Make Model Submodel Liter Cylinders Fuel type Doors
1982-1983 Toyota Land Cruiser Base 3.4 4 DIESEL 2
1982-1983 Toyota Land Cruiser Base 3.4 4 DIESEL 4
1980-1983 Toyota Land Cruiser Base 4.2 6 GAS 2
1980-1987 Toyota Land Cruiser Base 4.2 6 GAS 4
1981-1984 Toyota Land Cruiser BJ60 4.2 6 DIESEL 4
1984-1985 Toyota Land Cruiser BJ60LG-MK 3.4 4 DIESEL 4
1985-1987 Toyota Land Cruiser BJ70 3.4 4 DIESEL 2
1981 Toyota Land Cruiser BJ42 4.2 6 DIESEL 2
1981 Toyota Land Cruiser BJ60LV-KK 3.4 4 DIESEL 4
1983 Toyota Land Cruiser BJ42 4.2 6 DIESEL 2
1984 Toyota Land Cruiser BJ42 4.2 6 DIESEL 2
1985 Toyota Land Cruiser BJ60 3.4 4 DIESEL 4
1986 Toyota Land Cruiser HJ60 4.2 6 DIESEL 4
1987 Toyota Land Cruiser HJ60 2.4 4 DIESEL 4
1988-1989 Toyota Land Cruiser Base 4 6 GAS 4


(CS017RA)
