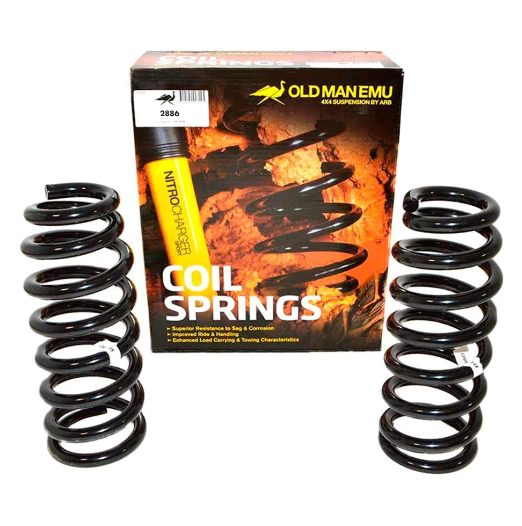

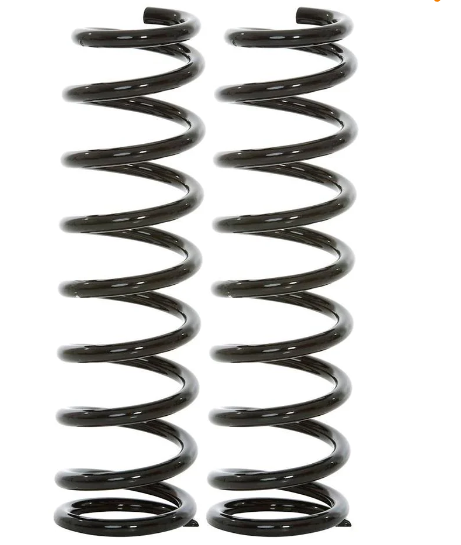

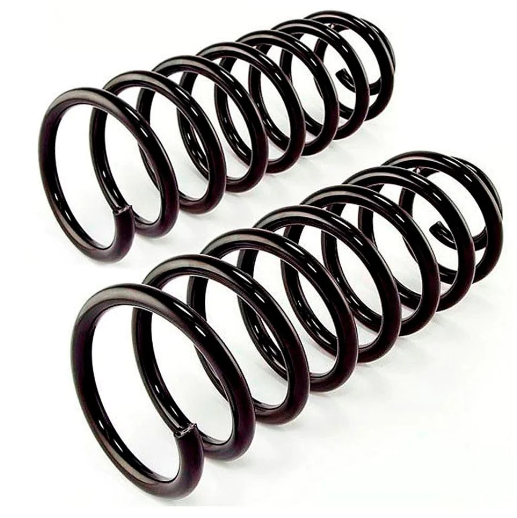

OLD MAN EMU | 4Runner 4th Gen 2003-2009 & Tacoma V6 1.5 inch 2005-2023 OME Front Coil Springs (2886)
SELECT OPTIONS
Description
ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state-of-the-art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion.
With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage. While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine-tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.
A large range of springs and shocks were developed to cater to differing vehicle setups and ride height increases of approximately 50mm were achieved without the need for costly modification. Extensive shock tuning was undertaken to optimize comfort, control, and handling, and a front trim packer was developed to fine-tune front ride heights.
Features
Effective Desing
- Springs are formed on precision mandrels.
- Scragging before and after shot peening to prevent sagging.
- Constant and variable rate coils are available for multiple applications.
- Coil spring end configurations are designed to exact specifications guaranteeing perfect fitment to your vehicle.
- Ride height increases are attained, emphasis is placed on ride control improvements.
Oxidations Protection
- Durable powder coat finish.
Easy Installation
- Can directly replace the OE components, no custom installation required.
Springs
- Factory geometry allows for a 1” lift and still maintains an adequate level of droop.
- Specific kits have been developed for both gas and diesel models.
- In addition, a 5mm trim packer is available to assist with the fine-tuning of ride heights and trimming the vehicle from side to side."
Specifications
Dimensions (L x W x H):
18.31 x 14.57 x 7.28 Inches.
Part number:
2886
UPC:
9319092023059.
Weight:
27.16 lbs
Free Length:
15.55".
Spring Rate:
590 lbs/inch
Offers 2.25" Front Lift.
For this reason, we recommend installing with Energy Suspension Isolator Set.
Suitable for:
- TOYOTA TACOMA V6 2005 - 2015.
- TOYOTA TACOMA 2016 - 2022.
- TOYOTA 4RUNNER 5TH GEN 2010 - 2022.
- TOYOTA 4RUNNER 4TH GEN 2003 - 2009.
- TOYOTA FJ CRUISER 2007 - 2016.
Fitment
Toyota
- Model: Tacoma
- Year 2005-2023
- Model: 4Runner
- Year: 2003-2009
