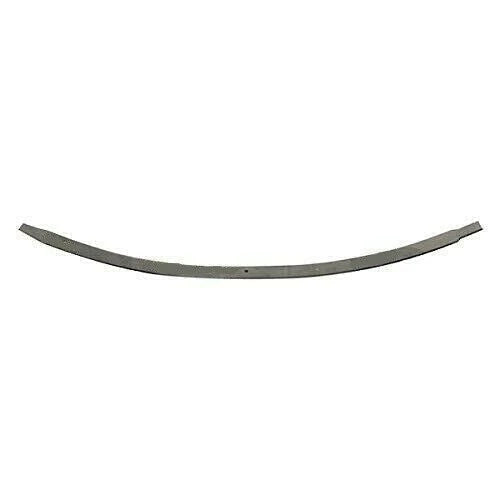

OLD MAN EMU | Extra Leaf - Sold Individually (EL13XL)
Draw-tapered and diamond-cut leaves ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends, increasing ride comfort and longevity.
Leaf clamps are bolted to allow the installation of anti-squeak nylon liners.
Fully scragged to ensure the spring takes a permanent ‘set’ which reduces the risk of sagging.
Load testing ensures the spring meets the required specification.
Military wrap designed to provide added safety.
Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips where the load is the greatest.
A flat axle seat area allows a positive, safe axle mount reducing spring stress and increasing spring life.
The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of
Dimensions (L X W X H): 50.00 X 5.96 X 2.36 Inches.
Weigth: 11.02 Lb.
Fitment: Toyota Hilux/Vigo 2005 To 2015 All Models.
