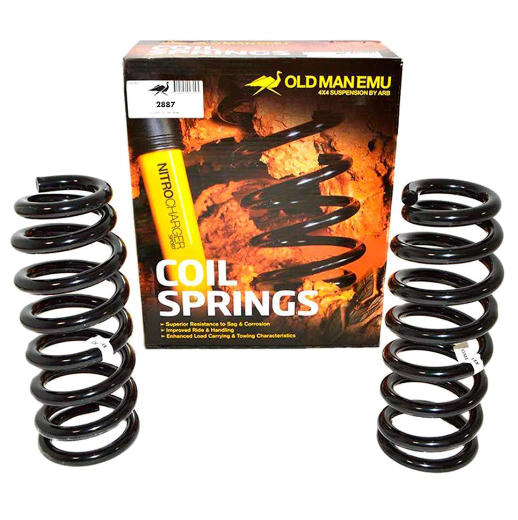

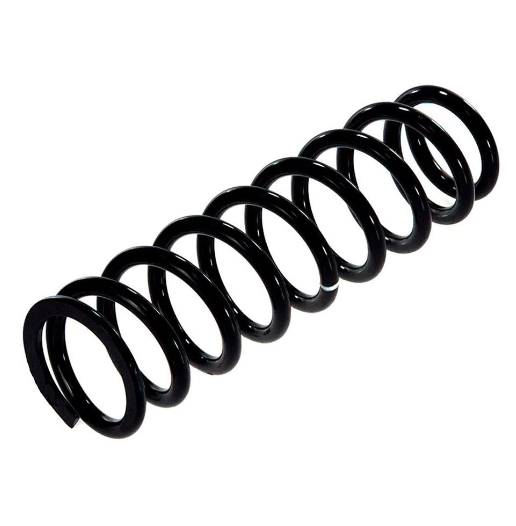

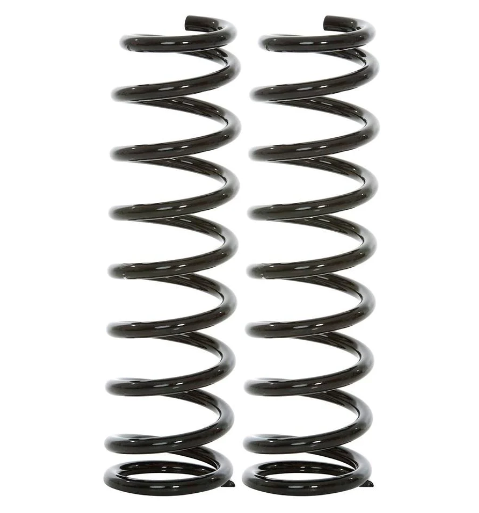

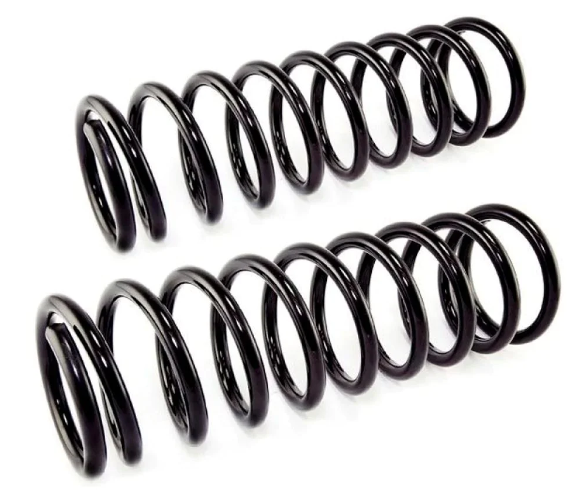

OLD MAN EMU | Tacoma & Hilux & Prado 150 Series 2010-2022 Coil Springs (2887)

Description

ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state-of-the-art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion. With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage.

While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine-tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

Features

Effective Desing

• Springs are formed on precision mandrels.
• Scragging before and after shot peening to prevent sagging.
• Constant and variable rate coils are available for multiple applications.
• Coil spring end configurations are designed to exact specifications guaranteeing perfect fitment to your vehicle.
• Ride height increases are attained, emphasis is placed on ride control improvements.

Oxidations Protection

• Durable powder coat finish.

Easy Installation

• Can directly replace the OE components, no custom installation required.

Springs

• Factory geometry allows for a 1” lift and still maintains an adequate level of droop.
• Specific kits have been developed for both gas and diesel models.
• In addition, a 5mm trim packer is available to assist with the fine-tuning of ride heights and trimming the vehicle from side to side."

Specifications

Dimensions (L x W x H):

17..13 x 7.28 x 21.87 inches.

Part number:

2887.

UPC:

9319092024506.

Weight:

21.47 lbs.

Free Length:

15.55".

Spring Rate:

590 lbs/inch.

Offers 2.25" Front Lift.

The 2885 spring is about 1/4" more narrow than the OEM spring.
For this reason, we recommend installing with Energy Suspension Isolator Set.

Suitable for:

TOYOTA PRADO 150 SERIES 2010 - 2017. LWB. (V6 4.0L PETROL ENGINE and 2.8L & 3.0L DIESEL ENGINE )
TOYOTA PRADO 150 SERIES 2009 - 2022.
TOYOTA FORTUNNER 2015 - 2022.
TOYOTA TACOMA 2016 - 2022.
TOYOTA TACOMA 2005 - 2015.
TOYOTA 4RUNNER 2010 - 2022.
TOYOTA 4RUNNER 2003 - 2009.
TOYOTA FJ CRUISER 2007 - 2016.

Fitment

Toyota

• Model Tacoma
• Year : 2016-2023

• Model :4Runner
• Year: 2010-2023
