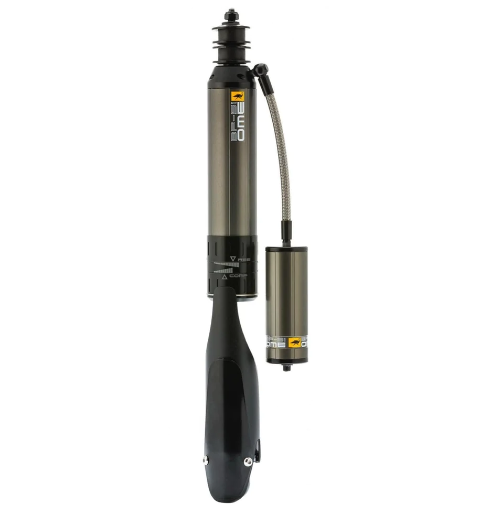

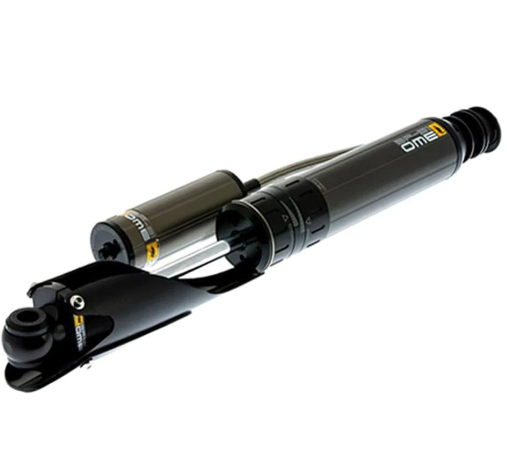

OLD MAN EMU | BP-51 Shock Absorber Rear for Toyota 4Runner (2003-2022) | Toyota FJ Cruiser(2010-2016) (BP5160025)

Description

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

Features

Bushings

• Quality oversized rubber bushings result in excellent longevity.

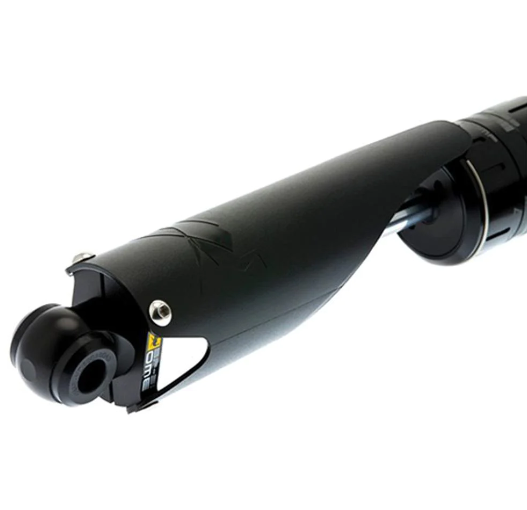

Shaft Guard

• Replaceable, impact-resistant, high-density polyethylene shaft guard prevents damage to the shock absorber shaft from stones and other debris.

Piston Shaft

• Hard chromed, ground piston shaft for the ultimate in strength and durability.

Adjustor

• External, independent rebound and compression adjustment allows fine-tuning of ride comfort and control to suit the varying vehicle and trip requirements

Shock Absorber Body

• 51mm bore 6061-grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance

Piggy Back Clamp

• Remote reservoir piggyback clamp allows easy connection of the remote oil reservoir to the main shock absorber body.

Specifications

Dimensions (L x W x H):

34.65 x 6.35 x 3.94 inches.

Part number:

BP5160025.

UPC:

9332018042354.

Weight:

11.02 Lbs.

Suitable for:

TOYOTA PRADO 150 SERIES 10/2017 ON.
TOYOTA PRADO 150 SERIES TO 09/2017 LWB.
TOYOTA PRADO 120 SERIES 4/2003 TO 2009 LWB & SWB.
TOYOTA FJ CRUISER 2010 - 2016.
TOYOTA 4 RUNNER 2010-2022 (USA MODEL).
