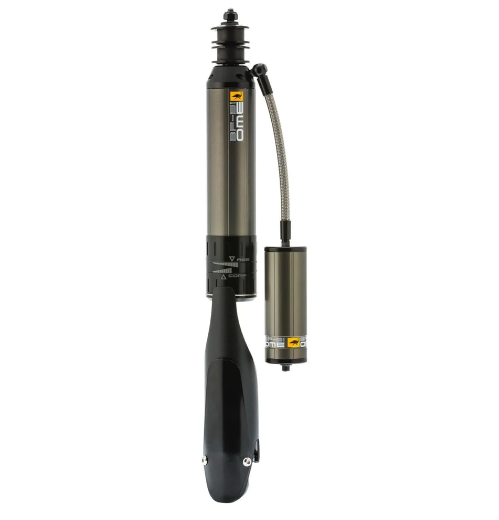

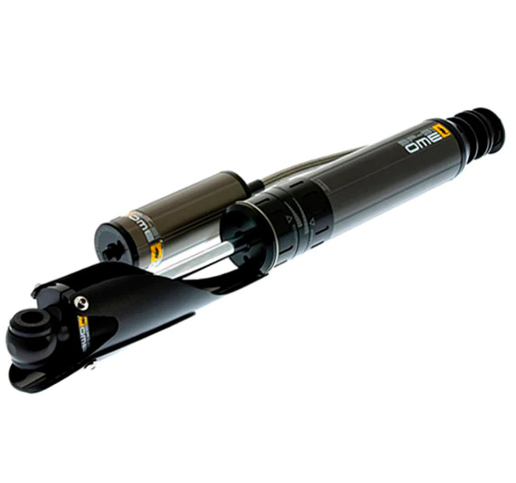

OLD MAN EMU | Tundra 3rd & 2nd Gen 2007-2022 OME BP -51 Rear Shock Absorber (BP5160020R)

Description

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

Features

Bushings

• Quality oversized rubber bushings result in excellent longevity.

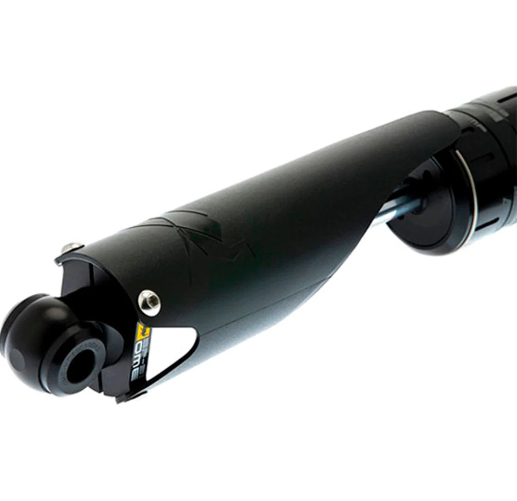

Shaft Guards

• Replaceable, impact-resistant, high-density polyethylene shaft guard prevents damage to the shock absorber shaft from stones and other debris.

Piston Shafts

• Hard chromed, ground piston shaft for the ultimate in strength and durability.

Adjustor

• External, independent rebound and compression adjustment allows fine-tuning of ride comfort and control to suit the varying vehicle and trip requirements

Shock Absorber Body

• 51mm bore 6061 grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance

Piggy Back Clamp

• Remote reservoir piggyback clamp allows easy connection of the remote oil reservoir to the main shock absorber body.

Specifications

Dimensions (L x W x H):

34.5 x 6.25 x 3.75 Inches.

Part number:

BP5160020R.

UPC:

9332018054203.

1 Right Rear

Weight:

13 Lb.

Suitable for:

Toyota Tundra Rear RH 2007-2022

Fitment

Toyota

• Model: Tundra
• Year: 2007-2023
