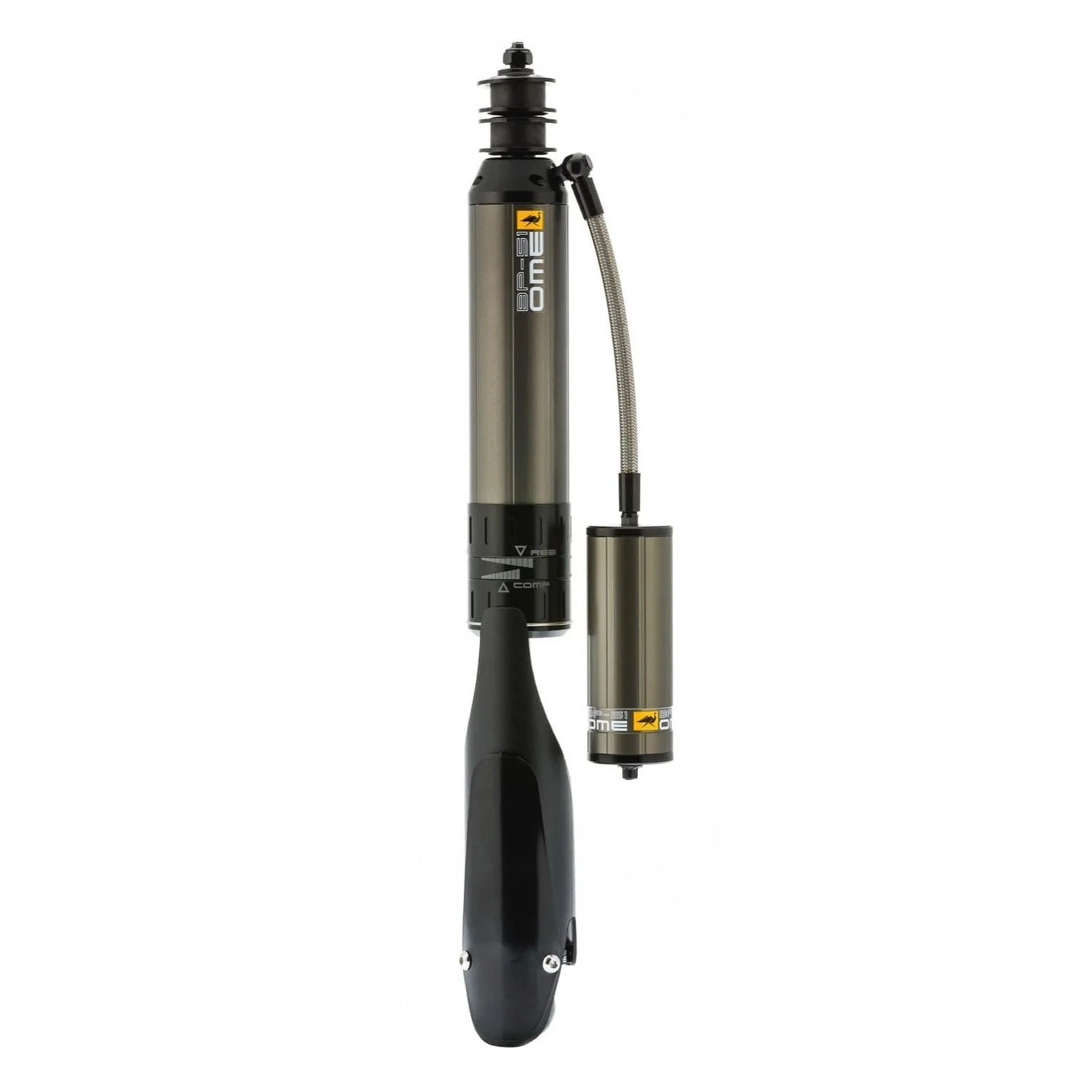

OLD MAN EMU | Land Cruiser 105 & 80 Series BP-51 Rear Shock Absorber (BP5160013)

Description

Bushings: Quality oversized rubber bushings result in excellent longevity.

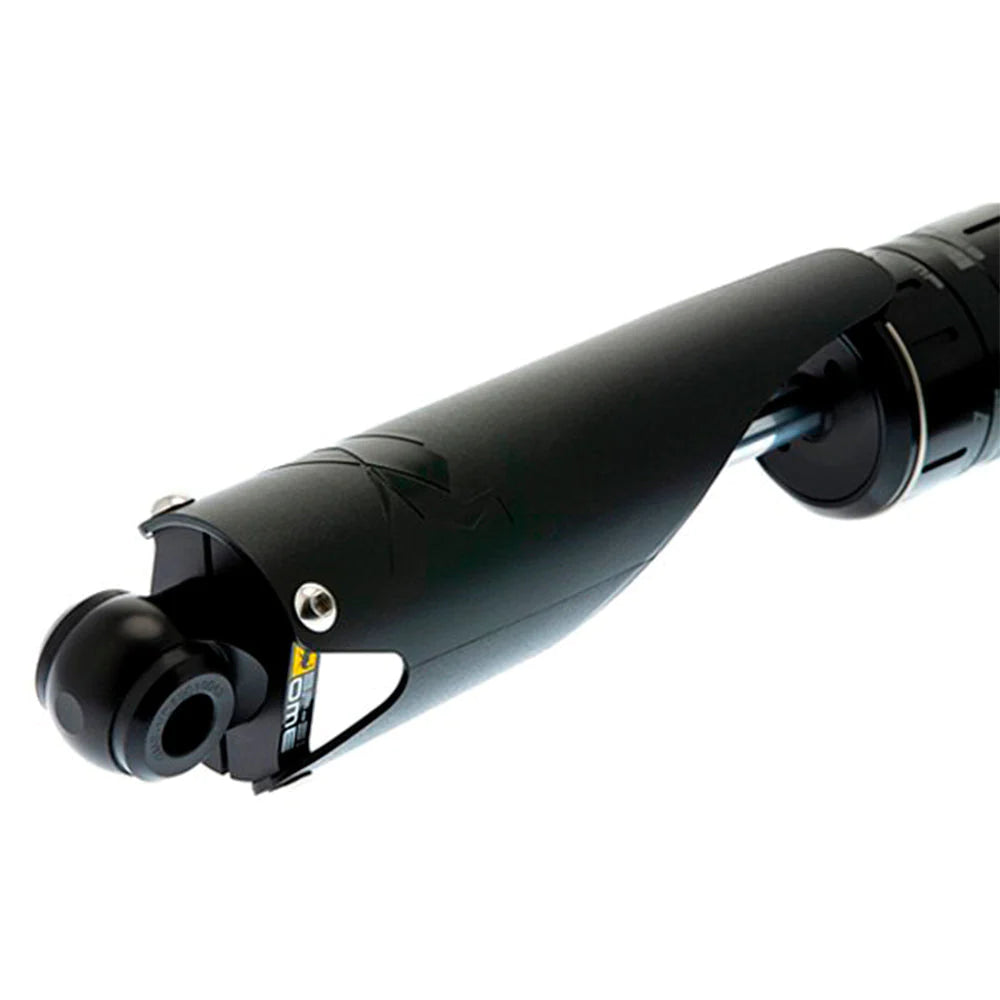

Shaft Guard: Replaceable, impact-resistant, high-density polyethylene shaft guard prevents damage to the shock absorber shaft from stones and other debris.

Piston Shaft: Hard chromed, ground piston shaft for the ultimate in strength and durability.

Adjustor: External, independent rebound and compression adjustment allows fine-tuning of ride comfort and control to suit the varying vehicle and trip requirements

Shock Absorber Body: 51mm bore 6061 grade aluminum shock absorber body with type III, hard-anodized finish for increased heat dissipation and corrosion resistance

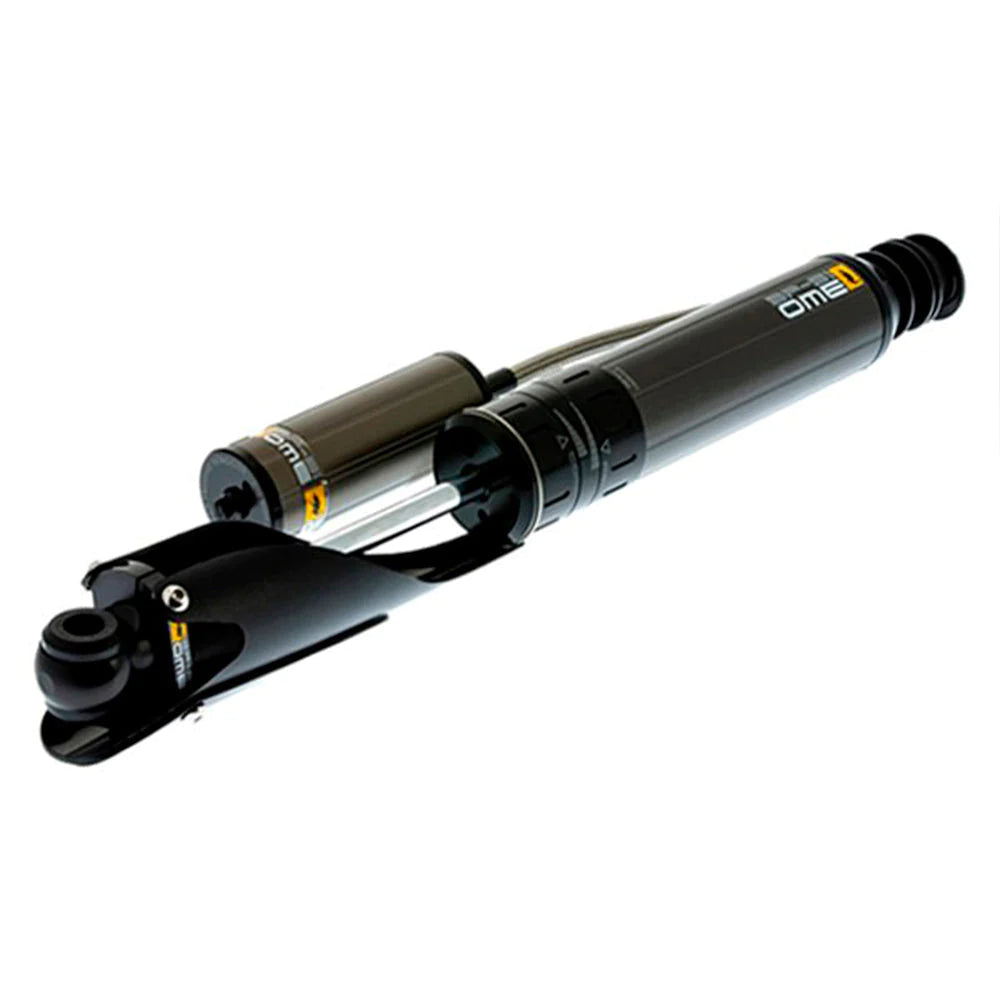

Piggy Back Clamp: Remote reservoir piggyback clamp allows easy connection of the remote oil reservoir to the main shock absorber body.

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodizing equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

Specifications

• Dimensions: (L x W x H): 34.50 x 6.25 x 4.00 Inches.
• Part number: BP5160013.
• UPC: 9332018054258.
• Weight: 12.40 lbs.

• Designed and manufactured in: Australia.
• Suitable for:
• Toyota Land Cruiser 80 Series (1990-1997).
• Toyota Land Cruiser 105 Series (1998-2007).

Fitment

Toyota

• Model: Land Cruiser
• Year: 1990-1997
