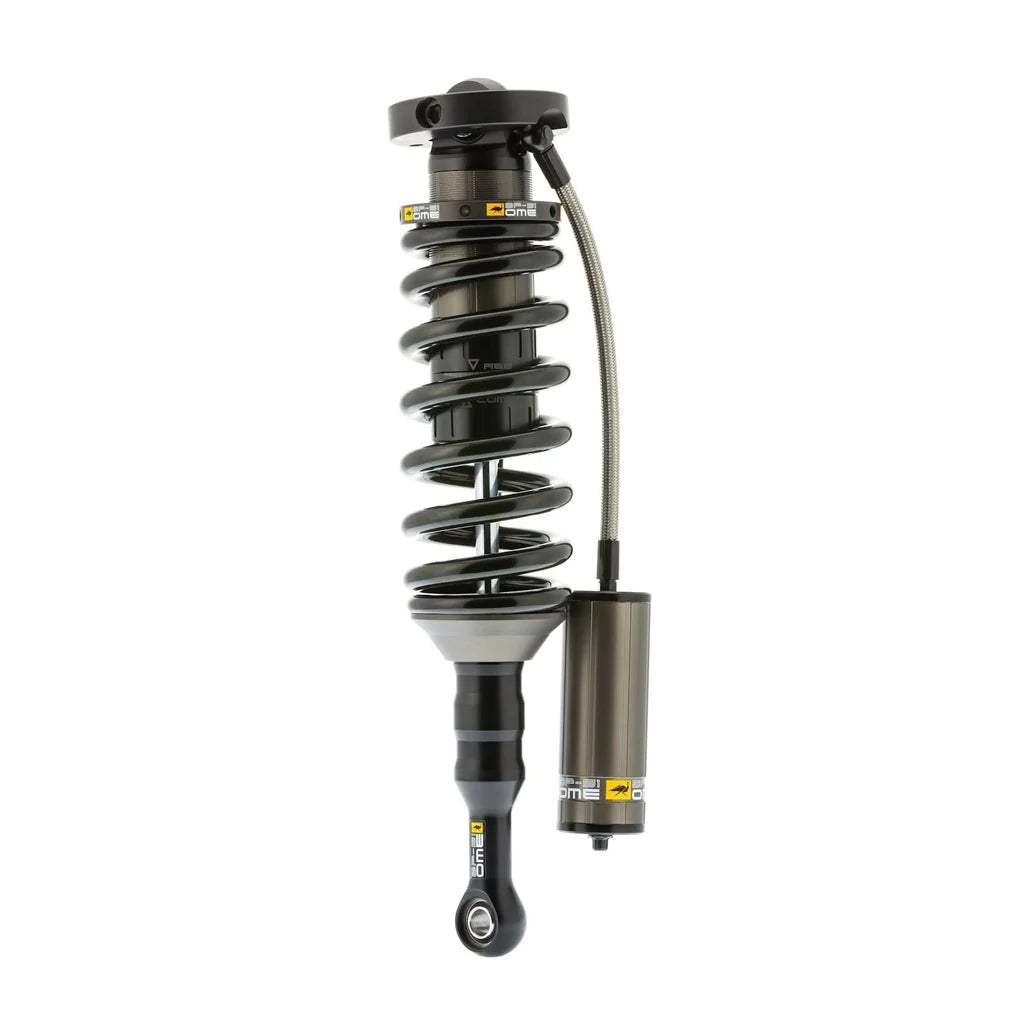

OLD MAN EMU | 4Runner & FJ Cruiser BP-51 Front Coil Over LH (BP5190002L)

Description

Remote Reservoir: 6061-grade aluminium remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

High-Temperature Hose: Durable Dash 6 high-temperature Teflon hose incorporates high flow fittings for optimum oil flow.

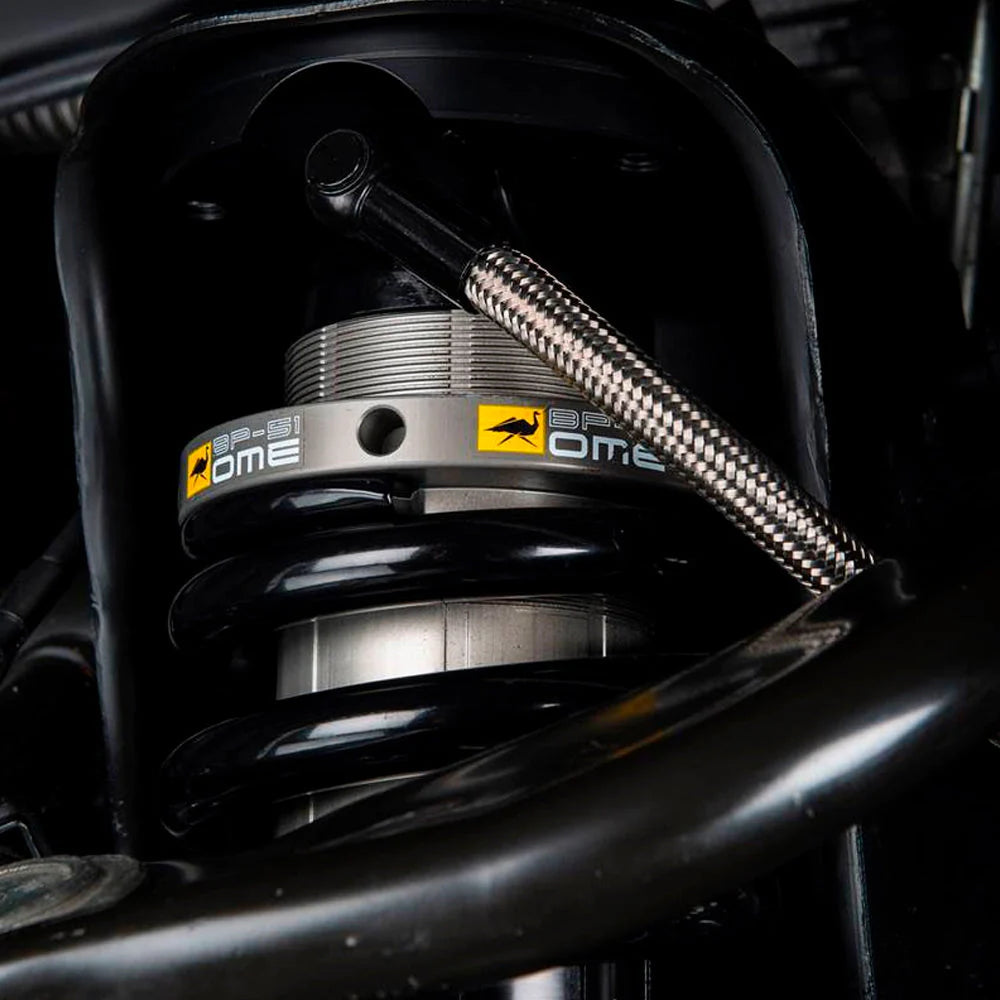

Spring Adjustment: 6061-grade aluminium adjustor allows adjustment of spring preload and ride height

X5K Coil: High-quality X5K grade steel coil, for use on coil-over models, incorporates application-specific design.

Shock Absorber Body: 51mm bore, 6061-grade aluminium shock absorber body with type III, hard anodised finish for increased heat dissipation and corrosion resistance

Race Technology Cleverly Packaged For Everyday 4WDS: Traditionally, the bypass shock design incorporates a number of tubes that run external of the shock absorber body in order for the hydraulic fluid to bypass the internal piston. This design has prevented bypass shocks from being incorporated into everyday vehicles without expensive modifications due to dimensional constraints, especially modern coil-over independent suspension. BP-51 uses a unique extruded alloy body. The tubes are replaced by passages within the shock absorber body, allowing it to fit into tighter confines such as inside a coil spring.

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off-road.

All BP-51 shock absorbers are designed and manufactured in-house by ARB using state-of-the-art machining and hard anodising equipment.

The body of a BP-51 shock absorber is manufactured using 6061 anodised aluminium to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.

Extensive dyno, real-world and destructive testing has been undertaken during the development process to ensure that reliability, longevity, and performance all meet ARB’s impeccable standards.

Specifications

• Dimensions: (L x W x H): ?29.53 x 9.5 x 5.5 inches.
• Part number: BP5190002L.
• UPC: 9332018035820.
• Weight: 26.4 lb.
• Designed and manufactured in: Australia.
• Suitable for:

  • Toyota Prado 150 Series 2009.
  • Toyota Prado 150 Series 2010 - 2017.
  • Toyota FJ Cruiser 2010-2022.
  • Toyota 4Runner 2010-2022.

Fitment

Lexus

• Model: GX460, GX470
• Year: 2010-2022, 2003-2010

Toyota

• Model: 4Runner, FJ Cruiser
• Year: 2003-2023, 20010-2016
