OLD MAN EMU | Prado 150 & 120 Series, 4Runner, FJ Cruiser, Hilux ARB Old Man Emu Rear Coil Springs (2895)

Description

EFFECTIVE DESIGN

Springs are formed on precision mandrels.
Scragging before and after shot peening to prevent sagging.
Constant and variable rate coils are available for multiple applications.
Coil spring end configurations are designed to exact specifications guaranteeing perfect fitment to your vehicle.
Ride height increases are attained, emphasis is placed on ride control improvements.

OXIDATION PROTECTION

Durable powder coat finish.

EASY INSTALLATION

Can directly replace the OE components, no custom installation required.

SPRINGS

Factory geometry allows for a 1” lift and still maintains an adequate level of droop.
Specific kits have been developed for both gas and diesel models.
In addition, a 5mm trim packer is available to assist with the fine-tuning of ride heights and trimming the vehicle from side to side.

IMPORTANTS NOTES:

- For Toyota Prado 120 Series (LWB MODELS):
2895E suits LWB Models without Original Equipment, 2nd fuel tank. 2895 suits LWB Models with OE 2nd fuel tank.

About this product

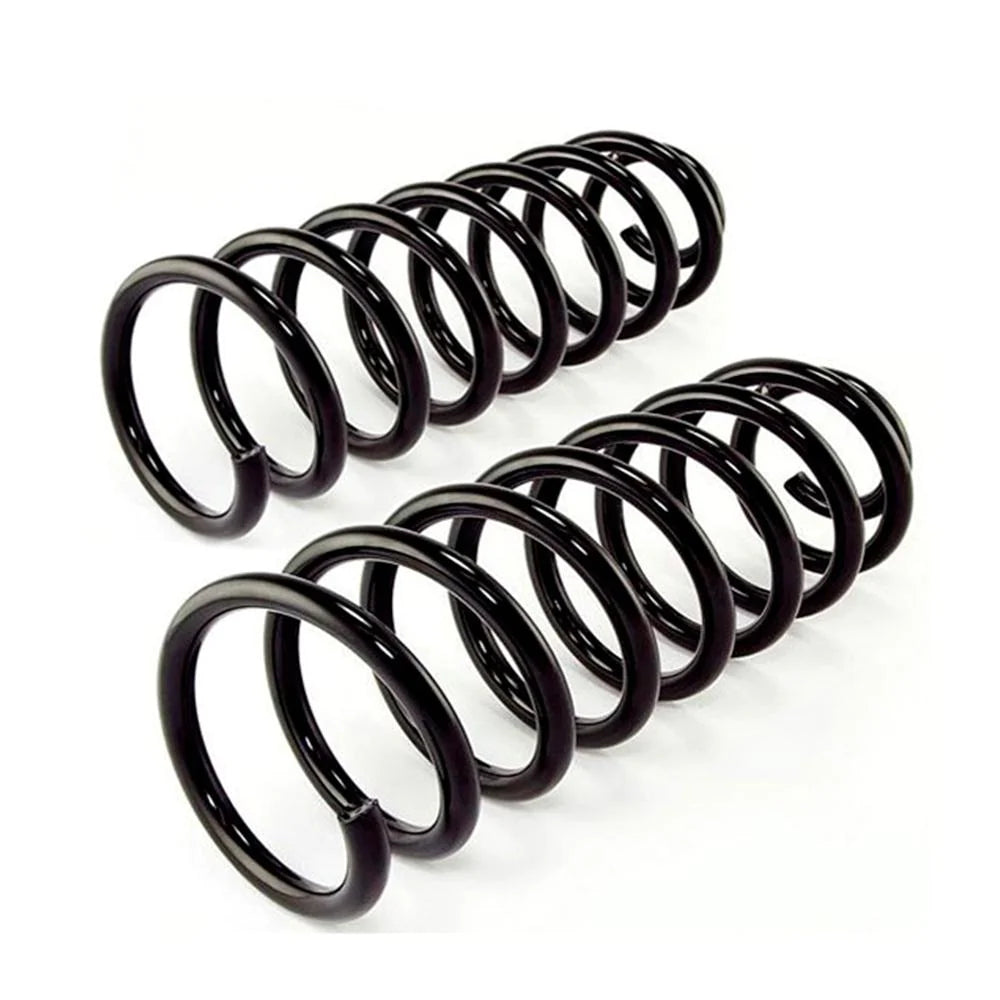

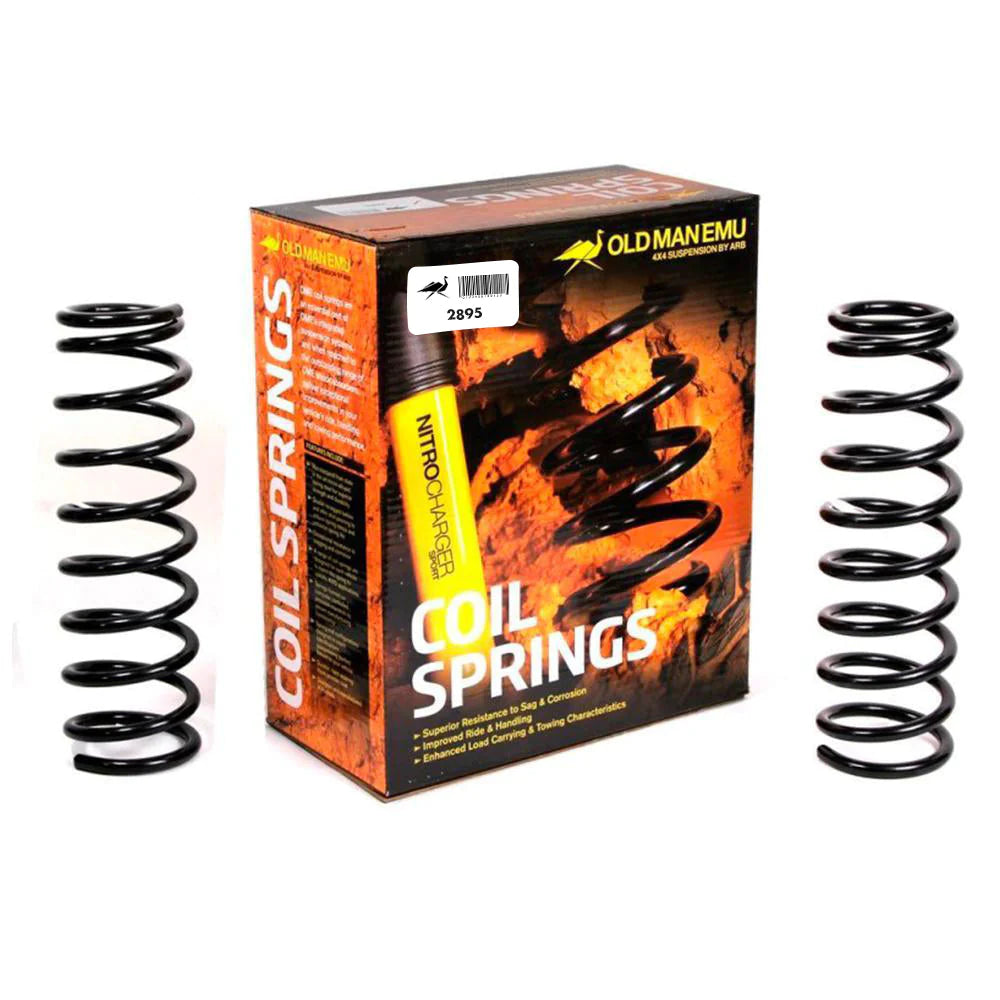

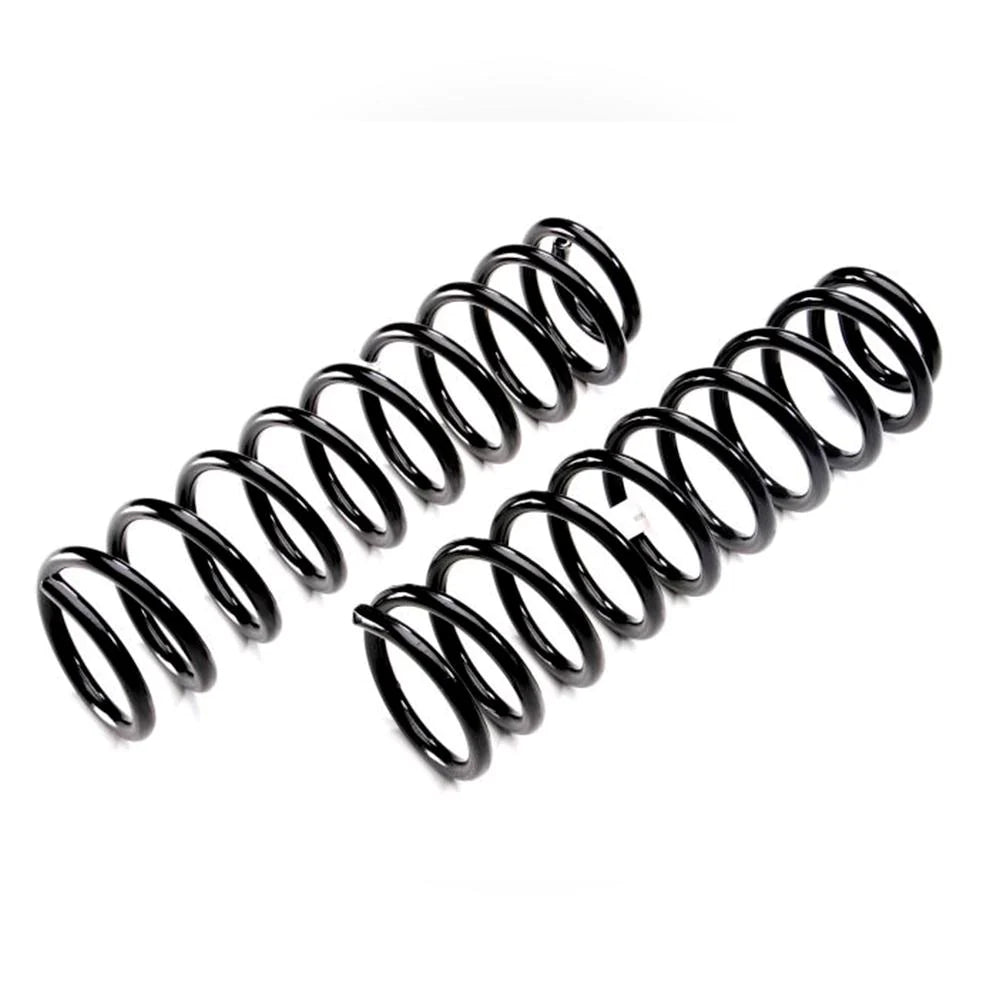

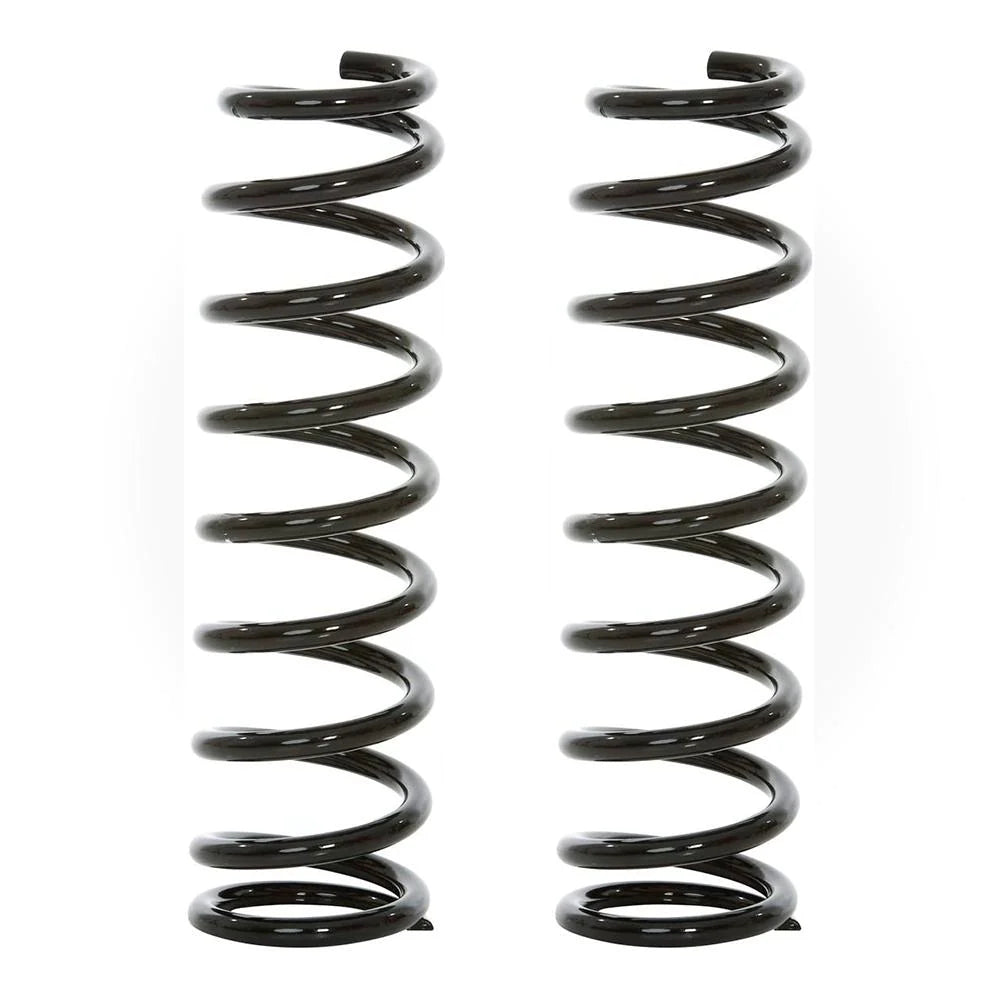

ARB designs an extensive range of Old Man Emu coil springs for each vehicle, using state-of-the-art micro-alloyed spring steel to ensure superior resistance to sagging and corrosion. With such a wide range on offer, coil springs can be better matched to your specific load requirements and intended vehicle usage.

While ride height increases are attained, a great emphasis is placed on ride control improvements. Further fine-tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

Specifications

Dimensions (L x W x H): 21 X 17 X 12 inches.
Bar Dia. mm: 16.5.
Free Height mm (A): 390.
Free Height mm (B): 390.
Number Of Turns: 6.21.
Spring Rate (lbf / in): 260.
Spring Rate (N / mm): 45.
OE Spring Rate Lbs: 150.
Position: Rear.
Fuel Type: Gas.
Part number: 2895.
UPC: 9319092023110.
Weight: 21.51 lbs.
Designed and manufactured in Australia.
Suitable for:
TOYOTA PRADO 150 SERIES 2010 - 2017.
TOYOTA PRADO 150 SERIES 2009 - 2022.
TOYOTA FJ CRUISER 2010 - 2016.
TOYOTA FJ CRUISER 2006 - 2010.
TOYOTA 4RUNNER 2010 - 2022.
TOYOTA 4RUNNER 2003 - 2009.
TOYOTA 4RUNNER 1996 - 2002
TOYOTA PRADO 120 SERIES 4/2003 TO 2009 LWB & SWB.

Fitment

Toyota

• Model: 4Runner
• Year: 2003-2015
• Model: FJCruiser
• Year: 2007-2014
