KC HILITES | Tacoma 3rd & 2nd Gen 2005-2023 50" Pro6 Gravity LED 8 Light Bar System 160W Combo Beam (91331)

Sale price$2,179.99
Quantity:

Description

The Gravity LED Pro6 LED light bar is an LED off-road lighting system unlike any you've seen before. This Toyota Tacoma kit features patented Infinity Ring® system, mounting brackets, hardware, and a complete wiring harness.
FEATURES
-Powered by Gravity LED G6 optical inserts – efficient, powerful, patented

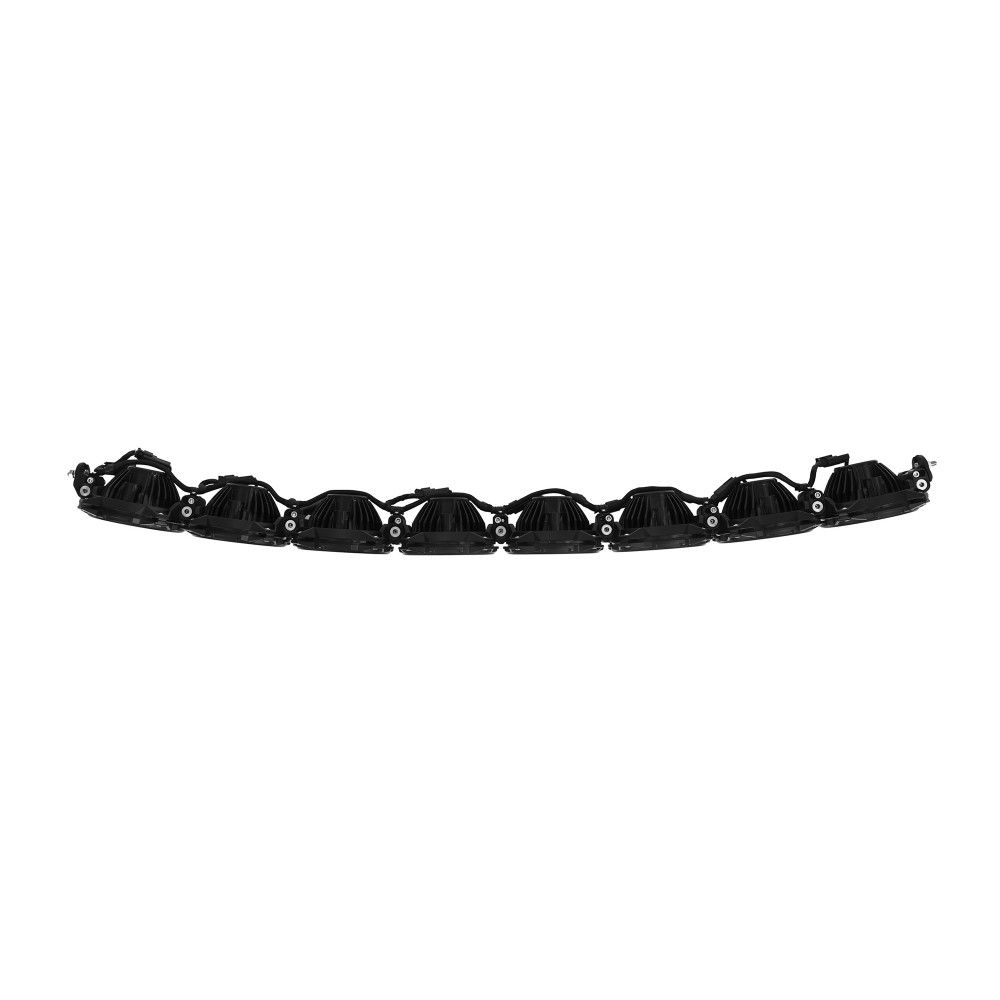

-Patented Infinity Ring™ system enables the conversion of the Pro6 from straight to radius configurations in seconds
-Signature KC modular design is expandable to different widths
-High output, low amperage draw
-G6 LED Optics available in Spot, Driving, Wide-40 Beam Patterns

PARTS INCLUDED

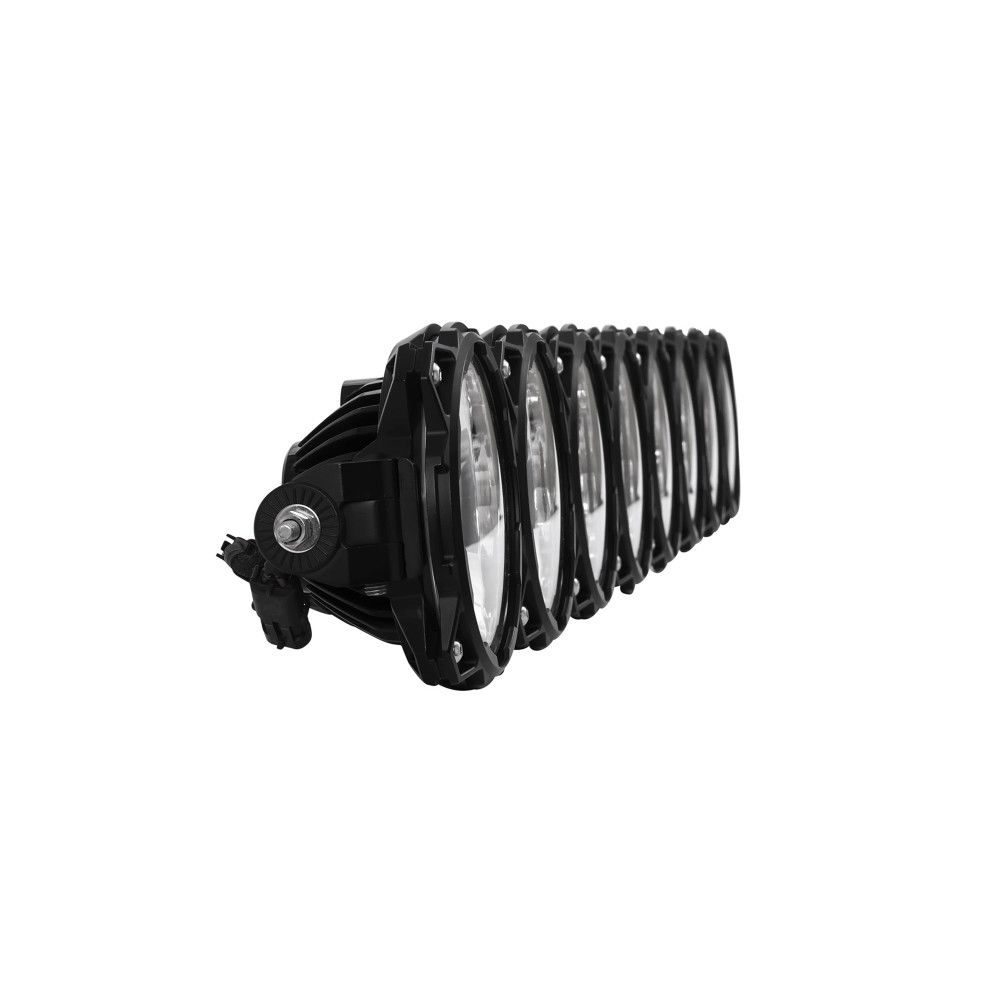

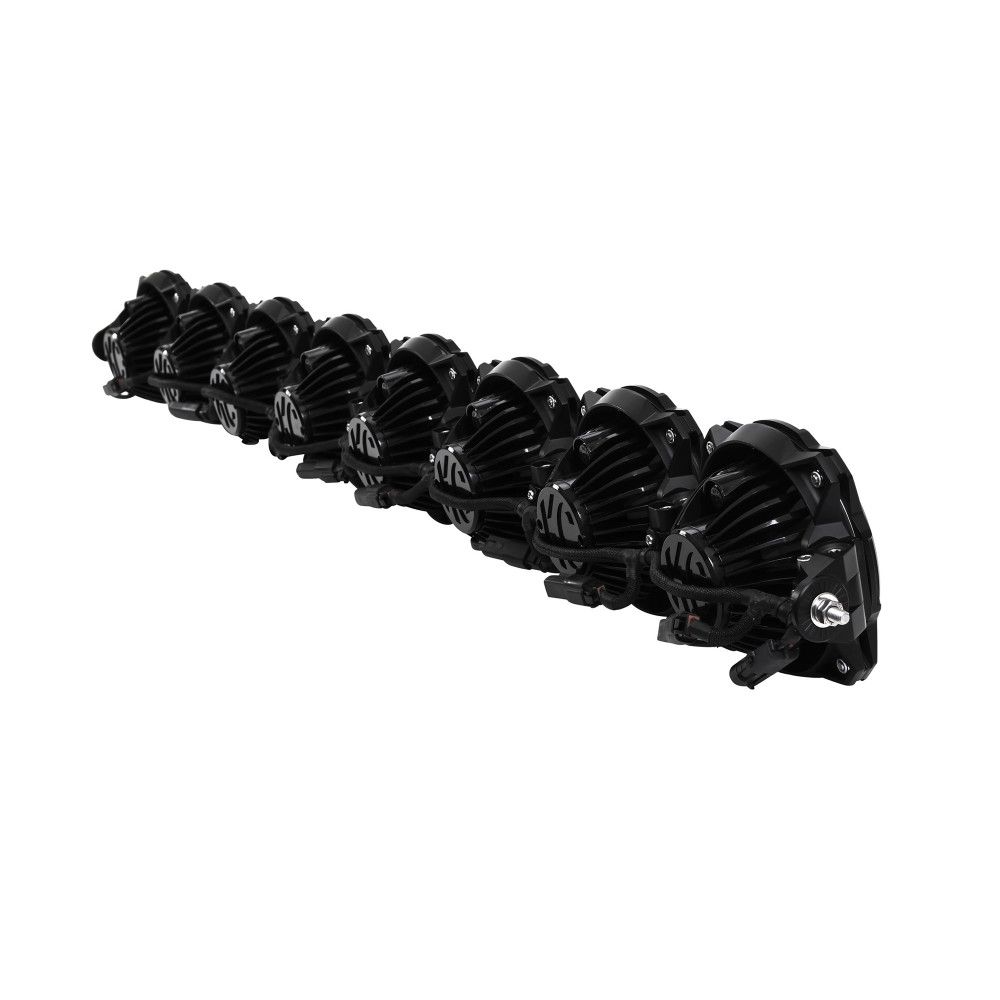

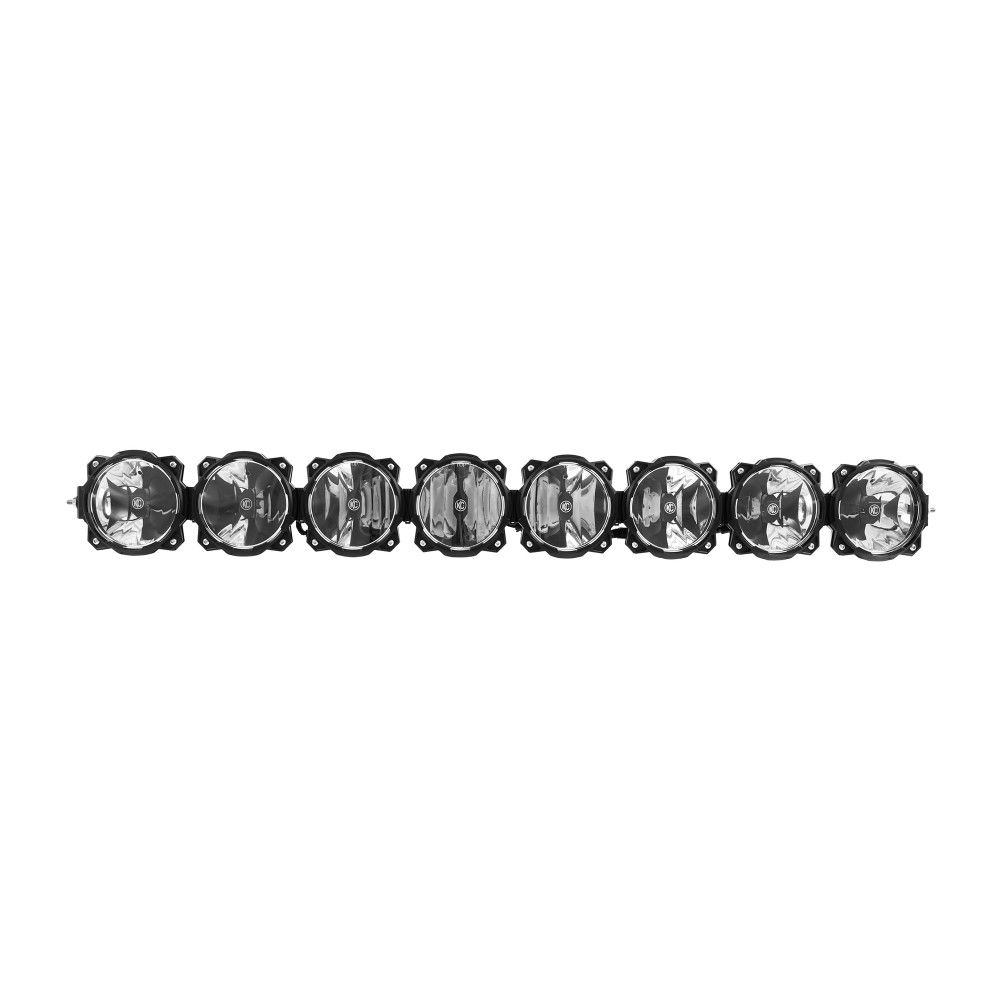

-(1) Pro6 8-Light 50" LED Light Bar
-(8) Light Covers - Black with Yellow KC Logo

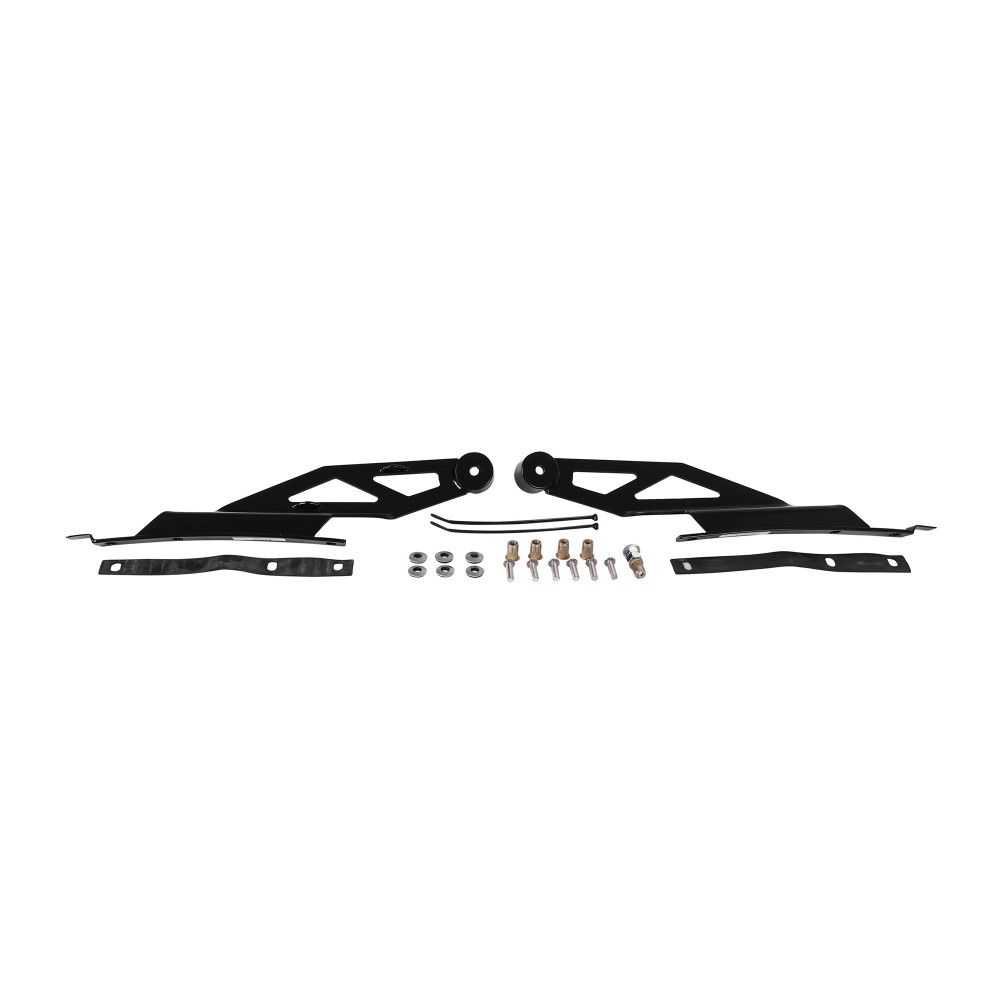

-Mount Brackets and Hardware for 2005-2023 Toyota Tacoma
-Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch

PERFORMANCE GRAVITY LED OPTICS
Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving, and Wide-40 patterns.

INFINITY RING™ SYSTEM
The patented Infinity Ring™ system is a race-proven, adjustable linking system featuring expandable widths, modular beam shapes available in a radius or straight setting between each ring.

EASY INSTALLATION ON TOYOTA TACOMA

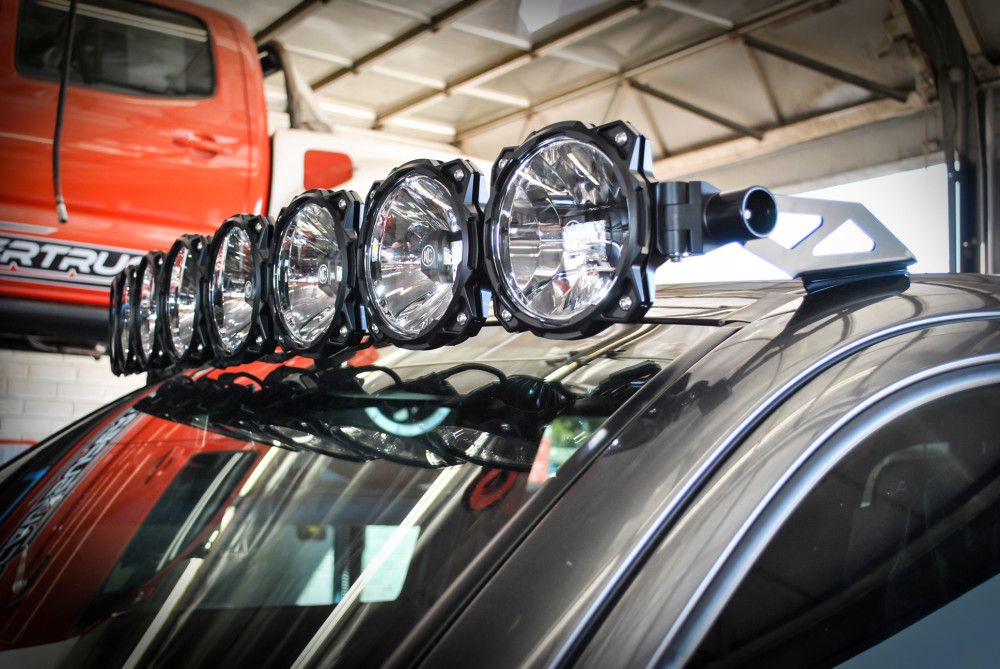

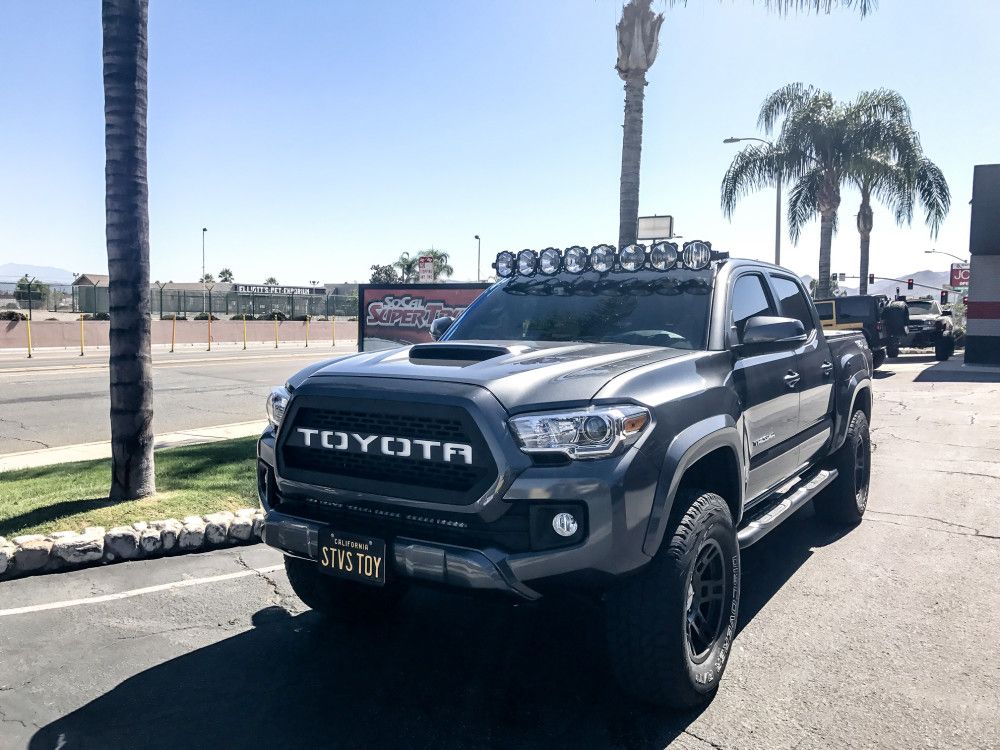

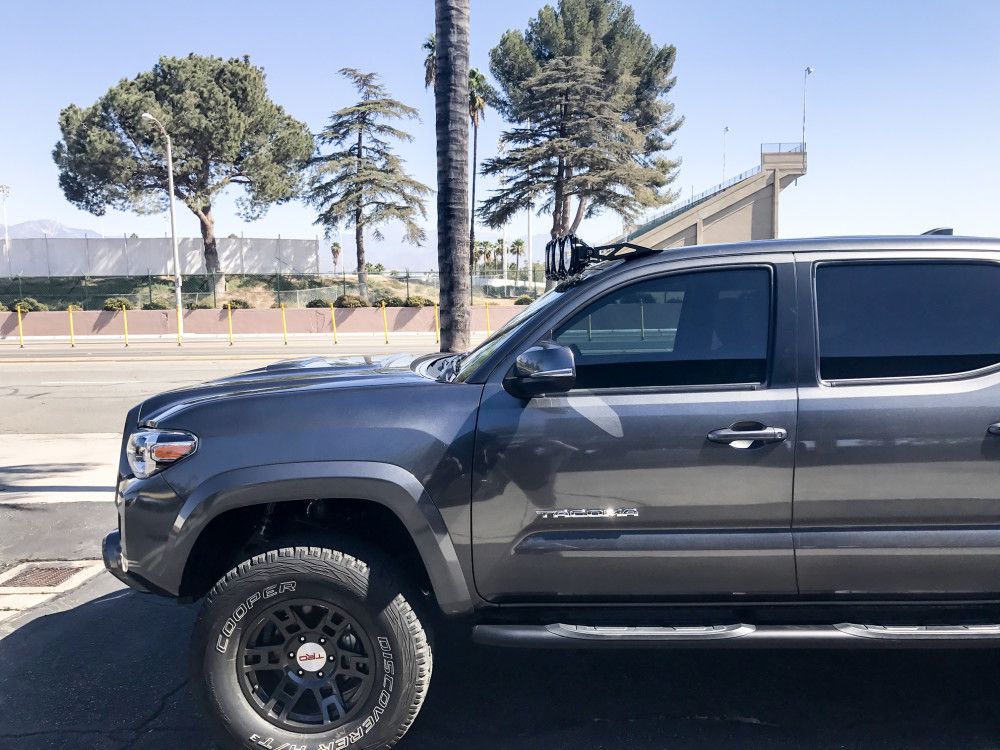

This Pro6 LED Light Bar system comes with specifically designed Toyota Tacoma overhead roof brackets and all necessary hardware for easy mounting on OE Toyota Tacoma trucks.

RACE-PROVEN STRENGTH & DURABILITY
Inspired by endurance racing, tested by KC athletes, the Pro6 shatters all performance benchmarks, while providing the most durable and scalable light bar design available today.

Specifications

Weight 28.000000lbs
Light Technology LED
Location on Vehicle Overhead
Material Aluminum Alloy
Finish Black
Location on Vehicle Overhead / Roof
UPC 084709913311
Beam Distance 763m
Beam Pattern Combo
Color Black
DOT Compliant No
In The Box 50" 8-Light Gravity® LED Pro6 Light Bar, 05-23 Toyota Tacoma overhead mounting bracket set, 8 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
IP rating IP68
Light Color White
Lens Color Clear
Light Temperature 5000K
Lumens 2,508lm
Total Lumens 20,064lm
Lux 8,658lx (Spot) / 1,550lx (Wide 40)
Total Lux 5,824lx
Candela 865,500cd (Spot) / 155,000cd (Wide 40)
Total Candela 582,432cd
Product Dimensions W - 51.625" x H - 6.06" x D - 3.33"
Prop 65 No
Size 50"
SAE/ECE No
Wattage Per Light 21.36W
Total Wattage 170.88W
Voltage 9V-36V
Amp Draw 1.78a
Total Amp Draw 14.24a



Fitment

  • Toyota Tacoma 3rd & 2nd Gen 2005-2023

(91331)
