KC HILITES | Gravity Titan LED Lights 2 Light System (91405)
Beam Pattern
SELECT OPTIONS
Beam Pattern
Beam Pattern
Description
Introducing the Gravity® Titan™ LED Lights. The Titan series elevates the beloved Pro6 lights, increasing brightness, expanding coverage, and integrating an Amber Dust Light for the ultimate, no-compromise lighting solution. The Titan™ 6" Lights in revolutionize off-road lighting, and find themselves at home on the front bumpers and A-Pillars of off-road rigs.
At their heart lies the innovative Titan Core, powering 3-Source LED optics. This results in a larger Illumination Zone while also being brighter. At the flip of the switch, alter between High Power Mode for intense output and the integrated Amber Dust Light for others to easily see you in dusty conditions. The Titan features a patented Pass-Through Front Cooling, a cutting-edge design that dissipates heat, ensuring optimal performance and longevity in high-heat, high-demand environments.
Experience unparalleled lighting power with the Gravity Titan, designed to excel in the most challenging off-road adventures.
FEATURES:
- Dual Power Modes:

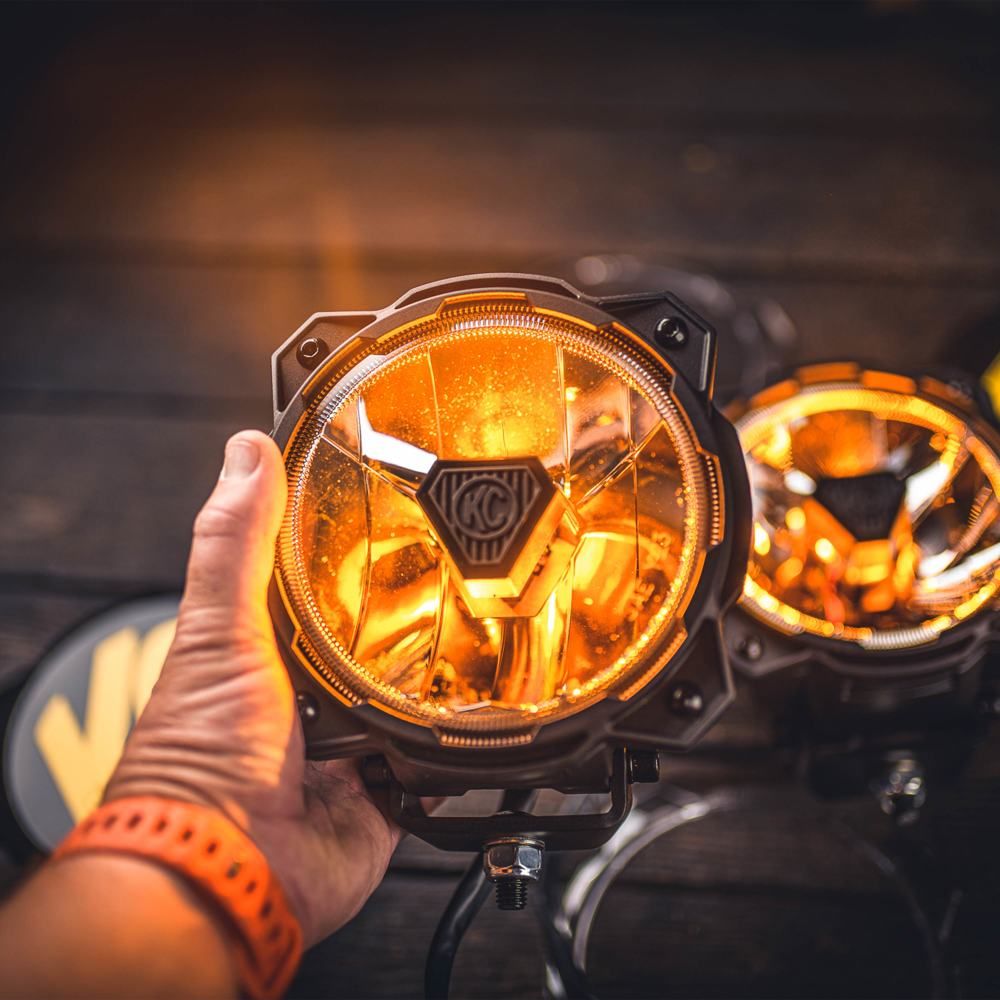

- Amber LED Dust Light: Acts as a marker light to be seen with in low-visibility conditions.
- High-Power Mode: Offers intense lighting for nighttime trail use.
- Titan Core:
- Patented Pass-Through Front Cooling: Provides superior thermal management.
- 3-Source LED Optics: Delivers comprehensive lighting coverage - short, mid, and long-range.

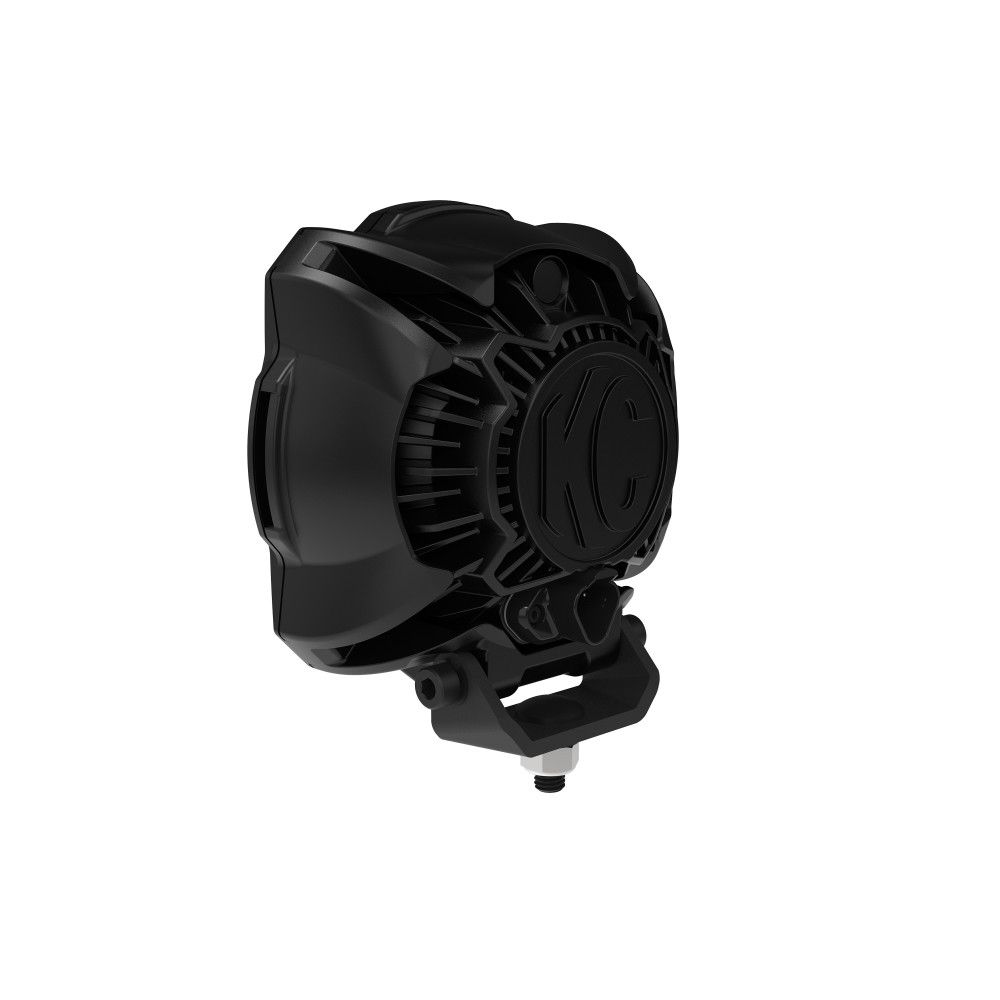

- Advanced Housing System: Increased heat-sinking surface area and added protection
- Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light.
- MoistureBlock® Technology: An integrated plug built directly into the housing to keep water out, while maintaining a secure connection.
Specifications
SKU | 91405 |
---|---|
Weight | 10.400000 |
Compliance DOT/SAE/ECE | DOT |
Light Technology | LED |

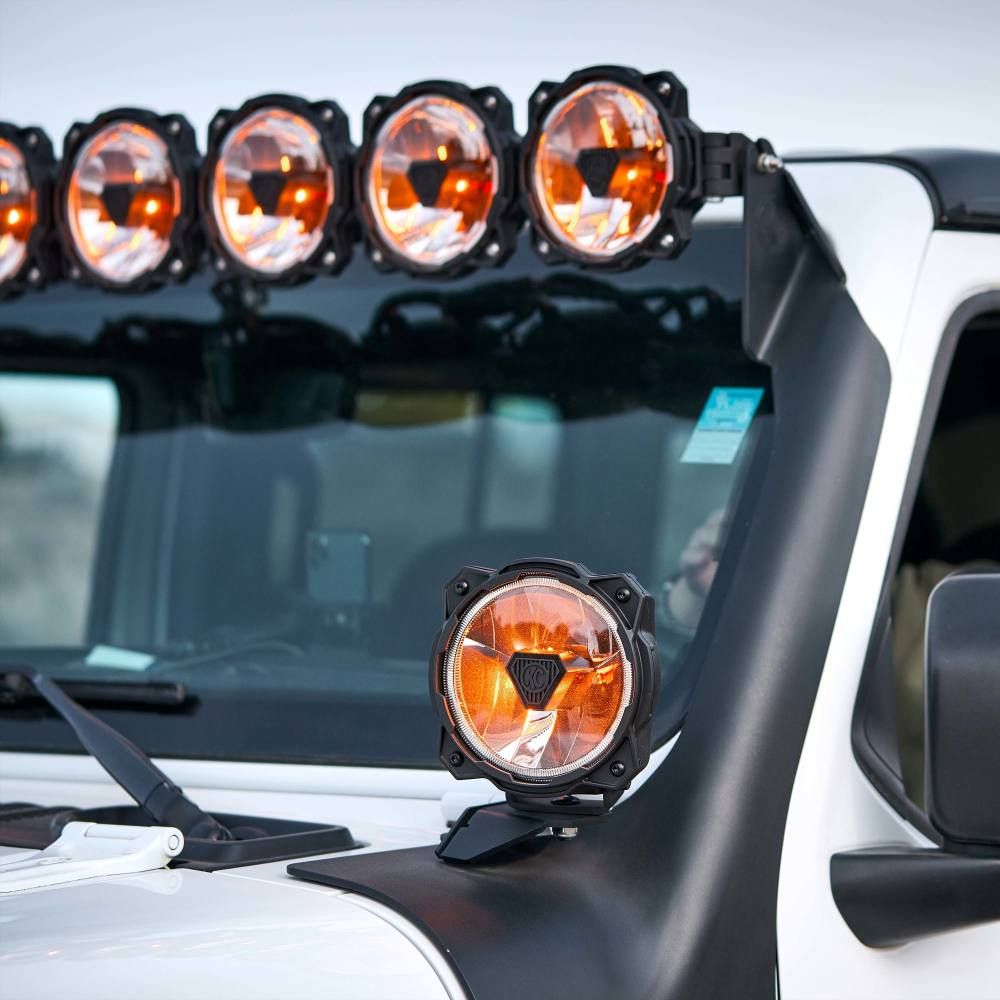

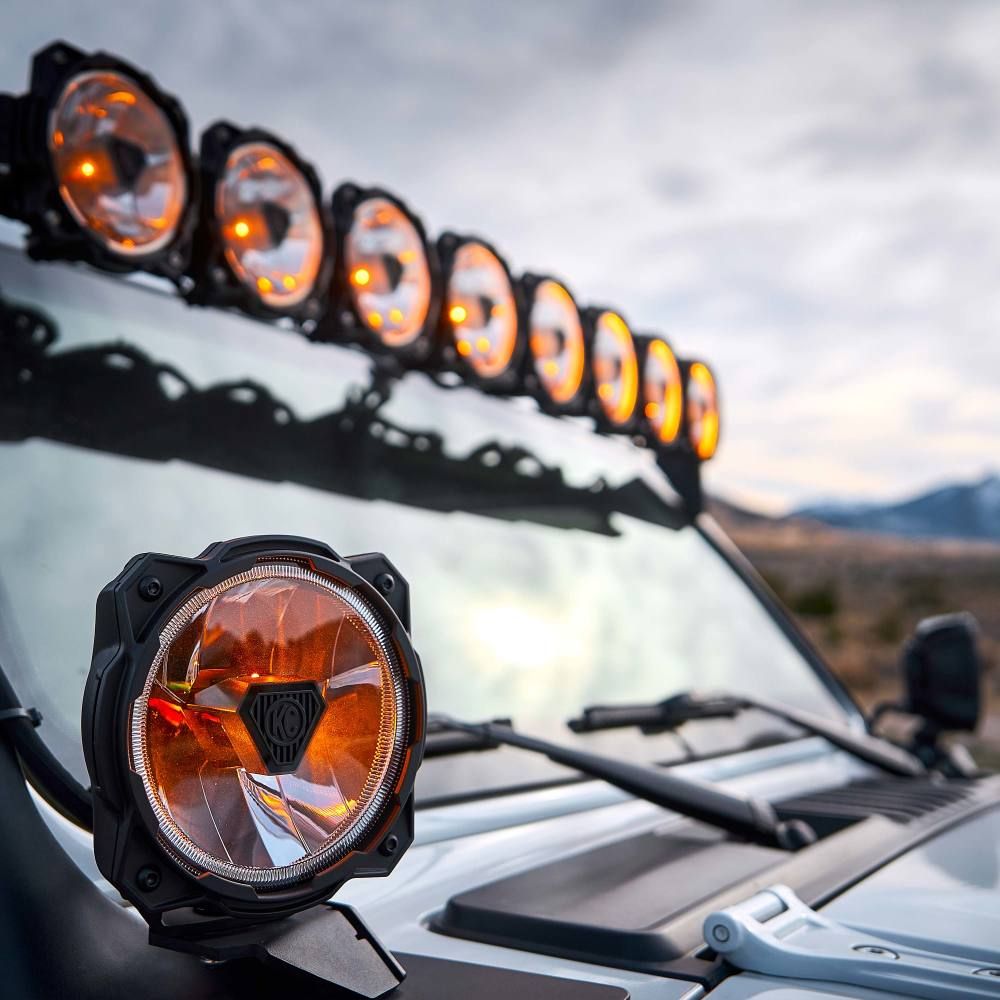

Location on Vehicle | A-Pillar / Ditch, Bumper |
Candela | 58,023 cd |
Total Candela | 116,046 cd |
Lumens | 2,972 lm |
Total Lumens | 5,944 lm |
Lux | 580 lx |
Total Lux | 1,160 lx |
Beam Distance | 341 m |
Wattage Per Light | 39W |
Total Wattage | 79W |
Voltage | 9V-36V |
Amp Draw | 3.29 a |
Total Amp Draw | 6.58 a |
Beam Pattern | Driving |
Light Temperature | 5000K |
DOT Compliant | Yes |
SAE/ECE | Yes |
Lens Color | Clear |
Light Color | Amber / White |
Material | Aluminum Alloy |
Location on Vehicle | A-Pillar / Ditch / Windshield, Bumper |
UPC | 084709914059 |
Color | Black |

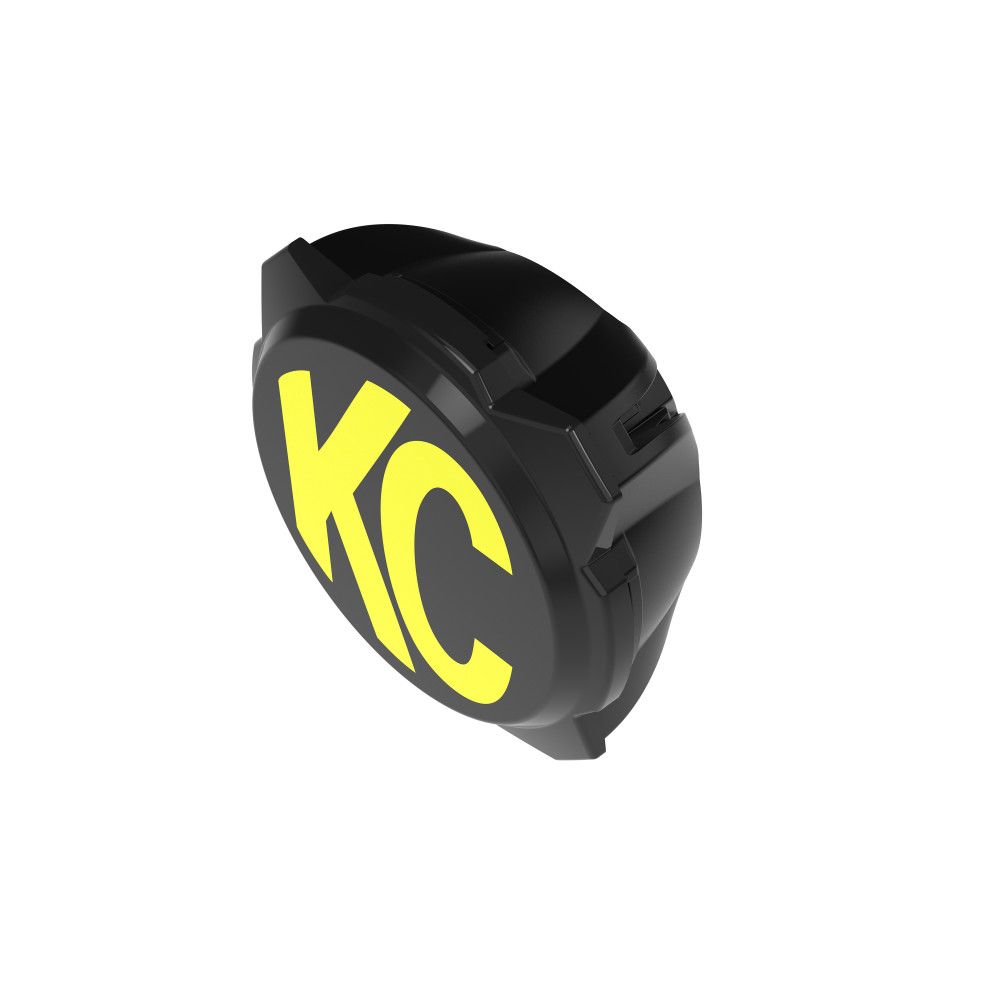

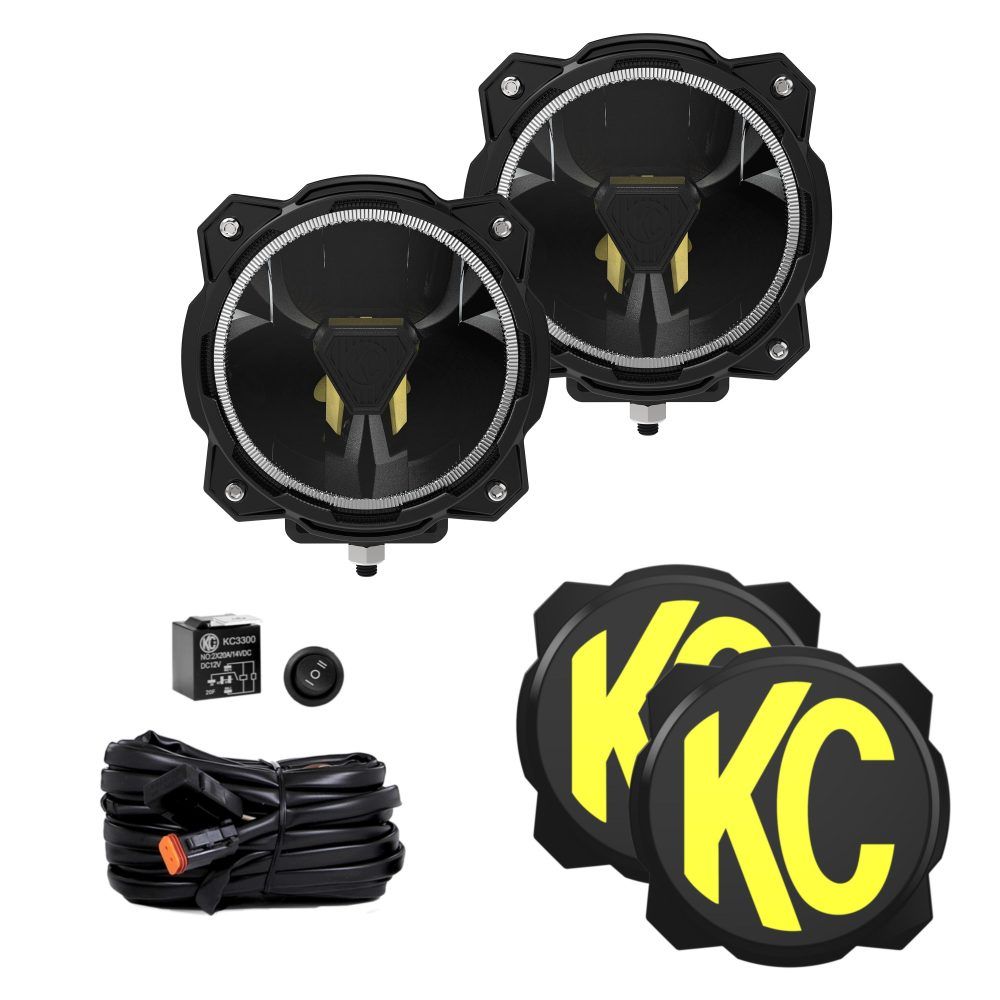

In The Box | 2 x Gravity® Titan™ 6" LED - Single Light - SAE Driving Beam, 2 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware |
IP rating | IP68 |
Prop 65 | No |
Size | 6" |
(91405)
