KC HILITES | Gravity Pro6 LED Single Pair Pack System (91303)
Beam Pattern:
Beam Pattern
Quantity:
SELECT OPTIONS
Beam Pattern:
Beam Pattern
Quantity:
Beam Pattern:
Beam Pattern
Quantity:
Description
The Gravity LED Pro6 Single is an LED off-road light using the patented Infinity Ring™ housing encasing a Gravity LED G6 optical insert and mounts via an all-new ball-mount system, giving you output and versatility in one
FEATURES
-Powered by Gravity® LED G6 optical inserts – efficient, powerful, patented
-Patented Infinity Ring™ system houses the Pro6 Single and mounts via an all-new, universal ball mount that is highly adjustable
-Driving beam pattern gives you an exceptional balance of spread and spot lighting in one beam pattern
-High output, low amperage draw
-Patented Infinity Ring™ system houses the Pro6 Single and mounts via an all-new, universal ball mount that is highly adjustable
-Driving beam pattern gives you an exceptional balance of spread and spot lighting in one beam pattern
-High output, low amperage draw
Specifications
SKU | 91303 |
---|---|
Weight | 7.000000 |
Compliance DOT/SAE/ECE | DOT, SAE J581, ECE R112 (Driving) |
Light Technology | LED |
Location on Vehicle | A-Pillar / Ditch, Bumper, Overhead |
Candela | 66,280cd |
Total Candela | 132,560cd |
Lumens | 2,538lm |
Total Lumens | 5,076lm |
Lux | 663lx |
Total Lux | 1326lx |
Beam Distance | 364m |
Wattage Per Light | 22.56W |
Total Wattage | 45.12W |
Voltage | 9V-36V |
Amp Draw | 1.88a |
Total Amp Draw | 3.76a |
Beam Pattern | Driving |
Light Temperature | 5000K |
DOT Compliant | Yes |
SAE/ECE | Yes |
Lens Color | Clear |
Light Color | White |
Product Dimensions | W - 6.00" x H - 7.00" x D - 3.125" |
Material | Aluminum Alloy |
Finish | Black |
Location on Vehicle | A-Pillar / Ditch / Windshield, Bumper, Overhead / Roof |
UPC | 084709913038 |
Color | Black |

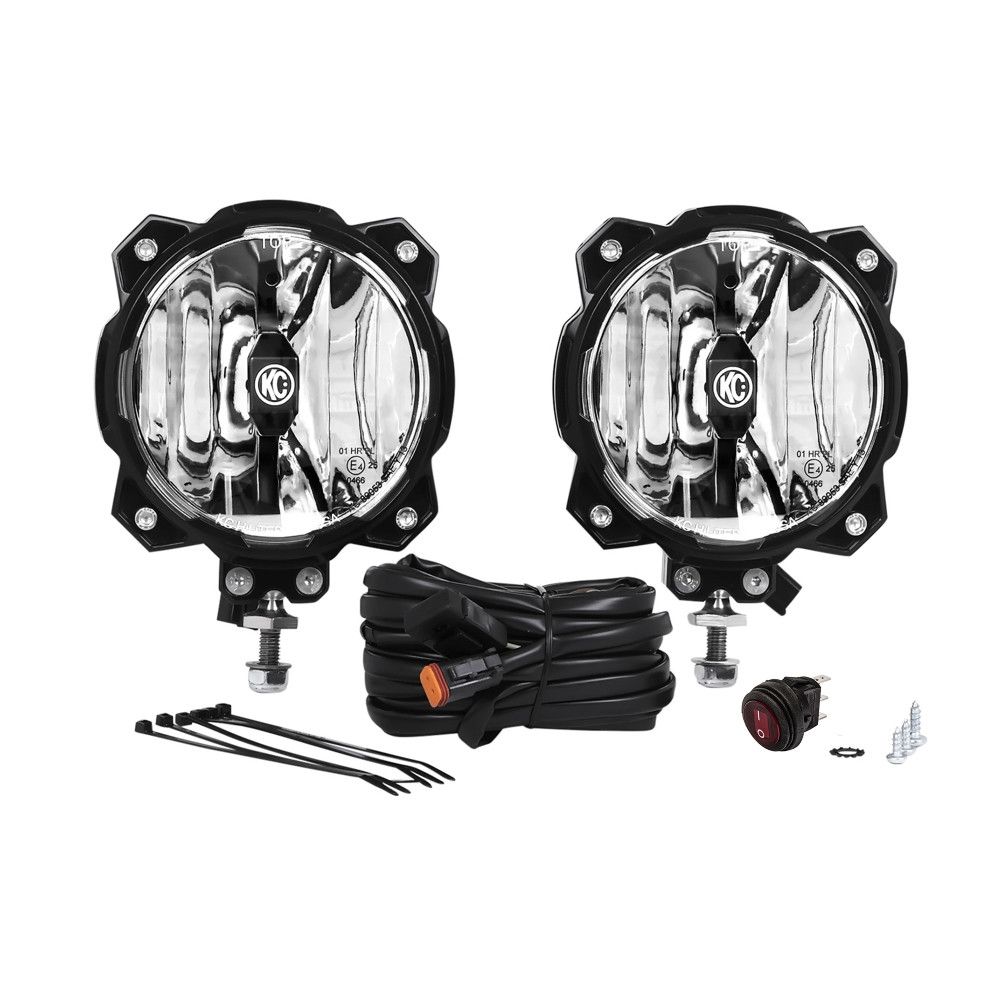

In The Box | 2 x Gravity® LED Pro6 Driving SAE/ECE Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x KC Pro6 Light Cover, Mounting Hardware |
IP rating | IP68 |
Prop 65 | No |
Size | 6" |
(91303)
