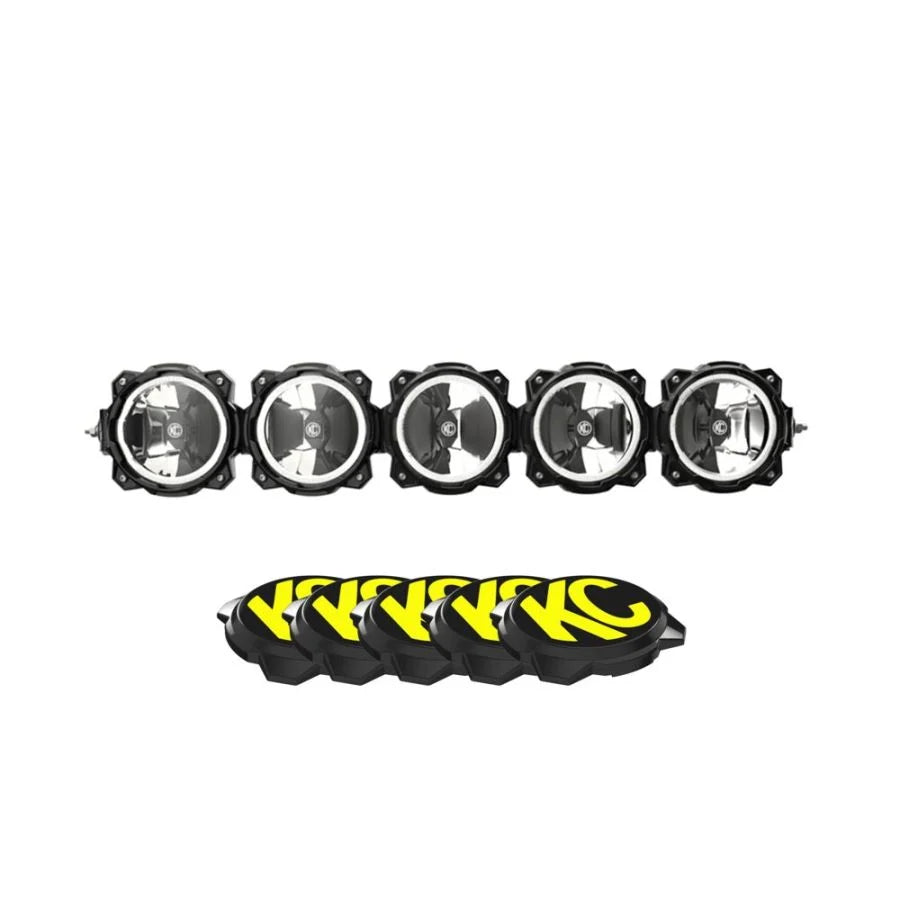

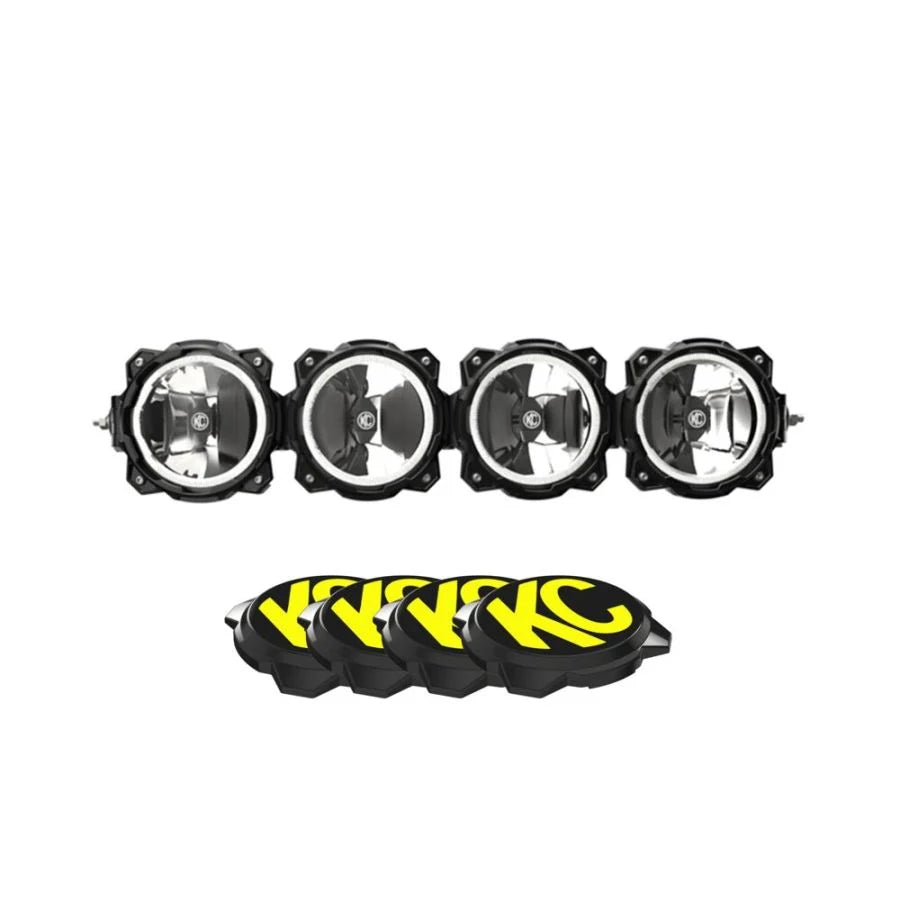

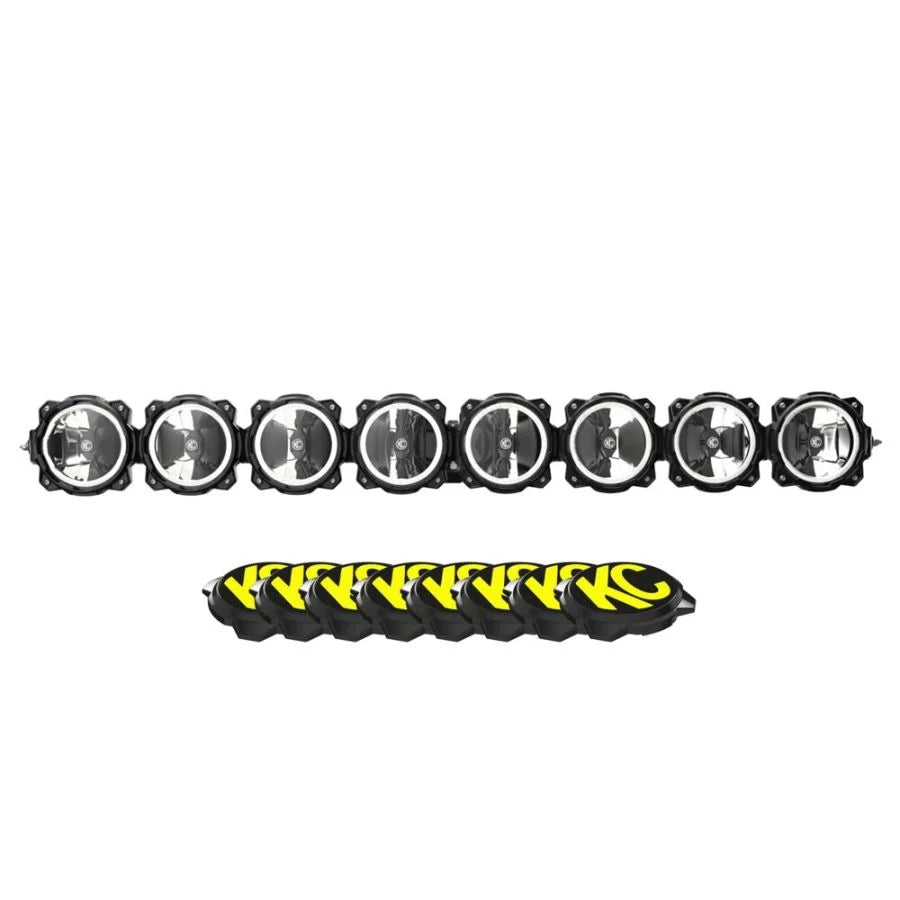

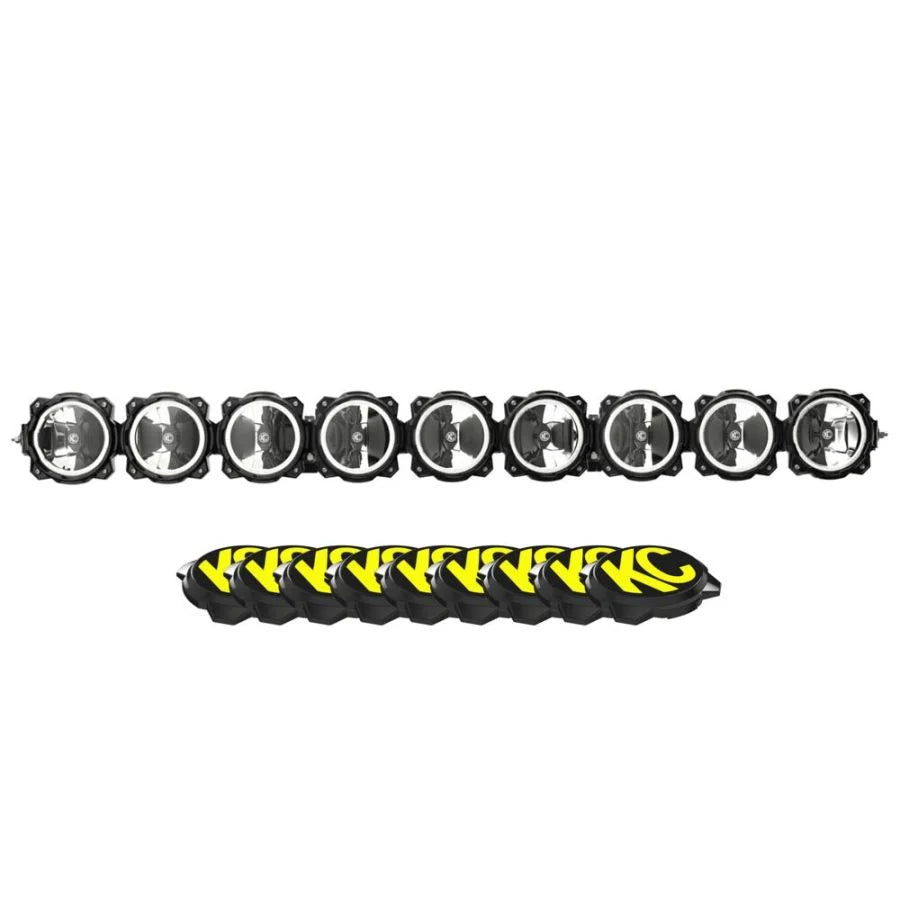

KC HILITES | Gravity Pro6 LED Light Bars

KC HILITES | Gravity Pro6 LED Light Bars

$999.99

Size of Products:

Variant

Quantity:

Description

BORN FROM RACE, READY FOR ADVENTURE
Inspired by and designed for off-road racing KC combines our time-tested optical reflector engineering, the latest LED technology, and unique signature aesthetics in the Gravity Pro6 LED Light Bar. We set a new standard and break all performance barriers by providing this durable, robust, and scalable LED light bar system.

PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY
Each Gravity® LED Pro6 light is powered by KC's G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry-leading technology and reflector design assure that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off-road use. Unlike traditional forward facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance, and beam shape.

PATENTED INFINITY RING™ SYSTEM
As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars feature a patented Infinity Ring™ system utilizing individual rings to securely link individual 6" Pro6 LED lights together to form a rigid, powerful LED light bar system. The unique hinge and bolt design in every ring allow for endless modularity, expandability, and adjustability to suit your lighting needs. This means the seamless transition between straight, radius, or hybrid radius light bar orientations to angle lights exactly how you see fit.

WHAT'S IN THE BOX
Whether you're using a switching system or need to wire your own we've got you covered. Everything you need is included in the box. See our easy installation video.

Gravity® Pro6
LED Light Bar (1)
Light Covers - Black with Yellow
KC Logo (QTY varies)
Performance Pro6 Wiring Harness
with Illuminated LED Switch (1)

Specifications

SKU	91315
Weight	30.000000
Wattage Per Light	21.36W
Total Wattage	192.24W
Amp Draw Per Light	1.78a
Total Amp Draw	16.02a
Voltage	9V-36V
Lumens Per Light	2,508lm
Total Lumens	22,572lm
Lux Per Light	868lx (Spot) / 309lx (Wide 40)
Total Lux	6,692lx
Candela Per Light	86,775cd (Spot) / 30,891cd (Wide 40)
Total Candela	669,207cd
Light Temp	5000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Combo What's this?
Beam Distance	818m
Light Technology	LED
Mount Location	Bumper, Overhead
Size of Products	57"
Material	Aluminum Alloy
Product Finish	Black
Included Components	57" 9-Light Gravity® LED Pro6 Light Bar, 9 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
Color	Black
Product Dimensions	W: 56.625 " x H: 6.06 " x D: 3.33 "
Tag Line	Modular. Linkable. Curvable.
UPC	084709913151
IP Rating	IP68

Installation Guides

3265DN-gravity_pro6lightbar_USletter_full_04112025-rev2.pdf applies to:

91318 - 20" Gravity® Pro6 LED - 3-Light - Light Bar System - 60W Combo Beam

91319 - 26" Gravity® Pro6 LED - 4-Light - Light Bar System - 80W Combo Beam

91306 - 32" Gravity® Pro6 LED - 5-Light - Light Bar System - 100W Combo Beam

91307 - 39" Gravity® Pro6 LED - 6-Light - Light Bar System - 120W Combo Beam

91314 - 45" Gravity® Pro6 LED - 7-Light - Light Bar System - 140W Combo Beam

91308 - 50" Gravity® Pro6 LED - 8-Light - Light Bar System - 160W Combo Beam

91315 - 57" Gravity® Pro6 LED - 9-Light - Light Bar System - 180W Combo Beam

Installation Guide - KC 3264QA Pro6 Wiring Harness applies to:
