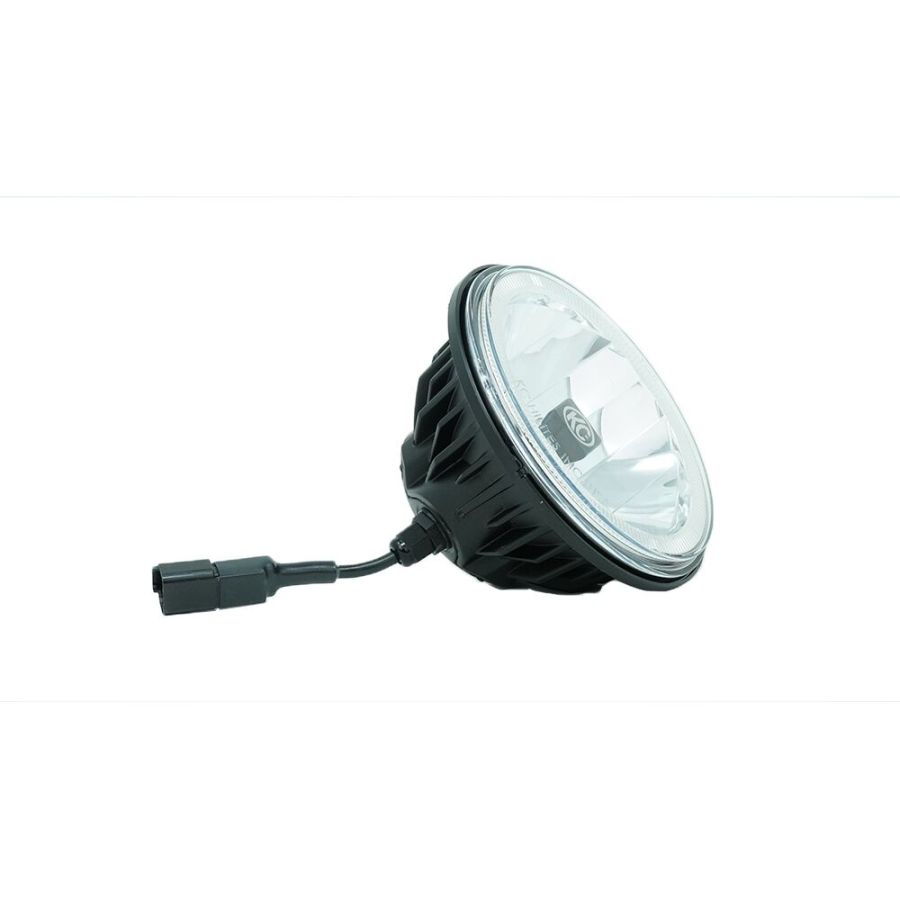

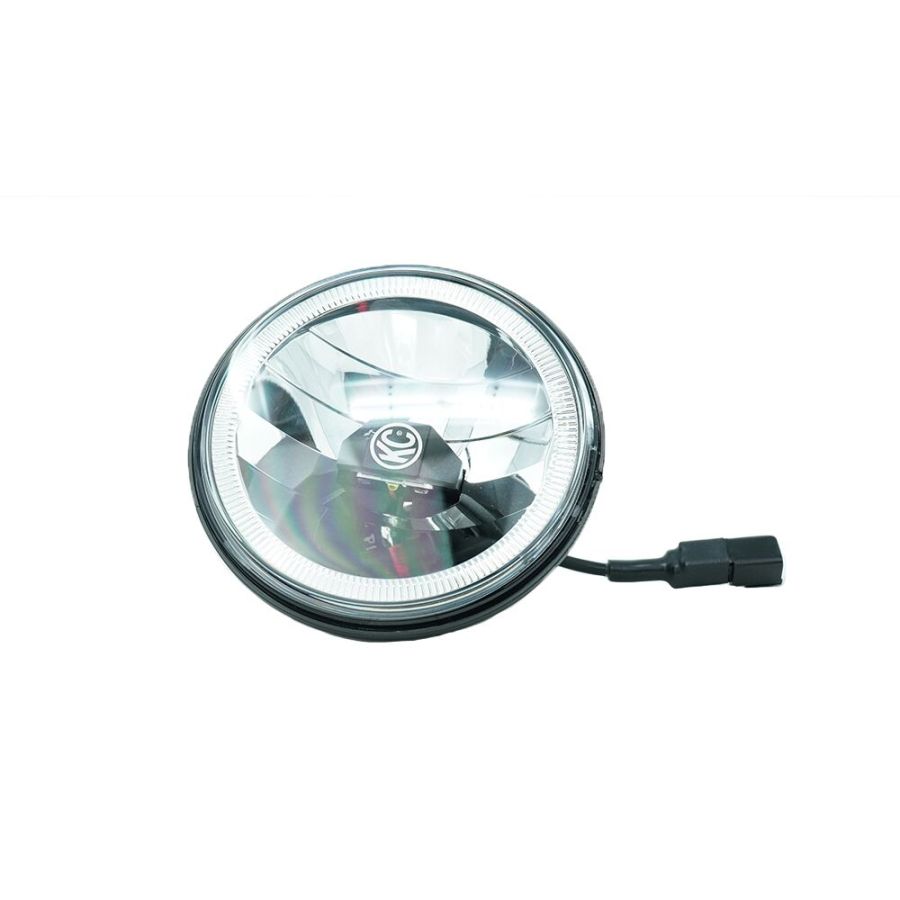

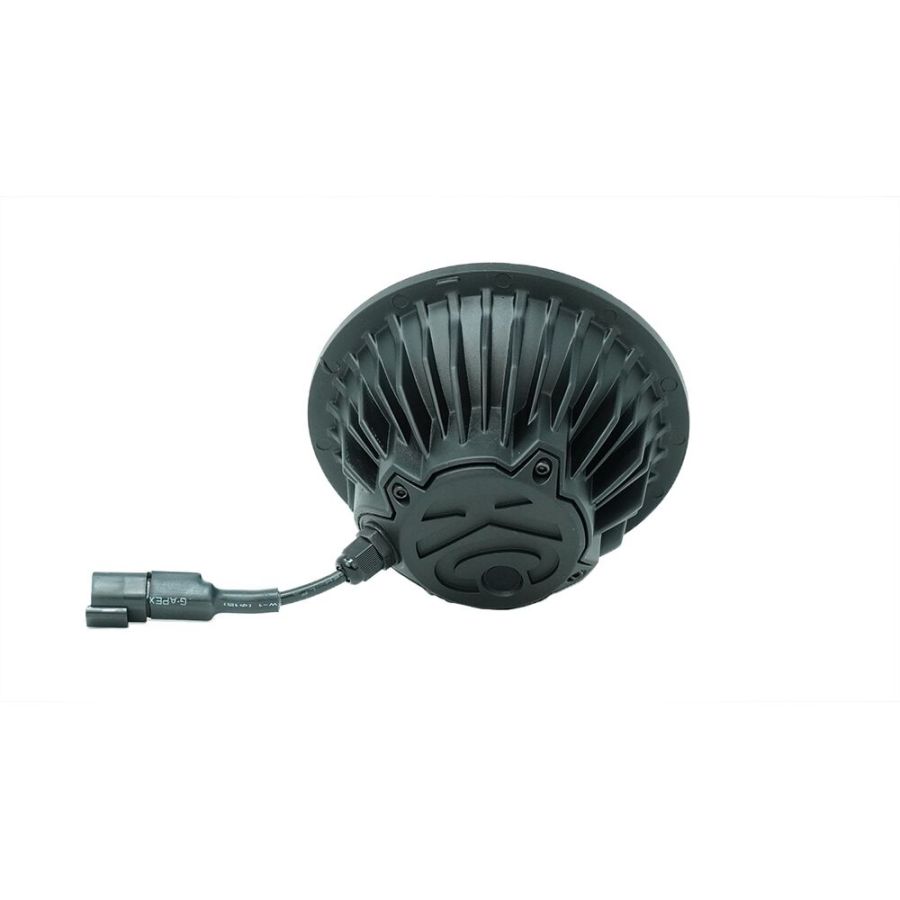

KC HILITES | Gravity LED Pro6 Optical Insert Single - Wide-40 Beam (89055A)
SELECT OPTIONS
Description
The KC 89055A 6" Gravity LED Insert is used as a replacement or upgrade to existing Pro6 single lights or light bars. Features efficient 5000K LEDs in Wide-40 beam pattern, for maximum horiztonal coverage.
FEATURES
20W Gravity® LED G6 Optical Insert - Aluminum Housing - Hard Coated Polycarbonate Lens - Wide-40 Beam Pattern - 2-Pin Deutsch (DT) connector
LIGHT PERFORMANCE (PER LIGHT)
Raw Lumens: 2,300 lm - Lux @ 10 Meters: 390 lx - Candela: 39,000 cd - Beam Distance (Meters): 395m
SPECIFICATIONS (PER LIGHT)
Wattage: 20W - Amp Draw: 1.63A - Voltage: 9V-32V - IP Rating: IP68 - Product Dimensions: W- 5.68" x H- 5.66" x D- 3.32"
GRAVITY® EXTREME OUTPUT AND EFFICIENCY Gravity® G6 LED optical inserts deliver an incredible 390 lx @ 10m, in a super wide, wide-40 beam pattern. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance. STRENGTH & DURABILITY With an IP68-rated sealed aluminum reflector housing and durable polycarbonate lens to create a self-contained LED light for maximum reliability and durability.
Specifications
| SKU | 89055A |
|---|---|
| Weight | 2.000000 |
| Beam Distance | 395 m |
| LED Color | White |
| Lens Color | Clear |
| Light Temp | 5000 K |
| Candela Per Light | 39,000 cd |
| Total Candela | 39,000 cd |
| Wattage Per Light | 20W |
| Total Wattage | 40W |
| Amp Draw Per Light | 1.67 a |
| Total Amp Draw | 1.67 a |
| Voltage | 9V-32V |
| Lumens Per Light | 2,300 lm |
| Total Lumens | 2,300 lm |
| Lux Per Light | 390 lx |
| Total Lux | 391 lx |
