Description

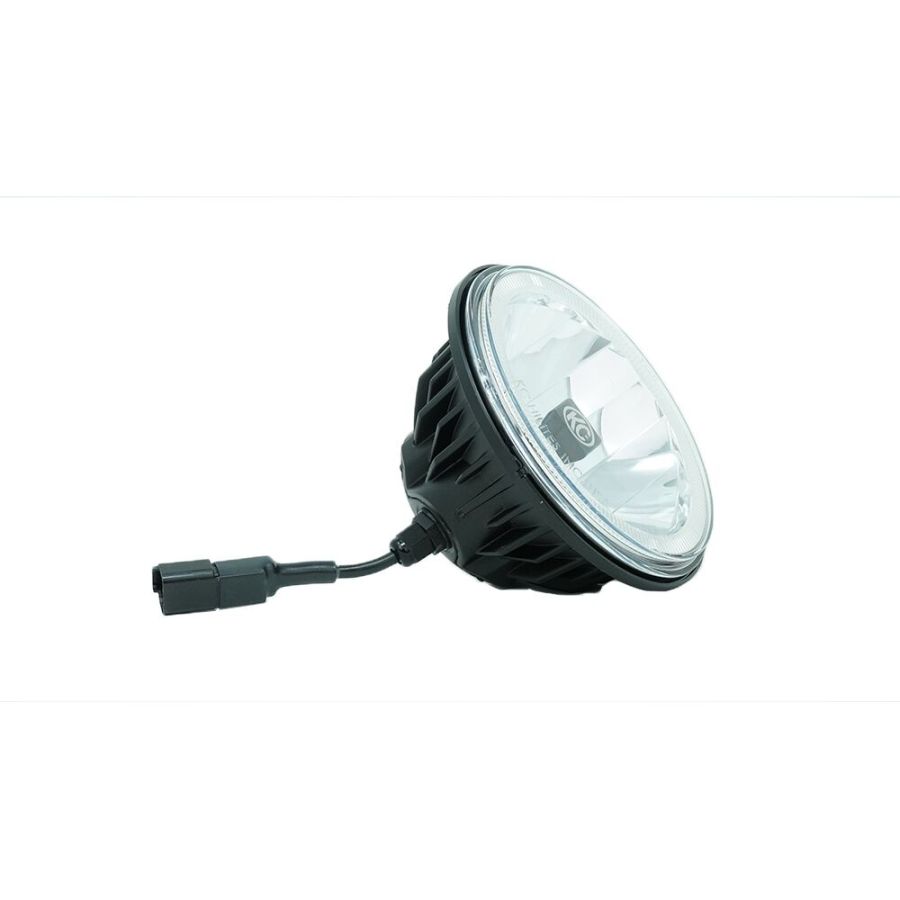

The KC 89053A 6" Gravity LED Insert is used as a replacement or upgrade to existing Pro6 single lights or light bars. Features efficient 5000K LEDs in a spot beam pattern, for focused beam and distance.
FEATURES
20W Gravity® LED G6 Optical Inserts
Aluminum Housing
Hard Coated Polycarbonate Lens
Spot Beam Pattern
2-Pin Deutsch (DT) connector
LIGHT PERFORMANCE (PER LIGHT)
Raw Lumens: Spot- 2,300 lm
Lux @10 Meters: Spot- 2,150 lx
Candela: Spot- 215,000 cd
Beam Distance (Meters): Spot- 972m
SPECIFICATIONS (PER LIGHT)
Wattage: 20W
Amp Draw: 1.67A
Voltage: 9V-32V
IP Rating: IP68
Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 2,150 lx @ 10m and Spot Beam distance of 972 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high-speed visibility.
Specifications
| SKU | 89053A |
|---|---|
| Weight | 2.000000 |
| Beam Distance | 972 m |
| LED Color | White |
| Lens Color | Clear |
| Light Temp | 5000 K |
| Candela Per Light | 215,000 cd |
| Total Candela | 215,000 cd |
| Wattage Per Light | 20W |
| Total Wattage | 40W |
| Amp Draw Per Light | 1.67 a |
| Total Amp Draw | 1.67 a |
| Voltage | 9V-32V |
| Lumens Per Light | 2,300 lm |
| Total Lumens | 2,300 lm |
| Lux Per Light | 2,150 lx |
| Total Lux | 2,150 lx |
| Compliance DOT/SAE/ECE | DOT |
