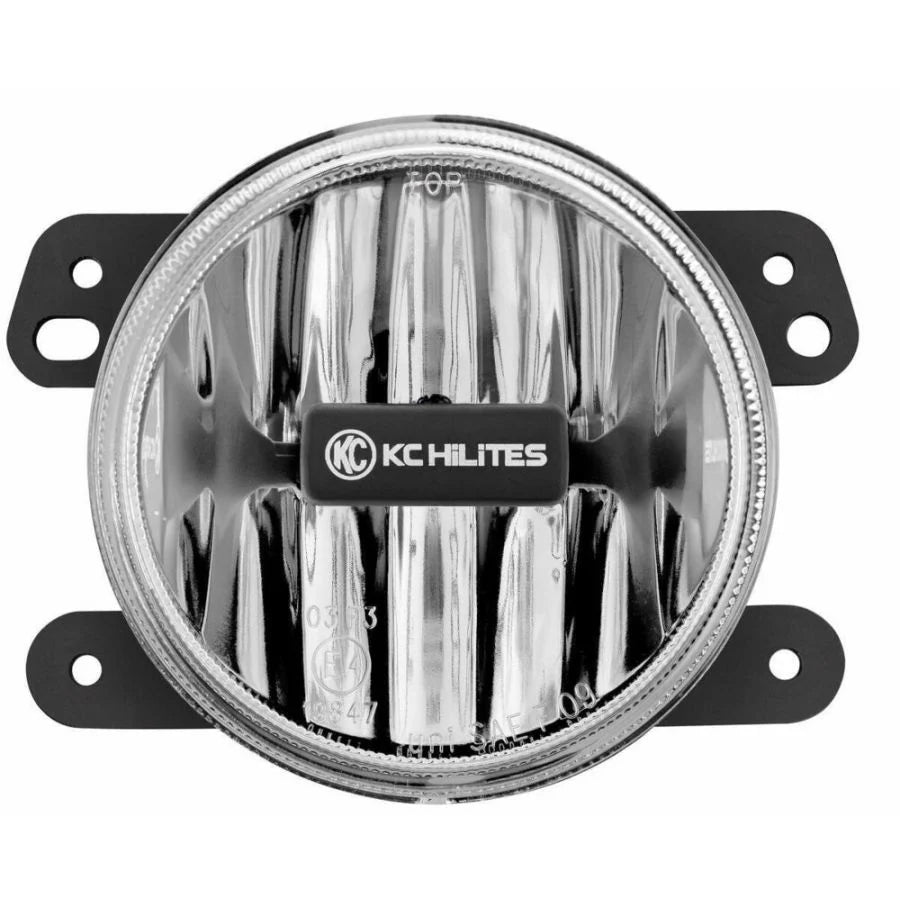

KC HILITES | Gravity LED G4 Fog Light Single - 10-18 Jeep JK (1497)

Description

KC HiLiTES 4" Gravity LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and shatter resistant polycarbonate lens, with universal adjustable bracket for easy OE mounting on 10-18 Jeep JKs.

FEATURES
-10W 4" Gravity® LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Street Legal 10-18 Jeep JK Application
-Clear LED
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)

LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 150,000 cd
-Beam Distance (Meters): 245m

SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE LED
-Color Temperature: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"

Gravity®EXTREME OUTPUT AND EFFICIENCY
4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern than ever before.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION

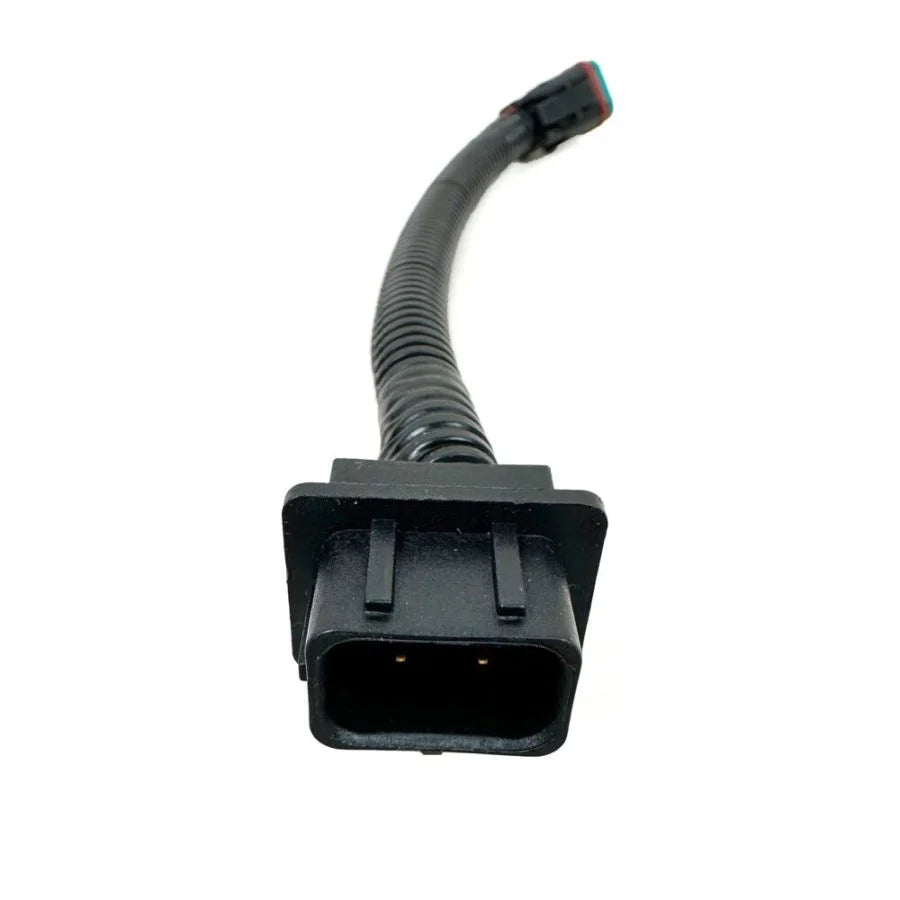

KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to the Jeep JK OE bumper and OE fog light harness.

STRENGTH & DURABILITY
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
