Description
Looking to mount backup lights to your vehicle? The KC FLEX ERA® 1 Backup Light Kit is a one-stop solution for everything needed from lights to wiring to mounts all in one convenient package.

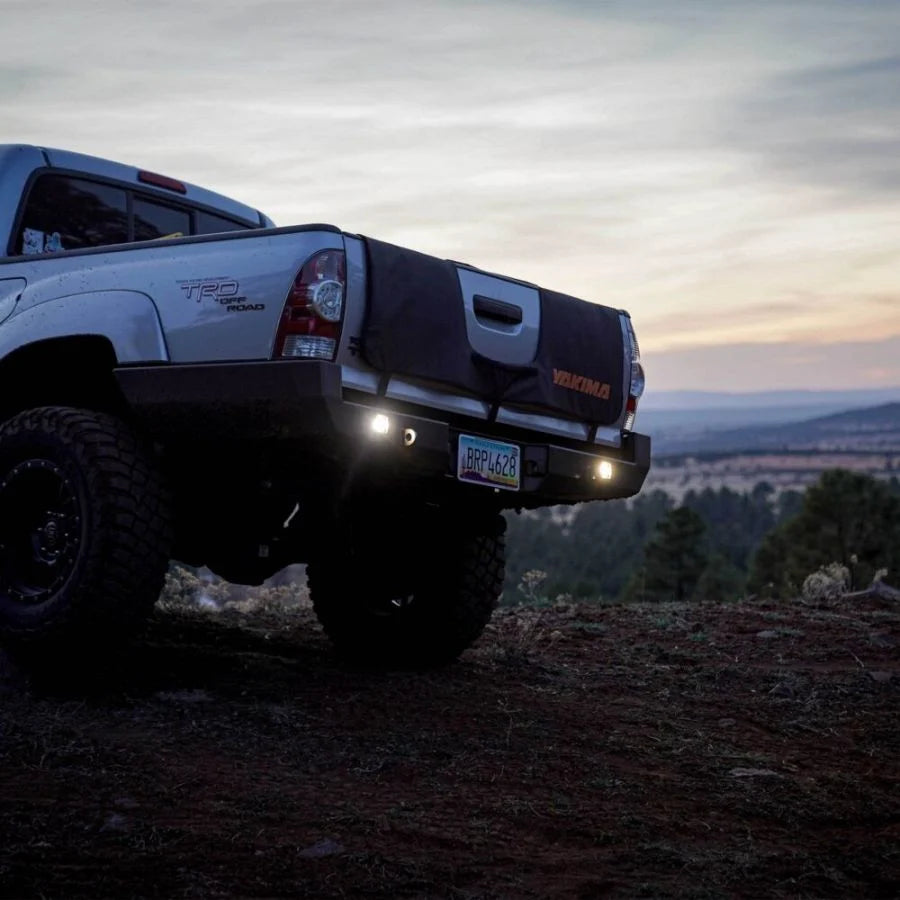

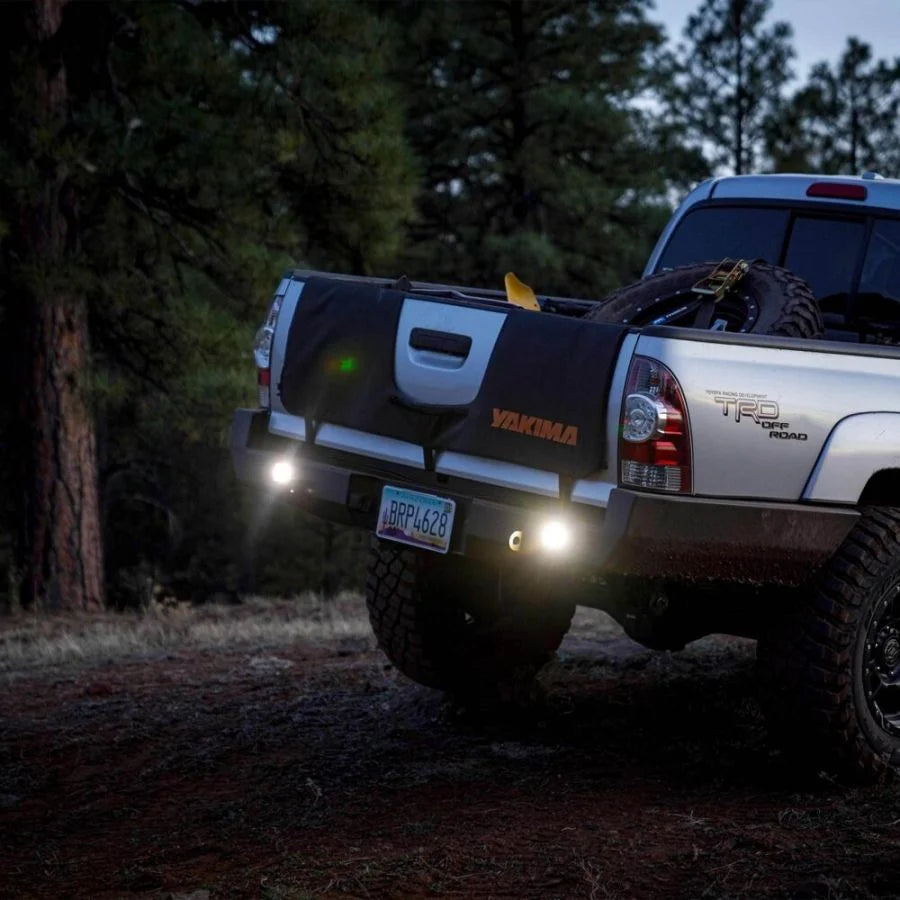

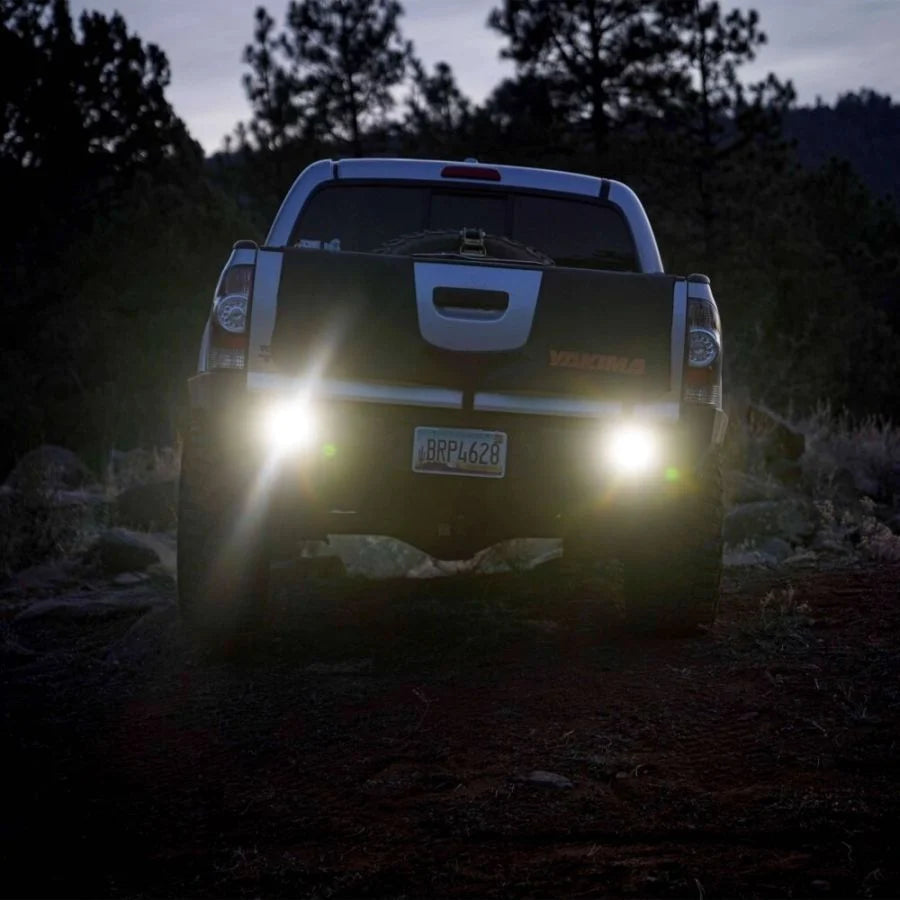

Featuring the powerful and compact FLEX ERA® 1, this kit pairs two FE1s pre-assembled in a spread beam pattern and a universal, bottom-mount bracket with a specially designed, extended-length backup harness to make the installation a breeze. Our KC FLEX ERA® 1 Standard Backup Light Kit is perfect for those installing into a rear bumper with cutouts for reverse lights or dust lights.
FEATURES
-2 x FLEX ERA® 1 Lights in Spread Beam
-Two Power Modes for Style and Performance

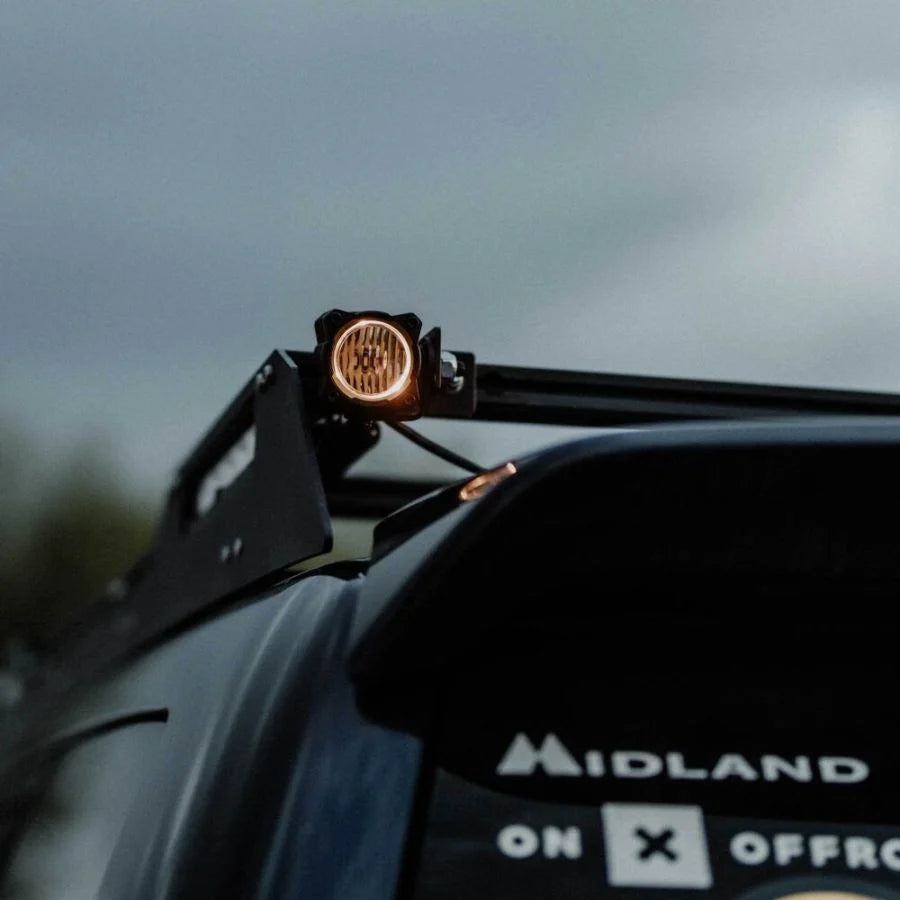

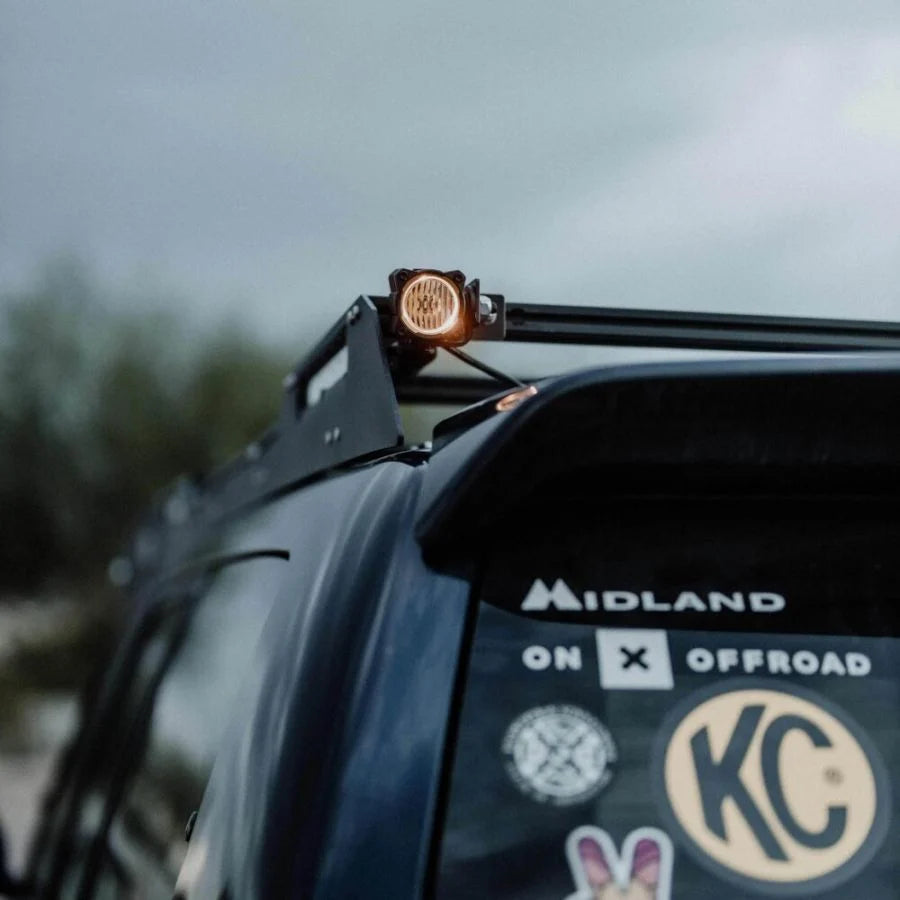

Amber LED Backlight
Full Power (off-road use only)
-Black powder-coated for ultimate durability and strength
-Compact Size for Bumpers with Light Cutouts
IDEAL FOR:
Illuminating Immediate Areas as a Work Light

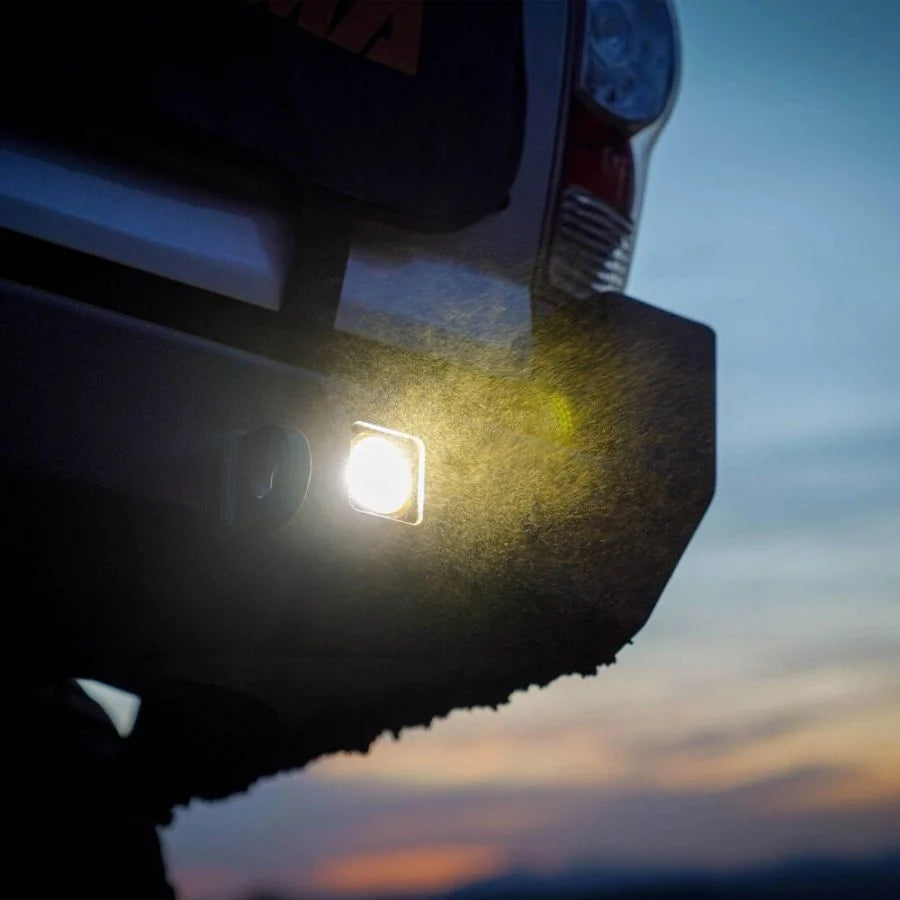

Shining Backwords as a Backup/Reverse light
Rear Facing Dust Light when paired with the FE1 Performance Yellow Lenses
PARTS INCLUDED
-2 x FLEX ERA® 1 Lights in Spread Beam
-1 x Complete Wiring Harness for FLEX ERA Backup/Reverse Lights
LIGHT PERFORMANCE (PER LIGHT)
-Lumens: 2,430 lm
-LUX @ 10 meters: 162 lx
-Candela: 16,200 cd
-Beam Distance (Meters): 127.3m
SPECIFICATIONS (PER LIGHT)
-Wattage: 5W (Amber Backlight) / 23W
-Amp Draw: 0.83 A / 3.83 A
-Voltage: 9V-36V
-IP Rating: IP68

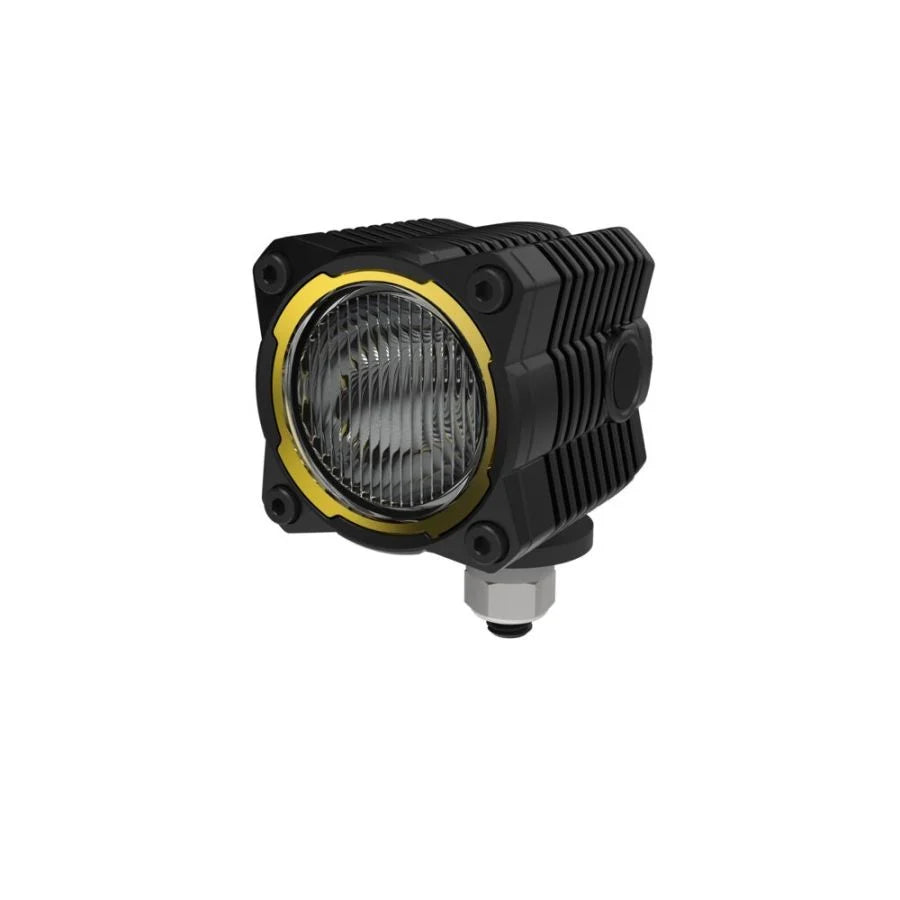

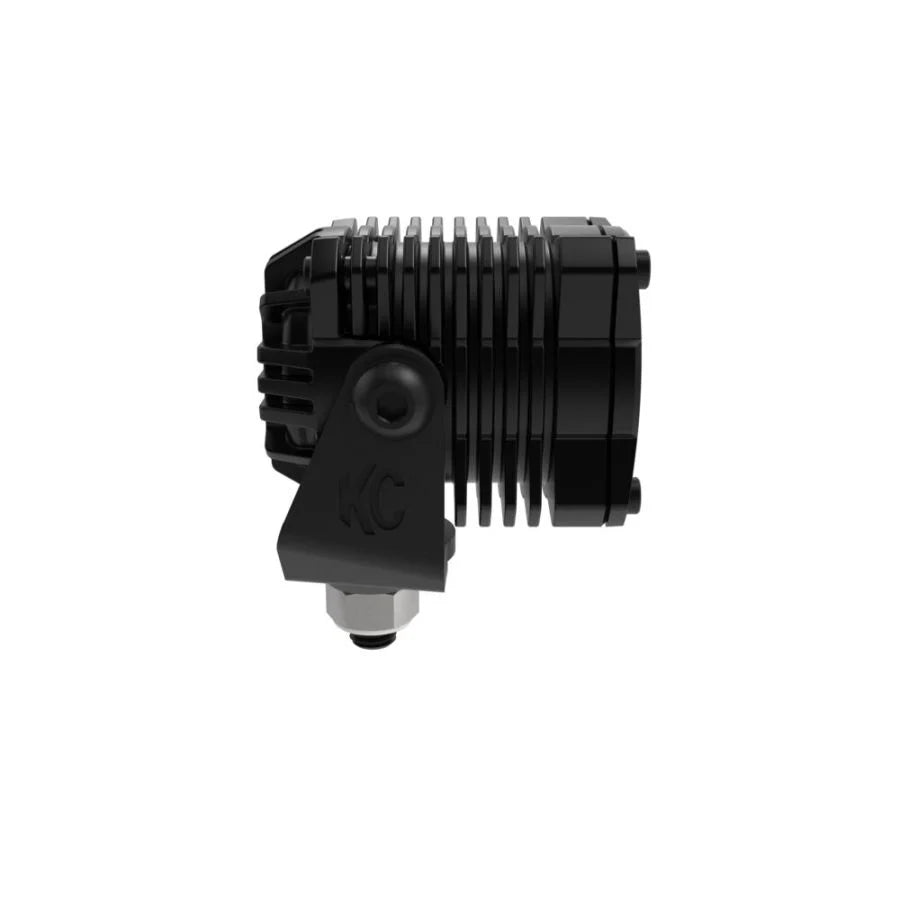

FLEX ERA® 1 LIGHTS

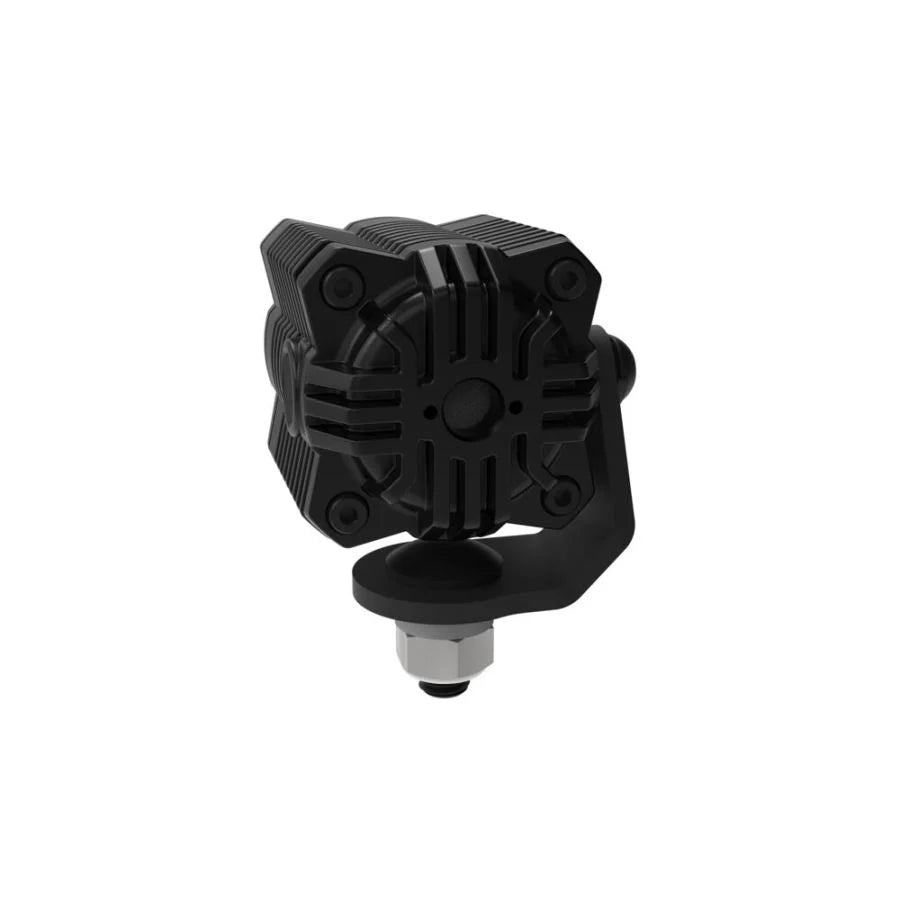

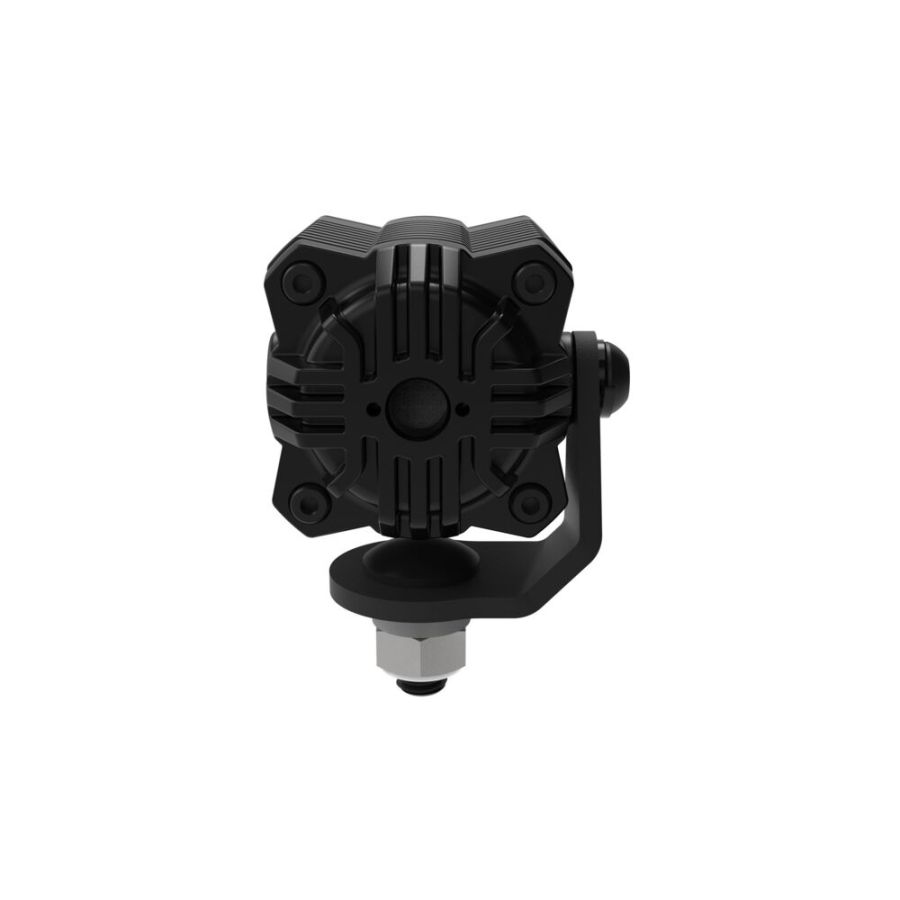

Contained in a compact size of less than 2.7", the FLEX ERA® 1 packs major performance in a versatile package for rear-facing lighting. They feature dual power modes; one mode is for the full, high-power output, and the other illuminates an eclipse-like amber backlight.
CUSTOMIZABLE and FLEXIBLE
We get it, everyone loves to personalize their rig. That's why we stuck with our tried and true FLEX LED® tradition and ensured that you can change and stylize the colored accent bezel to match your rig. The FE1 bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.
Specifications
| SKU | 0520 |
|---|---|
| Weight | 5.000000 |
| Wattage Per Light | 5W / 23W |
| Total Wattage | 10W / 46W |
| Amp Draw Per Light | 0.42 a / 1.92 a |
| Total Amp Draw | 0.83 a / 3.83 a |
| Voltage | 9V-36V |
| Lumens Per Light | 2430 lm |
| Total Lumens | 2431 lm |
| Lux Per Light | 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot) |
| Total Lux | 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot) |
| Candela Per Light | 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot) |
| Total Candela | 4511 cd (flood) / 16200 cd (spread) / 31000 cd (spot) |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | Amber / White |
| Beam Pattern | Spread What's this? |
| Beam Distance | 67.2 m flood / 127.3 m spread / 176.1 m spot |
| Light Technology | LED |
| Mount Location | Bumper, Overhead, Rear / Back-up, Roof |
| Size of Products | 3" |
| Material | Aluminum Alloy |
| Product Finish | Black |
| Included Components | 2 x KC FLEX ERA® 1 LED Lights with Spread Lens, Extended Wiring harness with Weatherproof Connectors, 3-position switch, 2 x Mounting Bracket, 2 x KC Covers and Mounting hardware |
| Color | Black |
| Product Dimensions | W: 2.6 " x H: 2.72 " x D: 2.9 " |
| UPC | 084709005207 |
| IP Rating | IP68 |
