Description
Harness & Wiring
Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

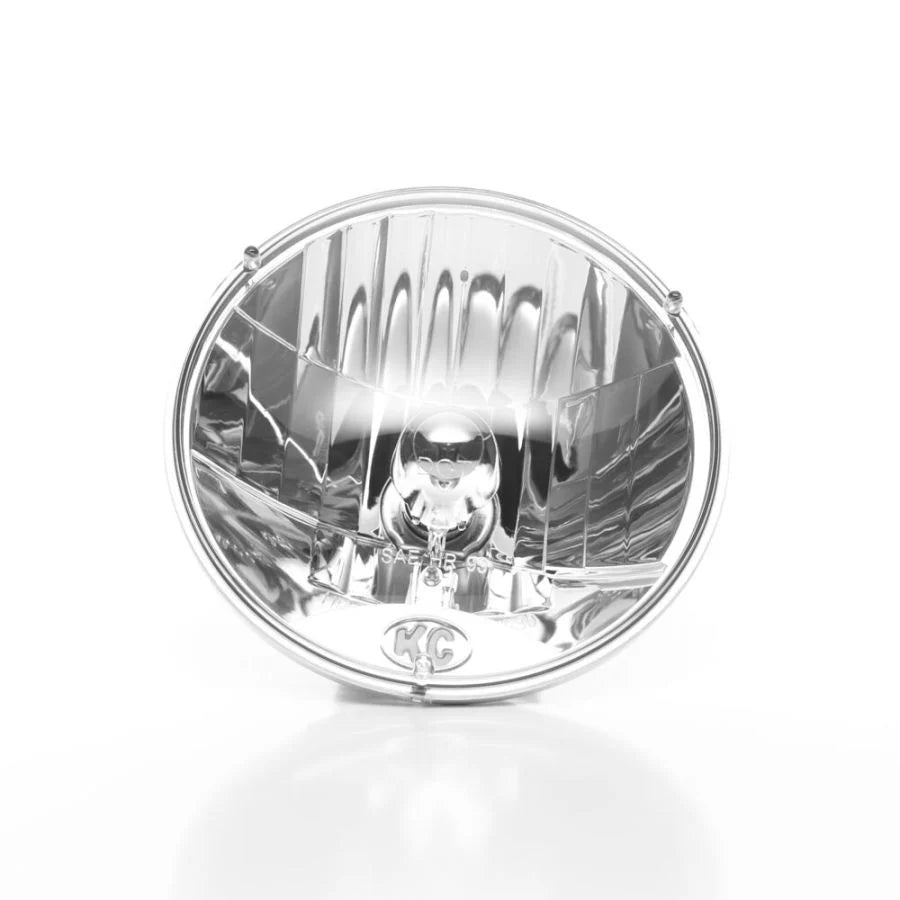

KC's 7" Round H4 Headlight uses a Street Legal SAE/DOT approved beam pattern with UV treated Lexan lens and multi-surfaced reflectors. Off road tested, with easy Plug'n Play stock replacement install. Includes 55/60W H4 Halogen bulb.
FEATURES
-55W/60W 7" H4 Halogen Headlights & Bulbs
-Direct Plug-n-Play H4 Replacement for 97-06 Jeep TJs or Universal H4 7" Headlights
-High/Low Beam Function
-Hard Coated Polycarbonate Lens
-KC Precision Multi-Surface Reflector Optics
-D.O.T. Approved Beam (DOES NOT MEET Transport Canada (TC) Compliance for 97-06 Jeep TJ)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: High Beam- 1,650 lm, Low Beam- 1,100 lm
SPECIFICATIONS
-Wattage: 55W-60W
-Compliance: D.O.T.
-Bulb: H4 Halogen
-Amp Draw: 4.58A-5.0A
-Voltage: 12V
-Product Dimensions: 7" Diameter
PARTS INCLUDED
-Replaceable 55W/60W H4 Halogen Bulb with sealed boot
PERFORMANCE HALOGEN AND PRECISION OPTICS
KC's 7" H4 Headlights are significantly brighter than factory Jeep headlights, delivering maximum DOT approved candlepower using CAD designed multi-surface reflector optics and powerful 55/60W H4 Halogen bulbs.
UPGRADE YOUR FACTORY JEEP HEADLIGHTS PERFORMANCE
When it comes to out of the box headlight performance for your Jeep, KC's 7" H4 Headlights significantly improve light performance over factory headlights. Not to mention, easy-to-install with a direct Plug N' Play replacement fitment.
LOW AND HIGH BEAM OPERATION
KC's headlights feature a relay system which allows the operation of high beam and low beam function for increased safety while meeting D.O.T. approved compliance.
ROAD TESTED DURABILITY

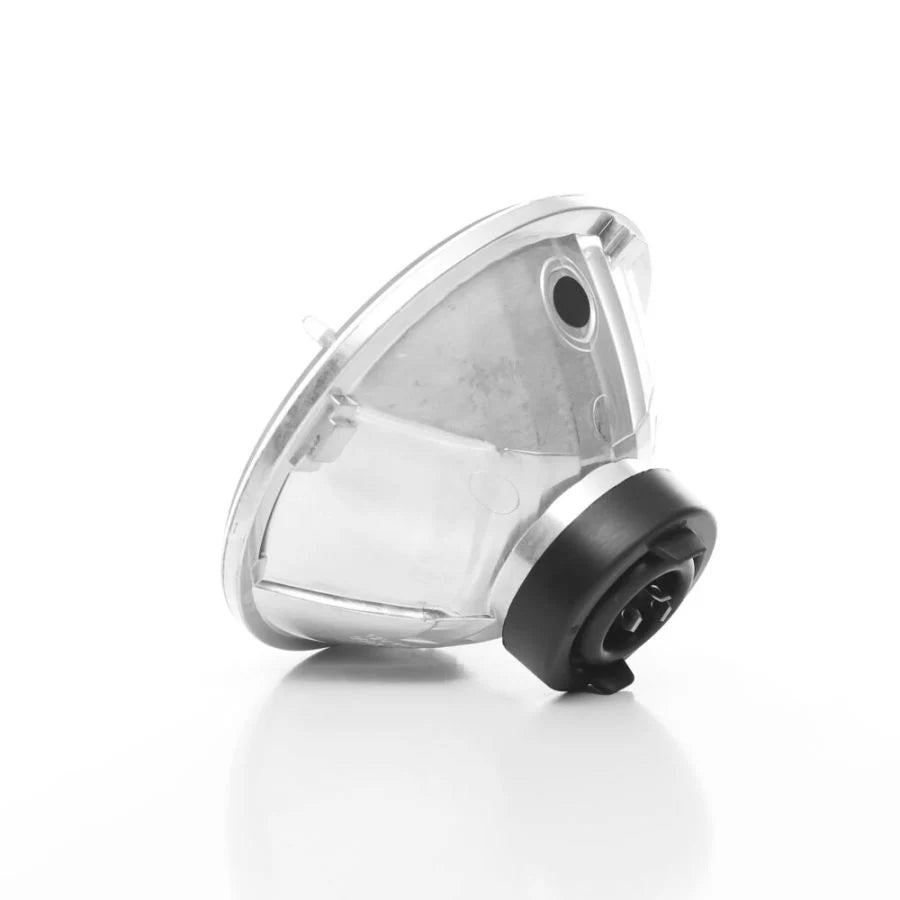

Designed to handle extreme off road environments, KC 7" H4 Headlights featured a sealed rubber boot design for H4 bulbs with UV and impact resistant, hard coated Lexan lenses.
Specifications
| SKU | 4230 |
|---|---|
| Weight | 1.500000 |
| Light Technology | Halogen |
| Mount Location | Headlight |
| Beam Pattern | Driving What's this? |
| Included Components | 2x 55W/60W 7" H4 Halogen Headlight (97-06 Jeep Wrangler TJ) |
| LED Color | White |
| Lens Color | Clear |
| Light Temp | 4000 K |
| Wattage Per Light | 60W |
| Total Wattage | 60W |
| Amp Draw Per Light | 5.0 a |
| Total Amp Draw | 10.0 a |
| Voltage | 9V-32V |
| Lumens Per Light | High Beam- 1,650 lm, Low Beam- 1,100 lm |
| Total Lumens | 1,100 Low /1650 High |
| Lux Per Light | 1,100 Low /1650 High |
| Product Finish | Black |
| Compliance DOT/SAE/ECE | DOT, SAE J581, ECE R112 (Driving) |
| Material | Aluminum Alloy |
| Size of Products | 7" |
| UPC | 084709042301 |
Installation Guides
