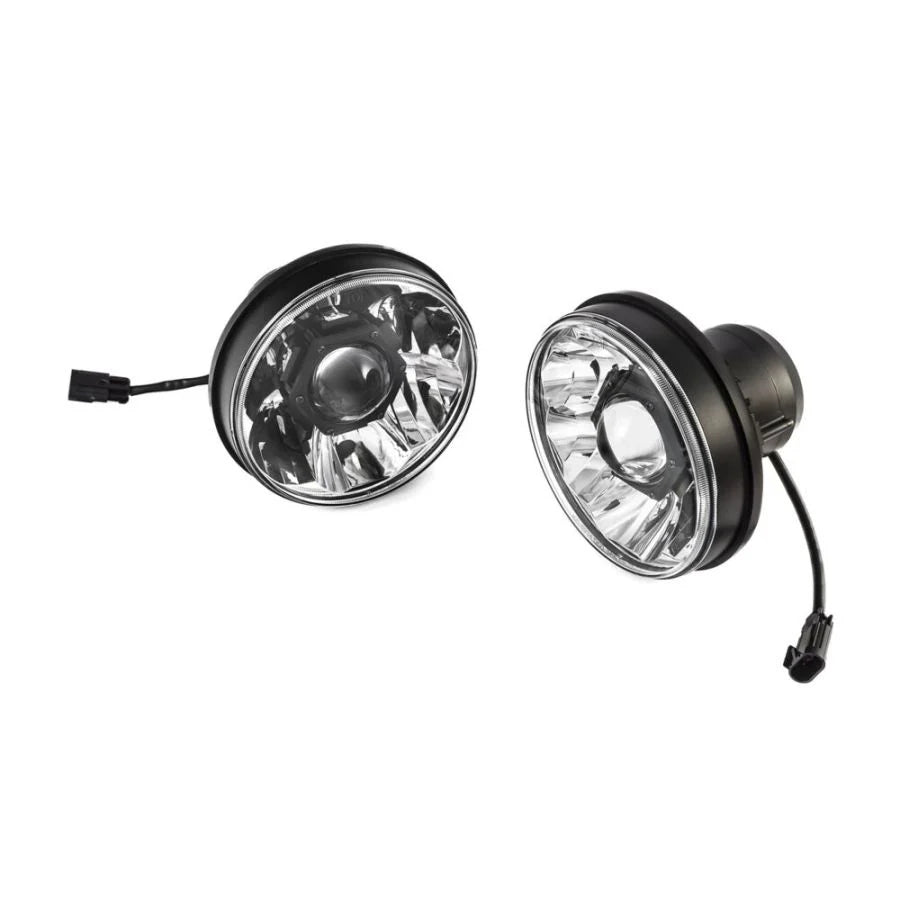

KC HILITES | 7" Gravity LED Pro DOT Headlight - Driving Beam - Pair - Universal / 07-18 Jeep JK (42341)
SELECT OPTIONS
Description
KC's Gravity LED Pro 7" Jeep Wrangler JK Headlights feature bright CREE LEDs for DOT low/high beams on 07-18 JKs. Diecast aluminum housing and polycarbonate lens for optimal performance. High/Low beams with built-in DRL, and anti-flicker capacitors.
FEATURES
-40W Gravity® LED Pro 7" Headlights
-Patented Gravity® Projector Optics(GPO)
-Hard Coated Polycarbonate Lens
-Precision Die-Cast Aluminum Housing
-DOT Compliant Low and High Beam with built-in Daytime Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
-KC Engineered Polished Reflector Optics

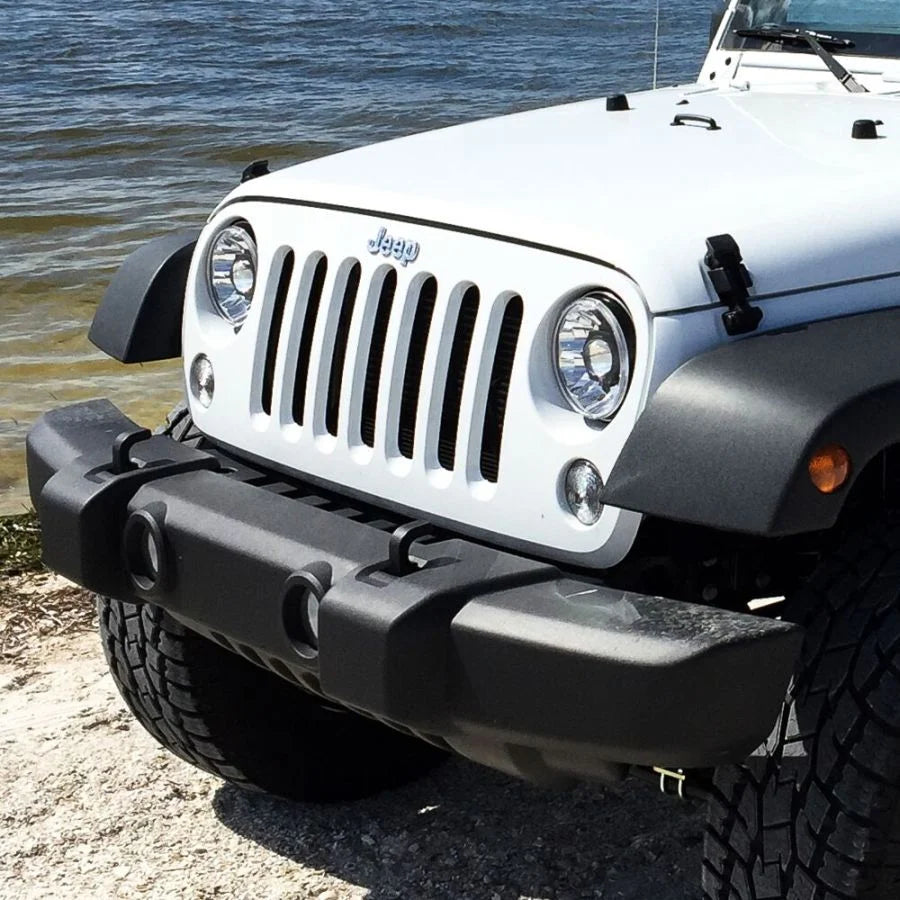

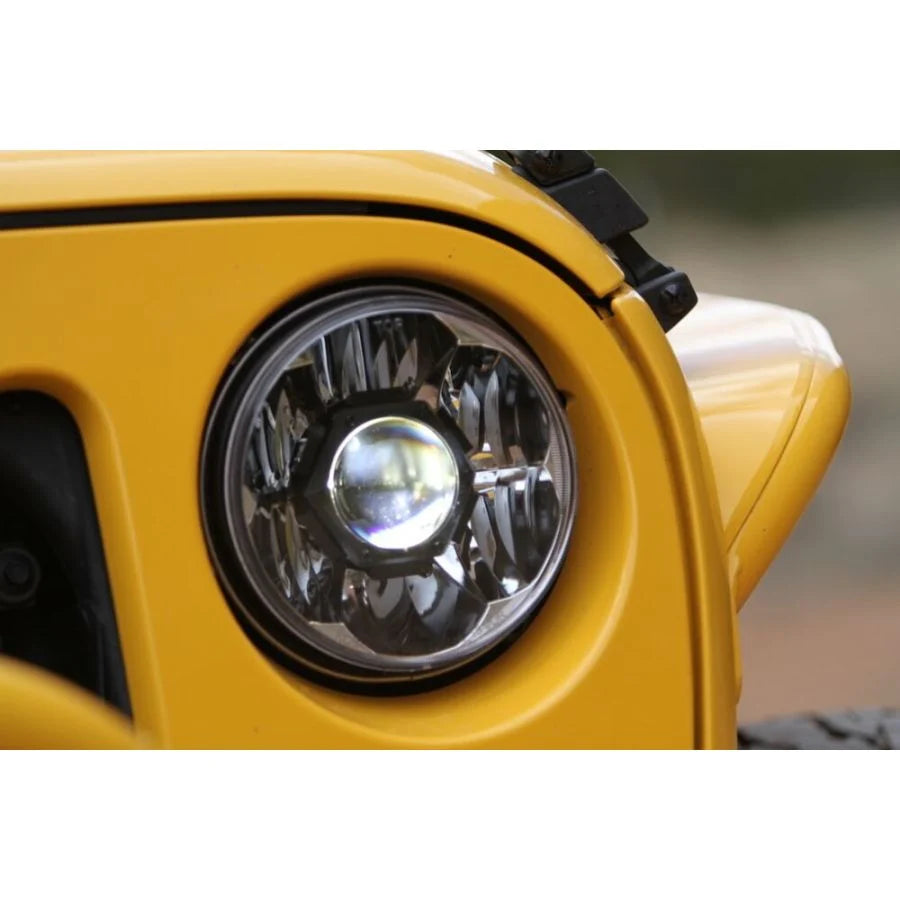

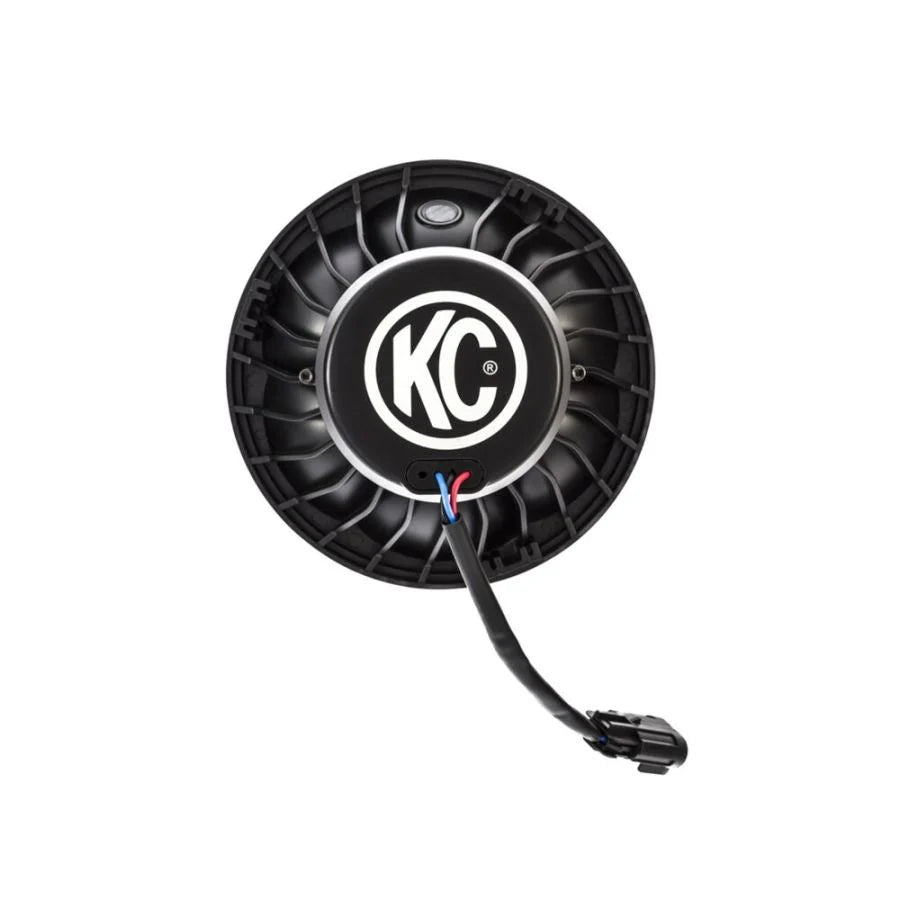

-Plug-n-Play for Jeep Wrangler JK
Note: Does not fit Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights
Note: Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
-Lux @ 10 Meters: Low- 400 lx, High- 700 lx
-Candela: Low- 40,000 cd, High- 70,000 cd
-Beam Distance: Low- 400m, High- 529m
SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 20W, High- 30W, DRL- 1.35W
-LED Bulb: CREE: XPL/XPG2
-Color Temp: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 5.098"
GRAVITY® EXTREME OUTPUT AND EFFICIENCY

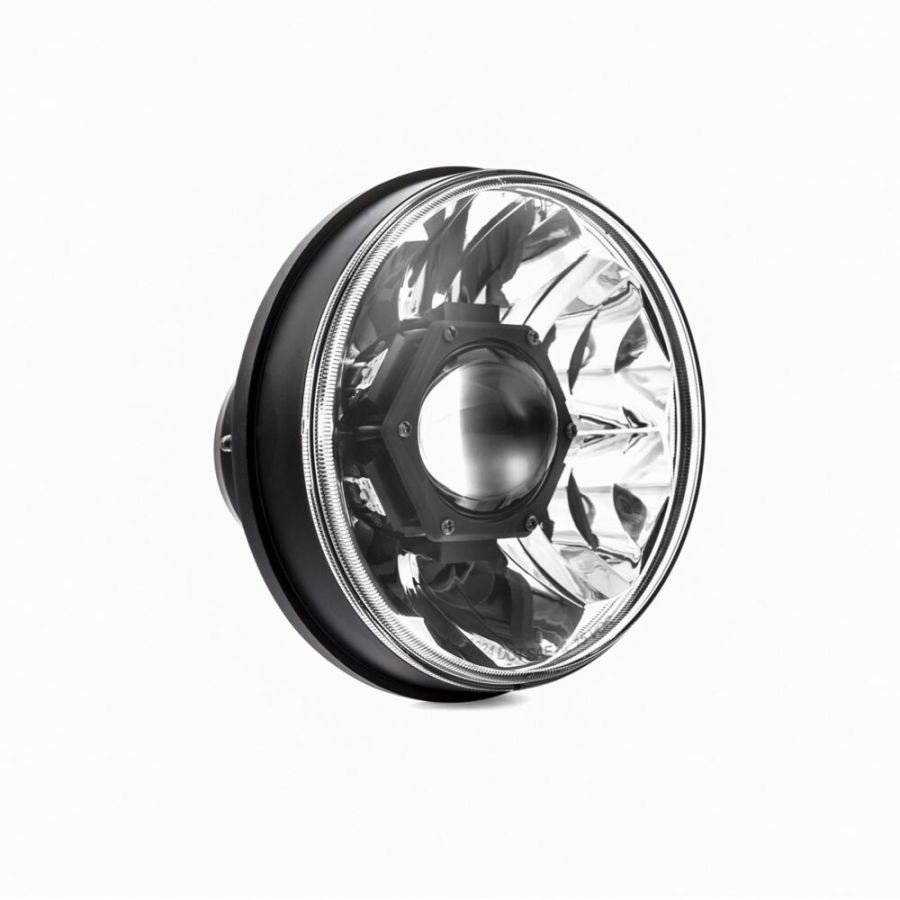

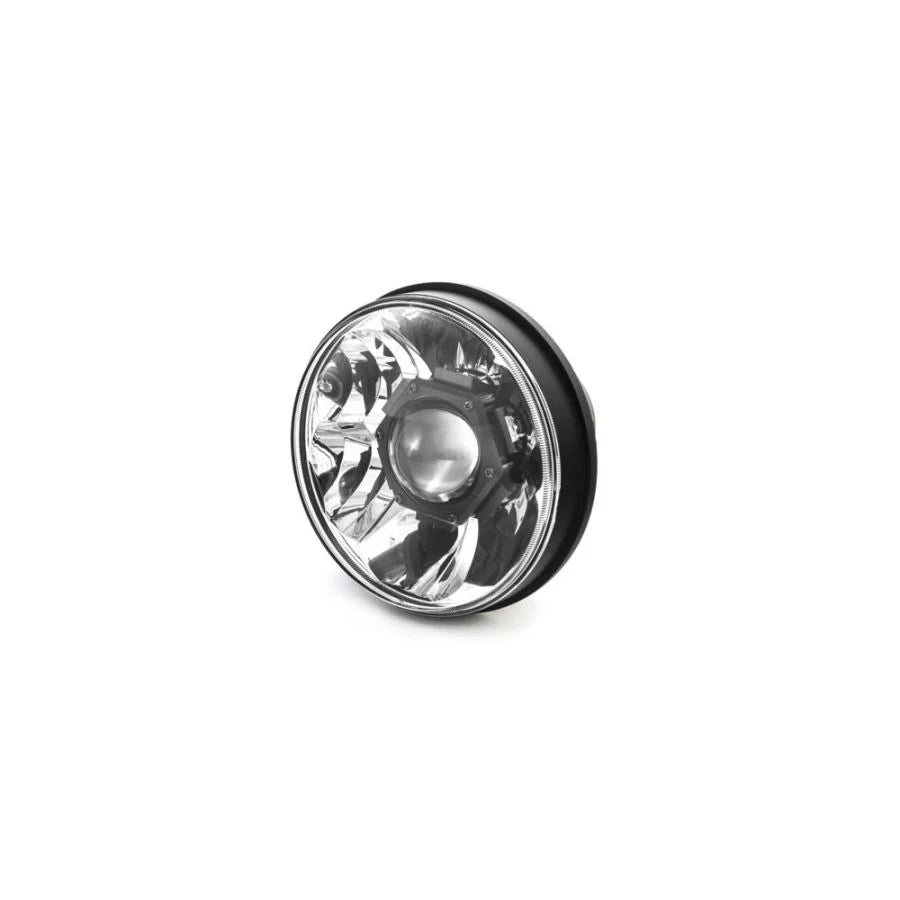

The Gravity® LED Pro 7" headlight uses KC's patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.
HIGH-PERFORMANCE REFLECTOR OPTICS
The Gravity® LED Pro 7" Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs into usable light output.
HIGH/LOW/DRL FUNCTION

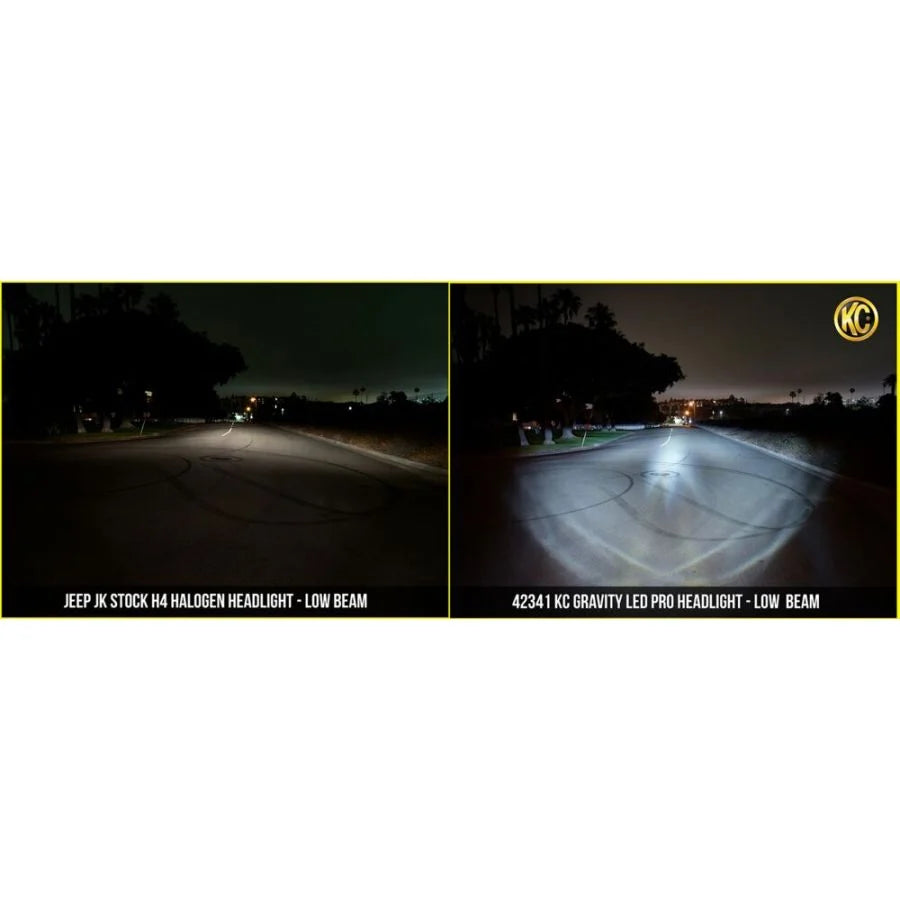

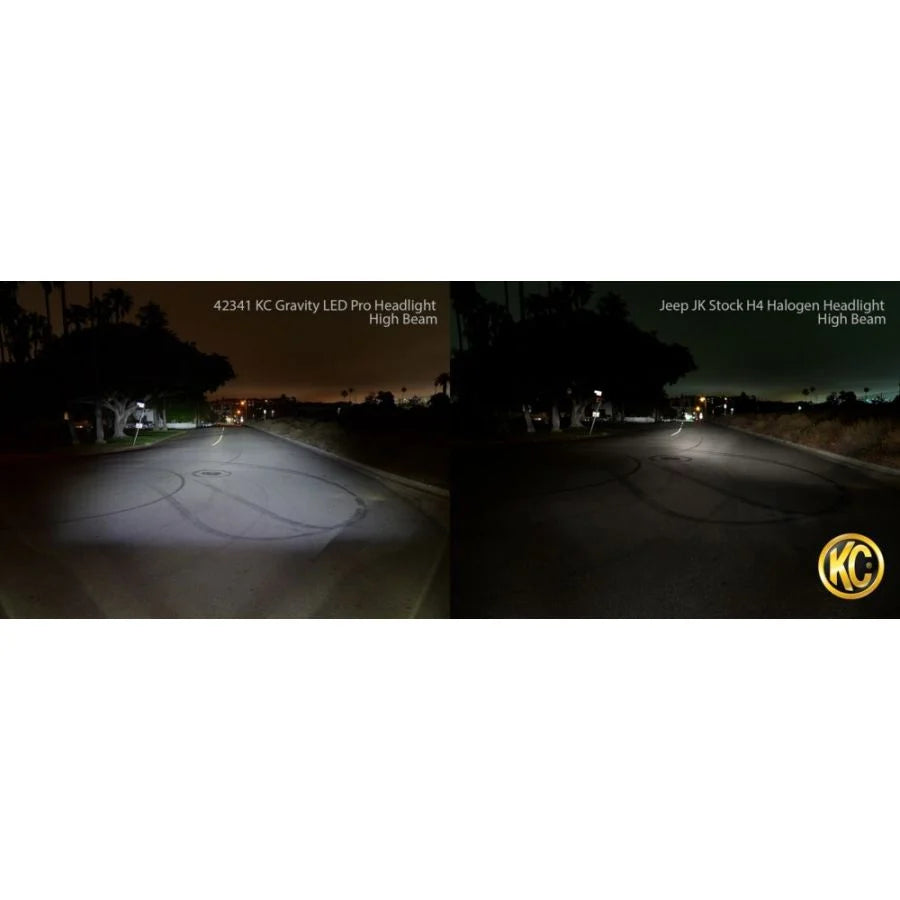

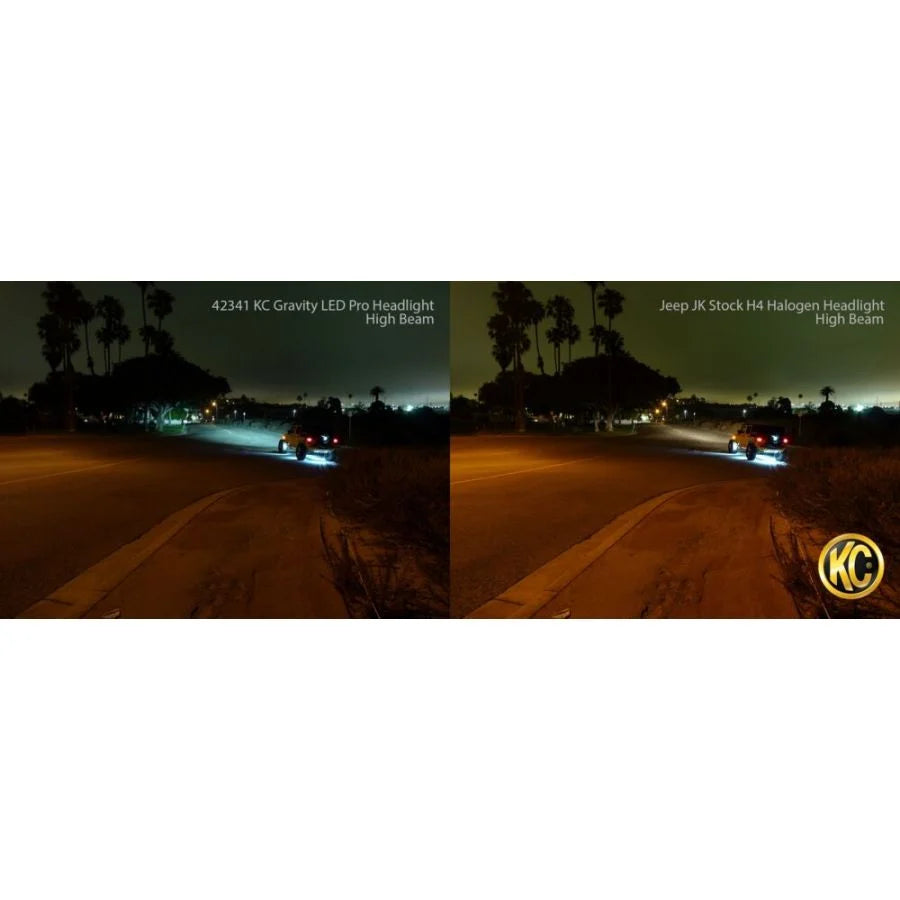

High/Low beams as well as DRL functionality come installed in this KC projector headlight to greatly improve visibility and clarity over factory Jeep headlights.
DESIGNED FOR DURABILITY

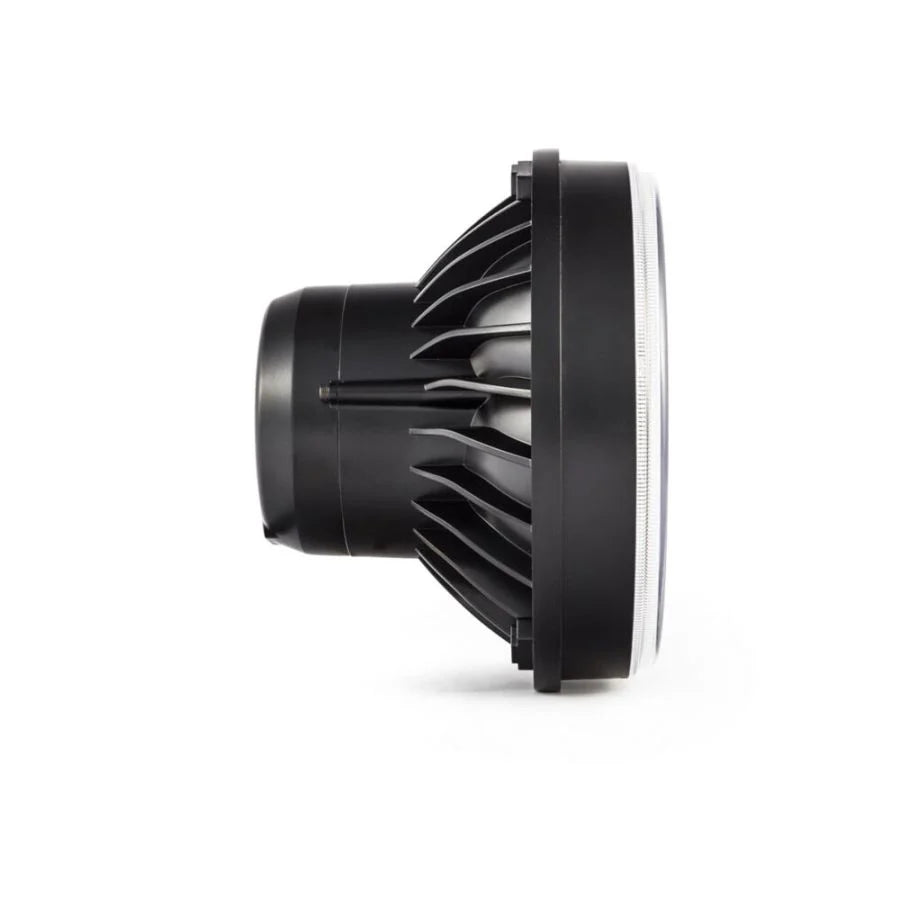

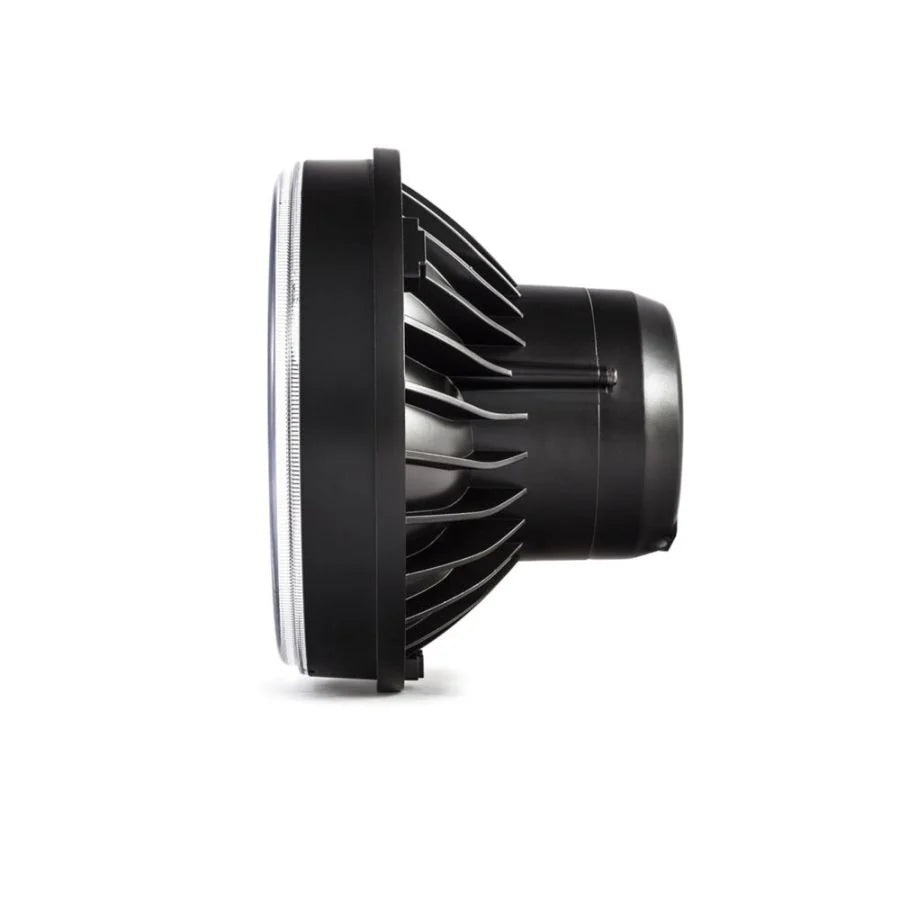

The Gravity® LED Pro 7" Headlight uses a durable die-cast housing and Polycarbonate lens, to tolerate the harshest climates and conditions.
Specifications
| SKU | 42341 |
|---|---|
| Weight | 6.000000 |
| Light Technology | LED |
| Mount Location | Headlight |
| Beam Distance | 529 m |
| Beam Pattern | Driving What's this? |

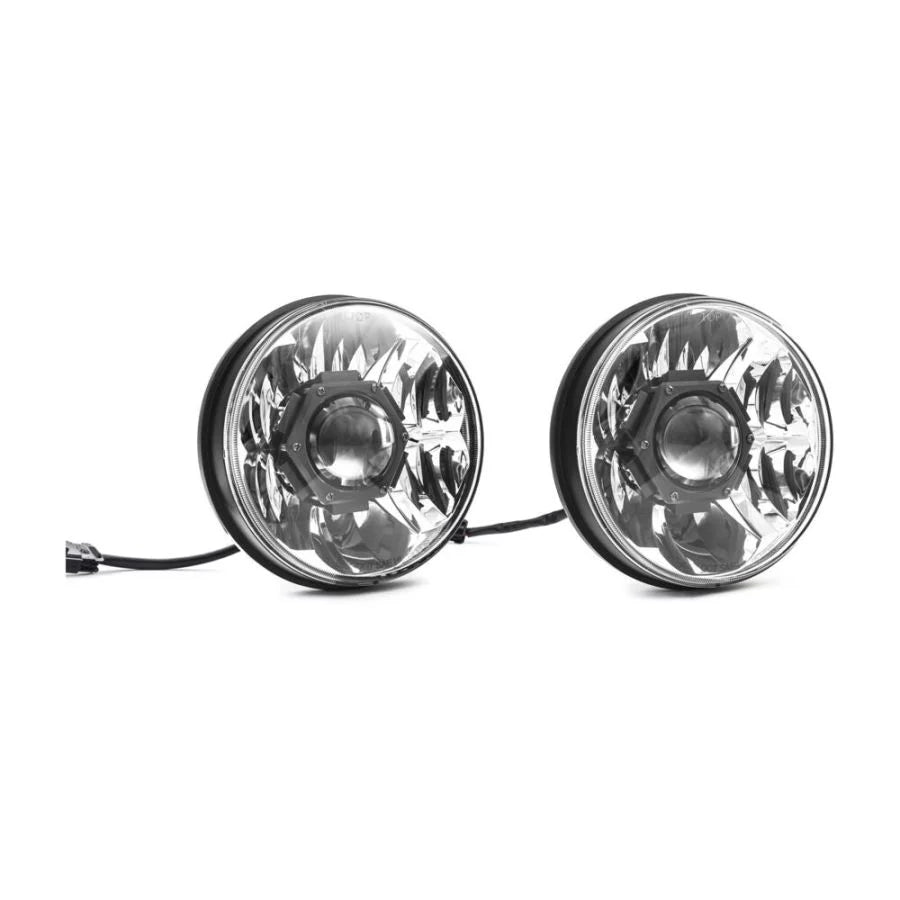

| Included Components | 2 x Gravity® LED Pro 7" DOT Jeep JK 07-18 Headlight |
| LED Color | White |
| Lens Color | Clear |
| Light Temp | 5000 K |
| Candela Per Light | Low- 40,000, High- 70,000 cd |
| Total Candela | Low- 40,000, High- 70,000 cd |
| Wattage Per Light | Low- 20W, High- 30W, DRL- 1.35W |
| Total Wattage | Low- 40W, High- 60W, DRL- 2.70W |
| Amp Draw Per Light | 0.1 a DRL /1.5 a LOW / 2.1a HIGH |
| Total Amp Draw | 0.2 a DRL /3.0 a LOW / 4.2a HIGH |
| Voltage | 9V-18V |
| Lumens Per Light | High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm |
| Total Lumens | High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm |
| Lux Per Light | Low- 400 lx, High- 700 lx |
| Total Lux | Low- 400 lx, High- 700 lx |
| Product Finish | Black |
| Compliance DOT/SAE/ECE | DOT, SAE J581, ECE R112 (Driving) |
| Material | Aluminum Alloy |
| Size of Products | 7" |
| UPC | 084709423414 |
