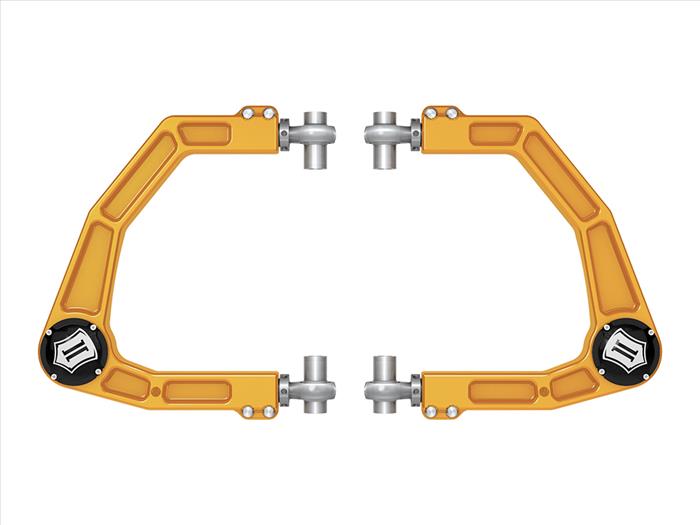

ICON VEHICLE DYNAMICS | Tacoma 4th Gen & Land Cruiser 250 Series 2024 Front Billet Upper Control Arms with Delta Joint Pro Gold Anodizing (58552GDJ)
SELECT OPTIONS
Description
These tubular steel upper control arms free up your 2022-2024 Toyota Tundra's or 2023-2024 Toyota Sequoia's front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2022-2024 Toyota Tundra and 2023-2024 Toyota Sequoia.

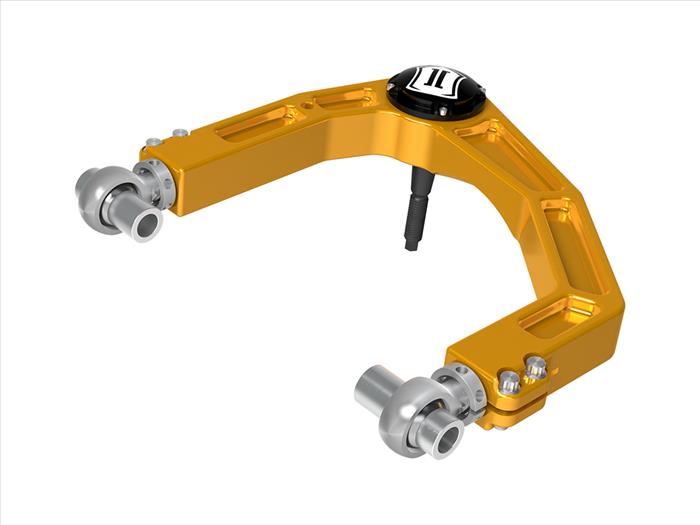

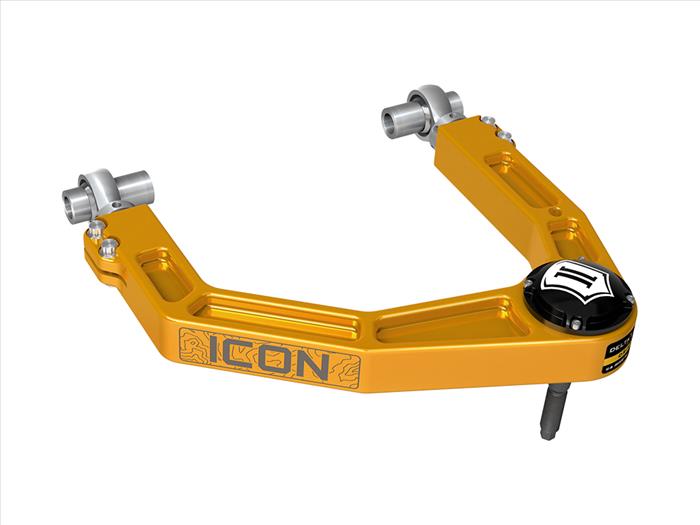

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2024 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series, and the 2024 Lexus GX550 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2024 Toyota Tacoma, Toyota Land Cruiser 250 Series, and Lexus GX550.
Specifications
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: Compatible with 2024 Tacoma, Land Cruiser 250 Series, and Lexus GX550 equipped with 0-3” of front lift over stock
- TECH NOTE: Also available with all-new gold anodized finish. See part number 58552GDJ.
- Weight: 22.00
Fitment
Toyota Tacoma 2024
Land Cruiser 250 Series 2024
Lexus GX550 2024
(58552GDJ)
