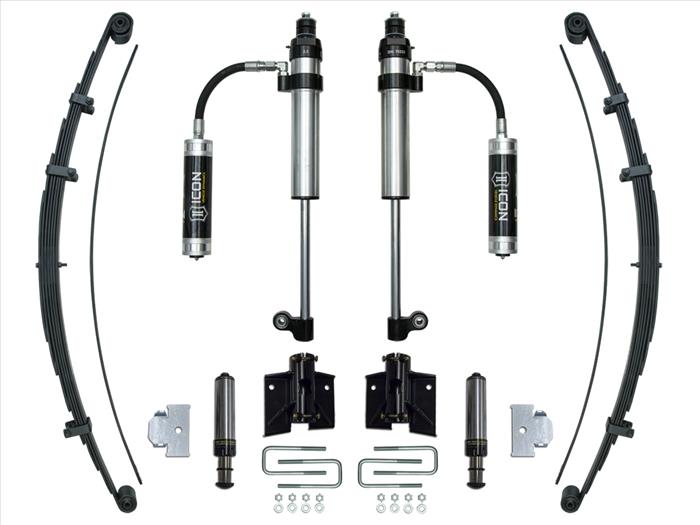

- 56103 (QTY: 1) | 05-23 TACOMA REAR HYD BUMP STOP KIT
- 57826P (QTY: 1) | 05-23 TACOMA RXT REAR 2.5 VS RR PAIR
- 158505 (QTY: 2) | 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
- 52050 (QTY: 1) | TOYOTA REAR 8.0" U-BOLT KIT
Specifications
ICON RXT Multi-Rate Leaf Spring
- 3 user-adjustable spring rates for unique vehicle configurations
- Military wrap front eyelet for increased durability
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Leaf tip inserts reduce noise and increase ride comfort
- Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Direct bolt-in to OEM spring location makes for an easy install
ICON RXT Rear Shock
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts
- Shocks are fully rebuildable and revalveable
- Simple and straightforward installation
- Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
- Vehicle-specific tuned shocks provide increased damping and oil volume

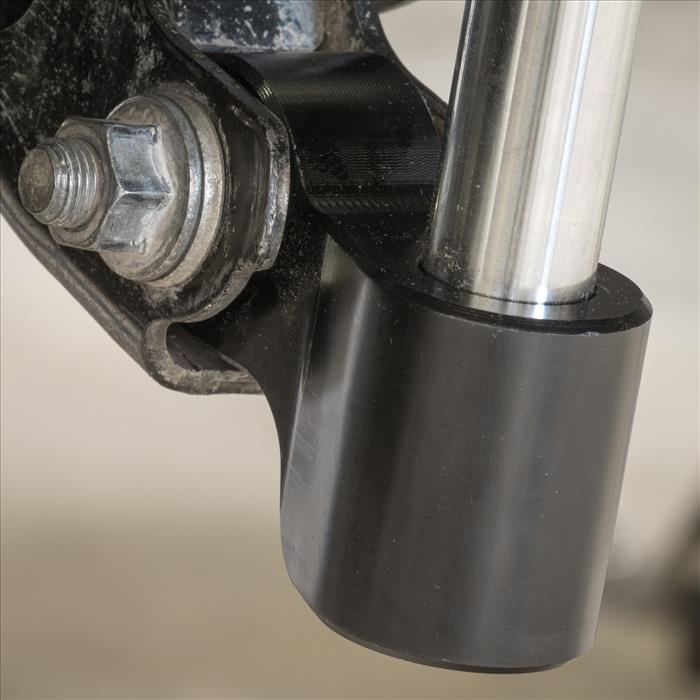

ICON Hydraulic Rear Bump Stop Kit
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Position sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Multi-stage CAD plated body for maximum corrosion resistance
- Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
- Replaceable noise reducing striker pad
- Fully serviceable
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Total Weight: 208.00lbs
Fitment
Tacoma 3rd Gen 2016-2023
Tacoma 2nd Gen 2005-2015
Tech Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #17: These are stand-alone kits and are not to be used in conjunction with any other aftermarket kits
- APPLICATION NOTE #55: Shocks are fully serviceable. coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
- TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
- TECH NOTE: Most Tacoma submodels withh have rear lift height range of 1.875-2.625", depending on rear spring configuration and rear weight
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight
(K53161)
