ICON VEHICLE DYNAMICS | Sequoia 2023-2024 TRD PRO 3-4.5" Lift Stage 4 Suspension System Tubular (K53234T)
ICON VEHICLE DYNAMICS | Sequoia 2023-2024 TRD PRO 3-4.5" Lift Stage 4 Suspension System Tubular (K53234T)

ICON VEHICLE DYNAMICS | Sequoia 2023-2024 TRD PRO 3-4.5" Lift Stage 4 Suspension System Tubular (K53234T)

$2,693.36
Quantity:

Description

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2024 Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of adjustable billet aluminum front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and billet control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

This Stage 4 system features the 2023-2024 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet aluminum front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2023-2024 Toyota Sequoia with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for shorter rear ride heights, these coil springs yield 2" of rear lift over stock on a non-TRD Sequoia or 0” of rear lift height on a Sequoia equipped with the TRD Off-Road package, allowing for level a stance front to rear.

Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

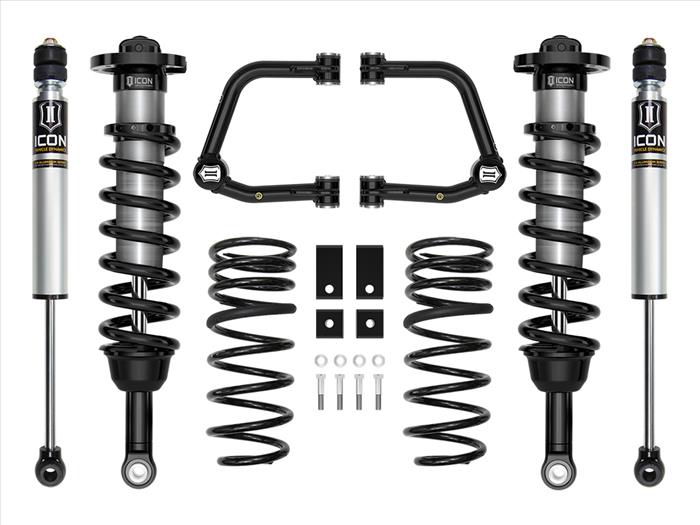

  • 58670 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA 2.5 VS IR COILOVER KIT
  • 58461DJ (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
  • 55154 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT
  • 56516 (QTY: 2) | 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-3" REAR 2.0 VS IR
  • 51212 (QTY: 1) | 23-24 SEQUOIA 2" DUAL RATE REAR SPRING KIT

Specifications

  • Vehicle specific design for 2023-2024 Toyota Sequoia
  • 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
  • Adjustable front ride heights from 3-4.5” of front lift over stock when used with stock UCAs
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
  • 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • Weight: 127.00lbs

Fitment

Toyota Sequoia 2023-2024 TRD PPRO 3-4.5" Lift

Tech Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #142: Not compatible with Tundra/Sequoia equipped with Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #148: ICON does not recommend lifting above 2.25" (Tundra)/3.75" (Sequoia) without an ICON upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD models
  • APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON diff drop (part# 55156) or using Toyota TRD axles (part# 434200C020 driver / 434100C020 pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
  • APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
  • APPLICATION NOTE #188: Not compatible with Sequoia TRD Pro stock front upper control arms. ICON Delta Joint Pro UCAs (part number 58461DJ or 58561DJ) are required for Sequoia TRD Pro fitment.
  • TECH NOTE: Most Sequoia submodels will have front lift height range of 3-3.75” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-1.75" over stock and remain at stock height in the rear. If taller rear ride heights are desired, consider kit part number K53234TS

(K53234T)
