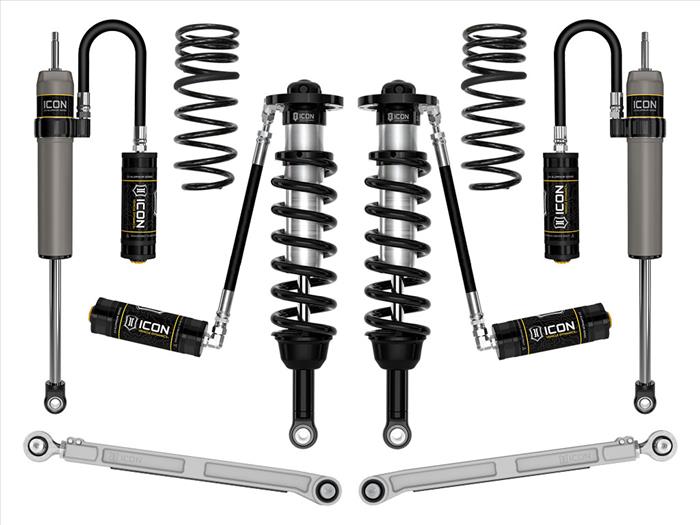

ICON VEHICLE DYNAMICS | Sequoia 2023-2024 TRD PRO 1-2.5" Lift Stage 4 2.5 Suspension System (K53394)

ICON VEHICLE DYNAMICS | Sequoia 2023-2024 TRD PRO 1-2.5" Lift Stage 4 2.5 Suspension System (K53394)

$5,204.65
Quantity:

Description

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2024 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features 2.5 Series coilover shocks for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

This Stage 4 system features the 2023-2024 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road.

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 2" of rear lift over stock on a Sequoia TRD Pro, allowing for level a stance front to rear.

Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia TRD Pro.

  • 58772 (QTY: 1) | 23-24 SEQUOIA TRD PRO 2.5 VS RR COILOVER KIT
  • 51216 (QTY: 1) | 23-24 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
  • 54002 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
  • 57840P (QTY: 1) | 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.5 VS RR PAIR

Specifications

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
  • APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
  • Weight: 134.00lbs

Fitment

Toyota Sequoia 2023-2024 TRD PPRO 1-2.5" Lift

Tech Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
  • APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms

(K53394)
