ICON VEHICLE DYNAMICS | Sequoia 2023-2024 0-2.13" Lift Stage 2 Suspension System Tubular UCA (K53232T)

ICON VEHICLE DYNAMICS | Sequoia 2023-2024 0-2.13" Lift Stage 2 Suspension System Tubular UCA (K53232T)

$3,006.52
Quantity:

Description

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2023-2024 Toyota Sequoia builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP Series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

This Stage 2 system features the 2023-2024 Toyota Sequoia EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Sequoia’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2023-2024 Toyota Sequoia with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear.

Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

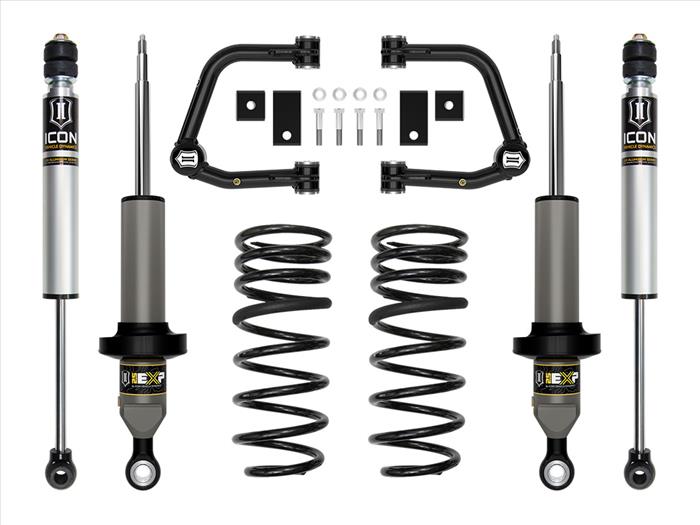

  • 58671 (QTY: 2) | 22-24 TUNDRA/23-24 SEQUOIA FRONT 2.5 EXP COILOVER
  • 58461DJ (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
  • 55154 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT
  • 56516 (QTY: 2) | 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-3" REAR 2.0 VS IR
  • 51212 (QTY: 1) | 23-24 SEQUOIA 2" DUAL RATE REAR SPRING KIT

Specifications

  • Vehicle specific design for 2023-2024 Toyota Sequoia
  • 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
  • Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
  • 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • Weight: 97.00

Fitment

Toyota Sequoia 2023-2024  0-2.13" Lift

Tech Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • APPLICATION NOTE #142: Not Compatible With Tundra/Sequoia Equipped With Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #144: Not Compatible With TRD Pro
  • APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.
  • APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
  • TECH NOTE: Most Sequoia submodels will have front lift height range of 0-2.13” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package net zero lift and remain at stock height front and rear, but with improved ride quality and suspension performance.

(K53232T)
