- TECH NOTE: Will not fit ICON front upper control arms
- TECH NOTE: Replaces all WSSX16, AWX16, WC16, WE16, WSSB16, WR16, ABW16 uniballs with a 2.125" outside diameter and 1" height
- TECH NOTE: Retrofit kits are designed for use only on listed applications using stock length upper control arms.
- TECH NOTE: Fitment verification is the duty of the installer! Failure to cycle suspension and check for bind issues may lead to component failure and/or injury. Professional installation required.
ICON VEHICLE DYNAMICS | 4Runner 5th & 4th Gen Land Cruiser 200 Series 2003-2024 UCA 1" Delta Joint Kit (614561)
Quantity:
SELECT OPTIONS
Quantity:
Description

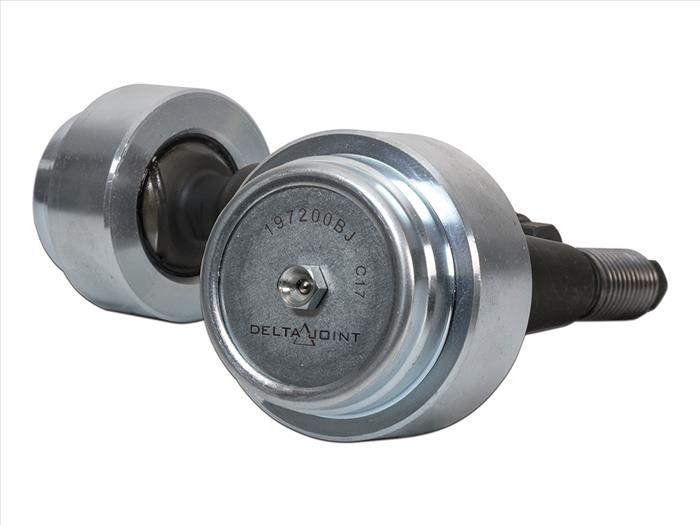

ICON’s Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint’s zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.

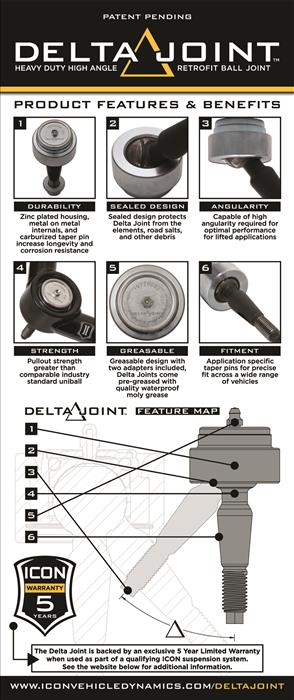

Specifications
- Retrofit kits allow for installation of Delta Joint into wide range of aftermarket upper control arms using a 1" uniball

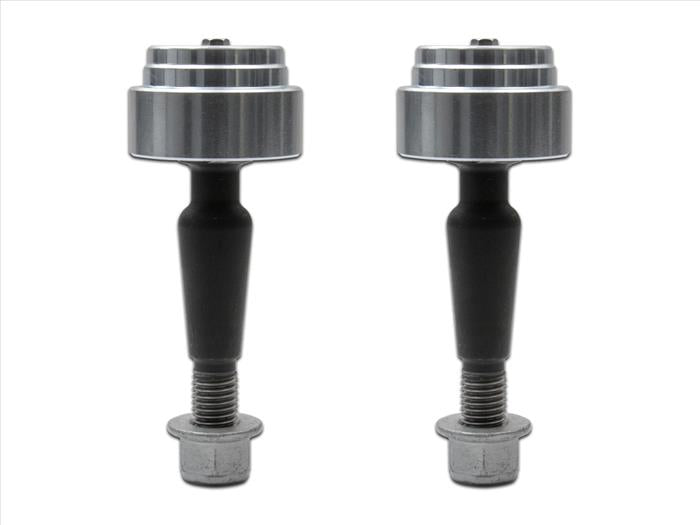

- Retrofit kits include a pair of Delta Joints, retaining rings, and a supply of anti-seize
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball
- Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris
- Metal on metal internals and a greasable design for maximum longevity and noise-free operation
- Capable of high angularity required for lifted applications
- Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly
- Pullout strength greater than comparable industry standard uniball
- Application specific taper pins for precise fit across a wide range of vehicles
- Weight:7.0lbs
Fitment
Toyota 4Runner 5th & 4th Gen 2003-2024
Toyota Land Cruiser 200 Series 2008-2021
FJ Cruiser 2007-2024
Lexus GX550 2003-2023
(614561)
