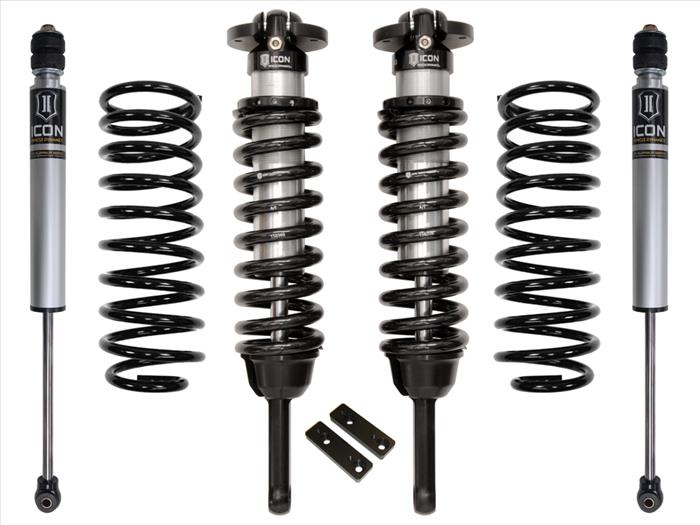

ICON VEHICLE DYNAMICS | 4Runner 5th & 4th Gen & FJ Cruiser 2010-2024 0-3.5" Lift Stage 1 Suspension System (K53061)

ICON VEHICLE DYNAMICS | 4Runner 5th & 4th Gen & FJ Cruiser 2010-2024 0-3.5" Lift Stage 1 Suspension System (K53061)

$2,194.30
Quantity:

Description

This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.

  • 58646 (QTY: 1) | 10-14 FJ/10-24 4RNR/10-23 GX 2.5 VS IR COILOVER KIT
  • 52700 (QTY: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2" SPRING KIT
  • 56505 (QTY: 2) | 07-14 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.0 VS IR

Specifications

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of lift height
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear IFP shock with 5/8" shaft
  • Bolt-on system means no cutting or welding necessary for install
  • Weight: 80.00lbs

Fitment

4Runner 5th & 4th Gen 2010-2024
FJ Cruiser 2010-2014

Tech Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
  • APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles
  • APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
  • APPLICATION NOTE #102: KDSS equipped require rear track bar 54200
  • APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

(K53061)
