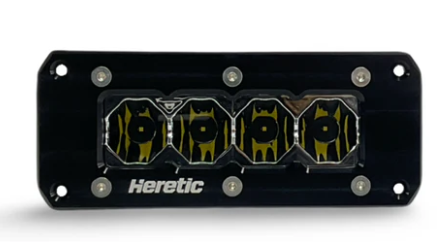

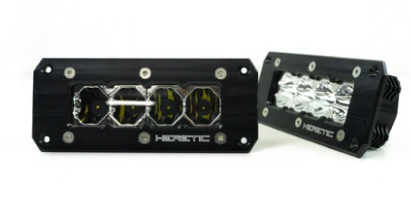

HERETIC STUDIO | BA-4 Flush Mount Clear LED Pod Light

Description

The Heretic BA-4 Flush Mount LED Light Pod is known as the big brother to our staple BA-2 Flush Mount LED Light Pod. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. The 6-series BA-4 Flush Mount LED pod light is an optimal chase light to a ditch light, A-pillar light and beyond. These high performance clear LED pod lights are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The BA-4 Flush Mount LED Light Pod is recommended on the front or rear bumpers of trucks, jeeps, SUVs, and UTVS. They can also be used on the sides and rear of roof racks as a chase light. They are specifically designed to align with the curvature of your vehicle or UTV and are best for clear night conditions. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.

Features

(1) BA-4 Flush Mount LED Light Pod
Pigtail (Ending in a (+) and (-) wire ready to splice)
Mounting Hardware

Vehicle Application

Front Bumpers for both trucks and UTVs. Sides and rears of roof racks as scene lights. Can be used as chase lights for UTVs with an amber lens.

Parts Sold Separate

Wiring Harness
Aftermarket Mount for Roof Rack Attachment
Amber Lens Attachment

Features

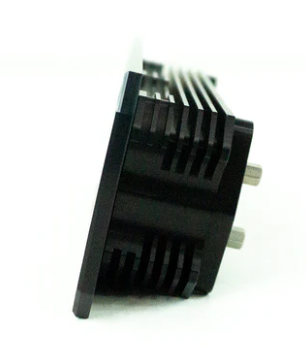

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

BEYOND LUMENS

We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Heat Management

Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

American Owned an Operated

While it is virtually impossible to source every single component needed to create a world class LED light, we take pride that we manufacture the majority of our parts in house. If we can't make it ourselves, we keep it as close to home as possible, with most parts coming from less than 1 hour from our shop!

Versatile Mounting Options

Mounts to most aftermarket bumper, ditch, chase & roof racks.

Specifications

Shipping Weight: 4lbs
Type: 4” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location:
Light Color: White
Lens Color: Clear
Wattage: 24W
Amp Draw at 13.8V: 2A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 5” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 5” x D 2.1” x H “2.4
Lumens: 3000 lm

Lux At 10m:

Spot: 825 lx
Flood: 176 lx
Combo: 500 lx

Candela:

Spot: 82500 cd
Flood: 17550 cd
Combo: 50025 cd

Beam Distance:

Spot: 574 m
Flood: 265 m
Combo: 447 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Beam Pattern
