Description

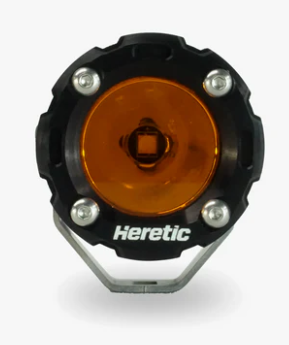

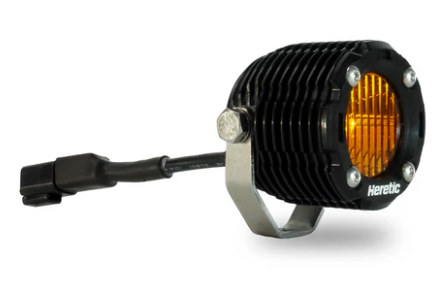

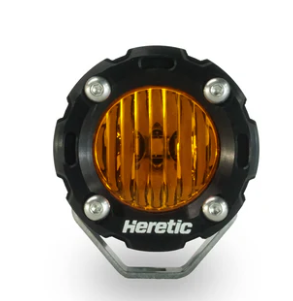

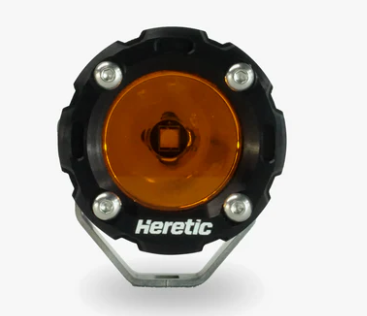

The Heretic BA-1R LED Light Pod is our newest pod light used for various applications from an optimal chase light to a ditch light, A-pillar light and beyond. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. These high performance LED pod lights are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting, far reaching light. The BA-1R LED Light Pod is recommended on the front or rear bumpers of trucks, jeeps, SUVs, and UTVS. Customize Your Beam Pattern: Spot or Flood. They can also be used on the sides and rear of roof racks as a chase light.
What's Included
(1) BA-1R Amber LED Light Pod

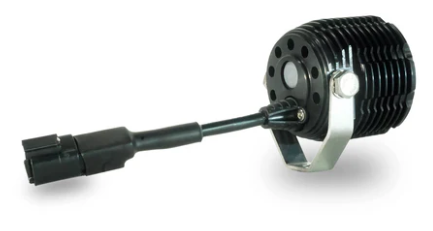

Pigtail (Ending in a (+) and (-) wire ready to splice)
Mounting Hardware
Stainless Steel Mounts
Vehicle Application

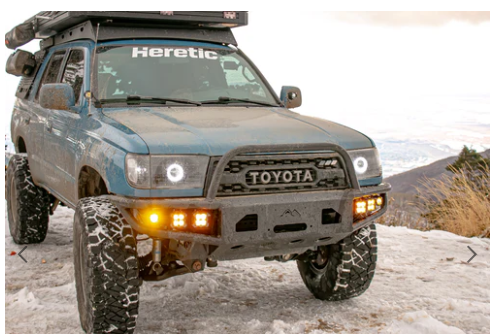

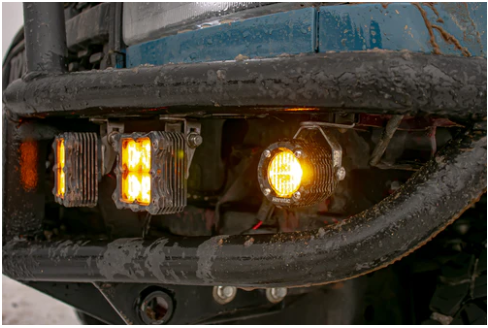

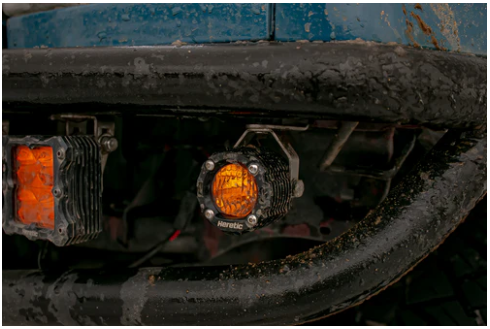

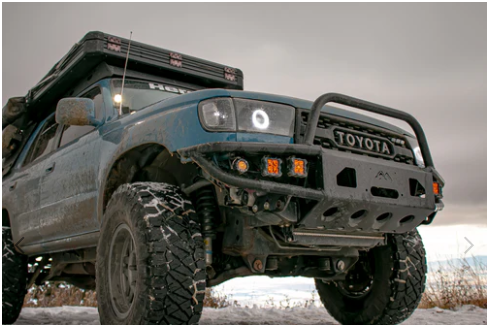

Ditch lights, A pillar for UTVs (similar to a ditch light, just called an A-Pillar light) roof rack scene lights, bumper lights. Often used with an amber lens for chase lights on both UTV and Trucks.
Parts Sold Separate
Wiring Harness
Features
Constructed from a Single Block of Aluminum
Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.
BEYOND LUMENS
We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.
Heat Management
Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.
American Owned an Operated
While it is virtually impossible to source every single component needed to create a world class LED light, we take pride that we manufacture the majority of our parts in house. If we can't make it ourselves, we keep it as close to home as possible, with most parts coming from less than 1 hour from our shop!
Versatile Mounting Options
Mounts to most aftermarket bumper, ditch, chase & roof racks.
Specifications
BA-1 Light Pod (Each)
|
Shipping Weight
|
2 lbs
|
|
Type
|
2” LED Pod Light
|
|
Housing
|
CNC Aircraft-Grade Aluminum
|
|
Location
|
Multiple
|
|
Lens Color
|
Amber
|
| Wattage | 20W |
| Amp Draw at 13.8V | 1.98A |
| Voltage | 9V-36V |
| IP Rating | 1P68 |
| DIM (Light Only) | L 3” x D 2" |
| DIM (Light W/ Bracket): | N/A |
| Lumens | 2,430 |
| Lux At 10m | Spot: 140 lx Flood: 80 lx |
| Candela | Spot: 14000 cd Flood: 8000 cd |
| Beam Distance |
Spot: 237 m |
| DOT Compliant | No |
| Prop 65 | No |
| SAE/ECE | No |
