HERETIC STUDIO | 4th Gen Tacoma Behind the Grill Dual 6" Bar Kit - Clear Lens

Description

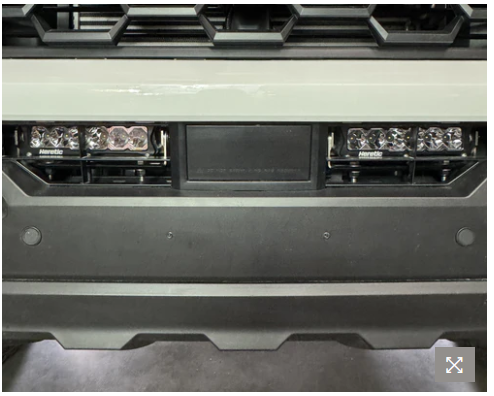

The 4th Gen Tacoma Behind the Grill Dual 6" Bar Kit is the best LED behind the grill light kit on the market. Featuring two of our 6" LED Light Bars, the Tacoma clear behind the grill lights increases your visibility two-fold. We’ve custom built the stainless steel brackets to have a sleek low profile look. Because the housings are made of CNC Aircraft-Grade Aluminum and the brackets out of Stainless Steel you can have confidence in these light being durable and lasting the test of time. We have designed this kit to be as user friendly and easy to install as we can. Choose between Combo, Spot, and Flood beam pattern. This specific Toyota LED Behind The Grill Kit is compatible with 4th Gen Toyota Tacoma Models (24+). Proudly Designed, Assembled, Supported, And Shipped In Centerville, Utah

Features

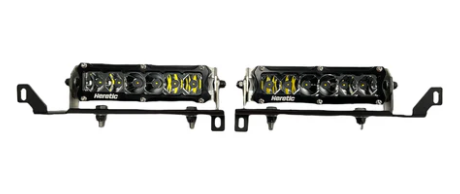

(2) Clear 6in bars
(2) Stainless steel brackets
(1) Dual Light Wire Harness
Hardware

Features

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

BEYOND LUMENS

We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Heat Management

Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

American Owned an Operated

While it is virtually impossible to source every single component needed to create a world class LED light, we take pride that we manufacture the majority of our parts in house. If we can't make it ourselves, we keep it as close to home as possible, with most parts coming from less than 1 hour from our shop!

Versatile Mounting Options

Mounts to most aftermarket bumpers, grille, and roof racks.

Specifications

6 Inch Light Bar (each)
Shipping Weight: 3lbs
Type: 6” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Ditch, Bumper, Chase, Fog, Rack Light
Light Color: White
Lens Color: Clear
Wattage: 30W
Amp Draw at 13.8V: 3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 7” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 8” x D 1.5” x H “2.4
Lumens: 4356 lm
Lux At 10m:
Spot: 1238 lx
Flood: 263 lx
Combo: 588 lx
Candela:
Spot: 123750 cd
Flood: 26325 cd
Combo: 58800 cd
Beam Distance:
Spot: 704 m
Flood: 324 m
Combo: 485 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No

Installation Guide

Toyota Tacoma 6 Inch Grill Light Installation Guide

Beam Pattern
