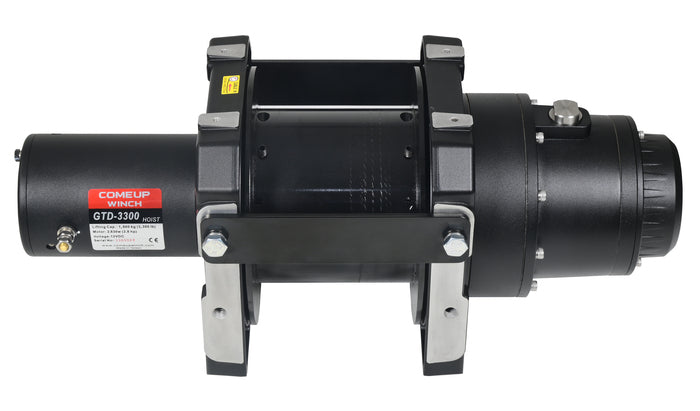

COMEUP WINCH | GTD-3300 12V Hoist Only
COMEUP WINCH | GTD-3300 12V Hoist Only

COMEUP WINCH | GTD-3300 12V Hoist Only

$1,235.95
Quantity:

Product Number 753110



Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):

Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A Percentage Duty Cycle, Min / 10 min
No load 4.8 / 15.7 60 cont.
272 / 600 4.4 / 14.4 70 7.0
544 / 1,200 4.3 / 14.1 100 4.5
816 / 1,800  4.1 / 13.5 125 3.0
1,089 / 2,400 3.9 / 12.8 140 2.5
1,134 / 2,500 3.8 / 12.5 165 2.0
1,500 / 3,300 3.6 / 4.4 200 1.5



Line Pull and Rope Capacity:

Layer of Wire Rope
 Pull by Layer
kg/ lb		 Line Speed, mpm / fpm Total Rope on the Drum m / ft
1st 1,500 / 3,300 3.6 / 11.8 7.9 / 25.9
2nd 1,350 / 2,976 4.0 / 13.1 16.8 / 55.1
3rd 1,228 / 2,707 4.4 / 14.4 26.5 / 87.0



Specifications:

  • Rated Line Lift 3,300 lb (1,500 kg)
  • Line speed at No Load (1st layer) 4.8 mpm / 15.7 fpm 60A
  • Line speed at Full Load (1st layer) 3.6 mpm / 11.8 fpm 200A
  • Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
  • Gear ratio 3-stage planetary 261:1
  • Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
  • Winch construction Aluminum die cast housings with cast iron drum

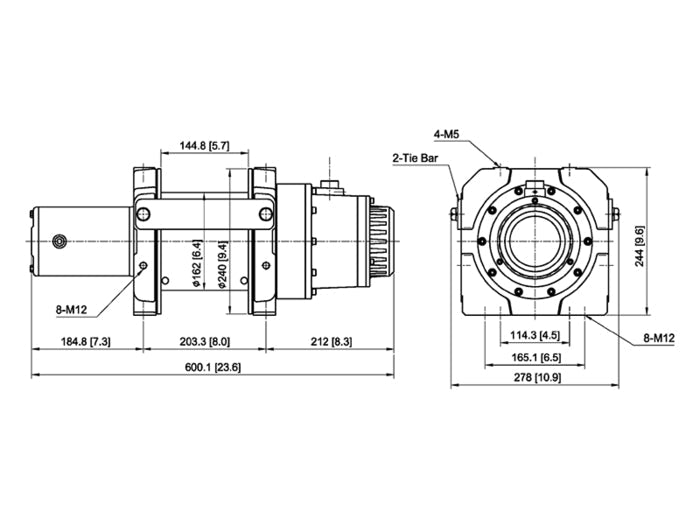

  • Drum size 6.4” x 9.4" x 5.7" (162 x 240 x 144.8 mm)
  • Recommended Rope Type Galvanized aircraft A7 x 19
  • Recommended Rope Size 3/8" x 87' (9.5 mm x 26.5 m)
  • Mounting bolt pattern 8.0” x 6.5” (203.3 x 165.1 mm) ; 8.0" x 4.5" (203.3 x 114.3 mm)
