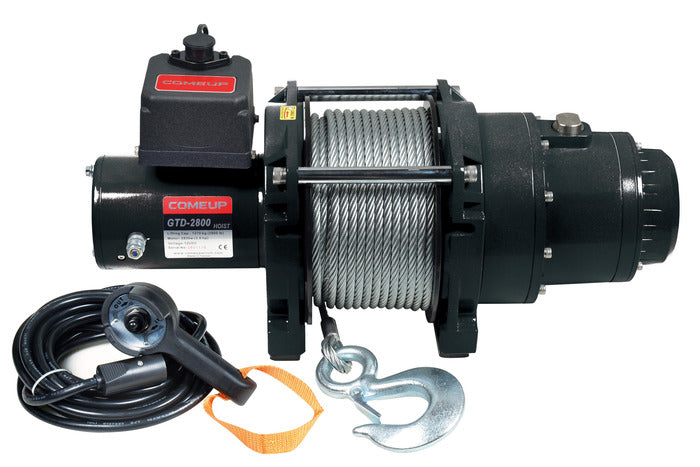

COMEUP WINCH | GTD-2800 12V 2,800lb DC Hoist
COMEUP WINCH | GTD-2800 12V 2,800lb DC Hoist

COMEUP WINCH | GTD-2800 12V 2,800lb DC Hoist

$1,315.95
Quantity:

Product Number 753220



Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):

Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A Percentage Duty Cycle, Min / 10 min
No load 5.8 / 19 30 cont.
227 / 500 5.5 / 18 45 7.0
454 / 1,000 5.1 / 16.7 70 4.5
680 / 1,500 4.6 / 15.1 95 3.0
907 / 2,000 4.3 / 14.1 135 2.5
1,270 / 2,800 4.0 / 13.1 160 2.0



Line Pull and Rope Capacity:

Layer of Wire Rope
 Pull by Layer
kg/ lb		 Line Speed, mpm / fpm Total Rope on the Drum m / ft
1st 1,270 / 2,800 4.0 / 13.1 6.3 / 20.7
2nd 1,144 / 2,522 4.4 / 14.4 13.3 / 43.6
3rd 1,040 / 2,292 4.8 / 15.7 21 / 68.6
4th 954 / 2,103 5.3 / 17.4 28 / 92



Specifications:

  • Rated Line Lift 2,800 lb (1,270 kg)
  • Line speed at No Load (1st layer) 4.6 mpm / 15.1 fpm 25
  • Line speed at Full Load (1st layer) 3.5 mpm / 11.5 fpm
  • Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
  • Gear ratio 3-stage planetary 261:1
  • Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
  • Winch construction Aluminum die cast housings with cast iron drum

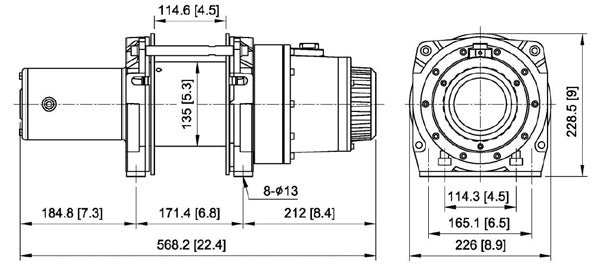

  • Drum size 5.3” x 4.5” (135 x 114.6 mm)
  • Control Remote control with 5 m (17") lead
  • Rope Type Galvanized aircraft A7 x 19
  • Rope Size 5/16” x 92’ (7.9 mm x 28 m)
  • Mounting bolts pattern 4.5” x 6.8” (114.3 x 171.4 mm), 6.5” x 6.8” (165.1x171.4 mm)
