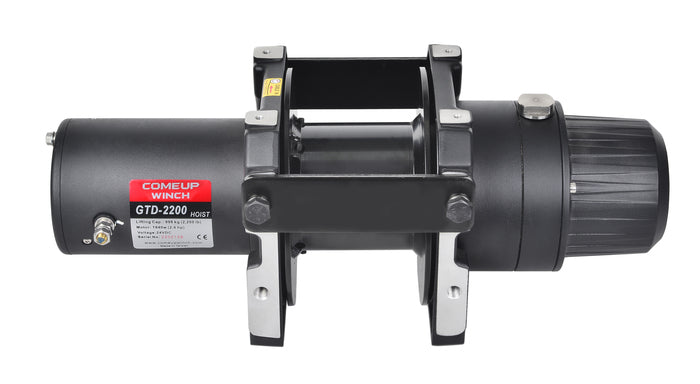

COMEUP WINCH | GTD-2200 12V Hoist Only
COMEUP WINCH | GTD-2200 12V Hoist Only

COMEUP WINCH | GTD-2200 12V Hoist Only

$1,080.95
Quantity:

Product Number 752333

  • 2,200 lbs Heavy Duty Hoist. Rope sold seperately.
  • In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):

Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A Percentage Duty Cycle, Min / 10 min
No load 5.3 / 17.4 25 cont.
181 / 400 5.2 / 17.1 50 8.0
362 / 800 5.1 / 16.7 75 6.0
544 / 1,200 4.8 / 15.7 95 4.0
771 / 1,700 4.6 / 15.1 115 3.0
998 / 2,200 4.2 / 13.8 135 2.0



Line Pull and Rope Capacity:

Layer of Wire Rope
 Pull by Layer
kg/ lb		 Line Speed, mpm / fpm Total Rope on the Drum m / ft
1st 998 / 2,200 4.2 / 13.8 5.6 / 18.4
2nd 898 / 1,980 4.6 / 15.1 11.8 / 38.7
3rd 816 / 1,799 5.1 / 16.7 18.7 / 61.4
4th 747 / 1,647 5.6 / 18.4 26.2 / 66
5th 689 / 1,519 6.0 / 19.7 30 / 100



Specifications:

  • Rated Line Lift 2,200 lb (998 kg)
  • Line speed ( 1st layer) 4.5 mpm / 14.8 fpm @No Load
  • Line speed ( 1st layer) 3.5 mpm / 11.5 fpm @Full Load
  • Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
  • Gear ratio 3-stage planetary 211:1
  • Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
  • Winch construction Aluminum die cast housings with cast iron drum

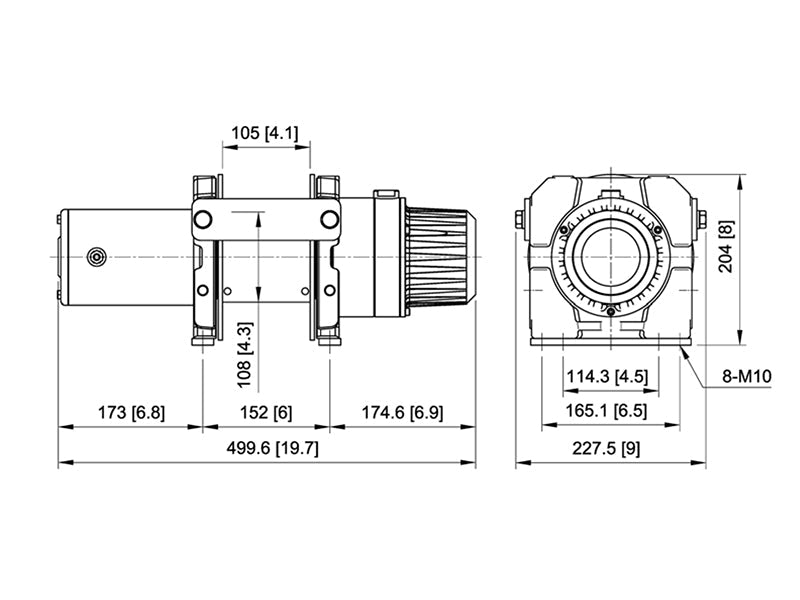

  • Drum size 4.3" x 4.1" (108 mm x 105 mm)
  • Recommended Rope Type Galvanized aircraft A7 x 19
  • Recommended Rope Size 6.4 mm x 30 m (1/4" x 100')
  • Mounting bolts pattern 114 x 152 mm (4.5" x 6"), 165.1 mm x 152 mm (6.5" x 6")
