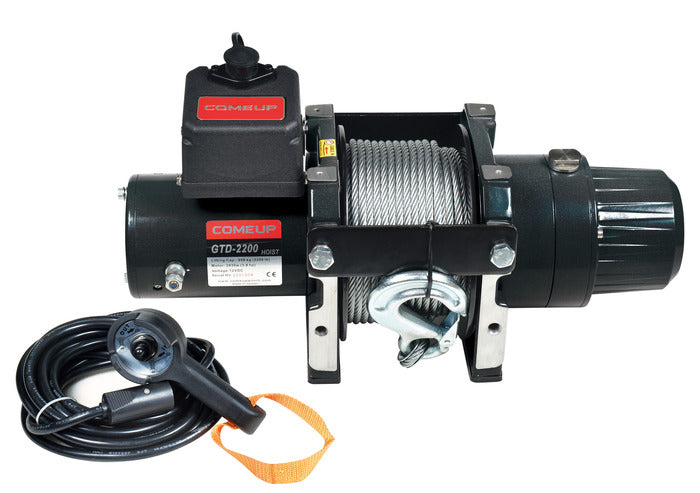

COMEUP WINCH | GTD-2200 12V 2,200lb DC Hoist
Quantity:
SELECT OPTIONS
Quantity:
Product Number 752202
- 2,200 lbs Heavy Duty Hoist
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | Percentage Duty Cycle, Min / 10 min |
No load | 5.3 / 17.4 | 25 | cont. |
181 / 400 | 5.2 / 17.1 | 50 | 8.0 |
362 / 800 | 5.1 / 16.7 | 75 | 6.0 |
544 / 1,200 | 4.8 / 15.7 | 95 | 4.0 |
771 / 1,700 | 4.6 / 15.1 | 115 | 3.0 |
998 / 2,200 | 4.2 / 13.8 | 135 | 2.0 |
Line Pull and Rope Capacity:
Layer of Wire Rope |
Pull by Layer kg/ lb |
Line Speed, mpm / fpm | Total Rope on the Drum m / ft |
1st | 998 / 2,200 | 4.2 / 13.8 | 5.6 / 18.4 |
2nd | 898 / 1,980 | 4.6 / 15.1 | 11.8 / 38.7 |
3rd | 816 / 1,799 | 5.1 / 16.7 | 18.7 / 61.4 |
4th | 747 / 1,647 | 5.6 / 18.4 | 26.2 / 66 |
5th | 689 / 1,519 | 6.0 / 19.7 | 30 / 100 |
Specifications:
- Rated Line Lift 2,200 lb (998 kg)
- Line speed ( 1st layer) 4.5 mpm / 14.8 fpm @No Load
- Line speed ( 1st layer) 3.5 mpm / 11.5 fpm @Full Load
- Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
- Gear ratio 3-stage planetary 211:1
- Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
- Winch construction Aluminum die cast housings with cast iron drum

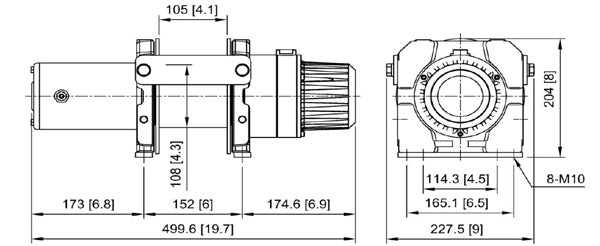

- Drum size 4.3" x 4.1" (108 mm x 105 mm)
- Control Remote control with 5 m (17") lead
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 1/4" x 100' (6.3 mm x 30 m)
- Mounting bolts pattern 4.5" x 6" (114.3 x 152 mm), 6.5" x 6" (165.1 x 152 mm)
