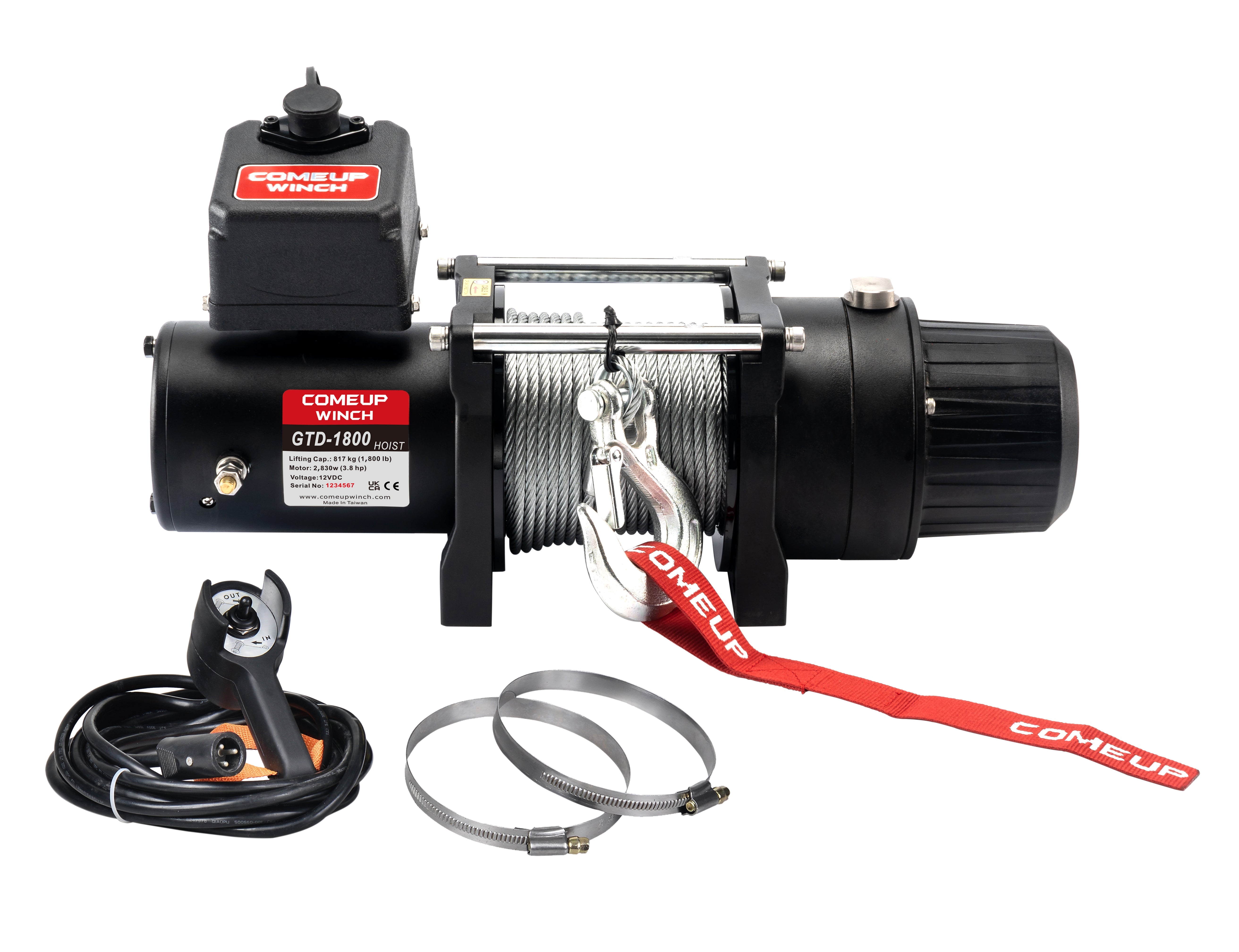

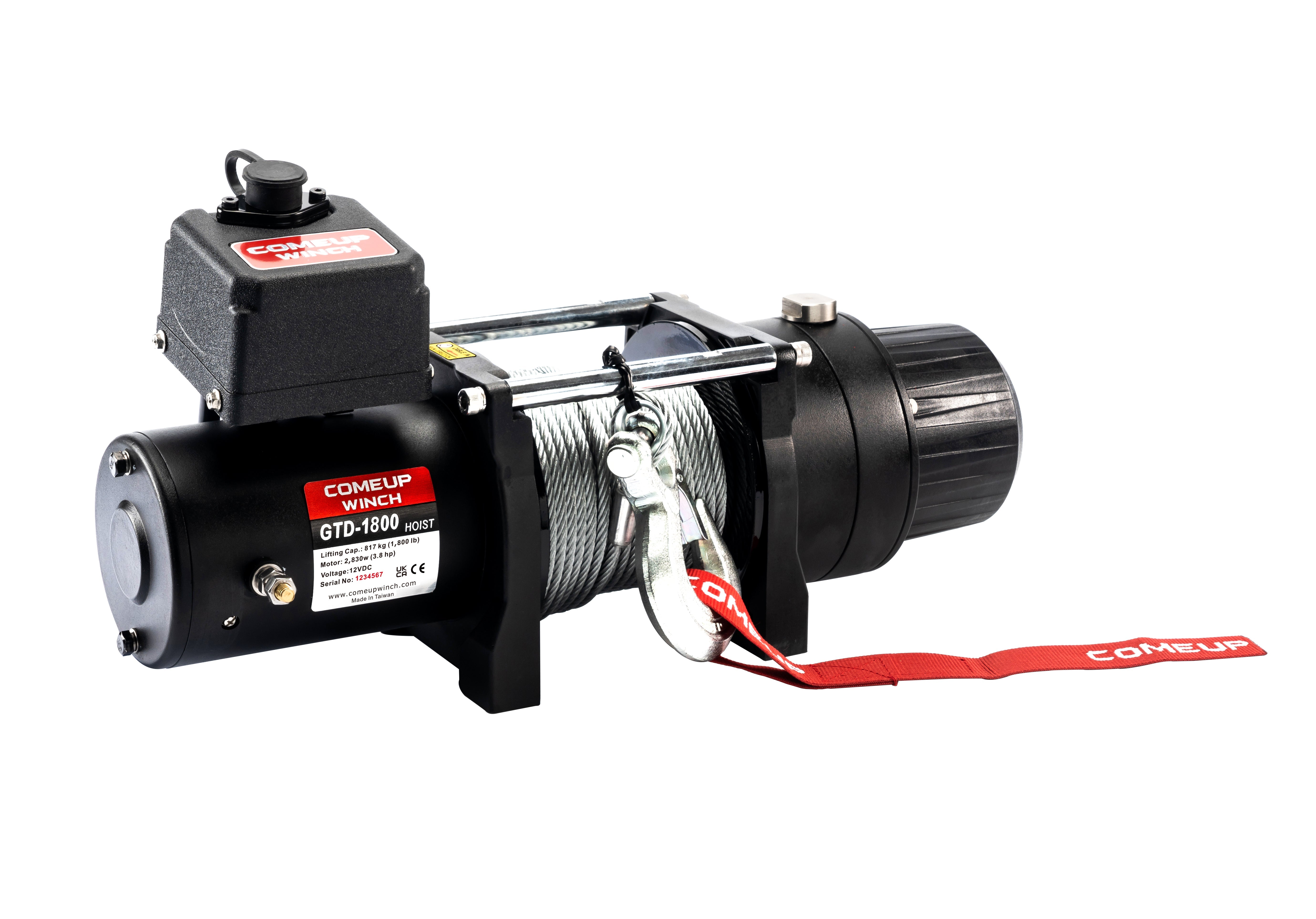

COMEUP WINCH | GTD-1800 12V DC Hoist
COMEUP WINCH | GTD-1800 12V DC Hoist
COMEUP WINCH | GTD-1800 12V DC Hoist

COMEUP WINCH | GTD-1800 12V DC Hoist

Regular price $780.95
/

Product Number 752043

  • 1,800 lbs Heavy Duty Hoist
  • In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A Percentage Duty Cycle, Min / 10 min
No load 6.0 / 19.7 20 cont.
181 / 400 5.6 / 18.4 40 8.0
362 / 800 5.2 / 17.1 70 6.0
544 / 1,200 4.8 / 15.7 90 4.0
817 / 1,800 4.3 / 14.1 125 3.0



Line Pull and Rope Capacity:

Layer of Wire Rope
Pull by Layer
kg/ lb
Line Speed, mpm / fpm Total Rope on the Drum m / ft
1st 817 / 1,800 5.0 / 16.4 6.4 / 21.0
2nd 736 / 1,623 5.5 / 18.0 13.5 / 44.3
3rd 670 / 1,477 6.0 / 19.7 21.3 / 70.0



Specifications:

  • Rated Line Lift 1,800 lb (817 kg)
  • Line speed ( 1st layer) 6.0 mpm / 19.7 fpm @No Load
  • Line speed ( 1st layer) 4.3 mpm / 14.1 fpm @Full Load
  • Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
  • Gear ratio 3-stage planetary 156:1
  • Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
  • Winch construction Aluminum die cast housings with cast iron drum

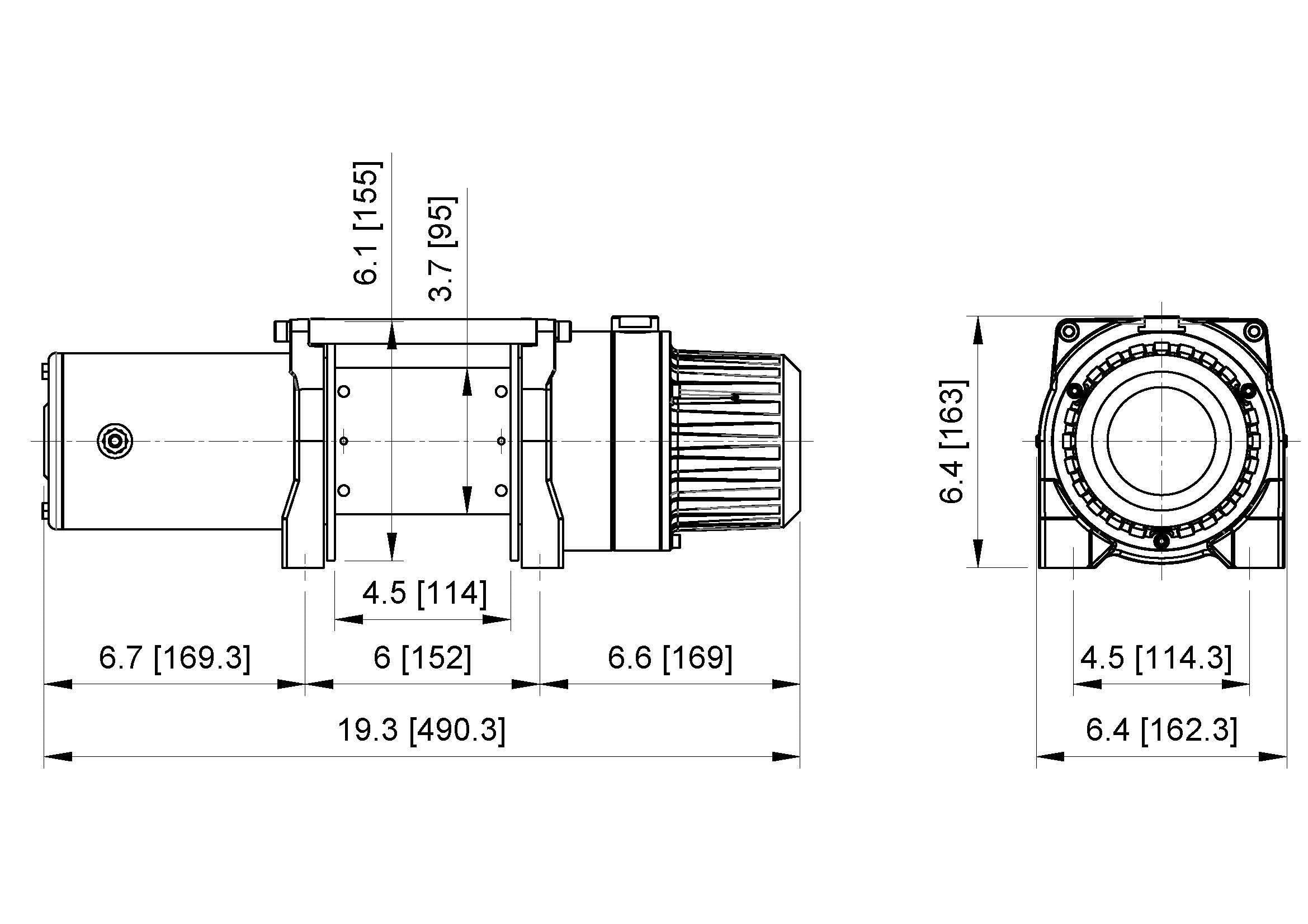

  • Drum size 3.7" x 4.5" L (95 mm x 114 mm L)
  • Rope Type Galvanized aircraft A7 x 19
  • Rope Size 5.5 mm x 21.3 m (7/32" x 70')
  • Mounting bolts pattern 114 x 152 mm (4.5" x 6")
