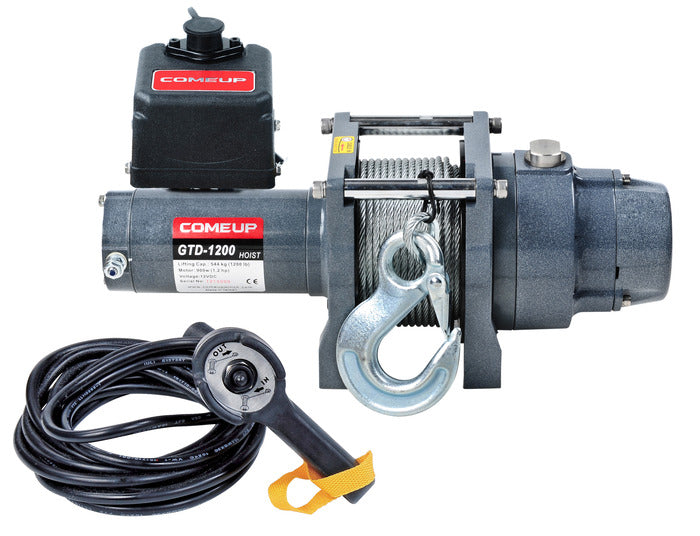

COMEUP WINCH | GTD-1200 12V 1,200lb DC Hoist
Quantity:
SELECT OPTIONS
Quantity:
Product Number 751330
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | Percentage Duty Cycle, Min / 10 min |
| No load | 7.4 / 24.3 | 30 | 2.5 |
| 136 / 300 | 6.9 / 22.6 | 55 | 2.3 |
| 272 / 600 | 6.4 / 21.0 | 75 | 2.0 |
| 408 / 900 | 5.9 / 19.4 | 95 | 1.8 |
| 544 / 1,200 | 5.5 / 18.0 | 130 | 1.5 |
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer kg/ lb |
Line Speed, mpm / fpm | Total Rope on the Drum m / ft |
| 1st | 544 / 1,200 | 5.5 / 1.8 | 4.2 / 13.8 |
| 2nd | 494 / 1,089 | 6.1 / 19.9 | 8.8 / 28.9 |
| 3rd | 452 / 966 | 6.6 / 21.7 | 13.8 / 45.3 |
| 4th | 416 / 917 | 7.2 / 23.6 | 18.3 / 60 |
Specifications:
- Rated Load 1,200 lb (544 kg)
- Line speed ( 1st layer) 7.4 mpm / 24.3 fpm @No Load
- Line speed ( 1st layer) 5.5 mpm / 18.0 fpm @Full Load
- Motor 900W, 12V, Permanent Magnet
- Gear ratio 3-stage planetary 216:1
- Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
- Winch construction Aluminum die cast housings with cast iron drum
- Drum size 3.5" x 5.9" x 2.9" L ( 89 x 151 x 73 L )
- Control Remote control with 5 m (17") lead
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 3/16" x 60' ( 4.8 mm x 18.3 m)
- Mounting bolts pattern 4.5" x 4" (114 x 101.6 mm)
