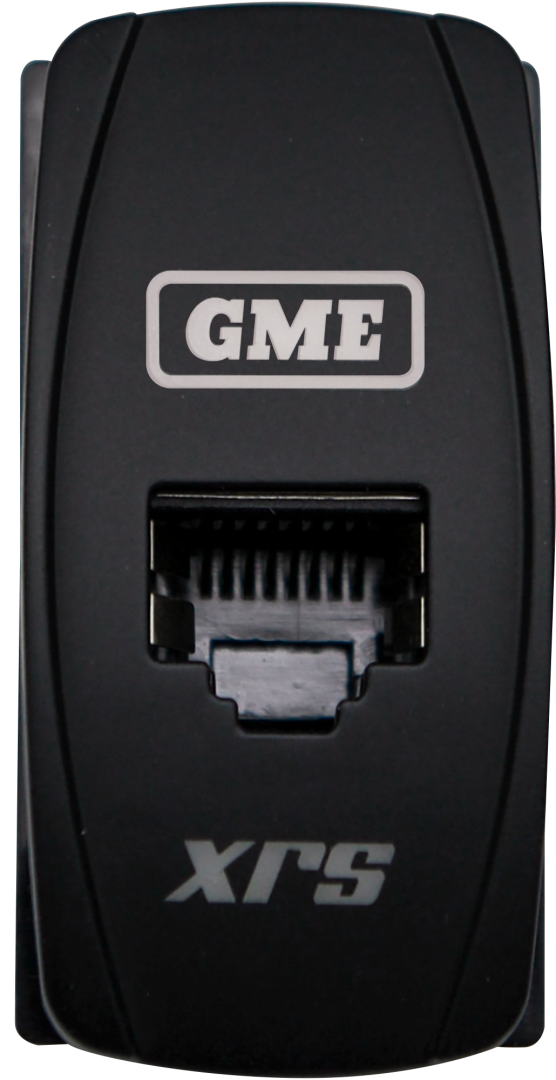

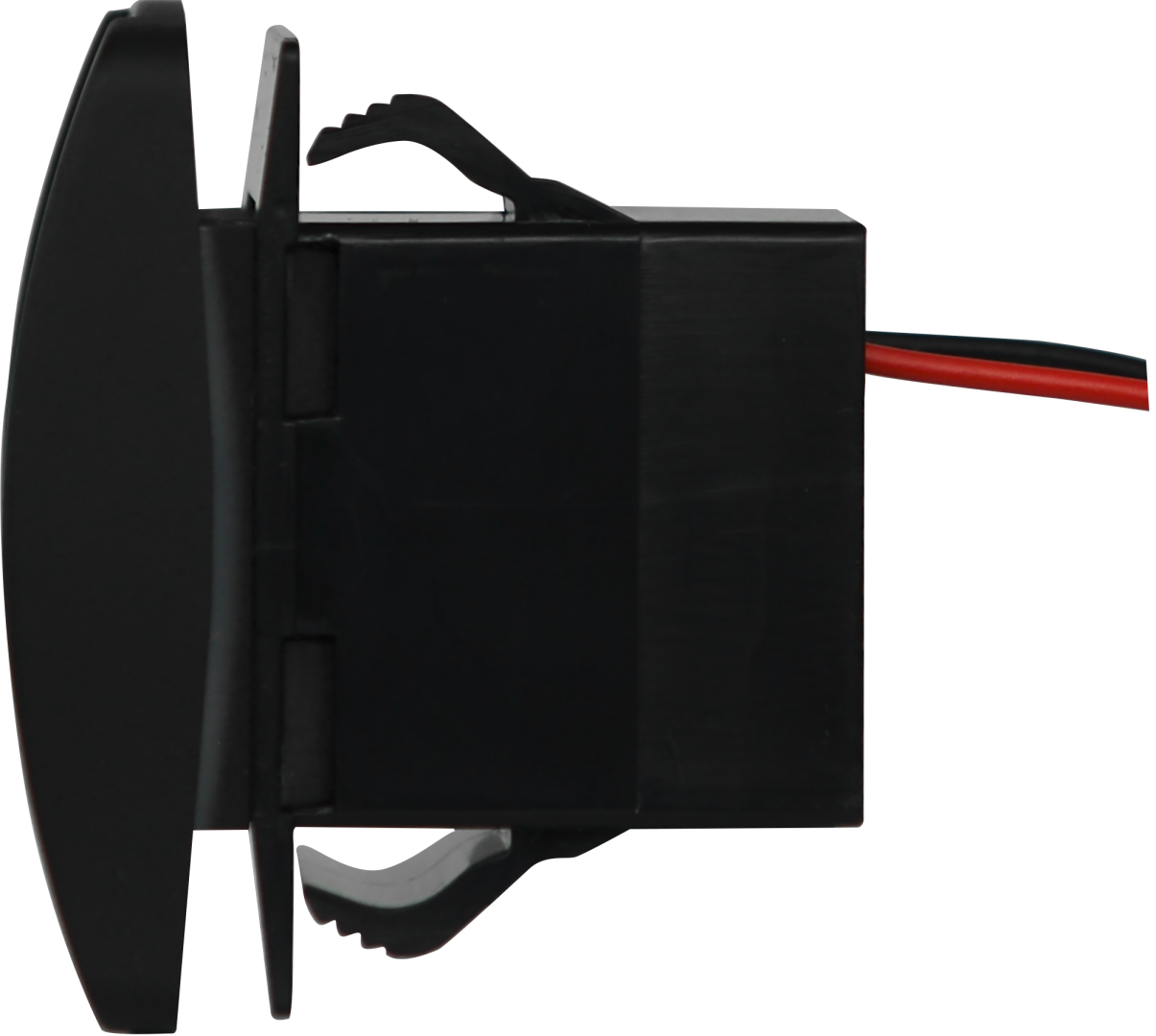

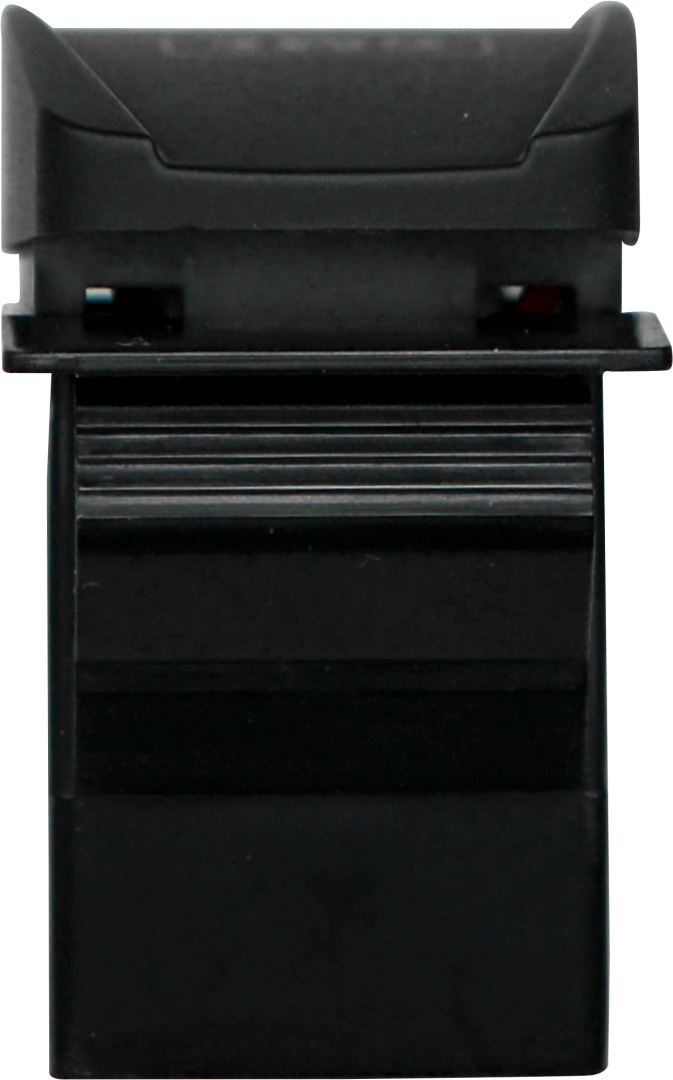

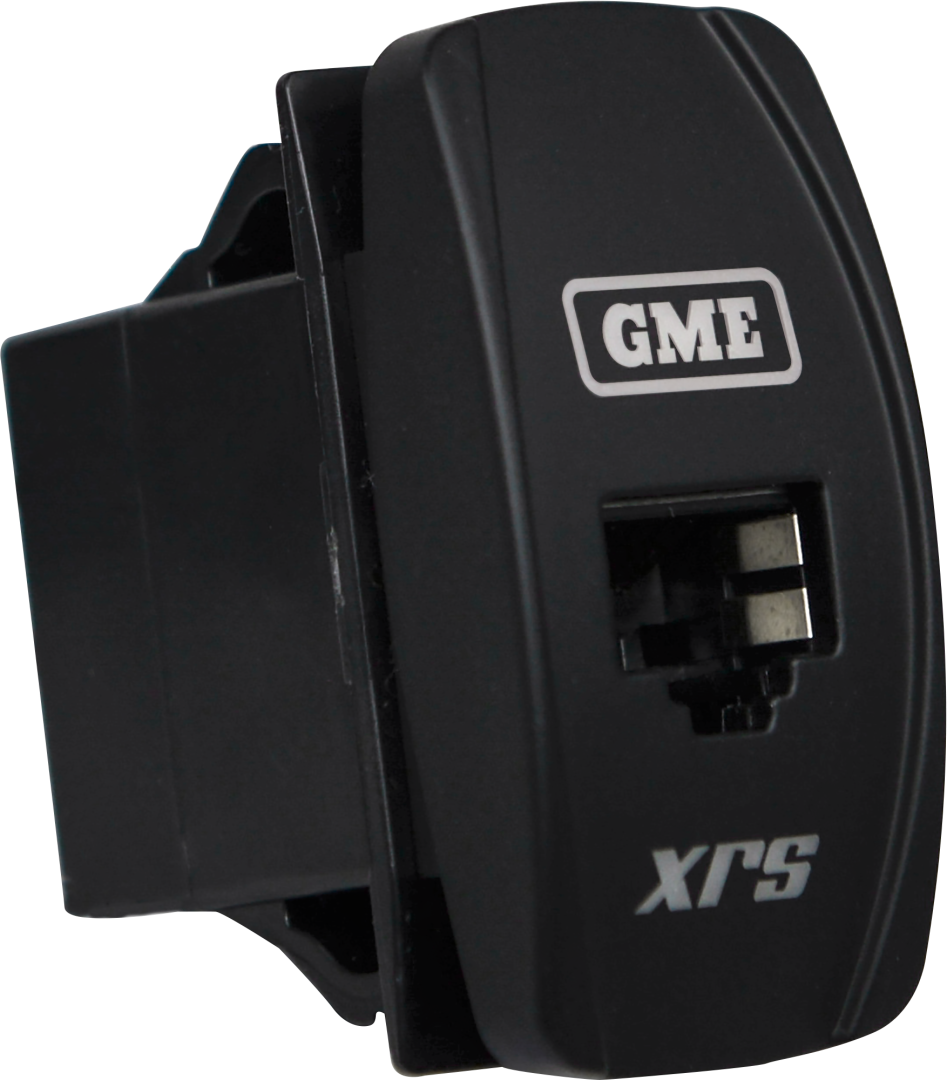

GME RADIOS | RJ45 Pass Through Adaptor Type 6 White (XRS-RJ45W6)
SELECT OPTIONS
Description
The XRS-RJ45W6 universal pass-through adaptors allow for an XRS Connect controller microphone to be integrated into a number locations and in a variety of vehicles, providing a neat and professional finish.
Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.
Refer to the compatibility matrix for specific model compatibility.
Also compatible with other GMRS radios using an 8 Pin RJ45 Connection.
Features
-
Suits XRS Connect GMRS Radios
-
CAT.6 Compliant
-
Fully-Shielded Housing
-
White LED Back-light
-
Ideally Suited for Universal Applications
-
Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit
-
Total Mounting Depth Excluding Cable Exit: 26mm
-
Switch Cut-Out Size Required: 21mm x 37mm (with a panel thickness of 2.0mm)
In the box
- Adaptor Only
(XRS-RJ45W6)
