GME RADIOS | RJ45 Pass Through Adaptor Type 6 Red (XRS-RJ45R6)

Description

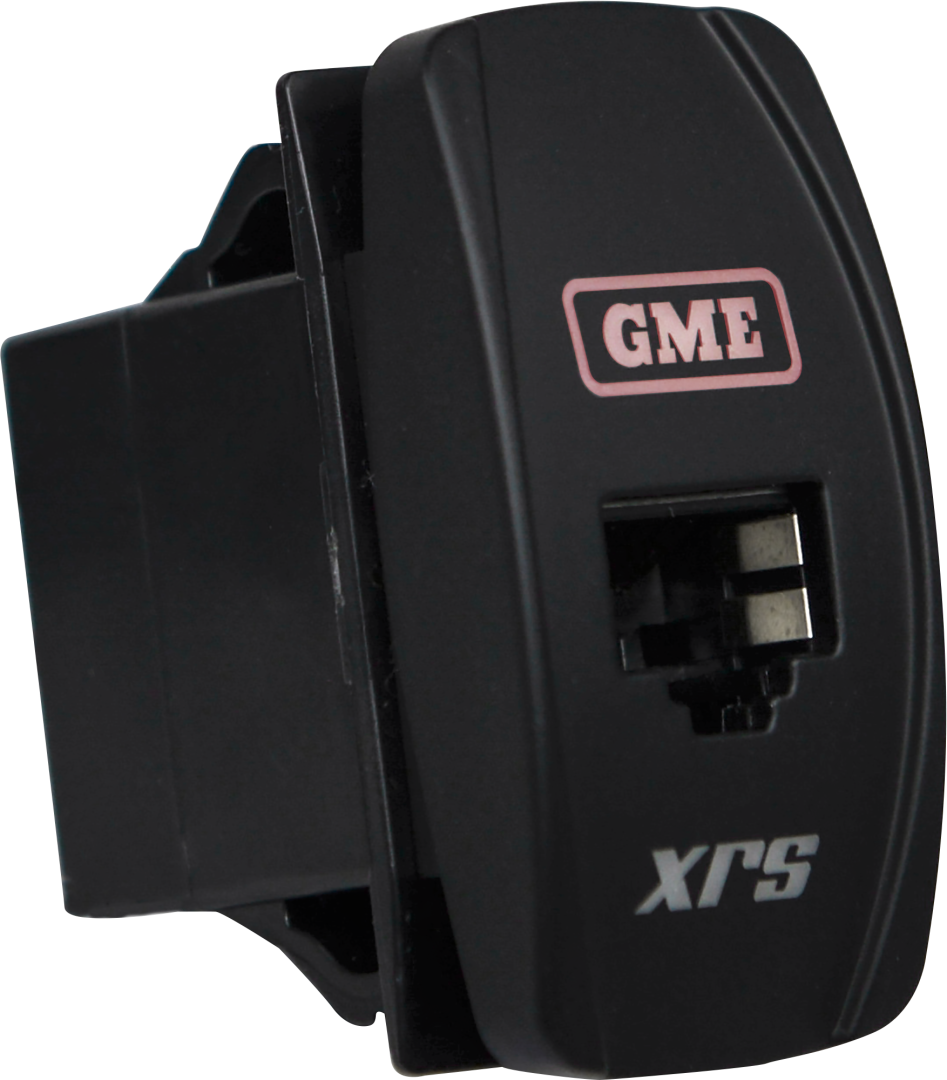

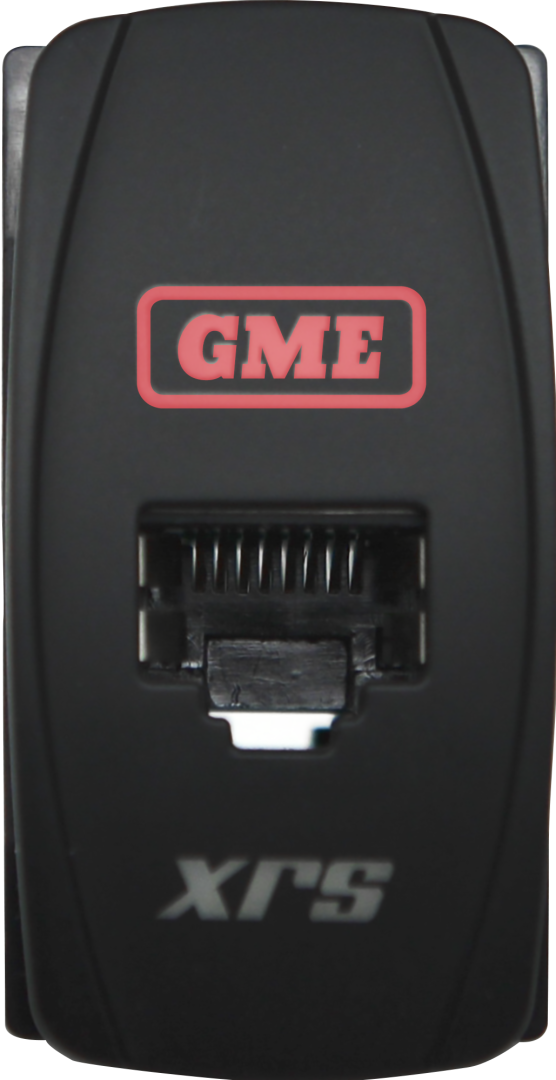

The XRS-RJ45R6 universal pass-through adaptors allow for an XRS Connect controller microphone to be integrated into a number of locations and in a variety of vehicles, providing a neat and professional finish.

Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.

Refer to the compatibility matrix for specific models.

Also compatible with other GMRS radios using an 8 Pin RJ45 Connection.

Features

• Suits XRS Connect GMRS Radios

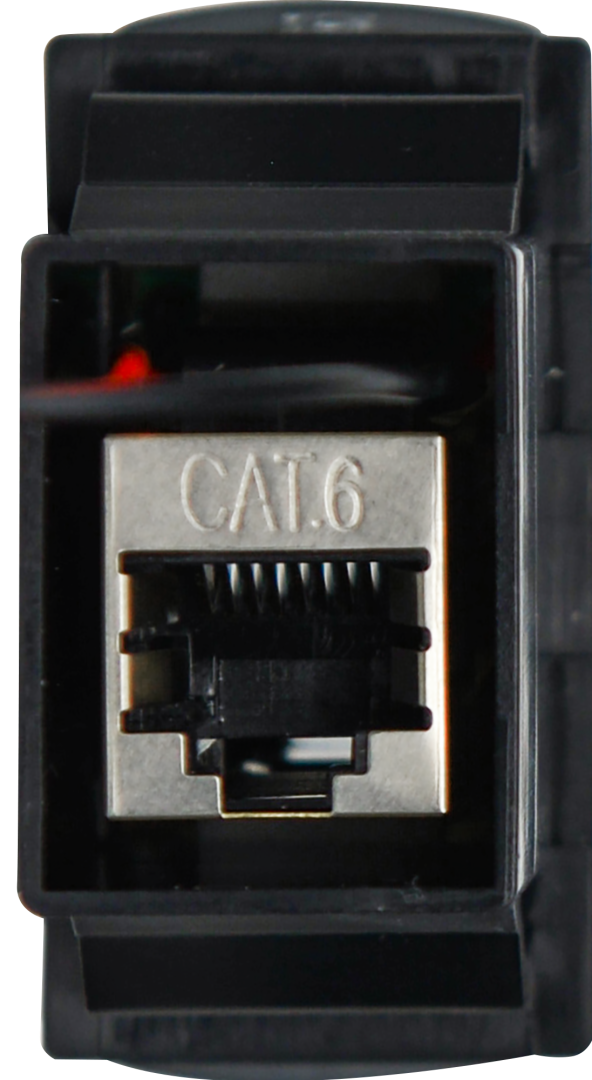

• CAT.6 Compliant

• Fully-Shielded Housing

• Red LED Back-light

• Ideally Suited for Universal Applications

• Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit

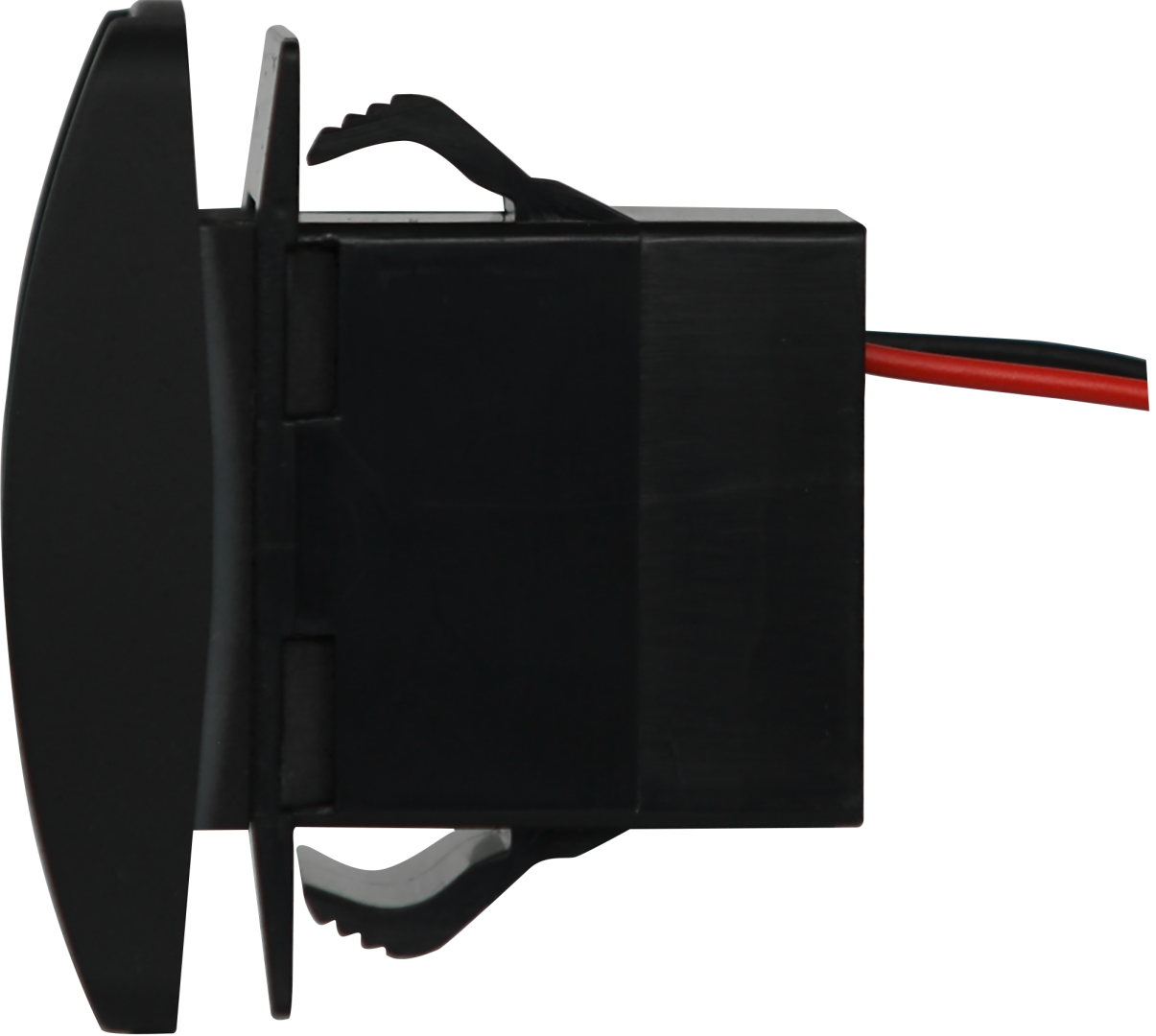

• Total Mounting Depth Excluding Cable Exit: 26mm

• Switch Cut-Out Size Required: 21mm x 37mm (with a panel thickness of 2.0mm)

In the box

• Adaptor Only

(XRS-RJ45R6)
