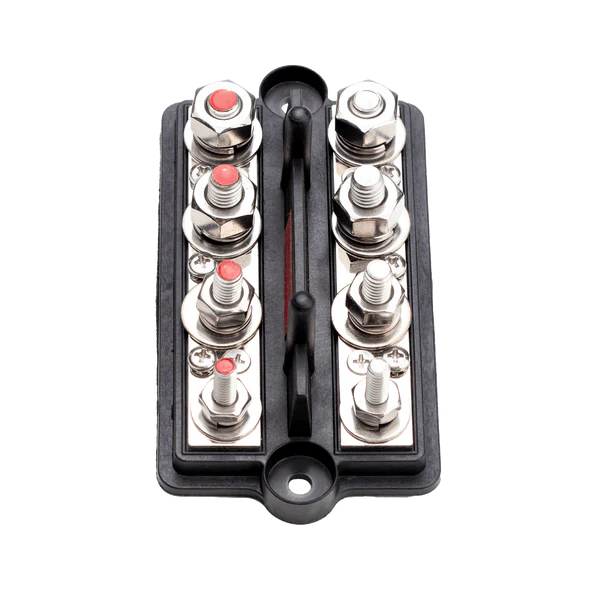

GENESIS OFFROAD | GEN3 4-Point Dual Busbar (WS-DBB)

Description

This is the same dual bus bar used in all of our GEN3 dual battery kits.

Handy for adding a remote mounted connection point for your power and ground wires for custom wiring applications.

Specifications

Connection Post Sizes
Each side has one 1/4" & 5/16" studs, and two 3/8" studs for heavy cable lugs, and three #10 screws for smaller ring terminals

Dimensions
Width: 2.975"
Length: 5.716"
Height: 1.772"
Mounting hole centers: 4.9"
Mounting Holes: #10 (hardware not included)

Installation Specs
Maximum Recommended Current:
250A @ 12v
Maximum Fastener Torque:
1/4"-20 Nuts
5/16"-18 Nuts 144 in/lbs
3/8"-16 Nuts 180 in/lbs
(Anti-seize recommended)
