GENESIS OFFROAD | Gen 3 Power Hub for Group 34 Kits (34-G3)

Description

This Power Hub fits the following dual battery systems

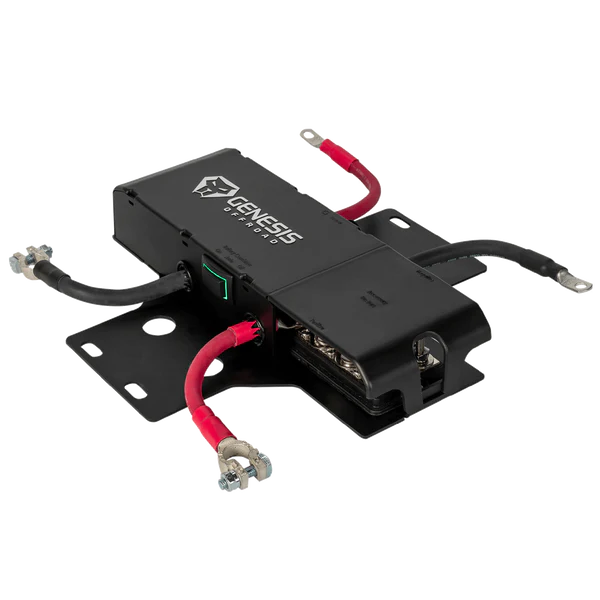

Already have a Genesis dual battery system, but want to upgrade to the latest and greatest version? Simply order the Power Hub for our Group 34 dual battery kits and swap the top piece to instantly get all the great new features! This Gen 3 Power Hub is a direct replacement for the top lid on Genesis dual battery systems for the Jeep JK, Toyota Tacoma, and our Universal Dual battery kit.

IMPORTANT NOTE: THE GEN3 POWER HUB IS NOT COMPATIBLE WITH OPTIMA BATTERIES. DUE TO THE SHAPE AND SIZE OF THE LID, IT WILL NO LONGER MOUNT BETWEEN THE BATTERY POSTS ON OPTIMA BATTERIES.

Bus Bars
Adding electrical accessories to your vehicle has never been easier!

3 sizes of studs for connecting heavy wires like your winch, stereo amps, fuse boxes, air compressor, etc. Connect smaller ring terminals to the small screws.

Boost Switch

Auto - Connects/Disconnects the batteries automatically based on their voltage level
On - Manually connects the batteries together just like jumper cables to help start the engine
Off - Manually separates the batteries

G Screen Port
Plug in our optional G Screen Monitoring System with a single cable to keep an eye on your system

How It Works
The heart of the system is a smart battery combiner that handles connecting / disconnecting the batteries automatically.

When the engine starts, it allows the engine to charge the cranking battery first, then links the batteries together in parallel so they can both be charged by the alternator.

Once it sees the voltage drop below ~12.7v for a minute, it will separate the batteries. Your accessories connected to the bus bars continue to run from the second battery and won't drain your cranking battery.
