GENESIS OFFROAD | Gen 3 Power Hub for Group 25 Kits (25-G3)
GENESIS OFFROAD | Gen 3 Power Hub for Group 25 Kits (25-G3)
GENESIS OFFROAD | Gen 3 Power Hub for Group 25 Kits (25-G3)

GENESIS OFFROAD | Gen 3 Power Hub for Group 25 Kits (25-G3)

$449.00
Quantity:

Description

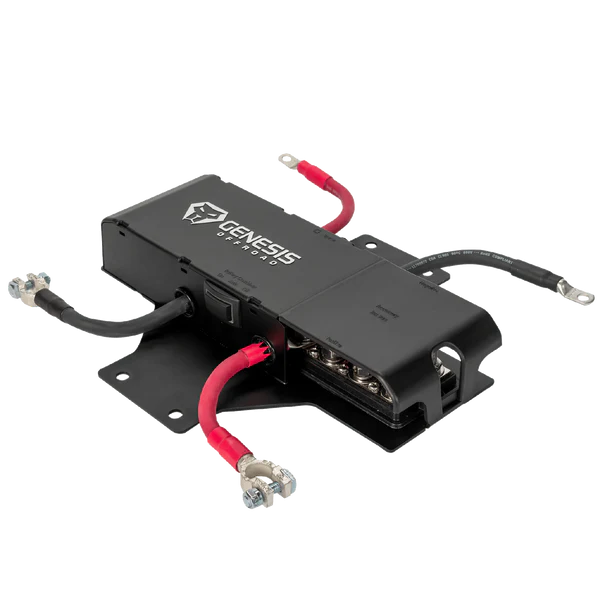

Already have a Genesis dual battery system, but want to upgrade to the latest and greatest version? Simply order the Power Hub for our Group 25 dual battery kits and swap the top piece to instantly get all the great new features! This Gen 3 Power Hub is a direct replacement for the top lid on Genesis dual battery systems for the Jeep JL & Gladiator, Toyota Tundra, 4Runner, and FJ Cruiser.

Take a deeper look at the GEN 3 Universal Power Hub

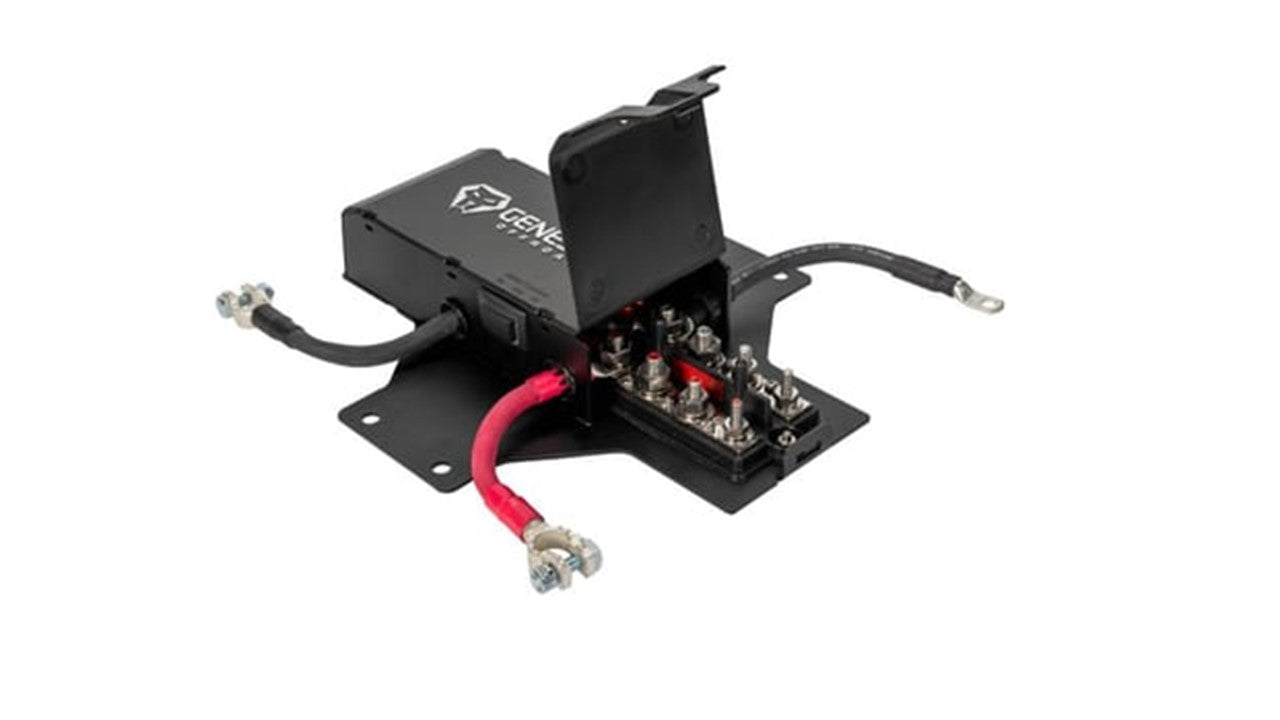

Bus Bars

Adding electrical accessories to your vehicle has never been easier!

3 sizes of studs for connecting heavy wires like your winch, stereo amps, fuse boxes, air compressor, etc. Connect smaller ring terminals to the small screws.

Boost Switch

Auto - Connects/Disconnects the batteries automatically based on their voltage level
On - Manually connects the batteries together just like jumper cables to help start the engine
Off - Manually separates the batteries

G Screen Port

Plug in our optional G Screen Monitoring System with a single cable to keep an eye on your system.

How It Works

The heart of the system is a smart battery combiner that handles connecting / disconnecting the batteries automatically.

When the engine starts, it allows the engine to charge the cranking battery first, then links the batteries together in parallel so they can both be charged by the alternator.

Once it sees the voltage drop below ~12.7v for a minute, it will separate the batteries. Your accessories connected to the bus bars continue to run from the second battery and won't drain your cranking battery.

Bus Bar Sizes

The Positive and Negative bus bars have 3 different size studs - - 3/8", 5/16", and 1/4" diameter for heavy cables for a winch, air compressor, fuse box, etc, and three #10 screws for attaching smaller ring terminals for your low amp accessories such as small LED lights.

Cable Size & Length

Our battery cables are made with 2ga heavy duty, high strand count, pure copper welding cable. Why welding cable instead of battery cable? It's more flexible, more conductive, with a thicker, more abrasion resistant jacket for ultimate durability. The lugs are made of pure copper and tin plated which is more conductive and eliminates corrosion, then covered with an extra thick, adhesive-lined heat shrink material to fully seal the ends of the copper wire for long lasting performance.

Cranking Battery Positive - 13 Feet
Cranking Battery Negative - 48"
Aux Battery Positive - 32"
Aux Battery Negative - 32"
Compatibility
The Power Hub can be used with any type of batteries - as long as the cranking and the accessory batteries are of the same type. Do not mix battery types (such as AGM and lithium) because doing so will reduce the lifespan of both.

It can be installed in any orientation in any type of vehicle - truck, RV, boat, heavy equipment, including in wet areas since all the components are water resistant.
