FRONT RUNNER | Toyota RAV4 2019-Current Slimline II Roof Rack Kit (KRTR004T)
SELECT OPTIONS
Description

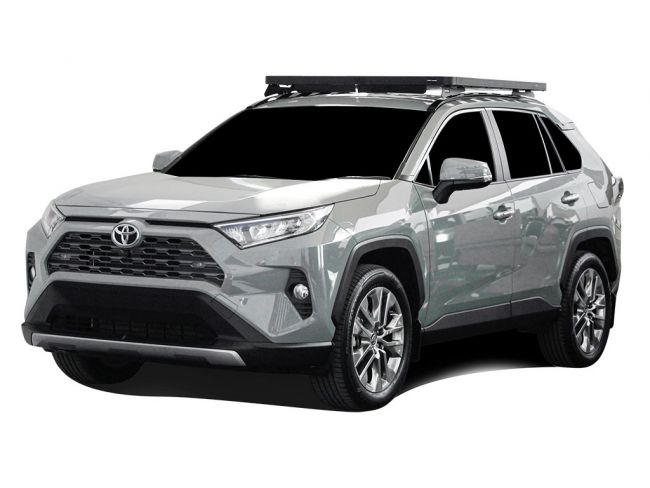

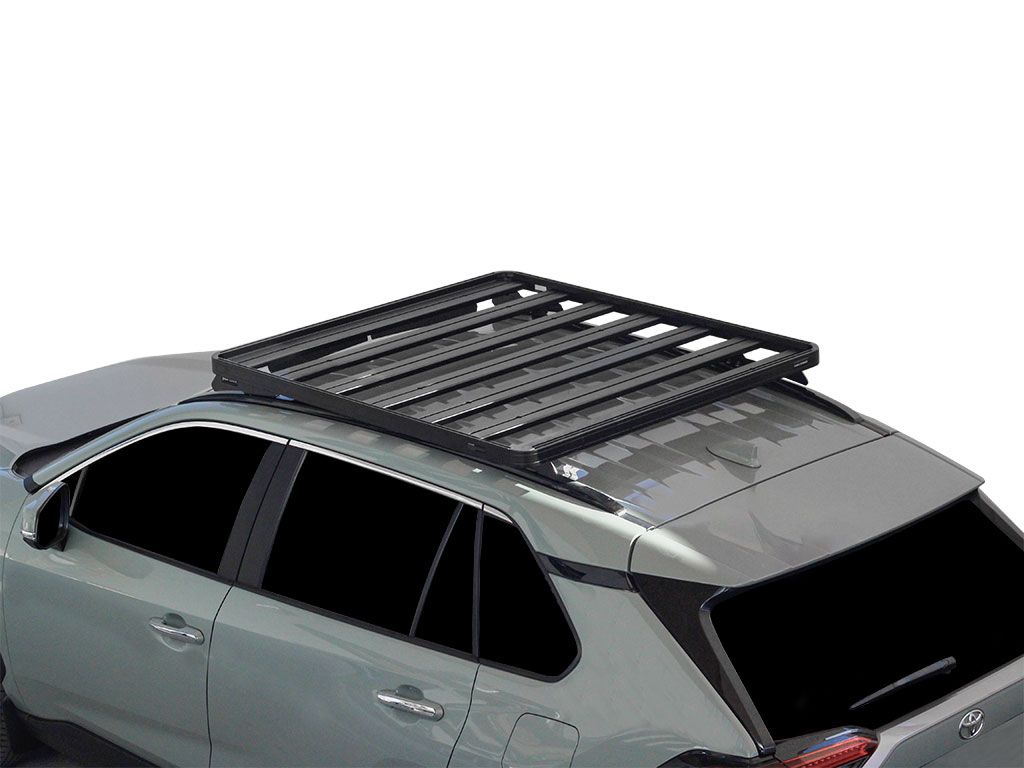

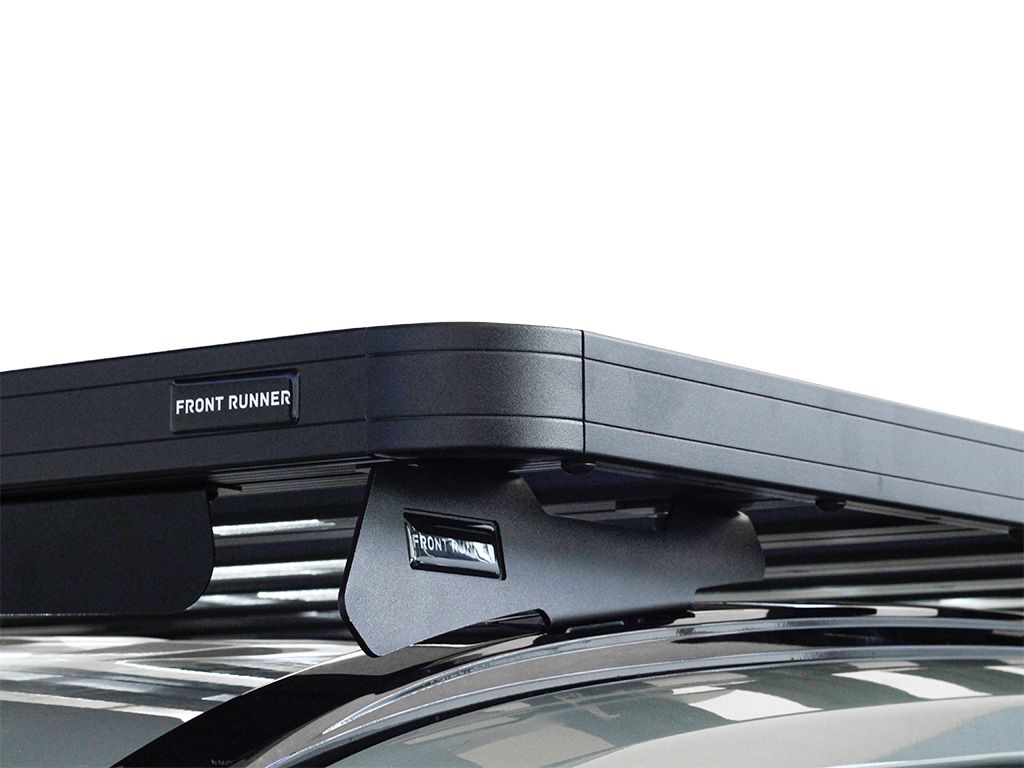

This 1358mm/53.5" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Rav4 2019+. Easily installs using the existing mounting points. No drilling required.
This 1358mm/53.5" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Rav4 2019+. Easily installs using the existing mounting points. No drilling required.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
Note: The factory glass sun roof is only operational with vent mode and can not be fully retracted to open with this Rack Kit fitted. This Rack Kit is not suitable for Rav4 Adventure, TRD or LE models.
Specifications

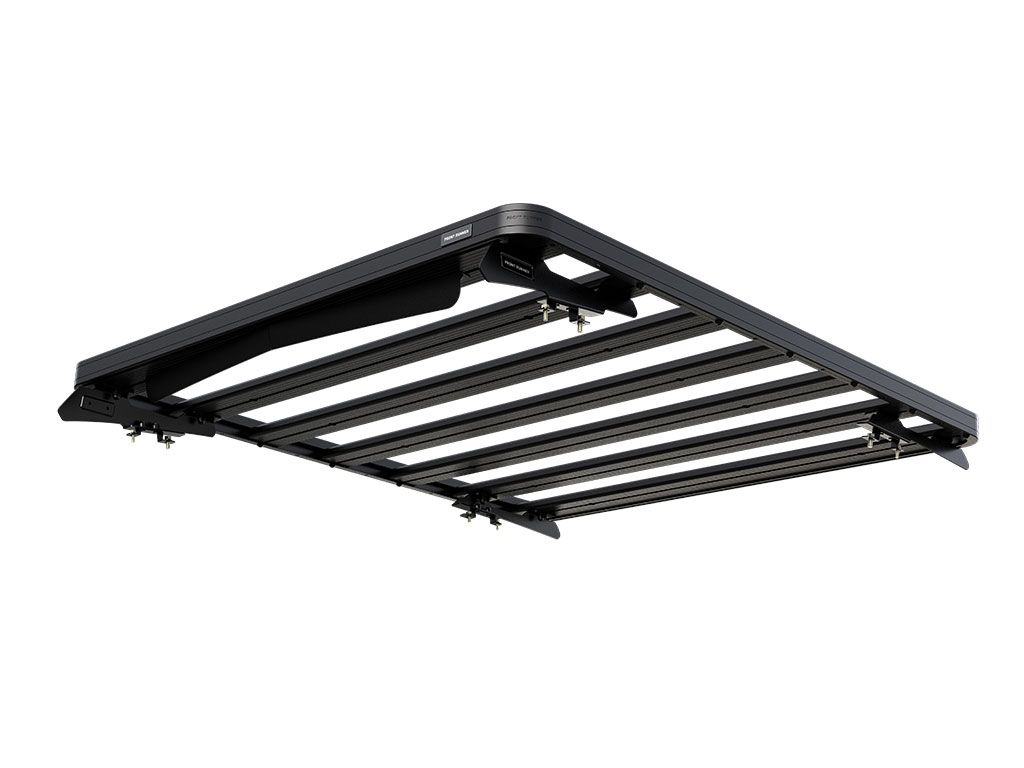

- 1 x FATR001 - Toyota Rav4 (2019-Current) Foot Rails - by Front Runner

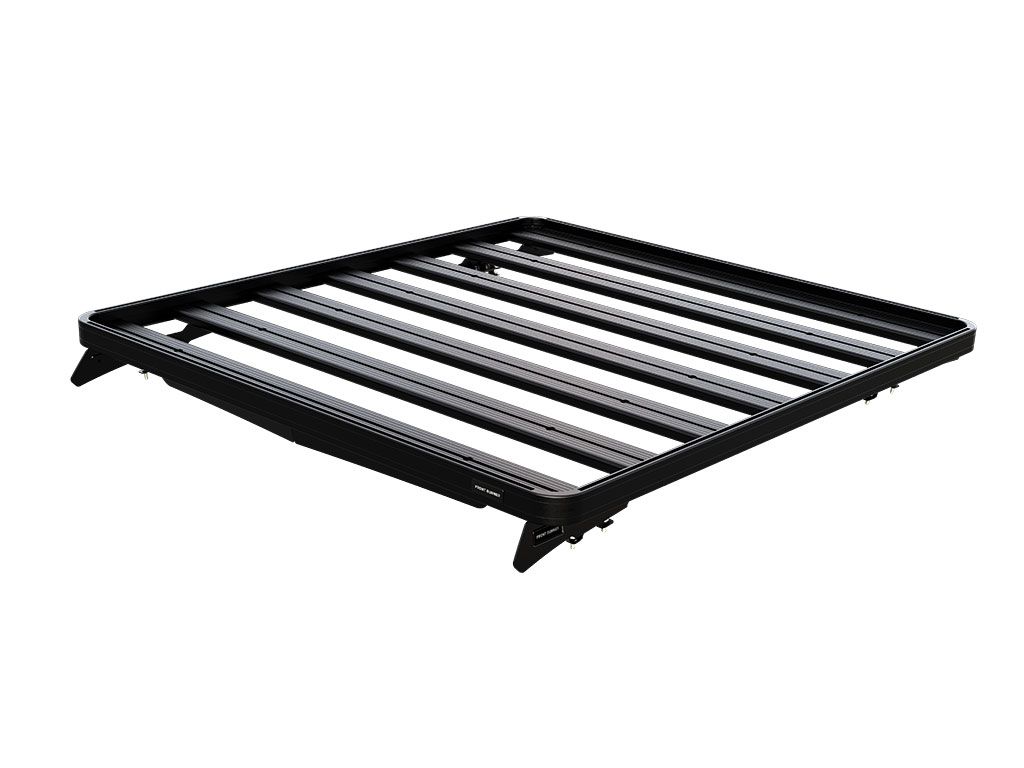

- 1 x RRSTD07 - Slimline II Tray - 1255mm(W) X 1358mm(L) - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight: 21kg (47lbs)

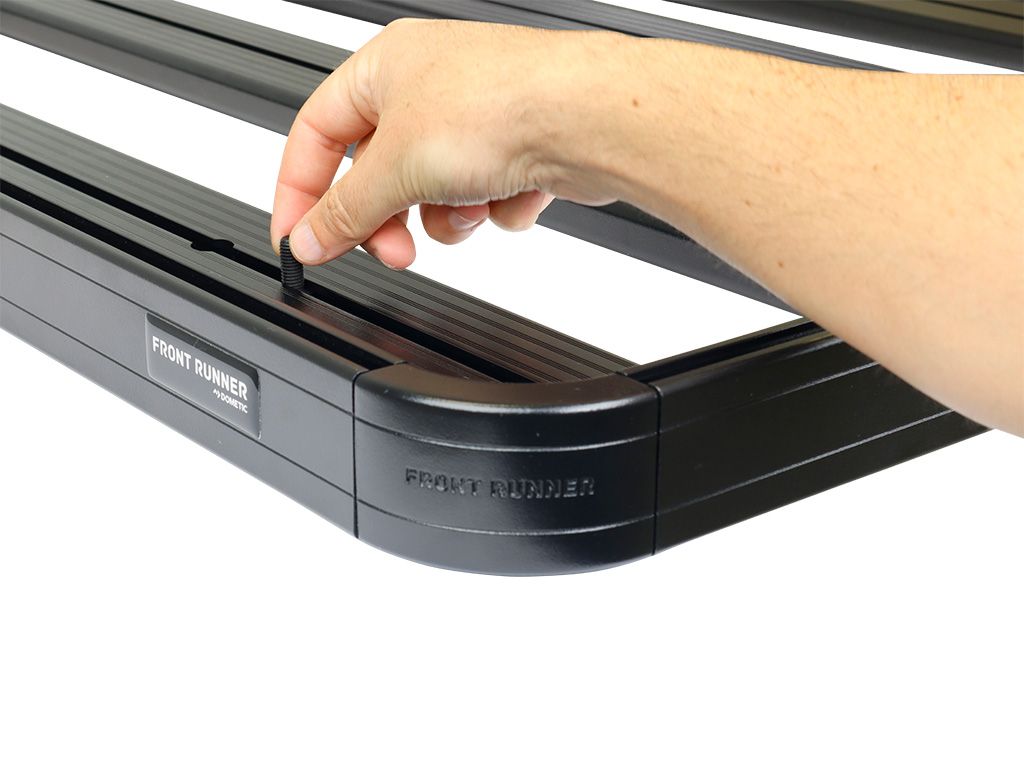

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

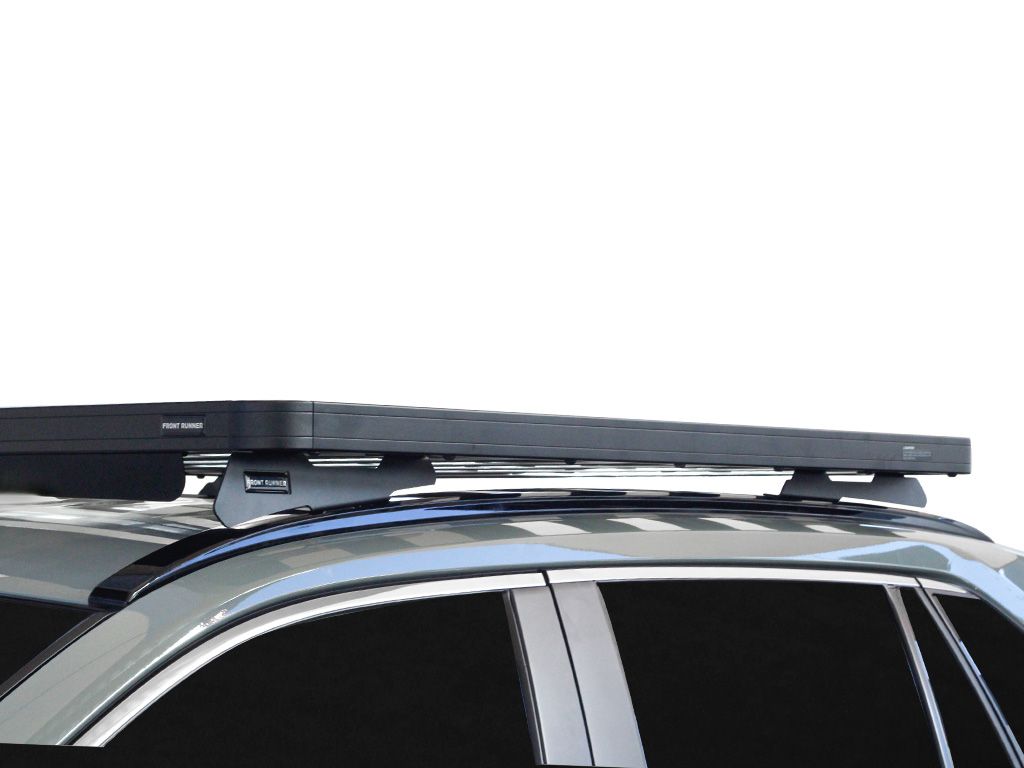

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Dimensions
- Width: 450mm (18")
- Length: 1610mm (63")
- Height: 260mm (10")
- Weight: 24.9kg (54.8lbs)
(KRTR004T)
