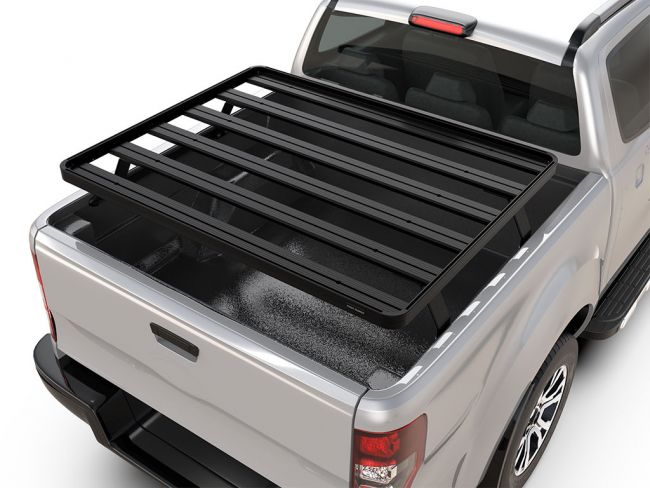

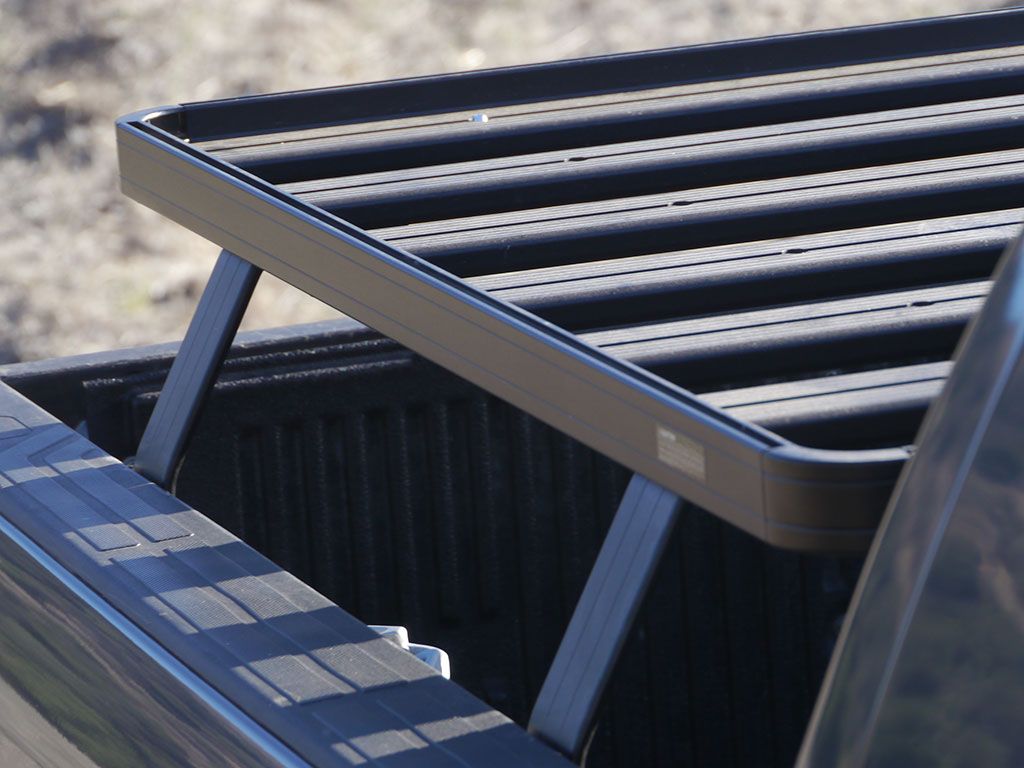

FRONT RUNNER | Slimline II Load Bed Rack Kit Toyota Tundra Pickup Truck (1999-Current)

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions in the INSTALL tab for further details.

While Front Runner racks and mounting systems have been engineered and built to hold 660 lbs/299kgs, this may exceed your vehicle manufacturers’ recommendations. Until all vehicle components are made as off-road tough as Front Runner’s, we suggest contacting your vehicle maker to check load limits before aggressive loading of the rack.

For further information on installation, please see the fitment instructions in the INSTALL tab.

Specifications

KRTT952T - Toyota Tundra Crew Max Pickup (1999-Current) Slimline II Load Bed Rack Kit - by Front Runner

Consisting of:

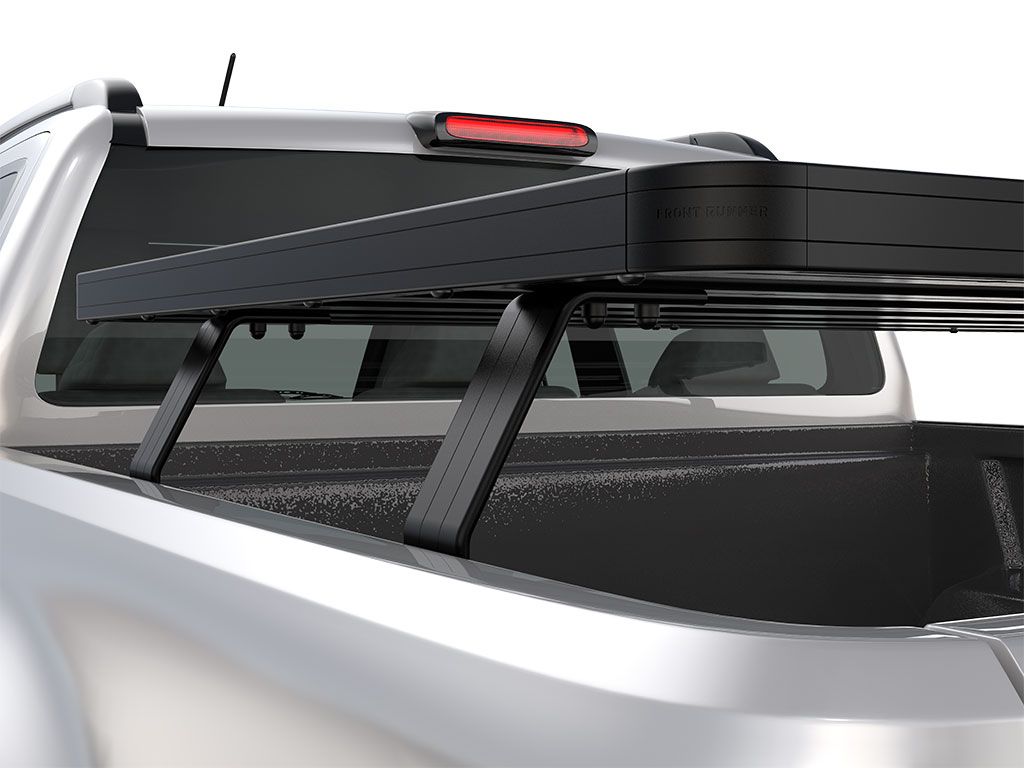

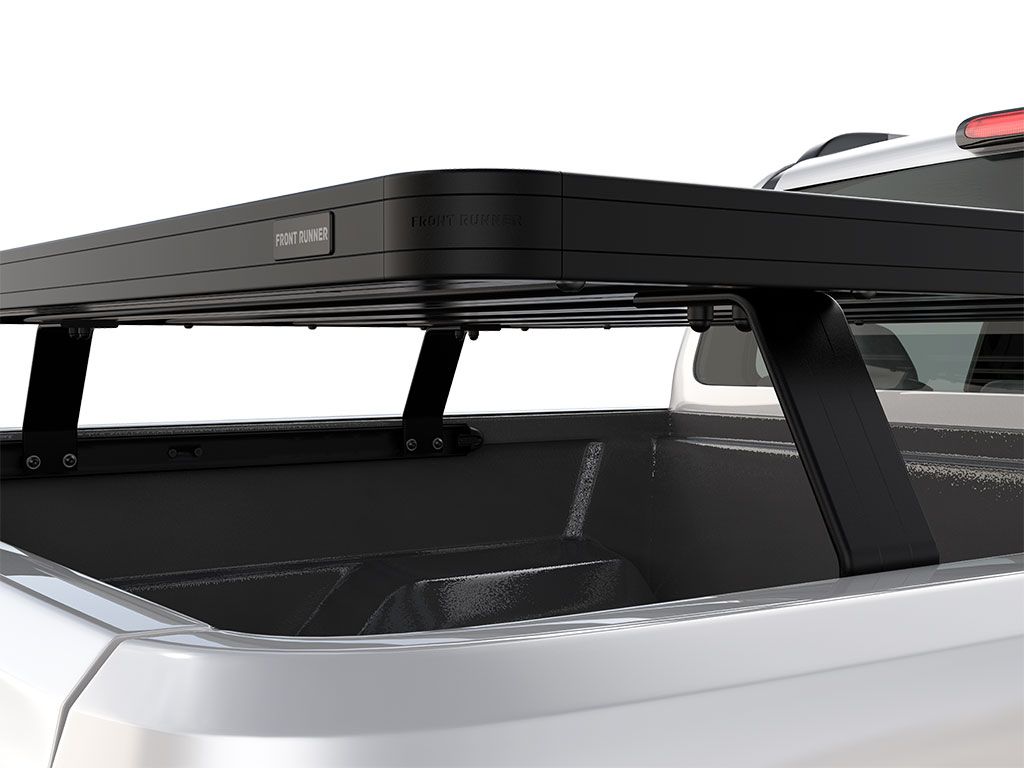

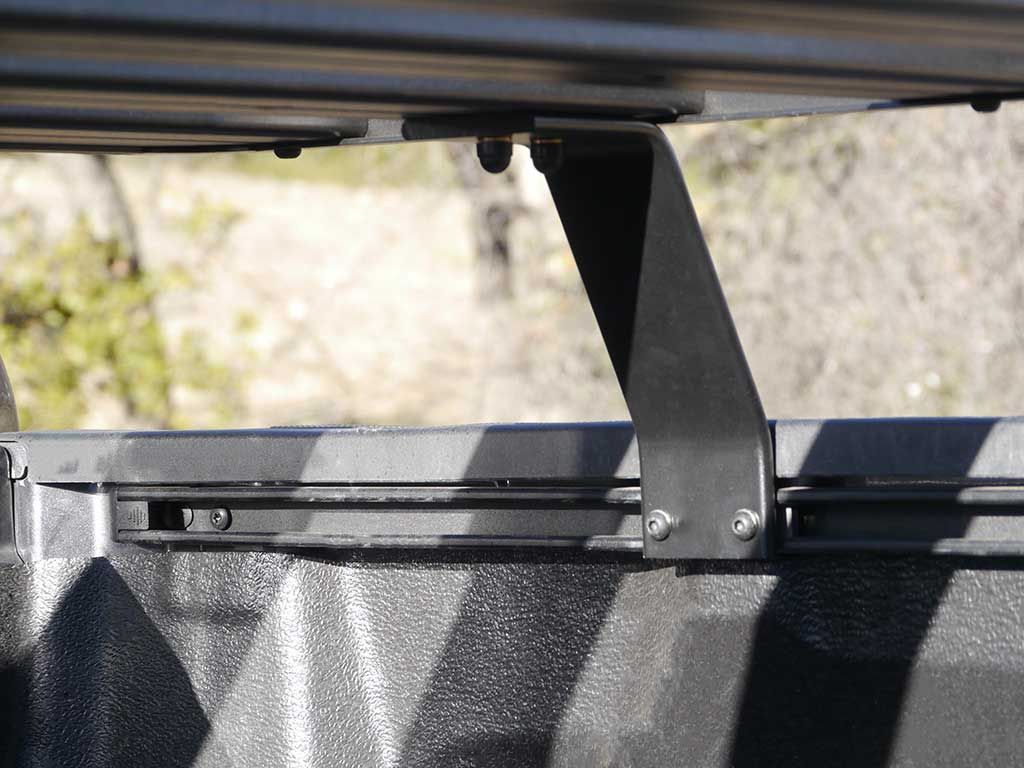

• 2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner

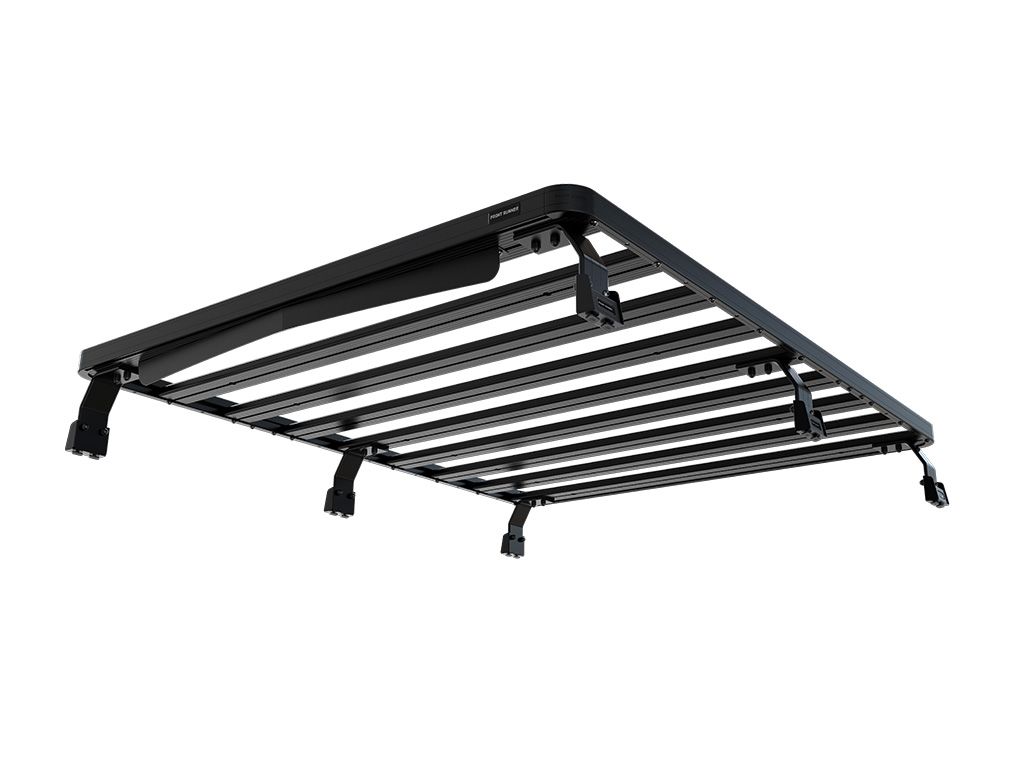

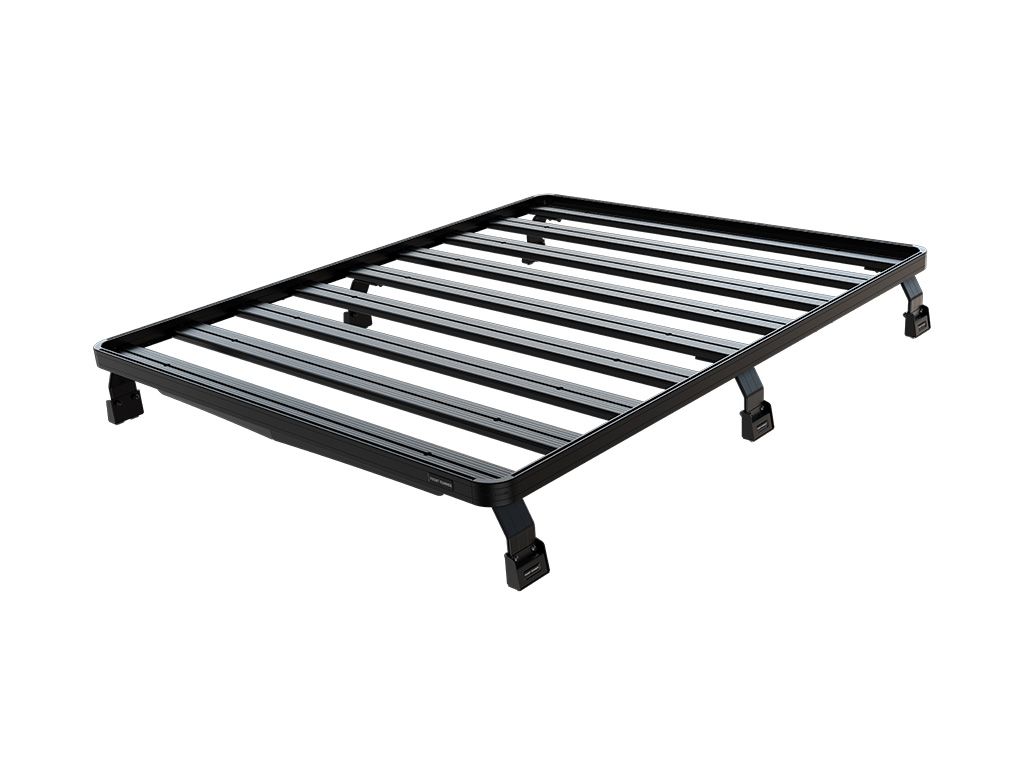

• 1 x RRSTM07 - Slimline II Tray - 1475mm(W) X 1358mm(L) - by Front Runner
• 1 x TRBU001 - Pickup Load Bed Tracks / 1000mm(L) - by Front Runner

Material used:

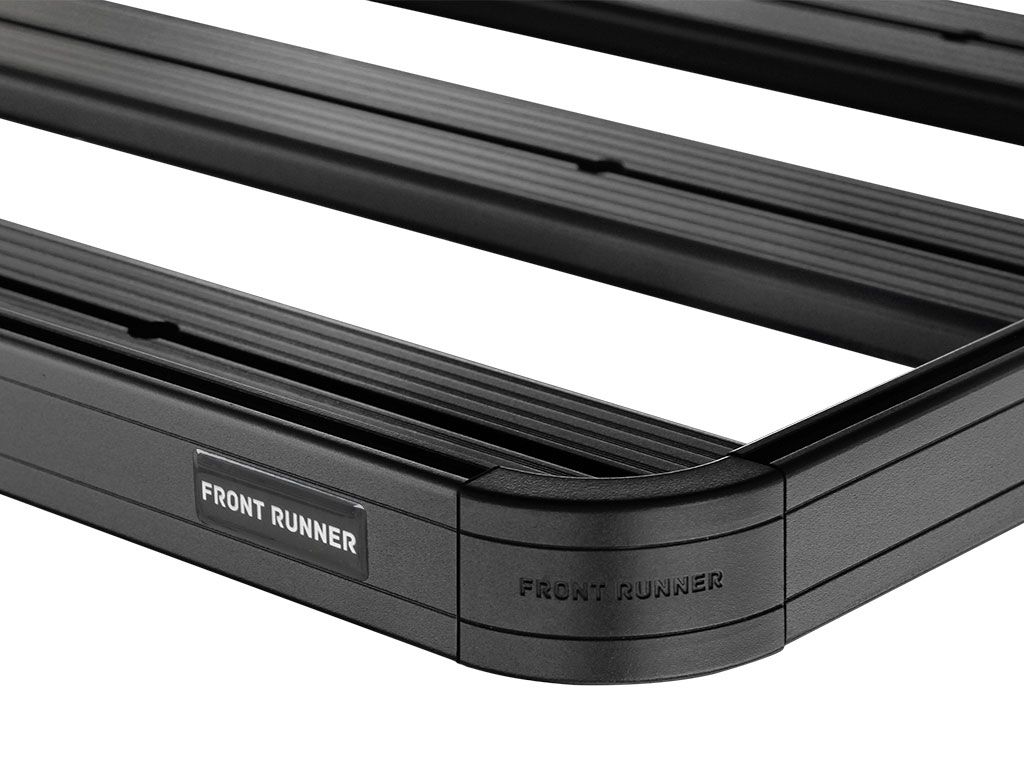

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 26kg (57lbs)

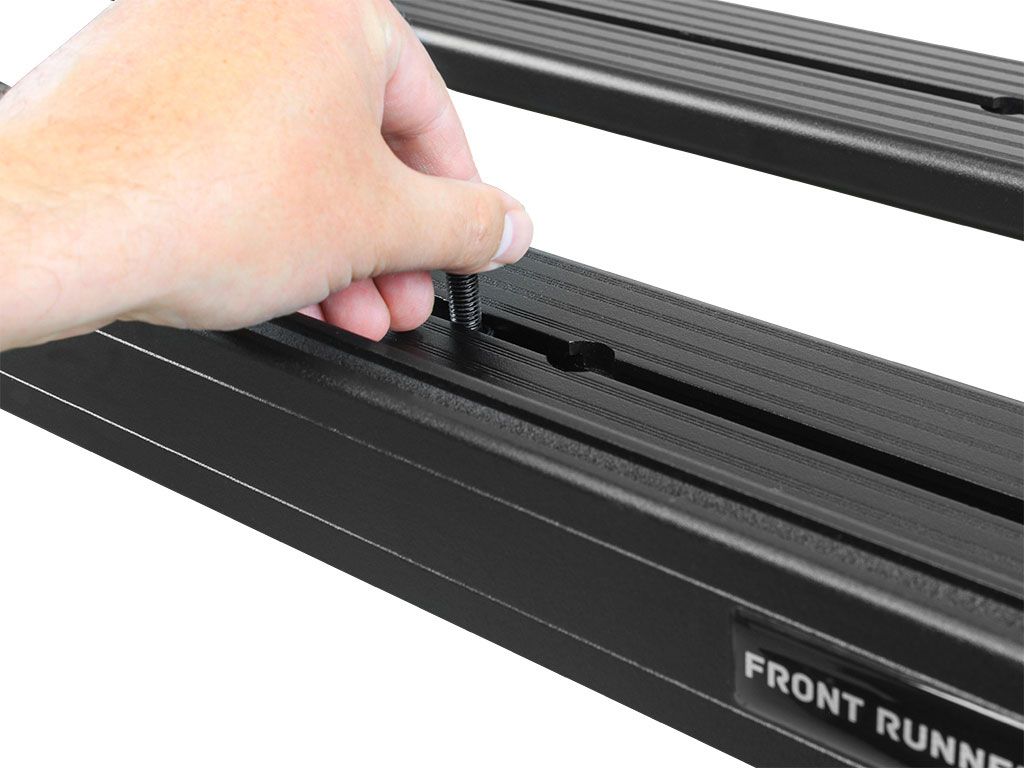

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 450mm (18")
• Length: 1615mm (64")
• Height: 140mm (6")
• Weight: 30.3kg (66.7lbs)
