FRONT RUNNER | Lexus GX470 Slimline II 1/2 Roof Rack Kit
SELECT OPTIONS
Description
This 1156mm/ 45.5" long 1/2 size Slimline II cargo carrying roof rack kit contains a Slimline II Tray, Wind Deflector, and 2 foot rails to mount the Slimline II Tray to your Toyota Land Cruiser 200 or Lexus LX570. It easily installs using the existing factory mounting points. No drilling required.
Configure your Slimline II Rack to suit any adventure by adding the RACK ACCESSORIES or explore them later when a new adventure calls.
This 1156mm/ 45.5" long 1/2 size Slimline II cargo carrying roof rack kit contains a Slimline II Tray, Wind Deflector, and 2 foot rails to mount the Slimline II Tray to your Toyota Land Cruiser 200 or Lexus LX570. It easily installs using the existing factory mounting points. No drilling required.
All Front Runner Rack Kits contain Installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller Pro Stainless Steel Prep Table Kit and 1 larger Pro Stainless Steel Camp Table Kit).
All Front Runner Racks are backed by a Limited Lifetime Warranty*
Note: For fitment to the Lexus LX570, the flush roof rails are required to be removed and the headliner will need to be lowered.
Specifications
KRLE008T - Lexus GX470 Slimline II 1/2 Roof Rack Kit - by Front Runner
Consisting of:
- 1 x FATP002 - Toyota Prado 120 Foot Rails - by Front Runner
- 1 x RRSTD06 - Slimline II Tray - 1255mm(W) X 1156mm(L) - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 27kg (59lbs)

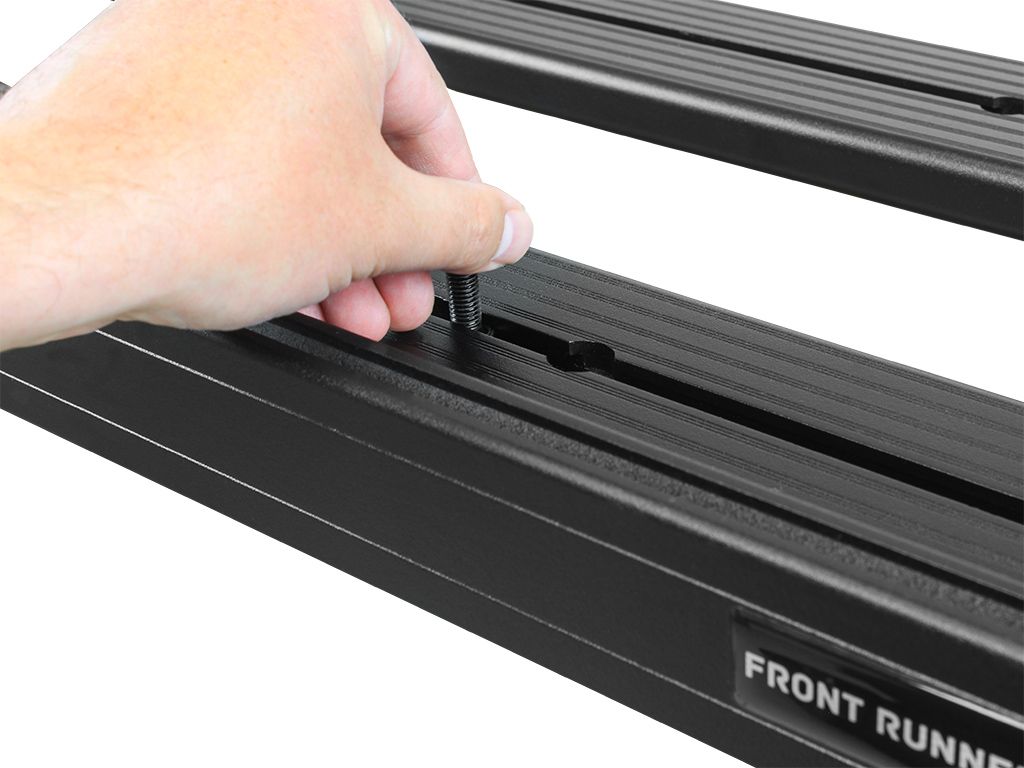

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
- Width 450mm (18")
- Length 1615mm (64")
- Height 140mm (6")
Shipping Weight:
Weight 31.0kg (68.2lbs)
